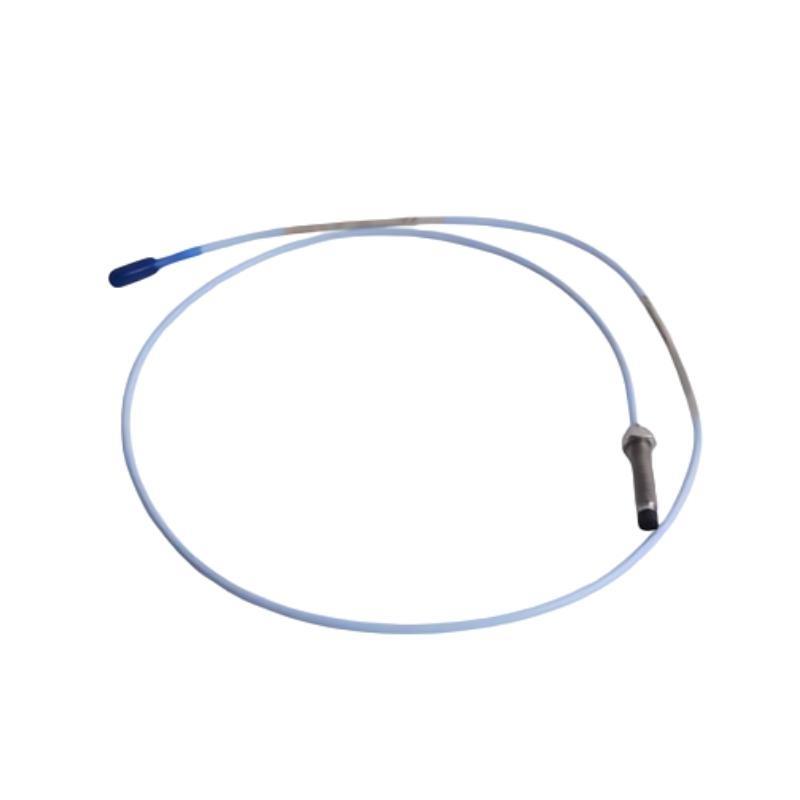

The Bently Nevada 330101-00-12-50-01-05 3300 XL 8 mm Proximity Probe is a high-performance non-contact displacement transducer designed to measure the vibration and shaft position / rotating machinery. It is part / Bently Nevada’s world-renowned 3300 XL proximity transducer system, which is widely recognized for its precision, stability, and reliability in harsh industrial environments.
This model /fers a total system length / 5.0 meters, combining a probe, extension cable, and Proximitor sensor. The 3300 XL 8 mm system provides accurate linear output over a standard range / 2 mm (80 mils) and is compatible with a wide variety / rotating machines such as turbines, compressors, pumps, motors, and gearboxes.
Built with robust materials and advanced shielding, this probe ensures imm件y to electromagnetic interference and provides long-term stability even under high temperature and vibration conditions. Its design meets or exceeds API 670 standards for machinery protection and monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | 330101-00-12-50-01-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| System Type | Non-contact eddy current displacement transducer |
| Compatible System | Bently Nevada 3300 XL Series |
| Total System Length | 5.0 meters |
| Probe Tip Diameter | 8 mm (0.315 inch) |
| Linear Range | 2.0 mm (80 mils) |
| Sensitivity | 200 mV/mil (7.87 mV/µm) |
| Probe Length | 120 mm |
| Thread Type | M10 × 1.0 |
| Nominal Gap | 2.0 mm (80 mils) |
| Frequency Response | 0 to 10 kHz (–3 dB) |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –51 °C to +177 °C |
| Pressure Rating | 700 kPa (100 psi) maximum |
| Electrical Isolation | Probe tip and case electrically isolated |
| Material | Stainless steel (AISI 316) |
| Vibration Limit | 50 g peak, 10–2000 Hz |
| 重量 | 1.615 kg |
| Environmental Rating | IP68 sealed construction |
| Compliance | API 670, CE, RoHS, ATEX Zone 2 |
Applications
The Bently Nevada 330101-00-12-50-01-05 Proximity Probe is a core component in condition monitoring and protection systems for critical rotating equipment. It is extensively used across industries where accurate vibration, shaft displacement, and phase measurements are essential for predictive maintenance and safety.
Typical applications include:
-
Steam and Gas Turbines: Continuous monitoring / shaft vibration and thrust position.
-
Compressors: Detection / shaft displacement, imbalance, and rotor instability.
-
Pumps and Motors: Measurement / radial vibration and misalignment detection.
-
Gearboxes: Monitoring / gear mesh vibration and bearing wear.
-
Fans and Blowers: Real-time detection / imbalance and mechanical looseness.
-
Hydraulic Turbines and Generators: Measuring dynamic shaft movement to prevent mechanical failure.
Advantages
-
High Measurement Accuracy: Provides stable and linear output across a wide displacement range, meeting API 670 standards.
-
Superior Temperature Stability: Designed for consistent performance from –35 °C to +177 °C without recalibration.
-
Enhanced EMI Resistance: Advanced shielding ensures signal integrity in high electrical noise environments.
-
Long System Length Flexibility: 5-meter configuration supports versatile installation across large machinery.
-
Robust Mechanical Design: Stainless steel body and hermetically sealed construction provide long service life.
-
Easy Integration: Fully compatible with Bently Nevada 3300, 3309, and 3500 systems.
-
High Vibration Tolerance: Engineered to withstand up to 50 g peak vibration without loss / calibration.
-
Reliable Environmental Protection: IP68 sealing ensures protection against oil, dust, and water ingress.
-
API 670 Compliant: Meets global standards for machinery protection instrumentation.
-
Proven Industrial Reliability: Used worldwide in critical process plants for over three decades.
FAQ
-
What is the total system length / the 330101-00-12-50-01-05 model?
The total system length is 5.0 meters, including the probe, extension cable, and Proximitor sensor. -
What is the sensitivity / this proximity probe?
It provides a sensitivity / 200 mV/mil (7.87 mV/µm). -
What is the linear measurement range / this probe?
The linear range is 2.0 mm (80 mils) with consistent accuracy across the range. -
What probe systems are compatible with this model?
It is compatible with Bently Nevada 3300, 3309, and 3500 proximity transducer systems. -
What type / thread is used for probe mounting?
The probe uses a standard M10 × 1.0 threaded mounting configuration. -
Can the probe operate under high temperature conditions?
Yes, it is rated for operation between –35 °C and +177 °C. -
What is the environmental protection rating / the probe?
It is rated IP68 for full protection against dust and immersion in liquids. -
Does the probe comply with industrial protection standards?
Yes, it meets the API 670 standard for vibration and displacement measurement systems. -
What frequency range can the probe accurately measure?
It operates from 0 to 10 kHz (–3 dB), suitable for high-speed rotating machinery. -
Is the probe electrically isolated from the machine surface?
Yes, both the probe tip and case are fully electrically isolated to prevent ground loops.
Related 型号s (Same Series / Similar Function)
| 型号 | 描述 |
|---|---|
| 330101-00-07-10-02-05 | 8 mm probe, 5 m system length, standard mount |
| 330101-00-12-10-02-05 | 8 mm probe, 7 m system length |
| 330101-00-20-10-02-05 | 8 mm probe, 9 m system length |

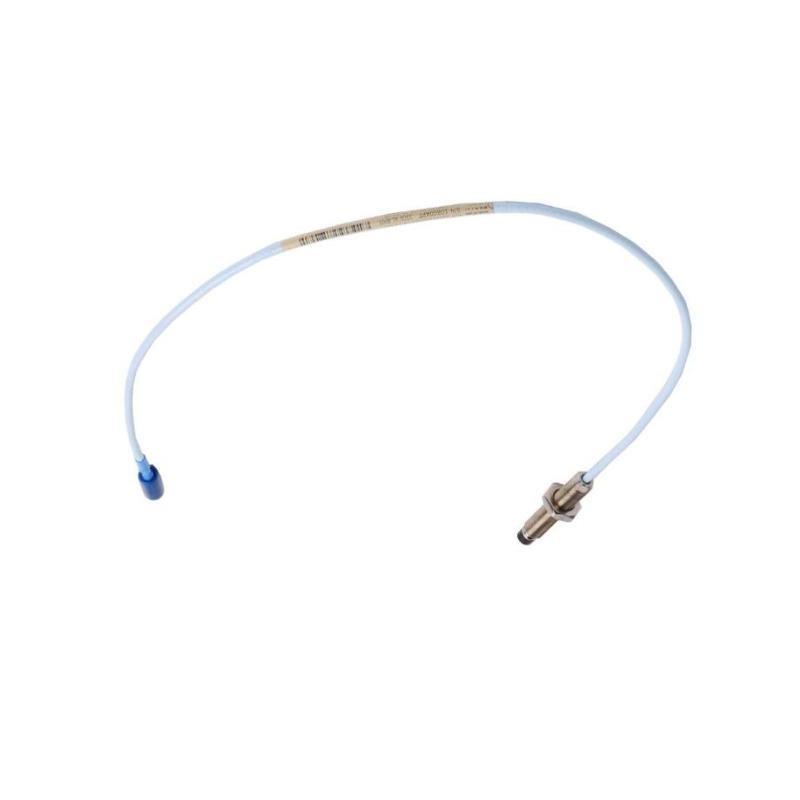

| 330102-00-08-10-02-05 | 5 mm probe for limited space applications |

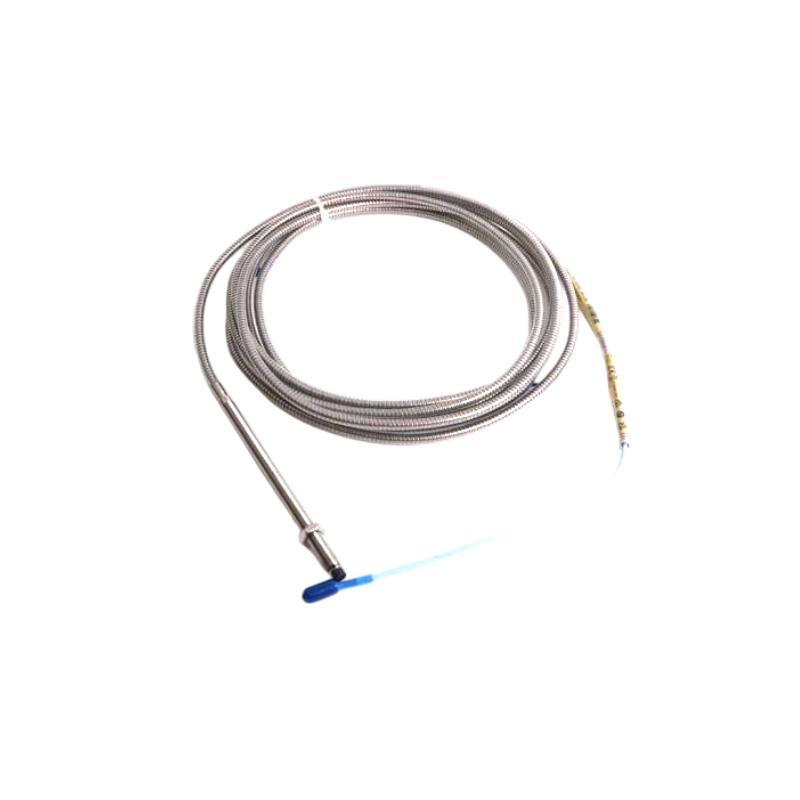

| 330103-00-07-10-02-05 | 11 mm extended-length probe |
| 330104-00-10-10-02-05 | 25 mm long-range proximity probe |
Popular Bently Nevada 型号s (Same 品牌)
| 型号 | 描述 |
|---|---|
| 330130-040-00 | 5 m extension cable for 3300 XL probes |
| 330180-91-05 | 3300 XL Proximitor sensor |
| 3500/22M | Transient Data Interface module |
| 3500/42M | Proximitor/Seismic Monitor |
| 3500/25 | Keyphasor module for phase and speed measurement |
| 3500/32M | Relay module for alarm and trip logic |
