Product Overview

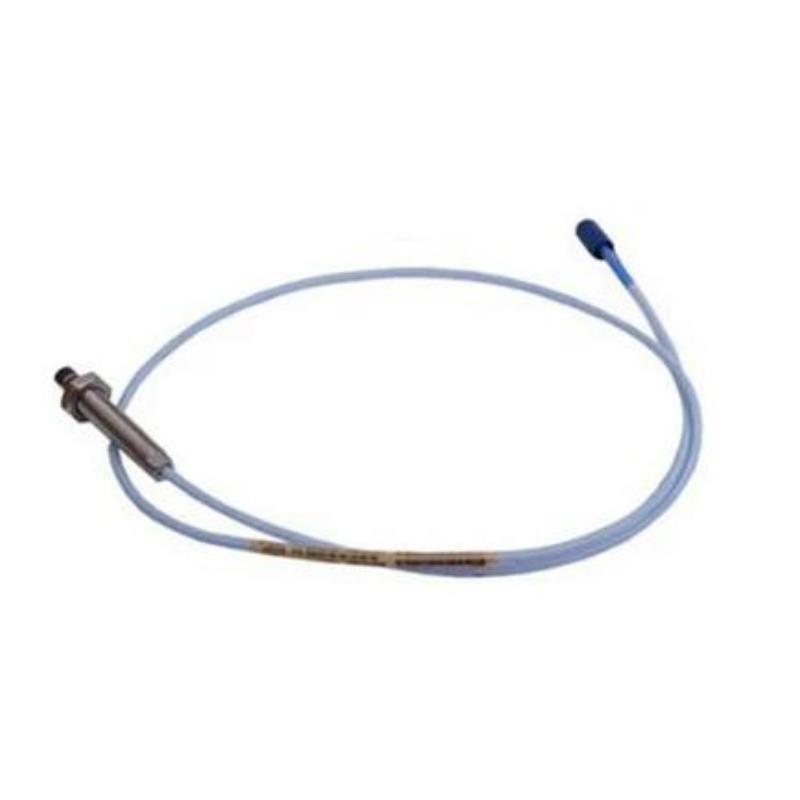

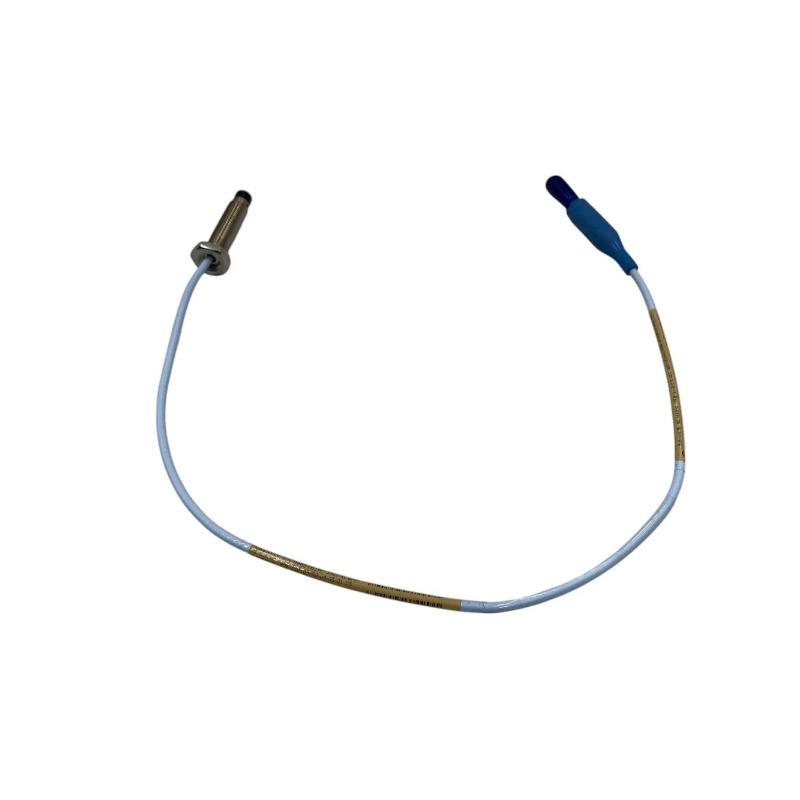

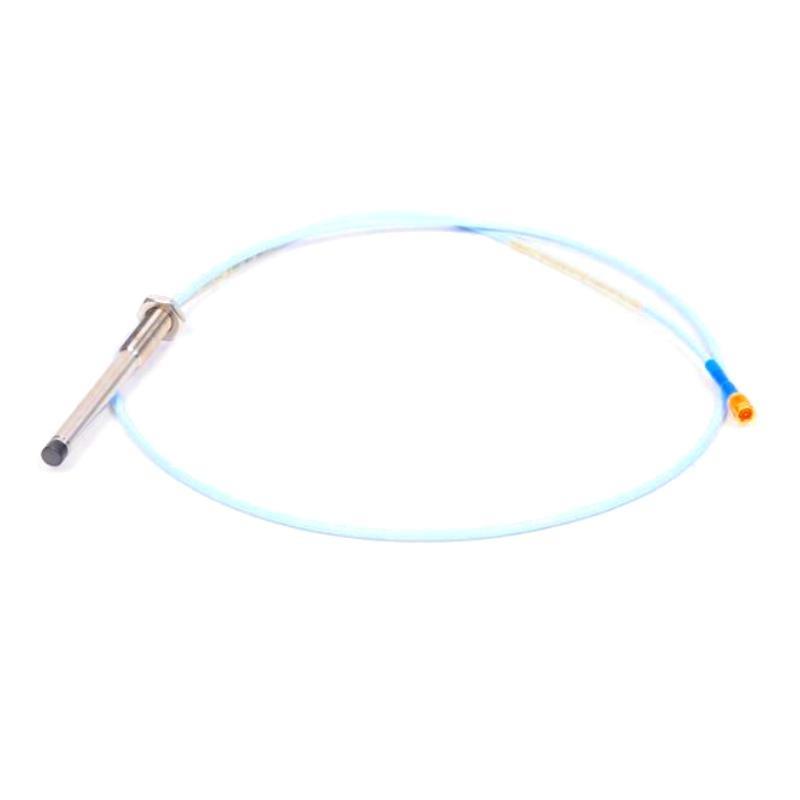

The Bently Nevada 330103-00-04-15-02-CN is a high-performance 8 mm proximity probe designed for use in Bently Nevada’s 3300 XL series vibration and position monitoring systems. Built for reliability, this model features a rugged stainless steel body, a 15-foot (4.57 m) shielded coaxial cable, and a connector with configuration code “02,” suitable for critical rotating machinery in the power, oil & gas, and petrochemical industries.
The “CN” designation indicates a region-specific variation—/ten aligned with Chinese manufacturing standards or localized configurations. This proximity probe is ideal for applications requiring accurate non-contact shaft position measurements, providing critical data for condition-based maintenance and machine protection systems.
Key Features
-
8 mm tip diameter designed for standard proximity measurements
-
15-foot (4.57 m) shielded coaxial cable
-
Compatible with 3300 XL Proximitor® sensors and monitoring systems
-
Stainless steel construction for industrial durability
-
EMI/RFI shielding for stable, noise-free signal transmission
-
Connector shell “02” for standardized system integration
-
IP67-rated environmental protection
-
CN configuration for China-specific or localized compliance
-
Designed for long-term, high-reliability deployment in rotating machinery
Technical Specifications
| Item | Specification |
|---|---|
| 制造商 | Bently Nevada (a Baker Hughes company) |
| 型号 Number | 330103-00-04-15-02-CN |
| Series | 3300 XL |
| Product Type | Proximity Probe |
| Sensing Technology | Eddy Current |
| Tip Diameter | 8 mm (0.315 in) |
| Sensing Range | 0.15 mm to 5.00 mm (typical linear range) |
| Cable Length | 15 feet (4.57 meters) |
| Connector Type | Shell Style 02 |
| Regional Code | CN (typically indicates China-localized version) |
| Probe Material | Stainless Steel |
| Frequency Response | Up to 40 kHz |
| Operating Temperature | –40°C to +120°C (–40°F to +248°F) |
| Environmental Rating | IP67 (dust and water ingress protected) |
| Mounting Thread | 1/4-28 UNF or M8 × 1.0 (depends on configuration) |
| Dimensions | Total Length : 1.5 meters |
| 重量 | 0.484 kg |
| Certifications | CE, RoHS Compliant |
| Typical Applications | Shaft vibration, axial thrust, and radial position monitoring |
Industry Applications
-
Power Generation – Monitoring / turbines and rotating generators
-
Oil & Gas – Compressor and pump protection in upstream/downstream assets
-
Petrochemical – Critical process machine monitoring
-
Marine & Shipbuilding – Propulsion shaft alignment and movement tracking
-
Steel & Mining – Heavy-duty motor and gearbox vibration monitoring
-
Industrial Manufacturing – CNC spindles, motors, and rotating asset protection
Product Advantages
-
High Precision – Delivers accurate shaft position and vibration measurements
-
Rugged Construction – Built to withstand tough environments and high vibration
-
Stable Signal Transmission – Shielded coaxial cable eliminates interference
-
Field-Proven Compatibility – Seamlessly integrates with 3300 XL systems
-
Flexible Installation – 15 ft cable and connector shell 02 support various setups
-
Long-Term Reliability – Designed for continuous operation in critical systems
-
EMI Resistant – Shielding ensures signal quality in electrically noisy areas
-
Standardization – Adheres to global and regional configuration standards
常见问题 (FAQ)
-
Q: What does the “CN” suffix indicate in this model number?
A: It typically signifies a China-localized configuration or assembly, ensuring compliance with regional manufacturing or regulatory requirements. -
Q: What is the length / the cable in this model?
A: 15 feet (approximately 4.57 meters), fixed. -
Q: Which connector type does this model use?
A: It uses a shell-style “02” connector. -
Q: Is the probe suitable for high-temperature environments?
A: Yes, it operates from –40°C to +120°C. -
Q: What is the IP rating / this proximity probe?
A: It is IP67 rated, /fering protection against dust and water. -
Q: Can I use this probe in non-Bently systems?
A: It’s optimized for Bently Nevada 3300 XL systems. Cross-compatibility is not guaranteed. -
Q: What is the probe’s frequency response?
A: Up to 40 kHz, suitable for dynamic measurements. -
Q: Is the cable shielded?
A: Yes, the coaxial cable is fully shielded for EMI/RFI resistance. -
Q: How is the probe mounted?
A: Typically via a 1/4-28 UNF or M8 × 1.0 threaded mounting hole. -
Q: Does this model require calibration?
A: It is factory calibrated; field checks can be done using Bently calibration tools and systems.
Related 型号s
| 型号 Number | 描述 |
|---|---|
| 330103-00-04-10-12-CN | 8 mm Probe, 10 m cable, Type 12 connector, CN configuration |
| 330103-00-04-10-02-01 | 8 mm Probe, 10 m cable, Type 02 connector |
| 330103-00-10-10-01-05 | 8 mm Probe, 10 m cable, extended housing |
| 330103-00-20-05-01-05 | 8 mm Probe, 20 m cable |
| 330104-01-08-50-01-CN | 8 mm Probe, 8 m armored cable, CN version |
| 330130-045-01-05 | Standard Extension Cable, 4.5 m |
Popular Bently Nevada 型号s
| 型号 Number | 描述 |
|---|---|
| 330101-00-14-10-02-05 | 3300 XL 8 mm Probe with 14 m cable, shell 02 connector |
| 330101-00-16-05-02-05 | 3300 XL 8 mm Probe with 16 m cable, shell 02 |
| 330101-00-20-05-02-00 | 3300 XL 8 mm Probe with 20 m cable, shell 02 connector |
| 330104-01-08-50-01-CN | Armored 8 mm Probe with 8 m cable, CN variant |
| 330130-045-01-05 | 3300 XL Standard Extension Cable (4.5 m) |
| 330103-00-05-05-02-05 | 8 mm Probe with 5 m cable, shell 02 |
