产品介绍

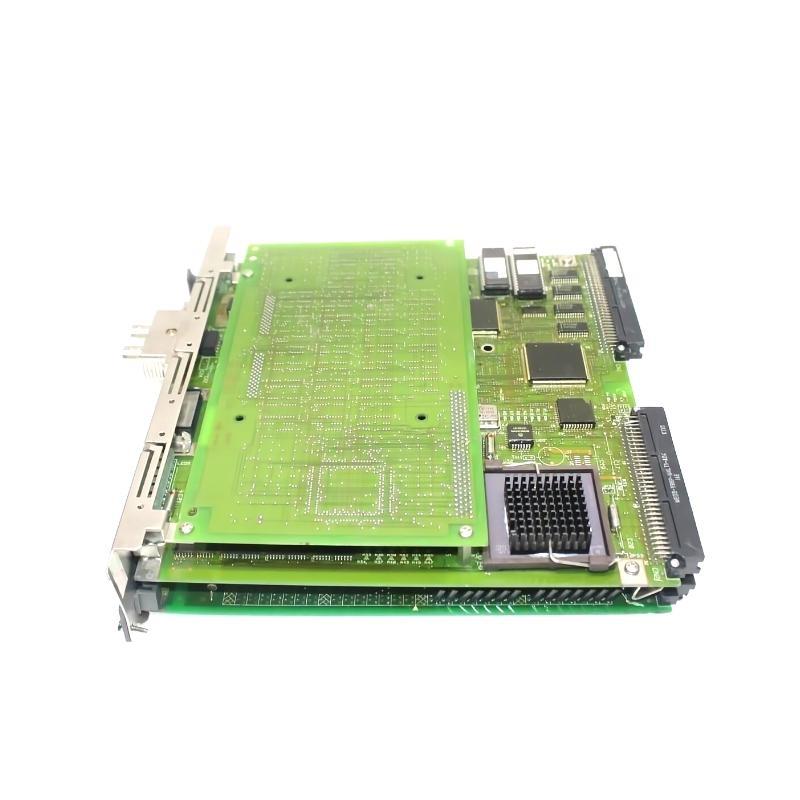

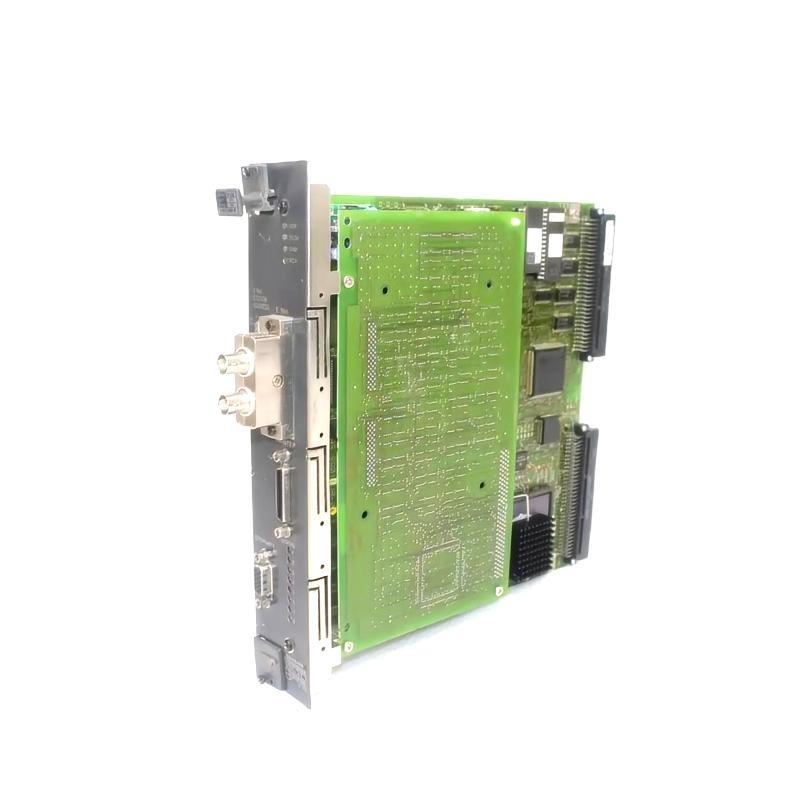

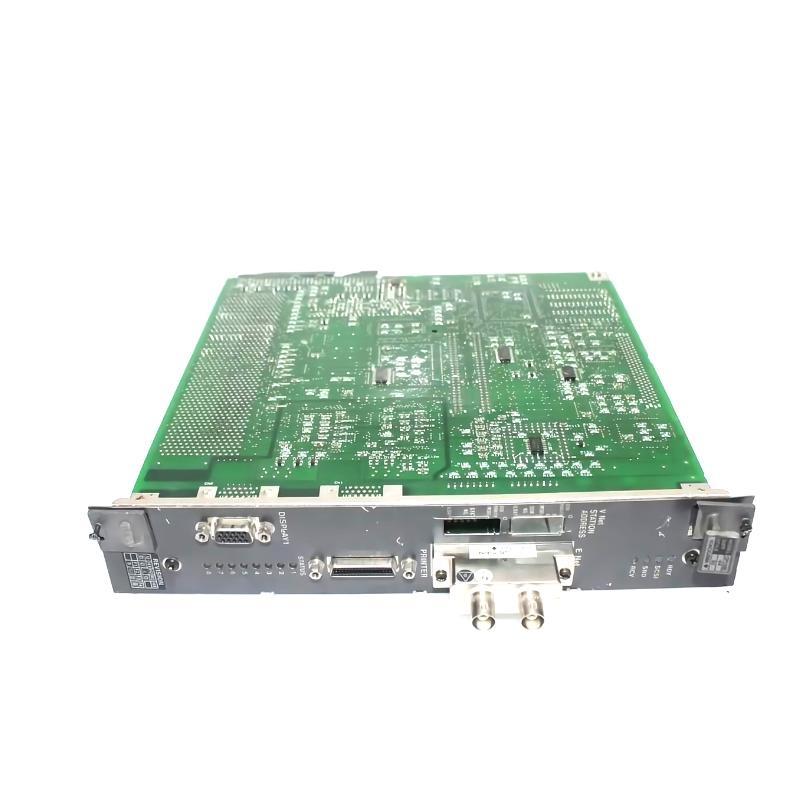

The Yokogawa CP133E-64 S3 is a high-performance CPU module with Ethernet interface designed for integration into modular control systems, such as Yokogawa’s STARDOM and FA-M3 platforms. Known for its robust processing capabilities and network connectivity, this CPU module provides seamless communication between distributed control elements, making it ideal for modern industrial automation systems.
Equipped with a powerful processor, onboard memory, and multiple communication ports (including Ethernet), the CP133E-64 S3 ensures fast, reliable, and deterministic execution / control logic. It’s built to handle complex control strategies, high-speed I/O processing, and multi-protocol communication, /fering users flexibility, scalability, and operational resilience.
产品规格
| Parameter | Specification |
|---|---|
| Product Name | CPU Module with Ethernet Interface |
| 型号 Number | CP133E-64 S3 |
| 制造商 | 横河 Corporation |
| Series | STARDOM / FA-M3 |
| CPU Type | 32-bit RISC processor (industrial-grade) |
| Clock Speed | 100–200 MHz (depending on system version) |
| Program Memory | 2 MB–4 MB Flash memory |
| RAM Memory | 1 MB–2 MB SRAM with battery backup |
| Ethernet Port | 1 × 10/100Base-TX (RJ45) |
| Serial Port | 1 × RS-232C / 1 × RS-485 (depending on configuration) |
| Protocol 支持 | Modbus TCP, Modbus RTU, OPC UA (optional), Yokogawa Proprietary |
| Power Supply | Supplied from base rack (typically 5V or 24V DC) |
| Power Consumption | ~5 W |
| Operating Temperature Range | 0 to 55°C |
| Storage Temperature | -20 to 70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Shock Resistance | 15g (per IEC 60068-2-27) |
| Vibration Resistance | 5–9 Hz at 3.5 mm / 9–150 Hz at 1 g |
| Mounting | DIN rail mount or base module mount |
| Certification | CE, UL, KC, RoHS compliant |
| Dimensions (W × H × D) | 35 × 100 × 115 mm |
| 重量 | 1.11 kg |
Product Applications
The CP133E-64 S3 is suitable for use in a wide range / industrial environments where high-performance programmable logic and communication are essential. Common applications include:
-
Remote Terminal 单位s (RTUs) in oil and gas pipelines
-
Water treatment facilities for monitoring and control / pumps, valves, and chemical dosing
-
Distributed Energy Resource Management Systems (DERMS)
-
Manufacturing execution systems (MES) for batch and continuous processes
-
Smart grid control 件s and renewable energy plants
-
Building automation systems requiring distributed and reliable control logic
Product Advantages
-
High-Speed Processing: Optimized for fast execution / control logic and I/O handling.
-
Integrated Ethernet Connectivity: Provides seamless integration into modern industrial networks.
-
Compact Form Factor: Fits into space-constrained panels without compromising performance.
-
Flexible Protocol 支持: Ensures easy interfacing with a variety / devices and systems.
-
Battery Backup Memory: Prevents data loss during power outages or maintenance periods.
-
Modular Architecture: Allows easy expansion with other Yokogawa modules.
-
Industrial Durability: Designed to withstand harsh field environments.
-
Standards Compliance: Meets global safety, EMC, and environmental standards.
-
Remote Monitoring Capability: Enables remote diagnostics and system status monitoring.
-
Low Power Consumption: Reduces operational costs and improves energy efficiency.
常见问题 (FAQ)
-
What systems is the CP133E-64 S3 compatible with?
→ It is compatible with Yokogawa’s STARDOM and FA-M3 series platforms. -
Does the module support Ethernet communication?
→ Yes, it comes with a 10/100Base-TX Ethernet port for high-speed communication. -
Can it be used in outdoor or hazardous areas?
→ While the module is rugged, it must be housed in an appropriate enclosure for outdoor/hazardous use. -
What is the onboard memory capacity?
→ The module typically includes 2–4 MB Flash memory and up to 2 MB SRAM. -
Does the module support Modbus?
→ Yes, it supports both Modbus TCP and RTU, among other protocols. -
Is the CP133E-64 S3 programmable?
→ Yes, it supports ladder logic and structured text programming via Yokogawa s/tware. -
What programming tools are used?
→ Yokogawa’s VDS, FAST/TOOLS, or engineering tools like STARDOM Workbench. -
How is the CPU module mounted?
→ It is mounted on a DIN rail or connected to a modular base 件. -
Does it include diagnostic features?
→ Yes, it provides LED indicators and supports s/tware diagnostics for monitoring health. -
What is its typical service life?
→ Designed for 10+ years / operation under normal industrial conditions.
Related 型号s from the Same Series
| 型号 Number | 描述 | Main Feature | Mounting Type |
|---|---|---|---|
| CP231E | Advanced CPU Module with Dual Ethernet | Dual Ethernet ports for redundancy | DIN/Base Rack Mount |
| CP451 | High-Speed STARDOM CPU | Large memory and multi-protocol support | DIN/Base Rack Mount |
| FCN-RTU | Remote Terminal 单位 CPU | RTU features with wide temperature range | DIN Rail |
| FCN-500 | Compact RTU CPU | Enhanced for outdoor field deployments | DIN Rail |
| CP345 | Mid-range CPU with integrated Modbus | Integrated RTU & HMI support | Rack Mounted |
| CP451L | Low-power embedded controller | Ideal for cost-sensitive applications | DIN Rail |
Popular Yokogawa 型号s Across Product Lines
| 型号 Number | 描述 | System/Application | Main Feature |
|---|---|---|---|
| YHC5150X | HART Communicator | Field Device Configuration | Universal handheld device |
| AAI543-H00 | 4-20 mA Analog Output Module | DCS/PLC Systems | HART protocol support |
| AAI841-H00 | HART Analog Input Module | Process Automation | Field diagnostics and integration |
| PW482 | FA-M3 Power Supply Module | Modular Automation Systems | Redundant power support |
| AMN11 | STARDOM Network Communication Module | Remote I/O Communication | Ethernet and serial interface |
| ST5* Series RTU | Compact Remote Terminal 单位s | Energy & Infrastructure Monitoring | Rugged RTU architecture |
