Product Overview

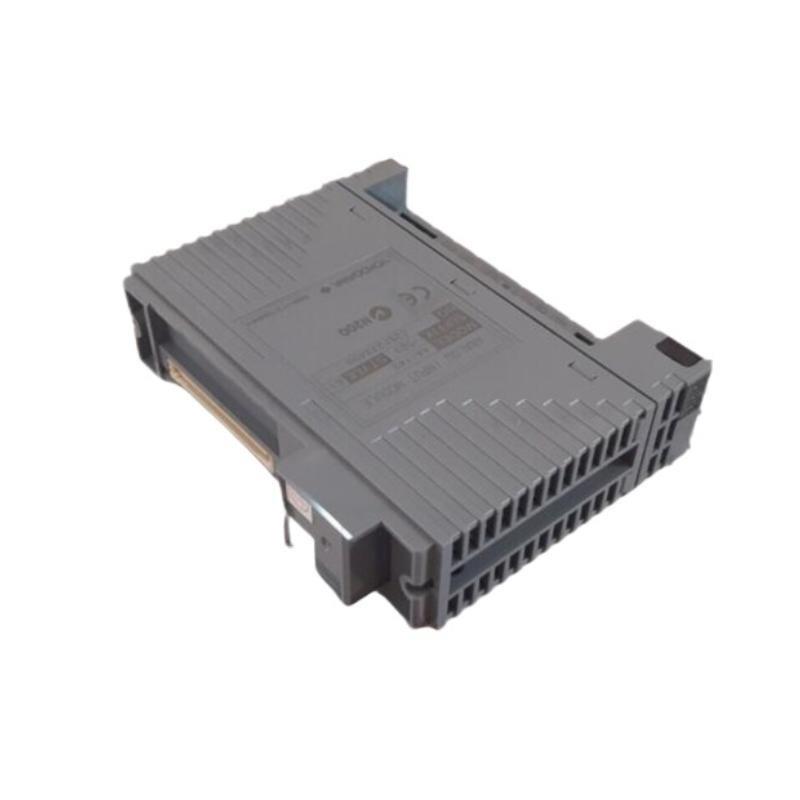

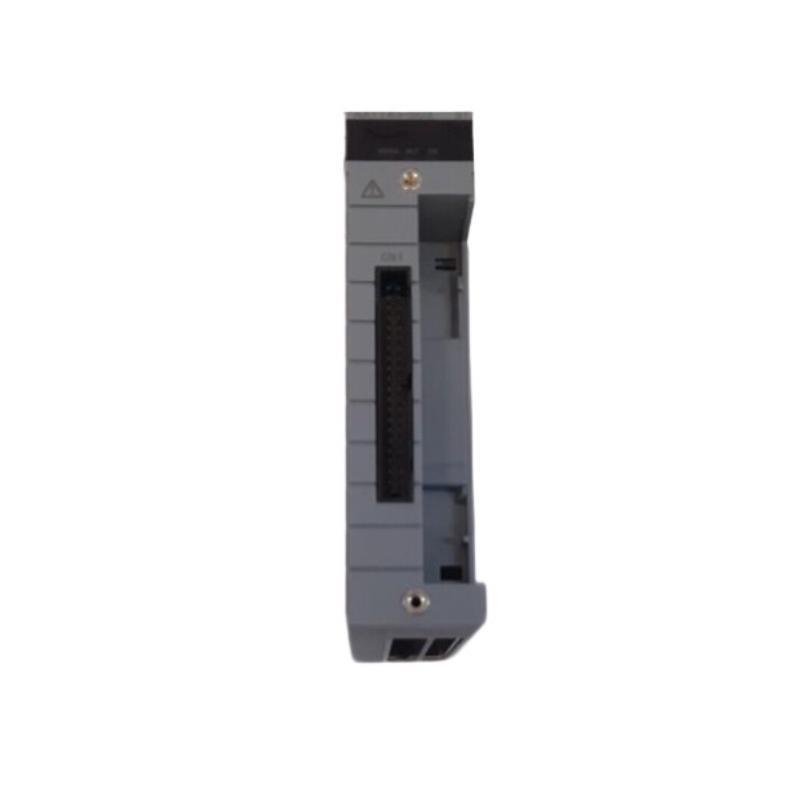

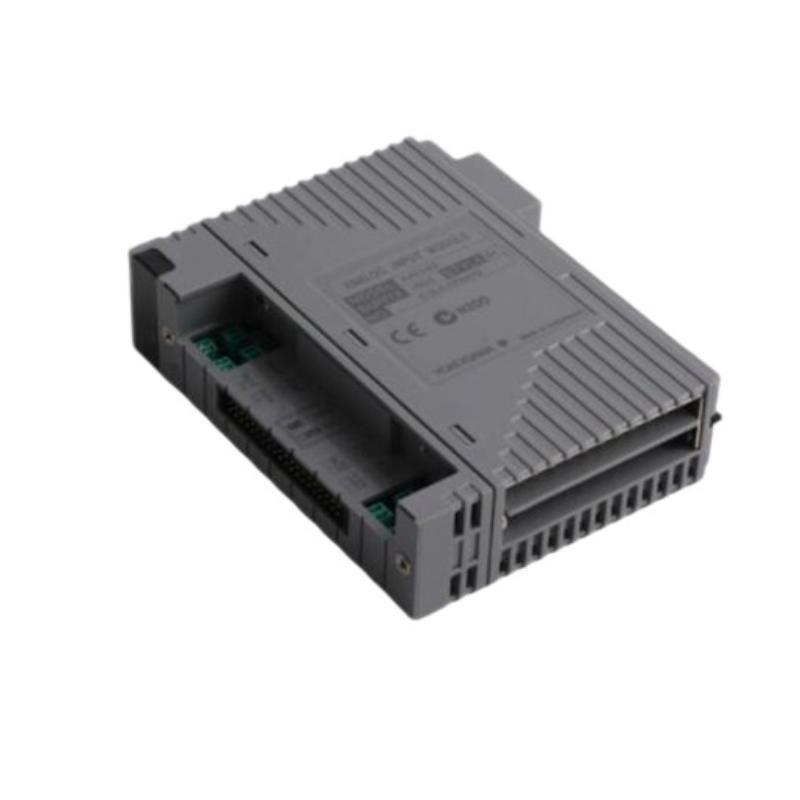

The Yokogawa AAI143-S53 S1 is a high-precision 16-channel analog input module designed for integration into Yokogawa’s CENTUM VP and ProSafe-RS control systems. Built to handle critical process data, this module /fers superior performance in capturing analog signals with exceptional accuracy and reliability. Its isolated input channels, robust diagnostic functions, and compliance with international standards make it suitable for a wide range / demanding industrial applications.
Key Features
-
16 isolated analog input channels
-
支持s various signal types: 4–20 mA, 1–5 V, 0–10 V
-
High-resolution 16-bit A/D conversion
-
Channel-to-channel and channel-to-ground isolation
-
Enhanced diagnostics: wire break detection, input overrange
-
Hot-swappable design for online maintenance
-
Compatible with Vnet/IP and FIO-based control architectures
-
Designed for both standard and safety instrumented systems (SIS)
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | AAI143-S53 S1 |
| Module Type | Analog Input Module |
| Number / Channels | 16 isolated analog input channels |
| 支持ed Signal Types | 4–20 mA, 1–5 V, 0–10 V (configurable) |
| Input Resistance | Approx. 250 Ω (current), >1 MΩ (voltage) |
| A/D Conversion | 16-bit resolution |
| Accuracy | ±0.1% / full scale |
| Isolation | Channel-to-channel and channel-to-ground |
| Diagnostics | Wire break detection, signal error, module fault |
| Hot Swap Capability | 支持ed |
| Power Supply | Supplied through FIO base 件 |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –20 °C to +70 °C |
| Dimensions | 107.5 × 32.8 × 130 mm |
| 重量 | 0.3 kg |
| Mounting Type | Mounted on FIO base 件 |
| Certifications | CE, KC, RoHS, and other global standards |
Industry Applications
-
Distributed Control Systems (DCS) in process automation
-
Oil & gas production and refining
-
Power generation and transmission systems
-
Chemical and petrochemical manufacturing
-
Water treatment and utilities infrastructure
-
Pharmaceutical and food & beverage industries
常见问题 (FAQ)
-
What does the AAI143-S53 S1 module do?
It collects analog signals from field devices and converts them into digital values for processing in control systems. -
How many inputs are supported?
The module supports 16 isolated analog input channels. -
What signal types can it process?
It handles 4–20 mA, 1–5 V, and 0–10 V analog signals. -
Is it hot-swappable?
Yes, the module can be replaced while the system remains powered. -
What kind / isolation does it provide?
Channel-to-channel and channel-to-ground isolation to prevent interference. -
Is the module suitable for use in SIS (Safety Instrumented Systems)?
Yes, it is compatible with Yokogawa’s ProSafe-RS safety systems. -
What resolution is the A/D conversion?
It /fers a high-precision 16-bit resolution. -
Does it include self-diagnostics?
Yes, it detects wire breaks, range errors, and hardware faults. -
What system is it used with?
It integrates with CENTUM VP and other FIO-based Yokogawa systems. -
Is the module certified for industrial use?
Yes, it complies with CE, KC, and RoHS standards.
Related Modules
| 型号 Number | 描述 |
|---|---|
| AAI143-S50 S1 | 16-channel Analog Input Module (standard version) |
| AAI143-S03 S1 | Analog Input Module for general-purpose signal acquisition |
| AAI543-S50 | High-speed Analog Input Module |
| AAI841-H00 | 8-channel HART Analog Input Module |
| ADV551-P00 | Analog Output Module |
| AAI835-H00 | High-density HART AI Module |
