Product 描述

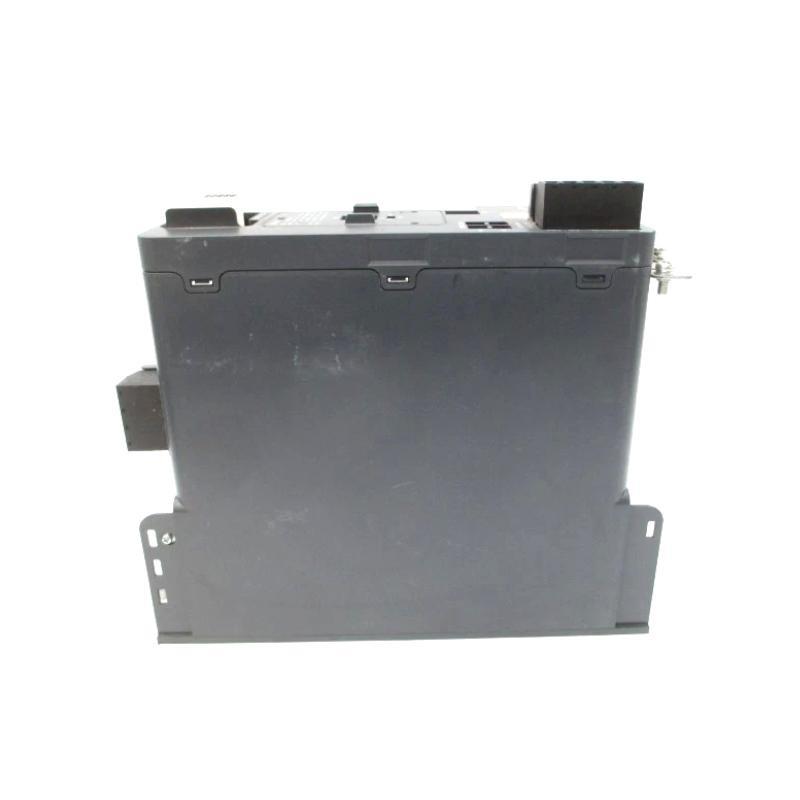

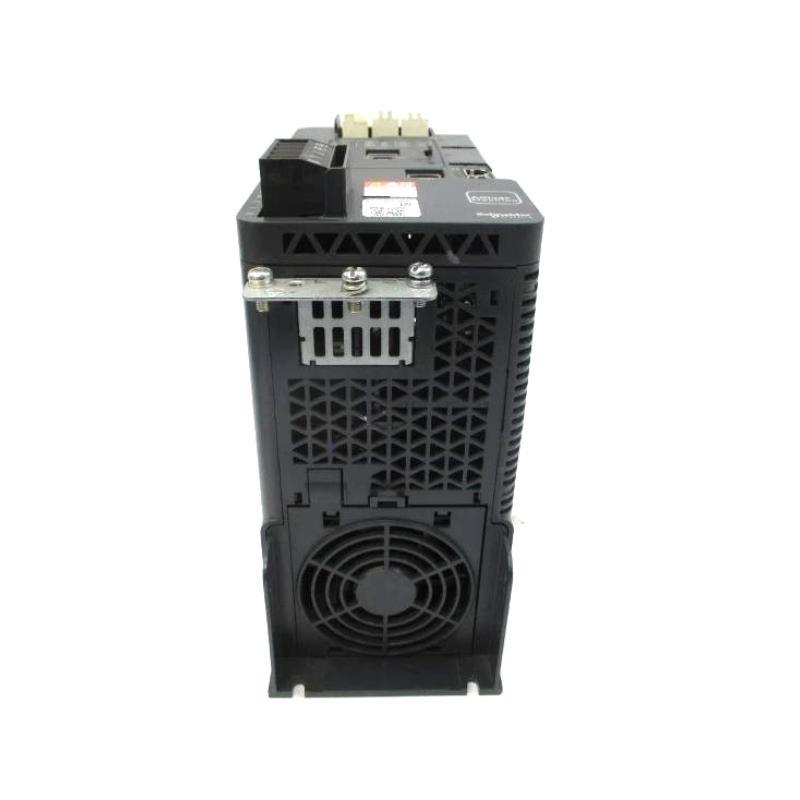

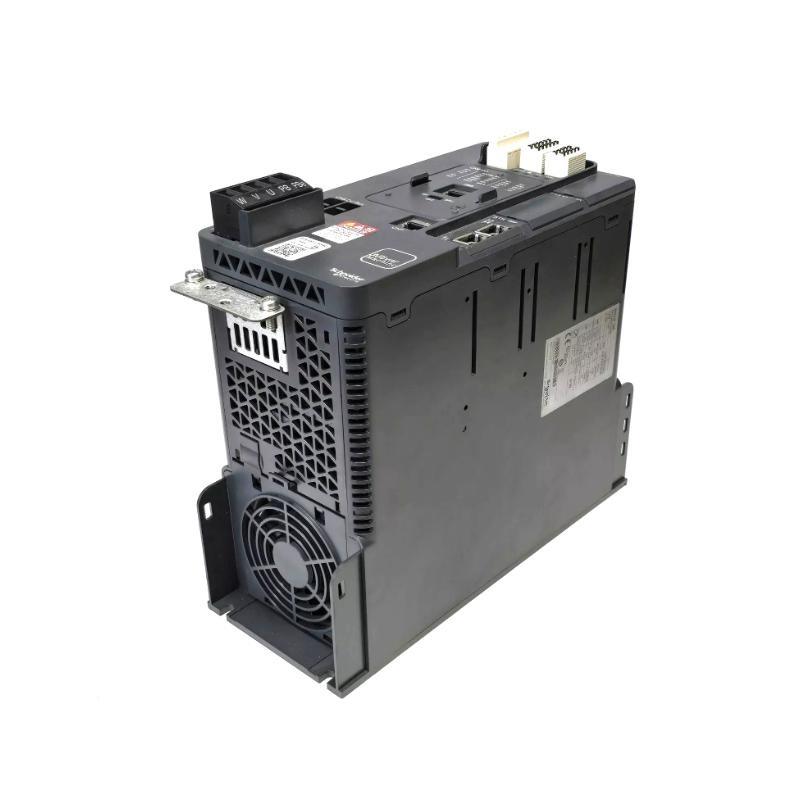

The Schneider ATV340U75N4 is a high-performance variable speed drive designed for demanding industrial applications. It provides precise motor control, robust operation, and easy integration into automation systems. Suitable for asynchronous and synchronous motors, it ensures energy efficiency and process optimization.
Technical Specifications
| Parameter | Value |
|---|---|
| 型号 | ATV340U75N4 |
| Power Rating | 7.5 kW (10 HP) |
| Input Voltage | 380–480 V AC, 3-phase |
| Output Frequency Range | 0.1–599 Hz |
| Control Type | V/F, Vector Control |
| Communication Ports | Modbus, CANopen |
| Dimensions (W × H × D) | 110 × 270 × 234 mm |
| 重量 | 3.0 kg |
| Operating Temperature | -10°C to +50°C |
| Protection Level | IP21 |
Applications
The ATV340U75N4 is widely used in:
-
Packaging machines
-
Material handling systems
-
Hoisting and cranes
-
Textile machines
-
Conveyor systems
Advantages
-
High overload capacity for heavy-duty tasks
-
优秀 dynamic motor control and precision
-
Ready-to-use for harsh industrial environments
-
Integrated safety functions for secure operation
-
Simple setup and easy maintenance
FAQ
Q1: What is the power rating / the ATV340U75N4?
A1: It is rated at 7.5 kW (10 HP).
Q2: Can this drive be used with synchronous motors?
A2: Yes, it supports both asynchronous and synchronous motors.
Q3: What is the input voltage range?
A3: The input voltage range is 380–480 V AC, 3-phase.
Q4: What is the level / protection?
A4: The drive has an IP21 protection level.
Q5: Does it support fieldbus communication?
A5: Yes, it has built-in Modbus and CANopen ports.
Q6: Can it operate in high-temperature environments?
A6: It operates between -10°C and +50°C.
Q7: What is its weight?
A7: The weight is 3.0 kg.
Q8: How easy is it to configure?
A8: It is designed for quick setup with intuitive s/tware tools.
Q9: Is it suitable for crane applications?
A9: Yes, it is well-suited for hoisting and crane systems.
Q10: What is the maximum output frequency?
A10: The maximum output frequency is 599 Hz.
Recommended Related or Same Series 型号s
| 型号 | Power Rating | Input Voltage | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| ATV340D15N4 | 15 kW | 380–480 V AC | 140 × 300 × 245 | 4.2 kg |
| ATV340U22N4 | 22 kW | 380–480 V AC | 165 × 350 × 260 | 5.6 kg |
| ATV340U30N4 | 30 kW | 380–480 V AC | 190 × 400 × 300 | 7.8 kg |
| ATV340U40N4 | 40 kW | 380–480 V AC | 220 × 450 × 350 | 10.5 kg |
| ATV340U55N4 | 55 kW | 380–480 V AC | 250 × 500 × 390 | 13.8 kg |
| ATV340U75N4C | 75 kW | 380–480 V AC | 300 × 600 × 450 | 18.0 kg |
Popular 型号s from Schneider
| 型号 | Type | Power Rating / Function | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| Altivar 12 | Variable Speed Drive | 0.18–4 kW | 72 × 143 × 148 | 1.1 kg |
| Altivar 71 | Variable Speed Drive | up to 500 kW | varies | varies |
| Lexium 32 | Servo Drive | up to 11 kW | compact | light |
| Tesys D | 联系我们or | up to 150 A | standard | standard |
| Modicon M340 | PLC Controller | modular | 90 × 110 × 60 | ~0.8 kg |
| Easypact TVS | Motor Starter | up to 18.5 kW | compact | light |
