产品介绍

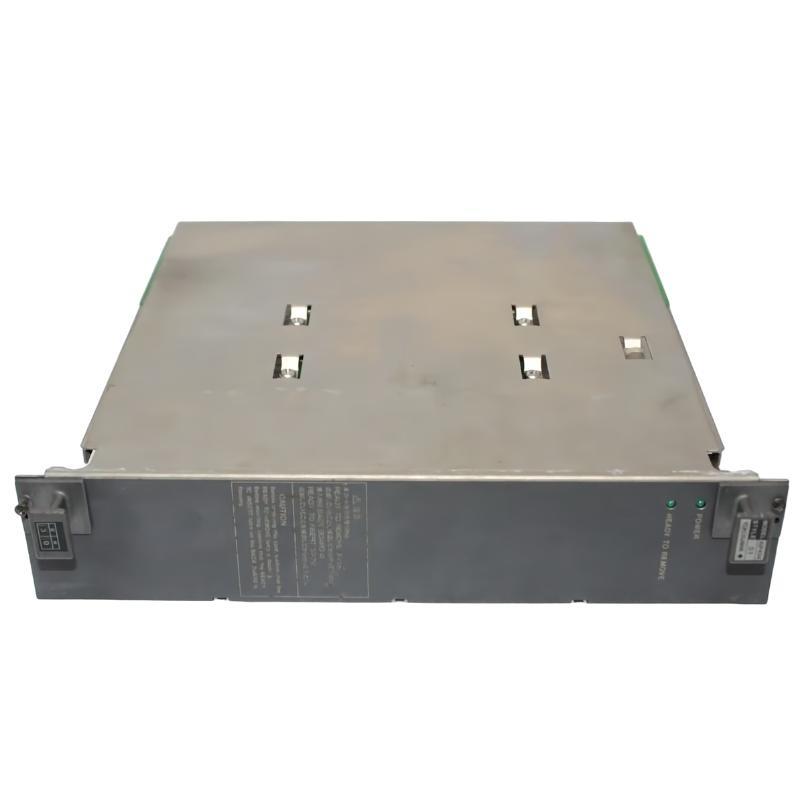

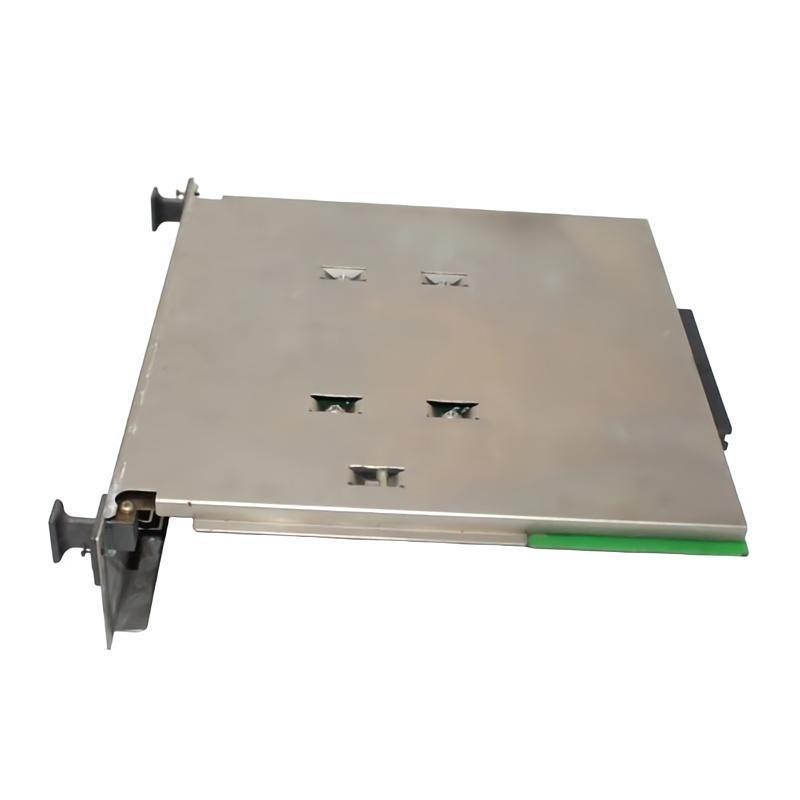

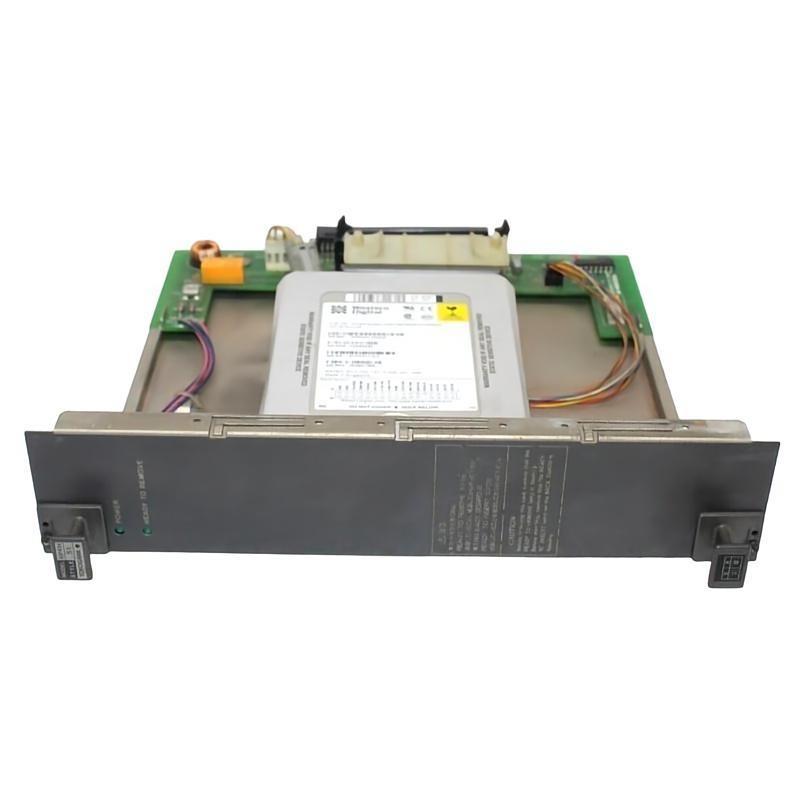

The Yokogawa AIP434-S1 Hard Drive Module is a specialized storage component engineered for use within Yokogawa’s advanced industrial control systems, particularly the CENTUM VP and ProSafe-RS platforms. Unlike conventional commercial hard drives, the AIP434-S1 is designed with industrial-grade durability, reliability, and long-term operational stability in mind.
It serves as a critical backbone for data-intensive tasks such as historical logging, alarm and event archiving, redundancy operations, and system configuration backup. The drive module ensures continuous operation under 24/7 workloads, delivering high-speed data access in real-time process environments where downtime is not acceptable.
The AIP434-S1 is built to withstand harsh industrial environments, /fering resistance to shock, vibration, electromagnetic interference, and temperature fluctuations. As a hot-swappable module in redundant configurations, it supports uninterrupted operations and simplified maintenance procedures.
Product Parameters
| Parameter | Specification |
|---|---|
| 型号 Number | AIP434-S1 |
| Product Type | Industrial Hard Drive Module |
| System Compatibility | Yokogawa CENTUM VP, ProSafe-RS, and related control systems |
| Storage Capacity | High-capacity industrial storage (system-defined) |
| Data Transfer Rate | Optimized for real-time control and historical logging |
| 支持ed Interfaces | SATA/Industrial bus (system-specific) |
| Redundancy 支持 | Duplex/backup capable |
| Error Correction | Integrated ECC (Error Correction Code) |
| Reliability Features | Shock resistance, vibration endurance, EMI shielding |
| Power Requirements | 5 VDC / 12 VDC (supplied via host system) |
| Operating Temperature | 0 °C to +55 °C (32 °F to 131 °F) |
| Storage Temperature | -20 °C to +70 °C (-4 °F to 158 °F) |
| Humidity Range | 5% to 90% non-condensing |
| Self-Diagnostics | Yes, with drive health monitoring and error logs |
| Hot-Swap 支持 | 支持ed in redundant configurations |
| Dimensions | 150 × 100 × 25 mm |
| 重量 | 1.34 kg |
Product Applications
The Yokogawa AIP434-S1 is widely used in process automation, power generation, and safety-critical industrial systems. Its applications include:
-
Data Archiving: Storing long-term plant operation records, time-series data, and process histories.
-
System Backup: Retaining configurations, system files, and recovery images for disaster recovery.
-
Alarm/Event Logging: Capturing all alarms and events for compliance, auditing, and troubleshooting.
-
Redundant System Operation: 支持ing duplex mirrored configurations to ensure uninterrupted operation.
-
Industrial Security: Providing secure storage in environments with strict cybersecurity requirements.
-
Continuous Process Recording: Enabling round-the-clock storage for mission-critical operations in oil & gas, petrochemicals, power plants, and pharmaceutical industries.
Product Advantages
-
Industrial Durability: Built to operate continuously in harsh conditions with mechanical and environmental stress tolerance.
-
High Data Integrity: Equipped with ECC and monitoring systems to detect and correct data errors automatically.
-
Full System Integration: Seamlessly integrates with Yokogawa’s DCS and SIS platforms without external modifications.
-
Redundancy 支持: Enables failover and mirrored operations to protect against data loss and downtime.
-
Real-Time Optimized: Designed for fast data transfer to support real-time monitoring and control operations.
-
Diagnostics & Predictive Maintenance: Includes built-in self-diagnostics for proactive maintenance strategies.
-
Compact & Modular: 保存s space while providing high capacity, making it easy to replace and expand when required.
-
Secure & Reliable: Provides a stable foundation for critical process industries where data protection and availability are paramount.
FAQ
-
What is the primary function / the AIP434-S1 Hard Drive Module?
It provides secure storage for process data, alarms, logs, and system configurations in Yokogawa automation systems. -
Does the AIP434-S1 support redundancy for critical operations?
Yes, it can be configured in duplex mode for mirrored redundancy. -
Is the AIP434-S1 compatible with Yokogawa CENTUM VP?
Yes, it is fully compatible with CENTUM VP control systems. -
Can this module be used in ProSafe-RS safety systems?
Yes, it is designed for use in both control and safety system environments. -
What error correction technology does the module use?
It uses ECC (Error Correction Code) to detect and correct data errors automatically. -
Does the AIP434-S1 support hot-swapping?
Yes, in redundant system configurations, it supports hot-swapping without requiring a full system shutdown. -
How does the module ensure data integrity during power loss?
It employs industrial-grade buffering and controlled write processes to prevent corruption. -
Is predictive maintenance supported with this module?
Yes, it features drive health monitoring and self-diagnostics for predictive maintenance. -
Can the module handle continuous real-time data storage?
Yes, it is optimized for 24/7 high-speed real-time data storage and retrieval. -
What protections does it have against industrial environmental factors?
It is shock-resistant, vibration-tested, and EMI-shielded, ensuring reliable operation in harsh industrial environments.
Recommended Related 型号s (Same Series/分类)
| 型号 Number | 描述 |
|---|---|
| AIP431-S1 | Industrial controller interface module |
| AIP432-S1 | Communication processor for system networks |
| AIP433-S1 | Redundancy interface module |
| AIP434-S1 | Industrial Hard Drive Module |
| AIP435-S1 | High-capacity storage module variant |
| AIP436-S1 | Advanced data recording and archiving module |
Recommended Popular 型号s from Yokogawa
| 型号 Number | 描述 |
|---|---|
| CENTUM VP R6 | Flagship Distributed Control System (DCS) platform |
| ProSafe-RS | Safety Instrumented System (SIS) |
| AAI143-S00 | High-accuracy analog input module |
| AAI841-S00 | Advanced analog output module |
| AFV30S-S41251 | Field Control 单位 with duplex capability |
| STARDOM FCN-500 | Autonomous network-based controller |
