产品介绍

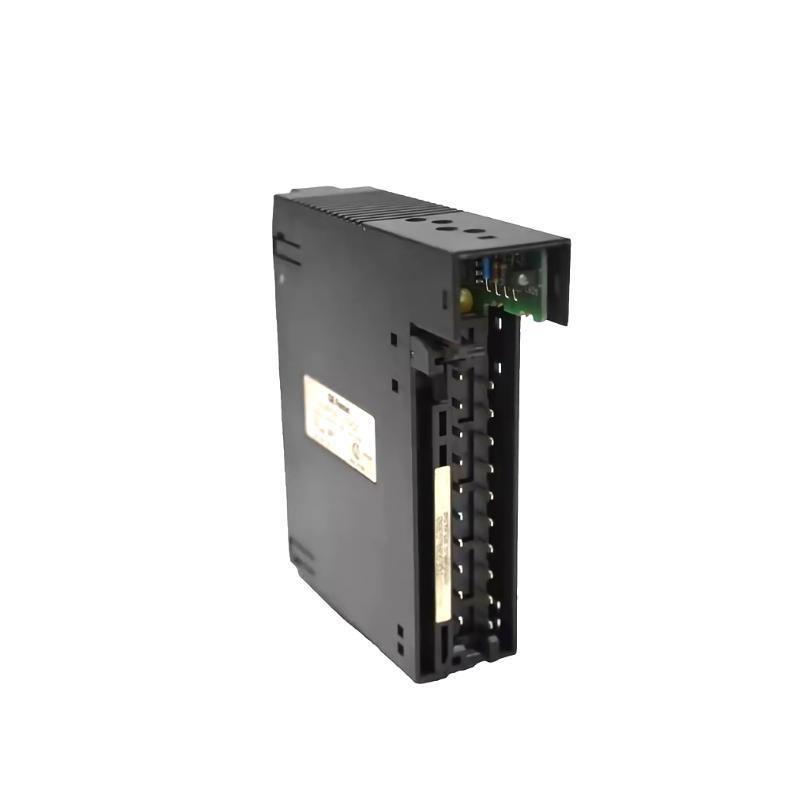

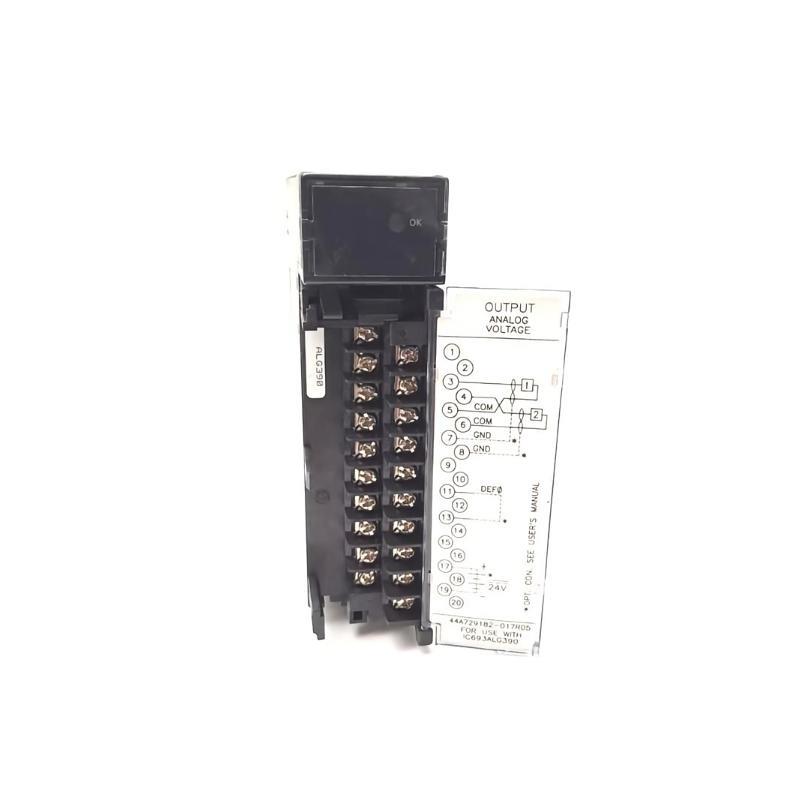

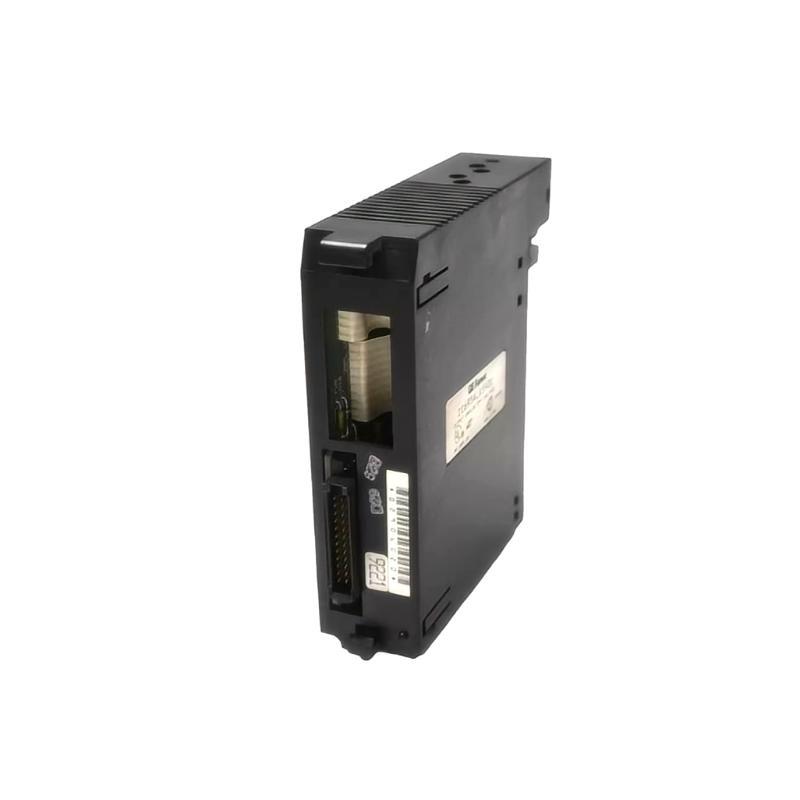

The GE IC693ALG390 Analog Output Module is a high-precision output module designed for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. Featuring two analog output channels, it delivers variable voltage signals for precise control / actuators and other analog field devices. This module is widely used in industrial automation environments where accurate control / physical processes such as temperature, pressure, or motor speed is required.
Each channel is capable / outputting signals in the range / 0 to +10 VDC, with a high level / accuracy and electrical isolation from the PLC logic. Its compact form factor, dependable performance, and ease / integration make the IC693ALG390 an ideal solution for both new installations and legacy system expansions.
产品规格
| Parameter | Specification |
|---|---|
| 型号 Number | IC693ALG390 |
| Product Type | Analog Output Module |
| System Compatibility | GE Fanuc Series 90-30 PLC |
| Number / Output Channels | 2 Voltage Output Channels |
| Output Signal Range | 0 to +10 VDC |
| Resolution | 12-bit (approx. 2.44 mV per bit) |
| Output Load | Minimum 2k Ohms |
| Update Rate | 5 ms per channel |
| Isolation | 1500V AC (channel-to-PLC logic) |
| Channel-to-Channel Isolation | None |
| Power Consumption | 90 mA @ 5V DC |
| Accuracy | ±0.5% / full scale |
| Diagnostics | Internal fault diagnostics for channel verification |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (H × W × D) | 51 x 127 x 127 mm |
| 重量 | 0.34 kg |
| Certifications | UL, CE, CSA, Class I Div 2 (Groups A, B, C, D) |
Product Applications
The IC693ALG390 is designed for use in analog process control environments that require precise signal delivery to field equipment. Key application areas include:
-
Industrial Automation: Drives control valves, actuators, and servo motors with precise voltage outputs.
-
HVAC Systems: Modulates damper and valve positions in building climate control systems.
-
Water and Wastewater Management: Sends analog signals to chemical dosing pumps and motor drives.
-
Food & Beverage Processing: Controls temperatures and mixture levels via analog setpoint signals.
-
Energy & Power Plants: Outputs control voltages to regulators, motor controllers, and power electronics.
-
Manufacturing Lines: Provides reference signals to analog devices for speed, torque, or level control.
Product Advantages
-
High Signal Accuracy: With 12-bit resolution and ±0.5% accuracy, it ensures smooth and accurate control.
-
Reliable Voltage Output: 支持s 0–10 VDC signals to meet industry-standard control requirements.
-
Electrical Isolation: Prevents interference between field signals and controller logic, improving safety and signal integrity.
-
Space-Efficient Design: Its slim pr/ile fits easily into Series 90-30 racks with minimal panel space usage.
-
Field-Tested Durability: Built for harsh industrial conditions, including wide temperature and humidity ranges.
-
Easy to Configure: 支持s intuitive setup through GE’s programming s/tware, reducing commissioning time.
-
Fast Response Time: 5 ms per channel update speed allows for responsive real-time process adjustments.
-
Diagnostic Capabilities: Integrated monitoring helps identify output issues before they affect production.
-
Long Product Lifecycle: Proven in thousands / applications, supported by GE’s industrial legacy.
-
Cost-Effective Analog Expansion: Ideal for systems needing minimal but reliable analog output control.
常见问题 (FAQ)
-
Q: What type / output signal does the IC693ALG390 module provide?
A: It provides voltage output in the range / 0 to +10 VDC. -
Q: How many channels are available on this module?
A: The module supports 2 analog voltage output channels. -
Q: Is the module compatible with GE RX3i or other newer platforms?
A: No, it is specifically designed for the GE Fanuc Series 90-30 PLC system. -
Q: What resolution does the module provide?
A: It /fers 12-bit resolution, with 2.44 mV per bit. -
Q: Are the channels isolated from one another?
A: No, channels are not isolated from each other, but they are isolated from the PLC logic. -
Q: What is the minimum output load for each channel?
A: Each output requires a minimum load / 2k Ohms. -
Q: What is the accuracy / the output signals?
A: The module provides output accuracy within ±0.5% / full scale. -
Q: Is calibration required before installation?
A: No, the module comes factory-calibrated for plug-and-play operation. -
Q: What certifications does the IC693ALG390 carry?
A: It is certified by UL, CE, CSA, and suitable for Class I Div 2 hazardous locations. -
Q: Can this module be used in critical control loops?
A: Yes, its reliability and accuracy make it suitable for mission-critical analog control loops.
Related 型号s (Same Series / Analog I/O)
| 型号 Number | 描述 |
|---|---|
| IC693ALG221 | 4-Channel Analog Voltage Input Module |
| IC693ALG222 | 4-Channel Analog Current Input Module |
| IC693ALG223 | 4-Channel Analog Voltage/Current Input Module |
| IC693ALG391 | 2-Channel Analog Output Current Module |
| IC693ALG392 | 4-Channel Analog Output Voltage/Current Module |
| IC693ALG442 | 16-bit 4-Channel Analog Input Module (High-Res) |
Popular GE Automation 型号s
| 型号 Number | 描述 |
|---|---|
| IC693CPU374 | High-Speed CPU Module for Series 90-30 |
| IC694MDL754 | 32-point Digital Output Module, 24V DC |
| IC695CHS012 | 12-Slot RX3i Universal Backplane |
| IC695ALG600 | 16-channel Analog Input Module for RX3i |
| IC695PSD140 | RX3i 24V DC Power Supply Module |
| IC693PWR330 | Series 90-30 Power Supply Module (30W, 5V/24V) |
