Product Overview

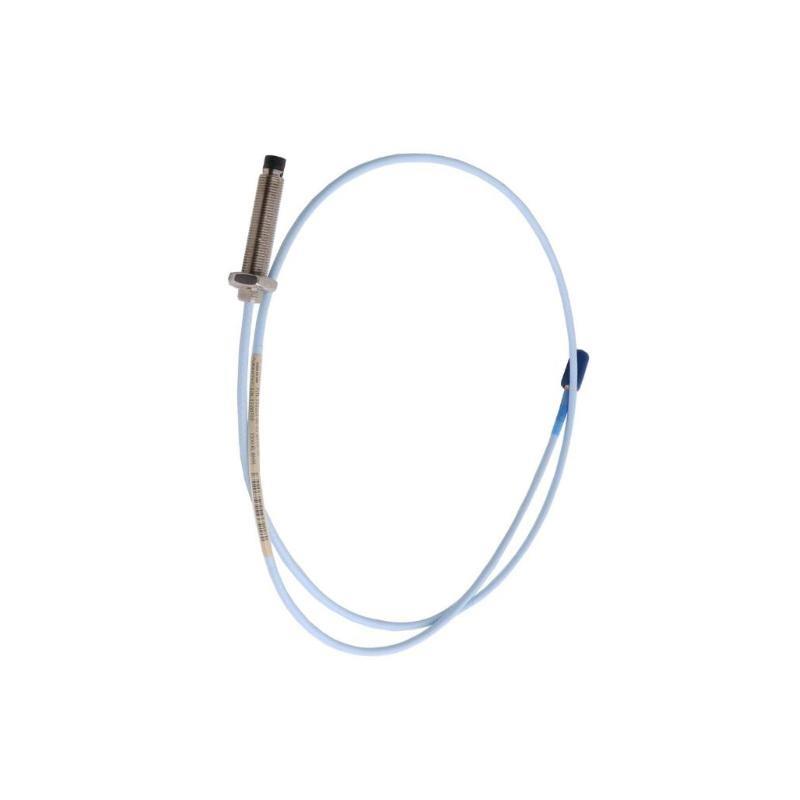

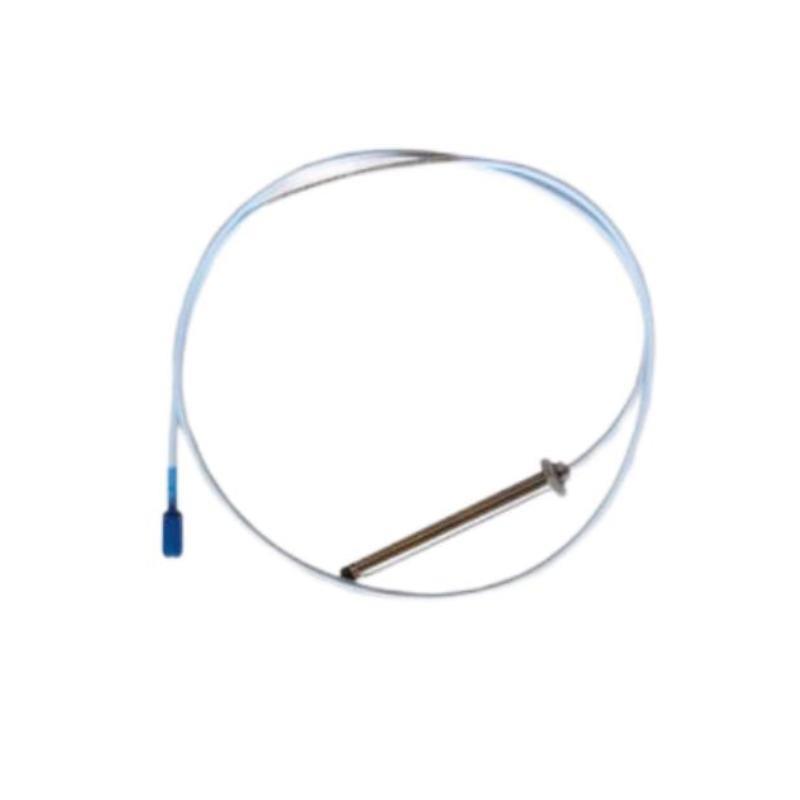

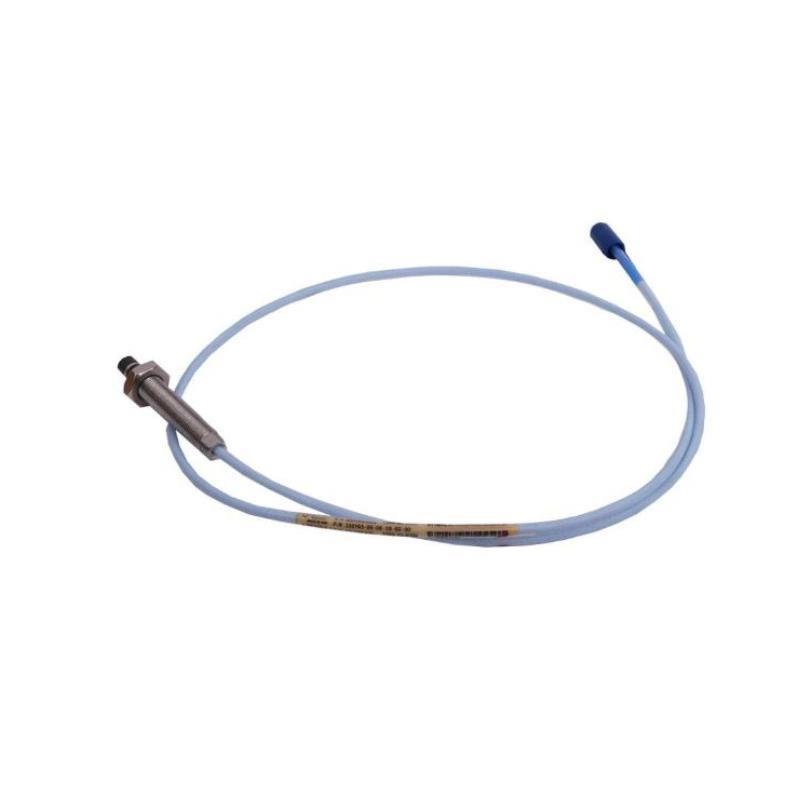

The Bently Nevada 330103-00-13-10-12-05 is an 8 mm non-contact proximity probe from the robust 3300 XL series, featuring a 10 m integral cable and a 90° angled connector. Housed in stainless steel and sealed to IP68, it delivers high-fidelity shaft vibration and displacement monitoring for critical rotating machinery in demanding industrial environments.
Key Features
-
8 mm probe tip ensures precise, repeatable measurements
-
10 m integrated triaxial, low-noise cable
-
90° angled connector for efficient cable routing
-
5/8‑18 UNF threaded body for secure installation
-
Stainless steel housing resists corrosion and wear
-
IP68 protection against dust, water, and oil
-
Designed to withstand high shock (5,000 g) and vibration (50 g)
-
Factory-calibrated—plug-and-play with 3300 XL systems
-
Operates reliably across extreme temperature ranges
-
Complies with API 670 and CE standards
Technical Specifications
| Specification | Details |
|---|---|
| 型号 Number | 330103-00-13-10-12-05 |
| Series | 3300 XL 8 mm |
| Probe Diameter | 8 mm |
| Mounting Thread | 5/8‑18 UNF‑2A |
| Sensing Range | 2 mm (80 mils) |
| Linear Range | 0.25–2.0 mm (10–80 mils) |
| Connector Orientation | 90° angled |
| Cable Length | 10 meters (integral) |
| Cable Type | Triaxial coaxial, low noise |
| Probe Material | AISI 304 stainless steel |
| Operating Temp | –35 °C to +177 °C (–31 °F to +351 °F) |
| Storage Temp | –51 °C to +177 °C (–60 °F to +351 °F) |
| Environmental Rating | IP68 (when properly installed) |
| Vibration Rating | 50 g peak, 10–2,000 Hz |
| Shock Rating | 5,000 g, 1 ms half‑sine pulse |
| Insulation Resistance | >10⁹ Ω at 500 VDC |
| Accuracy | ±0.07 mm (±2.8 mils) typical |
| Dimensions | Total Length : 1.0 meter |
| 重量 | 0.323 kg |
| Compliance | API 670, CE |
Industry Applications
Ideal for installations needing long cable runs and 90° connectors:
-
Steam and gas turbine monitoring
-
Oil & gas compressor and pump systems
-
Petrochemical mixers and agitators
-
Mining crusher and conveyor shaft monitoring
-
Marine propulsion systems
-
HVAC and industrial blower installations
-
Pulp & paper roller monitoring
-
Water treatment pump and motor systems
Product Advantages
-
10 m cable provides versatile installation layouts
-
90° angled connector aids cable management in tight panels
-
Stainless steel housing withstands harsh and corrosive settings
-
IP68 sealing ensures resistance against moisture and oil
-
Non-contact sensing eliminates mechanical wear
-
Factory calibration ensures high accuracy from day one
-
High shock/vibration resistance suits heavy-duty applications
-
Seamless compatibility with 3300 XL hardware and s/tware
-
API 670 compliance meets critical machinery requirements
-
Provides reliable signal transmission over long distances
常见问题 (FAQ)
-
What is the connector orientation?
It features a 90° angled connector. -
How long is the cable?
The integrated cable is 10 meters. -
What mounting thread does it use?
5/8‑18 UNF‑2A threaded. -
Is it suitable for wet, oily environments?
Yes, IP68 rated when properly installed. -
Which industries typically use this probe?
Power, petrochemical, mining, marine, HVAC, pulp & paper, water. -
Does it require on-site calibration?
No, factory-calibrated for immediate use. -
What temperature range can it handle?
–35 °C to +177 °C (–31 °F to +351 °F). -
How robust is it?
Shock rated to 5,000 g and vibration up to 50 g. -
Can it support extension cables?
Comes with 10 m cable—extensions are not recommended. -
What level / accuracy does it provide?
Typically ±0.07 mm (±2.8 mils).
Related 型号s
| 型号 Number | 描述 |
|---|---|
| 330103-00-05-10-12-05 | 5 m cable, 90° connector |
| 330103-00-06-10-12-05 | 6 m cable, 90° connector |
| 330103-00-08-10-12-05 | 8 m cable, 90° connector |
| 330103-00-10-10-01-05 | 10 m cable, straight connector |
| 330104-00-10-10-02 | 10 m XL extension cable |
| 330180-91-05 | 8 mm Proximitor sensor module compatible with 8 mm probes |
