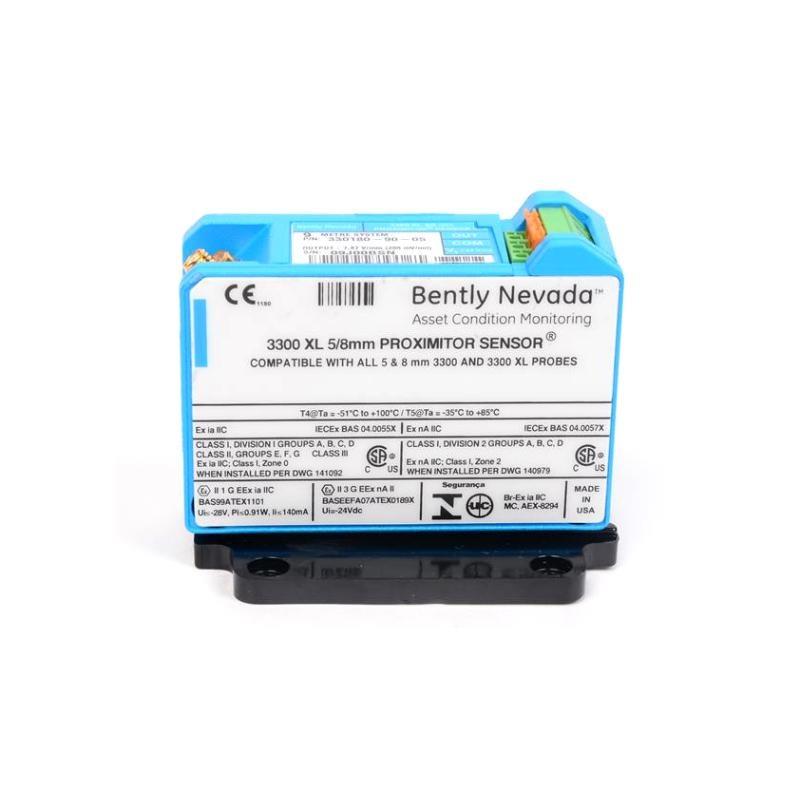

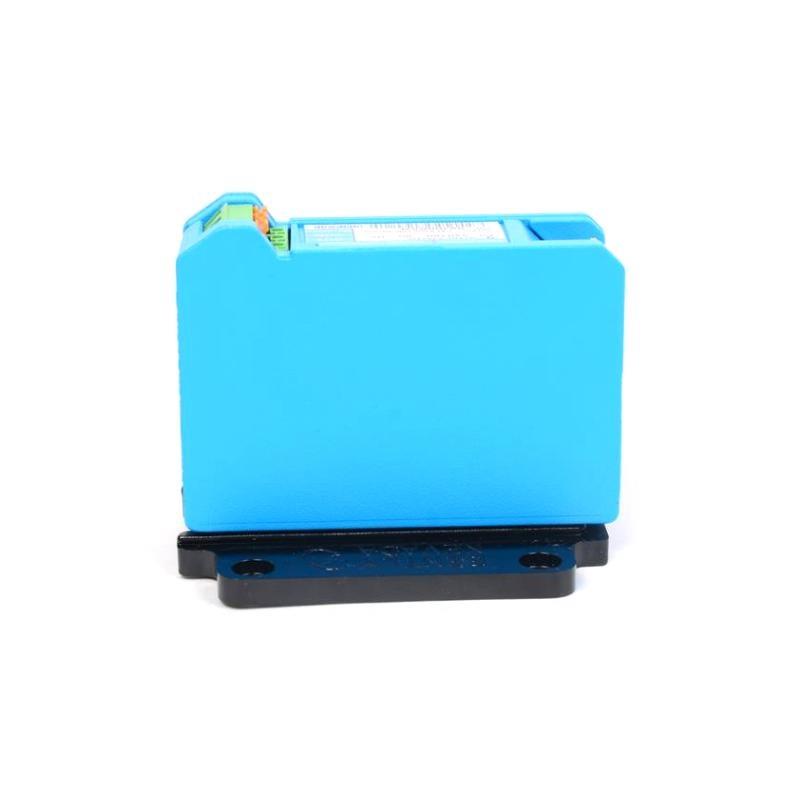

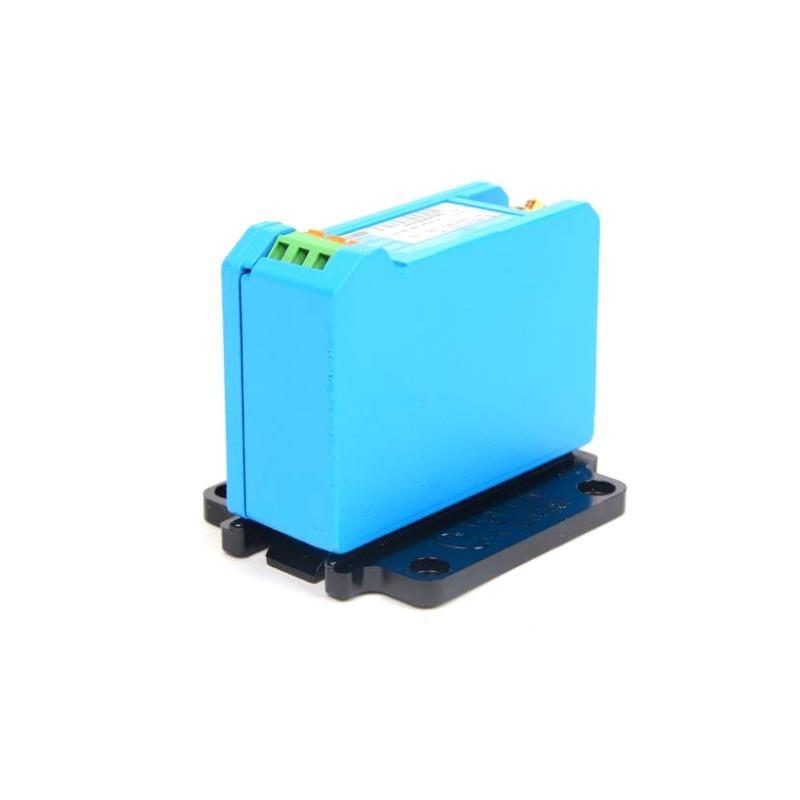

The Bently Nevada 330180-90-05 is part / the 3300 XL 8 mm Proximity Transducer System. This system includes a proximity probe, extension cable, and the 330180 Proximitor Sensor. Designed to monitor vibration and position in fluid-film bearing machines, it outputs a voltage signal proportional to the distance between the probe tip and a conductive target. It supports dynamic (vibration) and static (position) measurements and complies with API 670 standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 | 330180-90-05 |
| System Type | 3300 XL 8 mm Proximitor Sensor |
| Total Length | 9.0 meters |
| 重量 | 0.246 kg |
| Power Supply | -17.5 Vdc to -26 Vdc |
| Output | Voltage proportional to gap |
| Operating Temp (Sensor) | -52°C to +100°C |
| Operating Temp (Probe) | -52°C to +177°C (Standard), up to +218°C (ETR) |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Minimum Shaft Diameter | 50.8 mm |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector | ClickLoc gold-plated miniature coaxial |
| Mounting Options | DIN rail or panel mount |
| RFI/EMI Imm件y | High (CE compliant, no shielded conduit needed) |
Product Applications
-
Vibration monitoring in turbines, compressors, and motors
-
Shaft position measurement
-
Keyphasor signal acquisition
-
Speed and overspeed protection systems
-
状态-based maintenance in rotating machinery
Product Advantages
-
Fully API 670 compliant: Meets industry mechanical and electrical standards
-
High accuracy and repeatability: Delivers reliable measurements in harsh environments
-
Interchangeable components: Reduces calibration and replacement complexity
-
Advanced RFI/EMI imm件y: Suitable for industrial environments without special shielding
-
SpringLoc terminals: Tool-free, secure, and vibration-resistant wiring connections
-
Extended temperature support: Compatible with high-temperature applications using ETR variants
-
FluidLoc cable option: Prevents oil leakage through cable interiors
常见问题 (FAQ)
Q1: What is the purpose / the 330180-90-05 sensor?
A1: It measures vibration and shaft position in rotating machinery using non-contact eddy current technology.
Q2: Is this sensor compatible with older Bently Nevada 3300 systems?
A2: Yes, it is backward-compatible with 3300 5 mm and 8 mm components.
Q3: What is the recommended shaft size for accurate measurements?
A3: At least 50.8 mm diameter; ideally 76.2 mm for best results.
Q4: What mounting options are available?
A4: Panel mount and DIN rail configurations are supported.
Q5: Does this sensor meet hazardous area certifications?
A5: Yes, including CSA, ATEX, and IECEx approvals for Zone 0/Zone 2 installations.
Q6: What type / connectors are used?
A6: ClickLoc gold-plated connectors with a secure locking mechanism.
Q7: Can I use this sensor in high-temperature environments?
A7: Yes, with ETR components rated up to 260°C (500°F).
Q8: What materials are used in the probe casing?
A8: Stainless steel (AISI 303 or 304) with PPS tip encapsulation.
Q9: Is special wiring required for the sensor?
A9: No, it accepts standard 3-conductor shielded triad cables.
Q10: Is field calibration required for component replacement?
A10: No, the system supports component interchangeability without recalibration.
Related 型号s (Same Series)
| 型号 Number | 描述 | Length | Temperature Rating | 重量 |
|---|---|---|---|---|
| 330180-50-05 | 3300 XL Proximitor Sensor, 5 m system | 5.0 m | Standard | 0.246 kg |
| 330180-10-05 | 3300 XL Proximitor Sensor, 1 m system | 1.0 m | Standard | 0.246 kg |
| 330130-030-00-00 | Standard extension cable, 3.0 m | 3.0 m | Standard | 0.102 kg |
| 330101-00-20-10-02 | 8 mm probe, 2.0 m length, ClickLoc connector | 2.0 m | Standard | 0.65 kg |
| 330191-00-20-10-02 | ETR probe, 2.0 m length, high-temp | 2.0 m | Up to 218°C | 0.65 kg |
| 330105-02-12-10-02 | Reverse mount probe, 1.0 m length | 1.0 m | Standard | 0.6 kg |
Popular Bently Nevada 型号s
| 型号 Number | 描述 | Application Area | Temp Range | 重量 |
|---|---|---|---|---|
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration Monitoring | Standard | 0.5 kg |
| 3500/22M | Transient Data Interface | Data Acquisition | Standard | 0.9 kg |
| 3500/15 | Power Supply Module | System Power | 0–70°C | 1.0 kg |
| 3500/25 | Keyphasor Module | Rotational Speed | Standard | 0.6 kg |
| 330104-00-06-10-11 | 8 mm Proximity Probe, armored | Shaft Position Monitoring | -52°C to +177°C | 0.24 kg |
| 3300/16-13-01-00 | 2-Channel Monitor | Vibration Monitoring | Standard | 0.8 kg |
