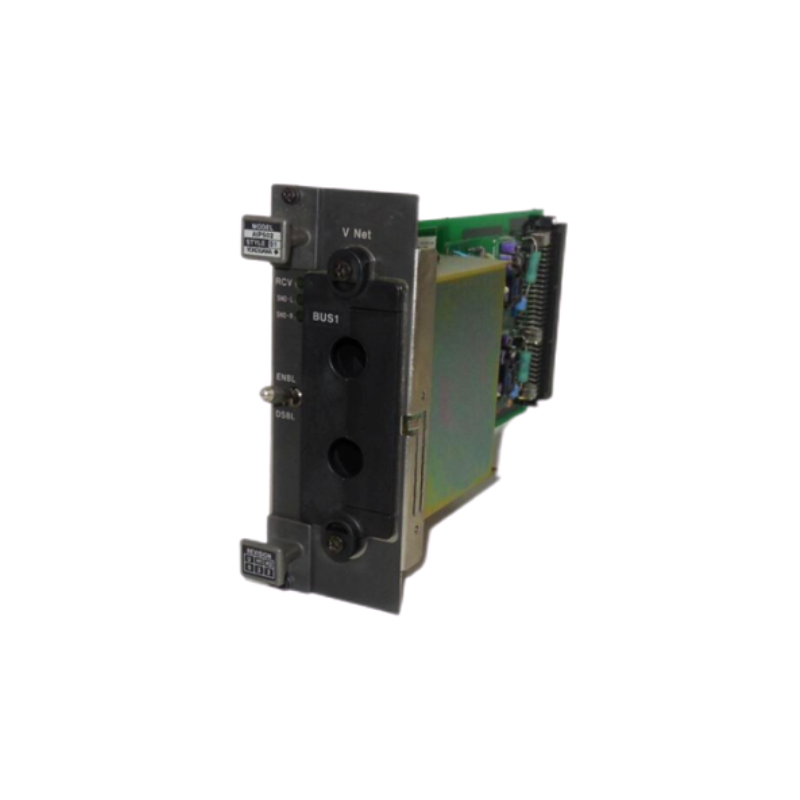

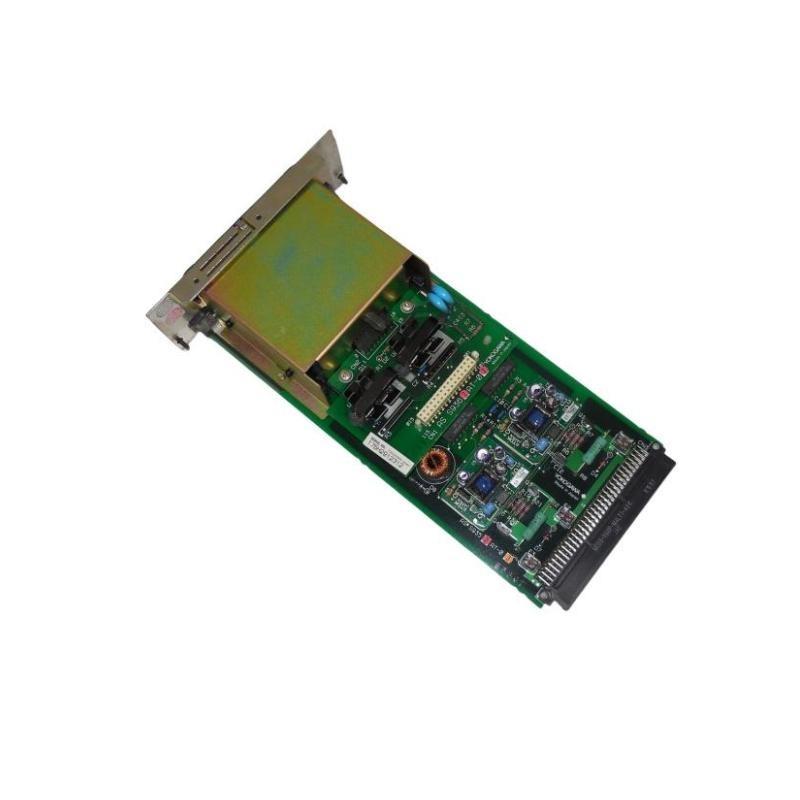

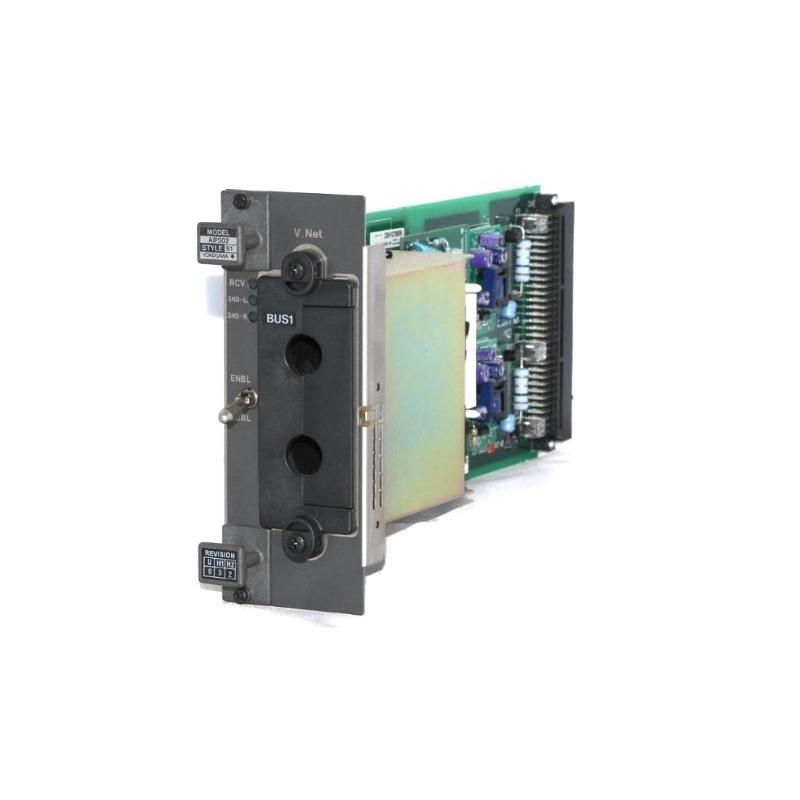

产品介绍 – Yokogawa AIP502
The Yokogawa AIP502 is a high-performance Analog Input Module designed for integration within the Yokogawa CENTUM VP Distributed Control System (DCS). Developed to deliver accurate, stable, and reliable analog signal acquisition, the AIP502 supports multiple input signal types and /fers robust isolation features, making it ideal for use in critical process control environments such as oil and gas, petrochemical, power generation, and pharmaceutical industries.
This module is engineered with high-density channel configuration, enhanced diagnostics, and plug-and-play compatibility with Yokogawa’s Vnet/IP architecture. It plays a pivotal role in converting field analog signals (such as 4-20 mA) into digital data for use within process control strategies.
Technical Specifications
| Parameter | Specification |
|---|---|
| 型号 Number | AIP502 |
| Function | Analog Input Module (32 channels) |
| Input Signal Type | 4–20 mA, 1–5 V (configurable), thermocouple (with ext.) |
| Number / Channels | 32 channels per module |
| Signal Resolution | 16-bit A/D converter |
| Input Accuracy | ±0.1% / span (typical) |
| Isolation Type | Channel-to-channel and channel-to-ground isolation |
| Voltage Withstanding | 1500 V AC for 1 minute (isolation test) |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -20 to +70°C |
| Power Supply Voltage | Supplied from system bus (24 V DC nominal) |
| Power Consumption | 6.0 W |
| Dimensions | 22.5 x 100 x 115 mm |
| 重量 | 0.2 kg |
| Mounting | Mounted on I/O base plate |
| Certifications | CE, ATEX, CSA (depending on configuration) |
| Diagnostic Functions | Channel failure detection, signal range monitoring |
Product Applications
The AIP502 is suited for a wide range / applications, particularly in industrial automation and process control systems that require robust analog signal acquisition. Common use cases include:
-
Oil & Gas: Real-time measurement / pressure, temperature, and flow.
-
Chemical & Petrochemical Plants: Monitoring reactor conditions and process streams.
-
Power Generation: Turbine and boiler instrumentation.
-
Water Treatment: pH and turbidity sensor input processing.
-
Pharmaceuticals: Precision control / environmental parameters in production.
Product Advantages
-
High Channel Density: With 32 analog input channels, the AIP502 allows for compact system configuration and lower installation cost.
-
Superior Signal Integrity: Built-in 16-bit A/D converters and input filtering ensure precise and stable signal acquisition.
-
Advanced Diagnostics: Self-checking features and signal range monitoring help detect issues early, improving system reliability.
-
Robust Isolation: Each channel is isolated from others and from ground, minimizing interference and ground loop issues.
-
Flexible Signal Handling: Capable / processing both current and voltage signals, increasing versatility.
-
System Integration Ready: Seamlessly connects with Yokogawa’s Vnet/IP and CENTUM VP for efficient DCS integration.
-
Reliable in Harsh 状态s: Wide operating temperature range and compliance with industrial standards ensure performance under demanding environments.
10 FAQs (De-AI Style)
Q1: What type / signals can the AIP502 accept?
A1: The AIP502 can handle 4–20 mA current signals, 1–5 V voltage signals, and thermocouple inputs with external conversion, making it adaptable to a variety / field sensors.
Q2: How many analog channels does it support?
A2: It supports 32 analog input channels per module, allowing for efficient space usage in high-density applications.
Q3: Is there channel-to-channel isolation?
A3: Yes, each channel is isolated individually, which protects the module from cross-interference and improves safety.
Q4: What diagnostic functions are available?
A4: The module /fers channel failure detection, out-/-range monitoring, and internal self-diagnostics to ensure system reliability.
Q5: Can it be used in hazardous areas?
A5: With appropriate certification options like ATEX and CSA, the AIP502 can be used in hazardous environments when installed properly.
Q6: What is the accuracy level / the module?
A6: The AIP502 typically /fers ±0.1% / span accuracy, making it highly reliable for precise measurements.
Q7: What is the power consumption / the module?
A7: It consumes approximately 6.0 watts / power, which is efficiently managed through the system backplane.
Q8: Is the AIP502 hot-swappable?
A8: Yes, the design supports module replacement without shutting down the entire system, reducing downtime.
Q9: Does it support integration with non-Yokogawa systems?
A9: While optimized for Yokogawa DCS, the signal characteristics allow indirect integration with third-party systems using standard signal converters.
Q10: How is the module mounted?
A10: The AIP502 is installed on an I/O base plate, which connects it electrically and mechanically within the cabinet.
Recommended 型号s – Same Series or Related
-
Yokogawa AIP501 – 16-channel analog input module
-
Yokogawa AIP504 – High-speed analog input module
-
Yokogawa AOP501 – Analog output module
-
Yokogawa AIB141 – Multipoint analog input with HART support
-
Yokogawa ADV551 – Digital input module for signal integration
-
Yokogawa ACR121 – Remote I/O communication module
Popular Yokogawa Modules – Recommended 型号s Table
| 型号 | Function | Channels | Signal Type | Dimensions (mm) | 重量 |
|---|---|---|---|---|---|
| AIP502 | Analog Input Module | 32 | 4–20 mA, 1–5 V | 48 × 174.5 × 130 | 0.5 kg |
| AIP501 | Analog Input Module | 16 | 4–20 mA | 48 × 174.5 × 130 | 0.45 kg |
| AOP501 | Analog Output Module | 16 | 4–20 mA output | 48 × 174.5 × 130 | 0.5 kg |
| ADV151 | Digital Input Module | 32 | 24 V DC | 48 × 174.5 × 130 | 0.48 kg |
| AIB141 | Analog Input w/ HART | 16 | 4–20 mA + HART | 48 × 174.5 × 130 | 0.52 kg |
| CP451-10 | CPU Module | — | System Processor | 90 × 175 × 130 | 1.0 kg |
