产品介绍

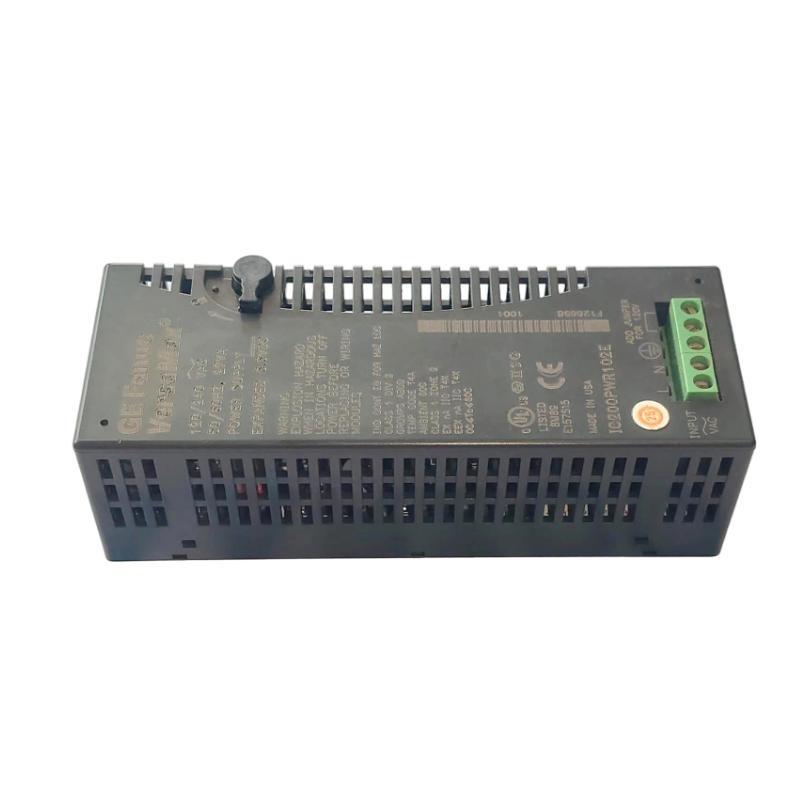

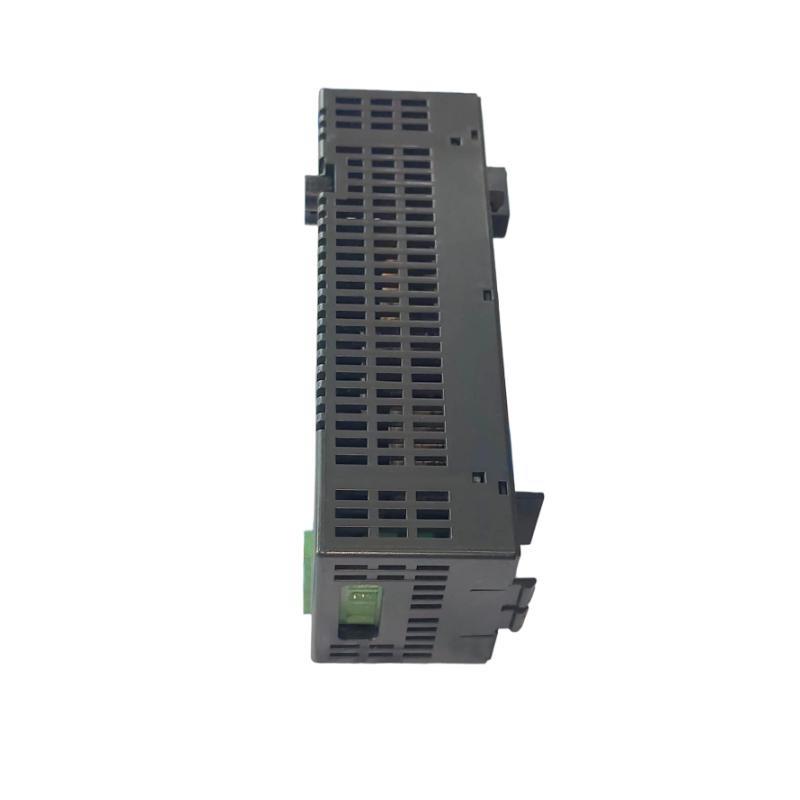

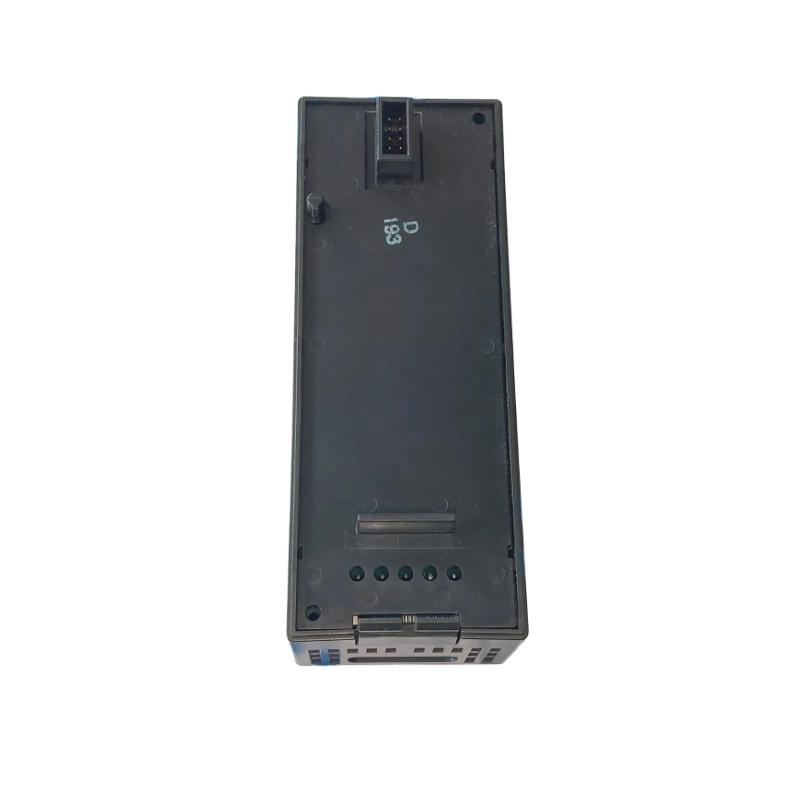

The GE IC200CPWR102 is a Power Supply Module designed for use in VersaMax Micro PLC systems. This module plays a critical role in converting the input electrical energy into a regulated output to power the PLC and associated modules, ensuring stable operation in industrial environments. The IC200CPWR102 provides 24 VDC output, which is necessary to run the VersaMax series / controllers and I/O modules.
This power supply module is engineered for reliable, continuous operation, even in environments with fluctuating power conditions. It is also designed to be compact, allowing for easy installation within control panels and machine enclosures, particularly in systems where space is limited.
产品规格
Here are the key specifications for the GE IC200CPWR102 Power Supply Module:
| Specification | Value |
|---|---|
| 型号 | IC200CPWR102 |
| Type | Power Supply Module |
| Dimensions | 49 x 133.4 x 39 mm |
| 重量 | 0.29 kg |
| Output Voltage | 24 VDC |
| Input Voltage | 85–264 VAC |
| Operating Temperature | -20°C to 60°C |
| Mounting | DIN Rail Mounting |
| Power Output | 1.0 A @ 24 VDC |
| Efficiency | > 85% |
| Power Consumption | 6.5 W (maximum) |
| Input Frequency | 47–63 Hz |
| Protection | Overvoltage, Overcurrent, and Short-Circuit Protection |
Applications
The GE IC200CPWR102 Power Supply Module is used in a wide range / applications across industrial and automation sectors, including:
-
PLC Systems: It is the primary power supply for VersaMax Micro PLCs, ensuring stable operation / the controller and all associated I/O modules in a wide range / automation tasks.
-
Industrial Automation: The power supply is used in automated manufacturing systems, including conveyor systems, robotic arms, and sorting systems, providing reliable power to the PLCs controlling these machines.
-
Building Automation: Integrated into building management systems to power the PLCs controlling HVAC systems, lighting, and security features.
-
Process Control: Used in process control systems where reliable power is crucial for managing variables like temperature, pressure, and flow.
-
Energy Monitoring: Powers energy management systems to monitor and control electrical consumption in industrial facilities, ensuring efficient use / energy resources.
-
Material Handling: In warehouse automation and logistics systems, providing power for the PLCs that control automated material handling equipment.
Advantages
-
Reliable Power: The IC200CPWR102 provides stable 24 VDC output, ensuring that the VersaMax PLC and other system modules are powered effectively, even during power fluctuations.
-
Compact Design: Its compact size makes it easy to integrate into control panels or cabinets with limited space, providing a neat and organized solution for industrial systems.
-
Wide Input Voltage Range: Capable / operating with an input voltage range / 85–264 VAC, making it versatile and compatible with various industrial power sources.
-
Efficient Power Conversion: With an efficiency rate greater than 85%, this power supply module reduces energy losses, making it an environmentally friendly option.
-
Protection Features: Includes built-in overvoltage, overcurrent, and short-circuit protection, ensuring the protection / both the power supply and the connected devices.
-
Durable and Robust: Designed to operate in demanding environments with an extended operating temperature range / -20°C to 60°C, it is ideal for use in harsh industrial conditions.
FAQ
-
What is the GE IC200CPWR102 Power Supply Module?
The IC200CPWR102 is a power supply module designed for the VersaMax Micro PLC system, providing 24 VDC output to power PLCs and connected modules. -
What input voltage does the IC200CPWR102 support?
The module supports an input voltage range / 85–264 VAC, making it versatile for use with different industrial power sources. -
What is the output voltage / the IC200CPWR102?
The IC200CPWR102 provides a stable 24 VDC output, essential for powering the VersaMax PLC and associated I/O modules. -
What is the maximum output current for the IC200CPWR102?
The power supply module provides a maximum output current / 1.0 A at 24 VDC. -
What is the power consumption / the IC200CPWR102?
The maximum power consumption / the IC200CPWR102 is 6.5 W. -
What protection features are included with the IC200CPWR102?
The module includes protection against overvoltage, overcurrent, and short circuits, ensuring the safety / the system. -
What is the efficiency / the IC200CPWR102?
The power supply module has an efficiency rating / greater than 85%, reducing energy loss. -
How is the IC200CPWR102 mounted?
The module can be easily mounted on a DIN rail, simplifying installation in control panels. -
What is the operating temperature range / the IC200CPWR102?
The IC200CPWR102 operates in a temperature range from -20°C to 60°C, making it suitable for use in harsh industrial environments. -
Can the IC200CPWR102 be used with other PLC systems?
No, the IC200CPWR102 is specifically designed for the VersaMax PLC system and may not be compatible with other PLC brands.
Related 型号s from the Same Series
Here are six other models from the VersaMax Micro PLC series that are compatible with or related to the IC200CPWR102:
| 型号 | 描述 |
|---|---|
| IC200UEM001 | VersaMax Micro Ethernet Module |
| IC200UEX222 | VersaMax Micro Expansion Module (16 I/O) |
| IC200UEI008 | VersaMax Micro Expansion Input Module |
| IC200UEO116 | VersaMax Micro Expansion Output Module |
| IC200UDR120 | VersaMax Micro Controller Processor |
| IC200MDL640 | VersaMax Micro Digital Output Module |
Popular 型号s from GE
Here are six other popular models from General Electric (GE):
| 型号 | 描述 |
|---|---|
| IC693CMM321 | GE Series 90-30 Communication Module |
| IC693CPU364 | GE Series 90-30 CPU Module |
| IC693ALG223 | GE Series 90-30 Analog Input Module |
| IC693MDL750 | GE Series 90-30 Digital Output Module |
| IC697CMM711 | GE Series 90-70 Communication Module |
| IC697MDL750 | GE Series 90-70 Digital Output Module |
