Product Overview

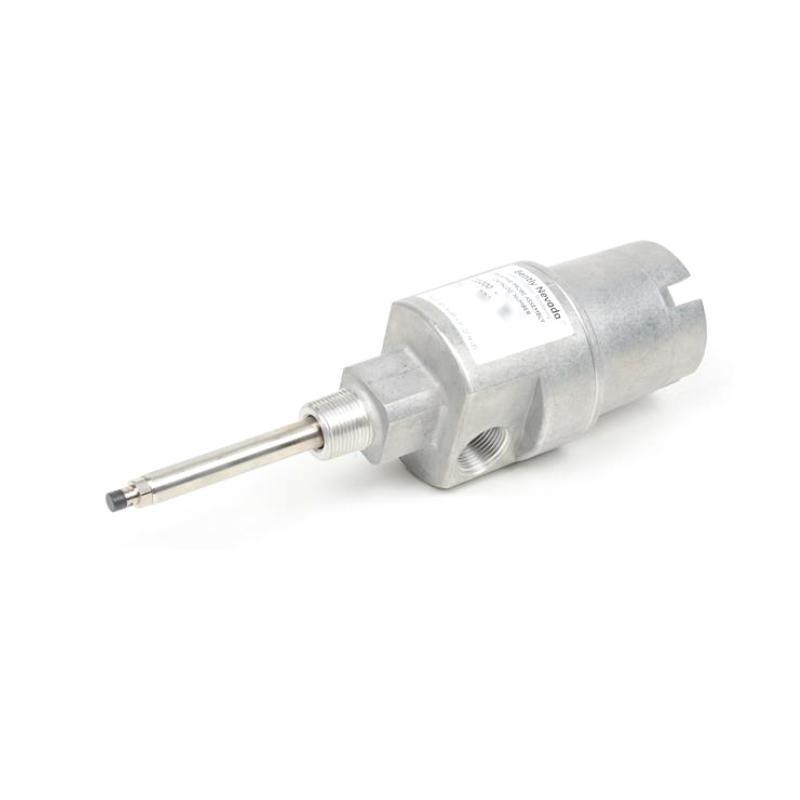

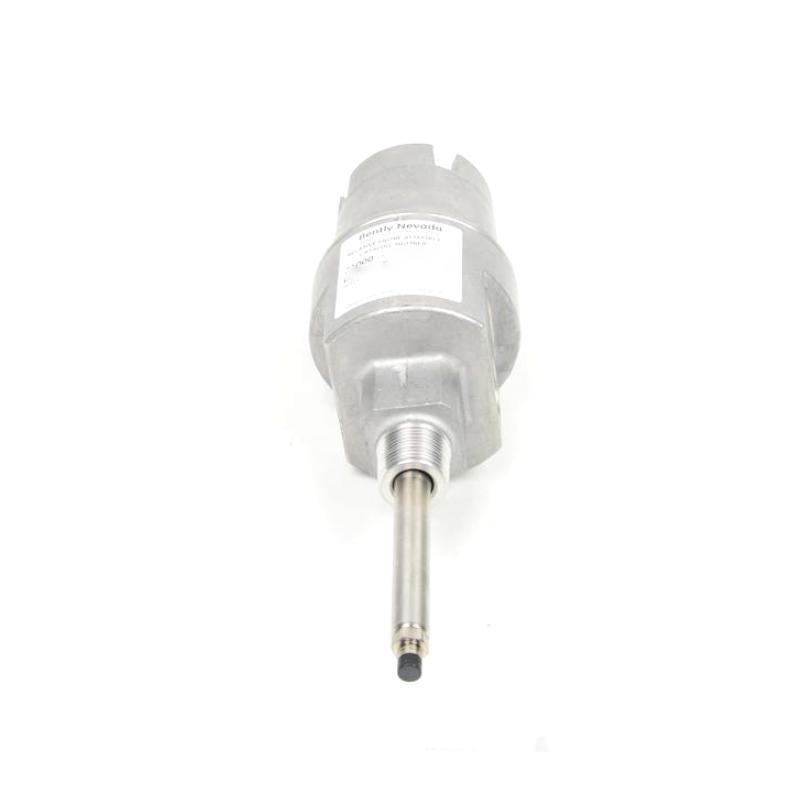

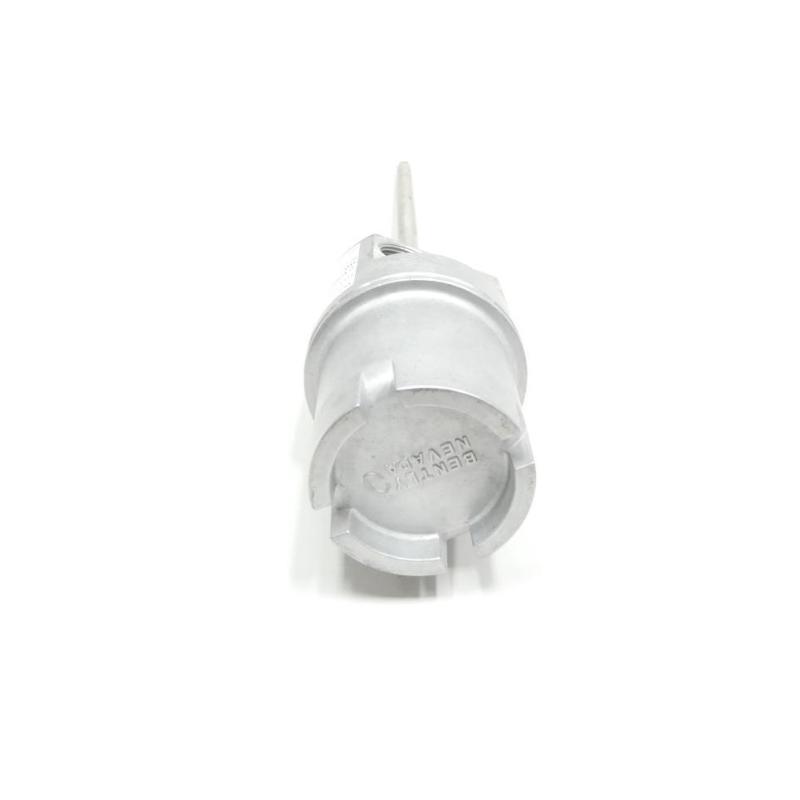

The Bently Nevada 21000-28-10-00-095-04-02 is a high-precision proximity probe housing assembly designed for industrial machinery monitoring. Engineered for reliability and durability, it ensures accurate vibration and position measurement in harsh operating environments. Its aluminum body and stainless-steel sleeve provide corrosion resistance and long-term stability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm, multi-approval |
| Cable Length | 1 m (39 in) |
| Probe Penetration | 9.5 in |
| Stand/f Adapter | None |
| Fittings | One 3/4-14 NPT plug |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Aluminum body, 304 stainless steel sleeve |
| Housing Body Diameter | 83.3 mm |
| 重量 | 1.1 kg |
| Certifications | CSA explosion-pro/, API 670 compliant |
| Replacement 型号 | 21000-16-10-00-095-04-02 |
Applications
-
Turbine vibration monitoring
-
Generator shaft position sensing
-
Compressor and pump condition monitoring
-
API 670 compliant machinery protection
-
Industrial process safety systems
Advantages
-
Durable aluminum and stainless-steel construction for corrosion resistance
-
Precise probe alignment for high measurement accuracy
-
CSA certified and explosion-pro/ for hazardous environments
-
Easy installation with standardized mounting threads
-
Compatible with Bently Nevada 3300 XL probes for reliable integration
FAQs
1. What is the maximum operating temperature / this housing assembly?
It is designed to operate reliably up to 120°C in standard industrial environments.
2. Is the housing explosion-pro/?
Yes, it is CSA-certified explosion-pro/ for use in hazardous areas.
3. What type / probes are compatible?
Compatible with 3300 XL 8 mm proximity probes.
4. Can it be installed without a stand/f adapter?
Yes, the standard configuration does not require a stand/f adapter.
5. What is the material / the housing body?
Aluminum body with 304 stainless steel sleeve for corrosion resistance.
6. What mounting thread does it use?
3/4-14 NPT standard mounting thread.
7. Is the assembly API 670 compliant?
Yes, it fully meets API 670 standards for machinery protection.
8. How long is the cable included?
The standard cable length is 1 meter (39 inches).
9. Can it be replaced by another model?
Yes, the 21000-16-10-00-095-04-02 is the current replacement model.
10. What maintenance is required?
Periodic inspection for corrosion or mechanical damage and proper sealing / fittings.
Related or Series 型号s
| 型号 Number | Probe Type | Cable Length | Housing Diameter | 重量 |
|---|---|---|---|---|
| 21000-16-10-00-095-04-02 | 3300 XL 8 mm | 1 m | 83.3 mm | 1.1 kg |
| 21000-28-05-00-095-04-02 | 3300 XL 8 mm | 0.5 m | 83.3 mm | 1.0 kg |
| 21000-28-15-00-095-04-02 | 3300 XL 8 mm | 1.5 m | 83.3 mm | 1.2 kg |
| 21000-28-10-00-120-04-02 | 3300 XL 8 mm | 1 m | 83.3 mm | 1.1 kg |
| 21000-28-10-00-095-02-02 | 3300 XL 8 mm | 1 m | 83.3 mm | 1.1 kg |
| 21000-28-10-00-095-06-02 | 3300 XL 8 mm | 1 m | 83.3 mm | 1.2 kg |
Popular Bently Nevada 型号s
| 型号 Number | Type | Housing Diameter | 重量 |
|---|---|---|---|
| 330104-00-06-10-11-00 | 3300 XL 8 mm Probe | 10 mm | 0.25 kg |
| 330180-91-CN | 3300 XL Proximitor Sensor | 18 mm | 0.3 kg |
| 31000-29-05-00-060-01-02 | Probe Housing Assembly | 83.3 mm | 1.1 kg |
| 330104-00-06-50-01-00 | 3300 XL 8 mm Probe | 10 mm | 0.26 kg |
| 3300 XL Series Sensor | Proximity Sensor | 8 mm | 0.2 kg |
| 3300 XL 8 mm Probe Standard | Proximity Sensor | 8 mm | 0.25 kg |
