Product Overview

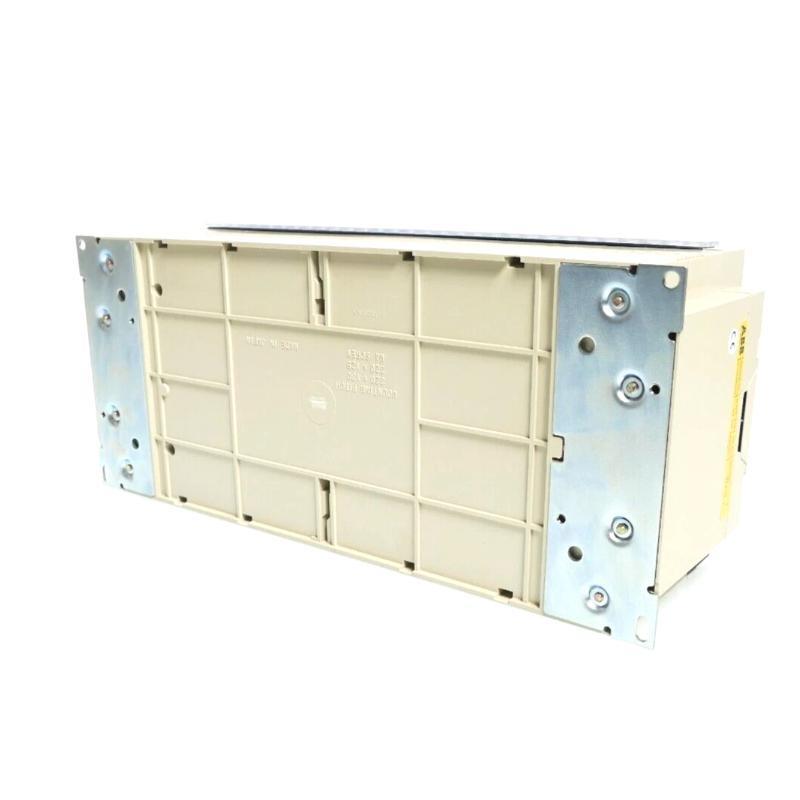

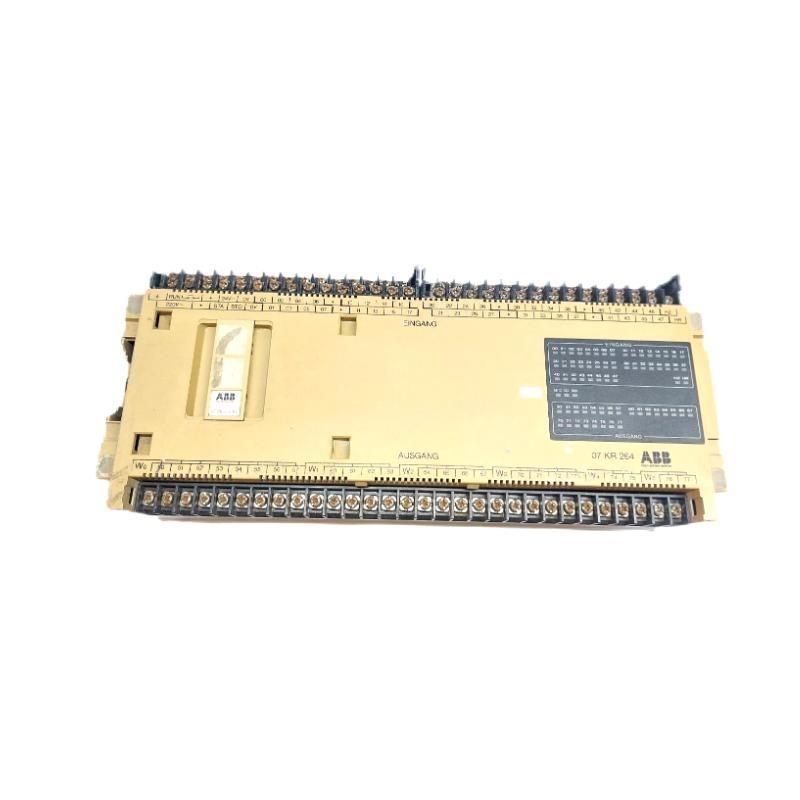

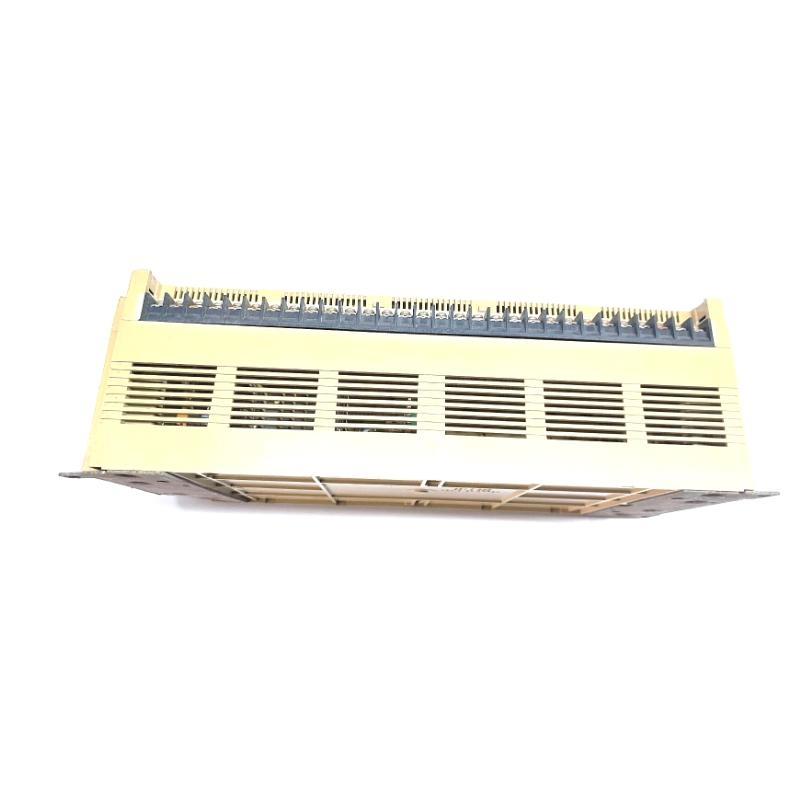

ABB 07KR264DR1 / 07KR264B GJV3072403R1 Control 单位 is an integral module within the ABB Advant Controller 31 family, acting as the central coordination point in industrial control systems. It facilitates real-time control tasks, data processing, and communication with other automation components. With reliable processing capacity and compatibility with various I/O and communication modules, this 件 is widely adopted in automation, energy, utilities, and process industries.
Built for rugged industrial environments, the 07KR264DR1/07KR264B /fers stable operation over extended lifespans, combining high-performance control with minimal maintenance requirements. It is known for its robust firmware, modularity, and support for ABB’s long-standing control architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Control 单位 |
| 型号 Number | 07KR264DR1 / 07KR264B |
| Ordering Code | GJV3072403R1 |
| 制造商 | ABB |
| System Series | Advant Controller 31 |
| Processor Type | Embedded industrial CPU (dedicated control logic processor) |
| RAM | 512 KB Static RAM |
| EEPROM | 64 KB EEPROM |
| Battery Backup | Yes, for RAM data retention |
| Watchdog Timer | Integrated hardware watchdog |
| Diagnostics | System self-test, status LEDs for fault indication |
| Communication Interfaces | System bus, I/O bus (backplane), optional communication modules |
| Mounting Type | Rack-mounted (DIN rail optional with adaptor) |
| Power Supply | 5 VDC (supplied via rack system bus) |
| Power Consumption | Approx. 2.5 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | 1g (10–150 Hz) |
| Shock Resistance | 15g for 11 ms |
| Dimensions (W x H x D) | 150 x 120 x 50 mm |
| 重量 | 1 kg |
| Certifications | CE, UL, CSA, RoHS compliant |
| Firmware | ABB proprietary firmware for control coordination |
| Redundancy 支持 | Optional (via system configuration) |
Applications
The ABB 07KR264DR1/07KR264B Control 单位 is suitable for a wide range / industrial environments where consistent and high-reliability automation is necessary:
-
Chemical and Petrochemical Plants
Orchestrates real-time control and logic decisions across hazardous processing 件s. -
Pulp and Paper Industries
Ensures synchronized operations among large-scale motor drives, sensors, and valve systems. -
Power Generation & Distribution
Integrates with substations and supervisory control systems, maintaining system balance and real-time switching. -
Automotive Manufacturing Lines
Coordinates robotic systems, conveyors, and PLCs for continuous assembly processes. -
Pharmaceutical Automation
Maintains strict timing and process integrity for batch processes and cleanroom automation. -
Food and Beverage Processing
Controls temperature loops, CIP systems, and packaging equipment under hygiene-compliant standards.
Key Advantages
-
Robust Architecture
Engineered for continuous operation under industrial stresses such as temperature variation and vibrations. -
Integrated Diagnostics
Real-time feedback on module health ensures minimized downtime and faster maintenance cycles. -
Modular Compatibility
Seamless integration with ABB’s I/O, analog/digital modules, and communication processors. -
Long Lifecycle
ABB guarantees lifecycle support and spares for the Advant Controller series—ideal for legacy systems. -
Battery-Backed RAM
Retains critical process data during outages, enhancing reliability and reducing restart configuration. -
Versatile Mounting and Form Factor
Compact design allows dense installation in control cabinets or industrial enclosures. -
Designed for Complex Logic
Capable / handling advanced interlocks, PID loops, and sequential control routines.
常见问题 (FAQ)
-
What is the primary function / the ABB 07KR264DR1/07KR264B module?
It acts as the central control 件 for logic execution and communication in the Advant Controller 31 system. -
Is this control 件 compatible with modern ABB platforms like AC 800M?
No, it’s specific to the Advant Controller 31 family, though bridging solutions may exist. -
Can I use this module with digital and analog I/O cards?
Yes, it is compatible with various 07 series I/O modules from ABB. -
Does the module include built-in memory?
Yes, it includes both RAM and EEPROM, with optional battery backup for RAM. -
What power supply is needed?
It operates on 5 VDC supplied through the system backplane. -
Can I update the firmware / the control 件?
Firmware updates are available through ABB service support channels when necessary. -
Does this module support remote communication protocols like MODBUS?
Not natively, but you can pair it with communication processor modules like 07KP64 to support MODBUS or serial communication. -
Is redundancy supported?
Redundancy is supported depending on the overall system design and configuration. -
How can I monitor its status?
The front panel includes status LEDs and the module performs self-diagnostics. -
What is the typical lifespan / this control 件?
Over 10 years under normal operating conditions, with many 件s functioning beyond that with routine maintenance.
Related 型号s (Same Series or Functionality)
| 型号 | Function | Series | Key Features |
|---|---|---|---|
| 07KR51 | Central Processor Module | Advant Controller 31 | Basic control functions |
| 07KT94 | Main CPU | Advant Controller 31 | High-performance logic controller |
| 07KP64 | Communication Processor | Advant Controller 31 | RS485/RS232 communication support |
| 07EB90 | System Bus Interface | Advant Controller 31 | Bus connectivity for I/O modules |
| 07DC92 | Digital Input Module | Advant Controller 31 | 16-channel digital input |
| 07AC91 | Analog Input Module | Advant Controller 31 | Voltage/current analog input channels |
Popular ABB Modules Across Product Lines
| 型号 | Function | Series | Features |
|---|---|---|---|
| CI854AK01 | PROFIBUS Communication Interface | AC 800M | Dual-port PROFIBUS-DP, Redundancy-ready |
| PM861K01 | Controller Module | AC 800M | Dual CPU, Ethernet, extended memory |
| DI801 | Digital Input Module | S800 I/O | 16 channels, 24V DC |
| DO802 | Digital Output Module | S800 I/O | 16-channel transistor outputs |
| AI810 | Analog Input Module | S800 I/O | 8-channel, 4–20 mA loop powered |
| AO810V2 | Analog Output Module | S800 I/O | Voltage and current outputs, 8 channels |
