产品介绍

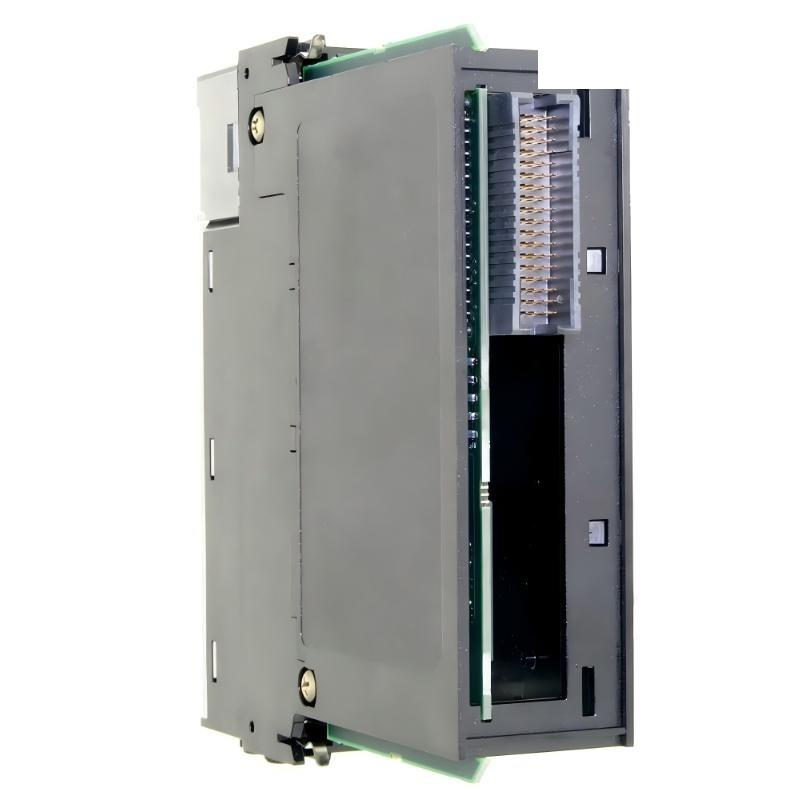

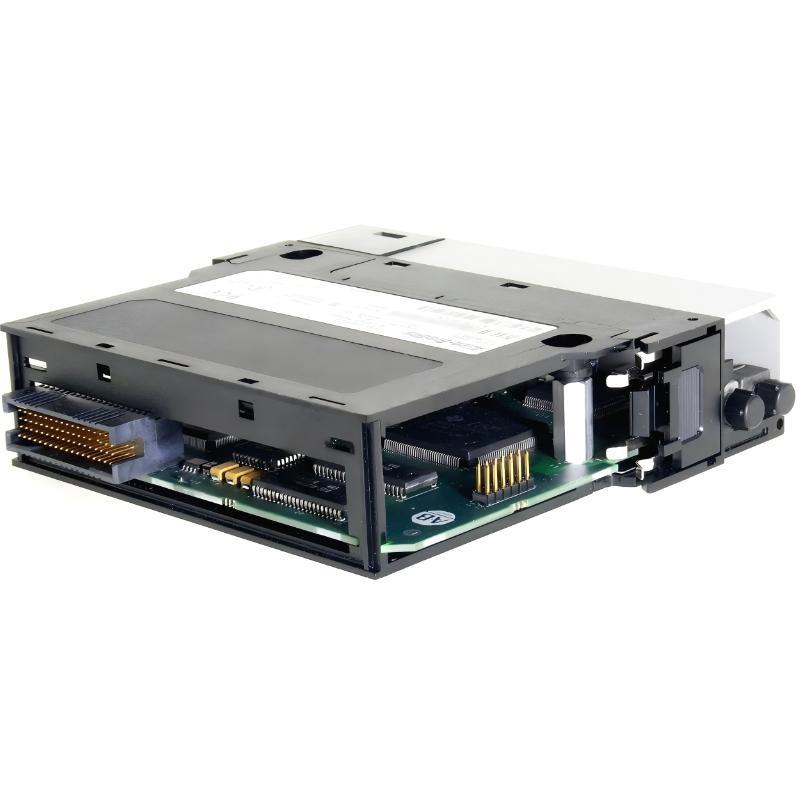

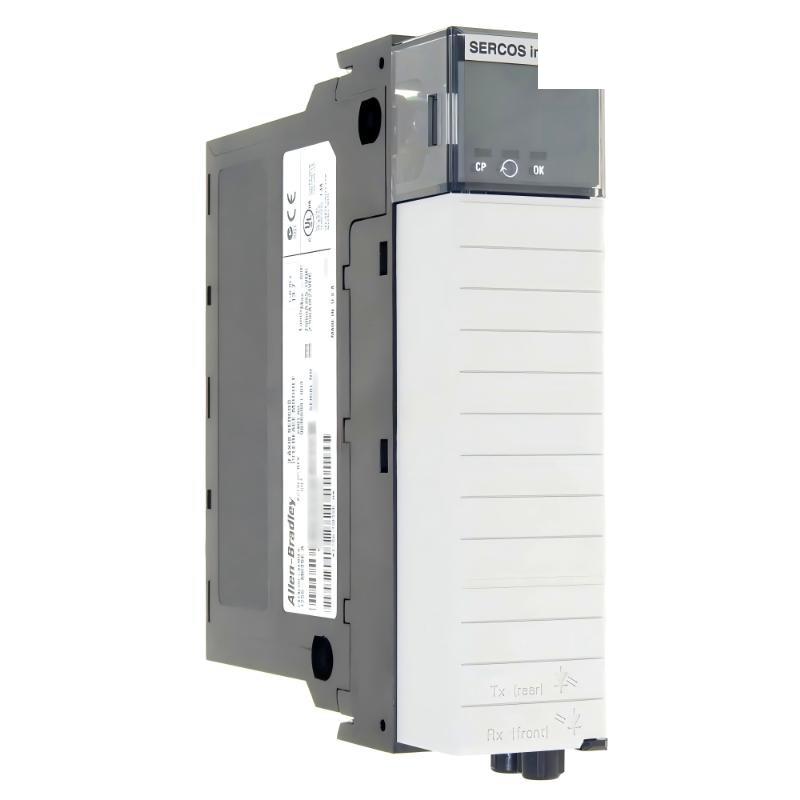

The Allen Bradley 1756-M03SE ControlLogix 3 Axis SERCOS Servo Module is a high-performance motion control module designed for precise multi-axis motion within the ControlLogix automation platform. It supports up to 3 axes or drives using a SERCOS network, enabling coordinated and deterministic motion control for industrial machinery.
With fast communication and reliable timing, the module is ideal for applications such as robotic positioning, packaging, and printing systems. It allows accurate closed-loop control / servo drives, ensuring precise positioning, velocity control, and synchronization across multiple axes.
The 1756-M03SE integrates seamlessly into a standard 1756 ControlLogix chassis and operates reliably within 0 to 60 deg C, making it suitable for standard industrial environments. Motion programming and configuration are performed using Studio 5000 Logix Designer.
产品规格
| Parameter | 描述 |
|---|---|
| Product Name | 3 Axis SERCOS Servo Module |
| 型号 | 1756-M03SE |
| 制造商 | Allen Bradley |
| Series | ControlLogix |
| Number / Axes or Drives | 3 |
| Communication Protocol | SERCOS |
| Backplane Current at 5 V | 760 mA |
| Backplane Current at 24 V | 2.5 mA |
| Current Draw at 5.1 V | 1.2 A |
| Power Dissipation | 5.0 W |
| Thermal Dissipation | 21.2 BTU/hr |
| Isolation Voltage | 50 V continuous |
| Operating Temperature | 0 to 60 deg C |
| Mounting | 1756 ControlLogix Chassis |
| Dimensions | 145.2 x 34.6 x 139.6 mm |
| 重量 | 0.26 kg |
Applications
• Controls 3-axis servo systems in industrial machinery
• Used in robotic arms, packaging machines, and printing equipment
• 支持s high-speed indexing and precise motion coordination
• Suitable for electronic camming, motion pr/iling, and synchronized servo applications
• Enables centralized motion control with deterministic timing
• Applied in systems requiring accurate closed-loop feedback and positioning
Advantages
• Controls up to 3 servo axes simultaneously
• 支持s SERCOS deterministic communication for precise timing
• High current capacity allows robust servo drive operation
• Reduces system complexity with centralized multi-axis motion control
• Reliable operation under industrial conditions
• Seamless integration into ControlLogix motion control architecture
• Enhances machine efficiency with precision electronic gearing and camming
