Product 描述

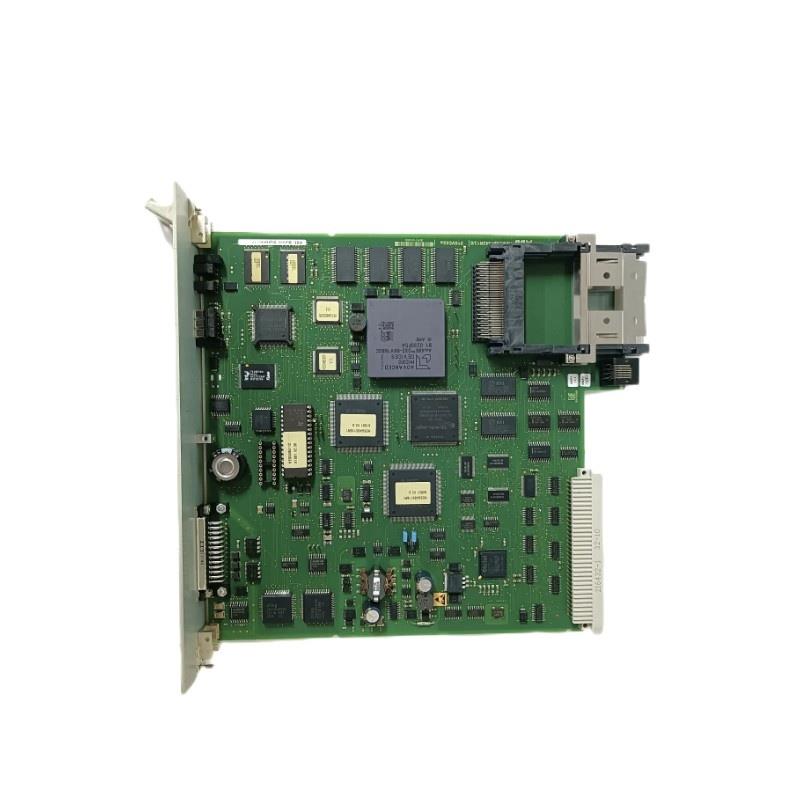

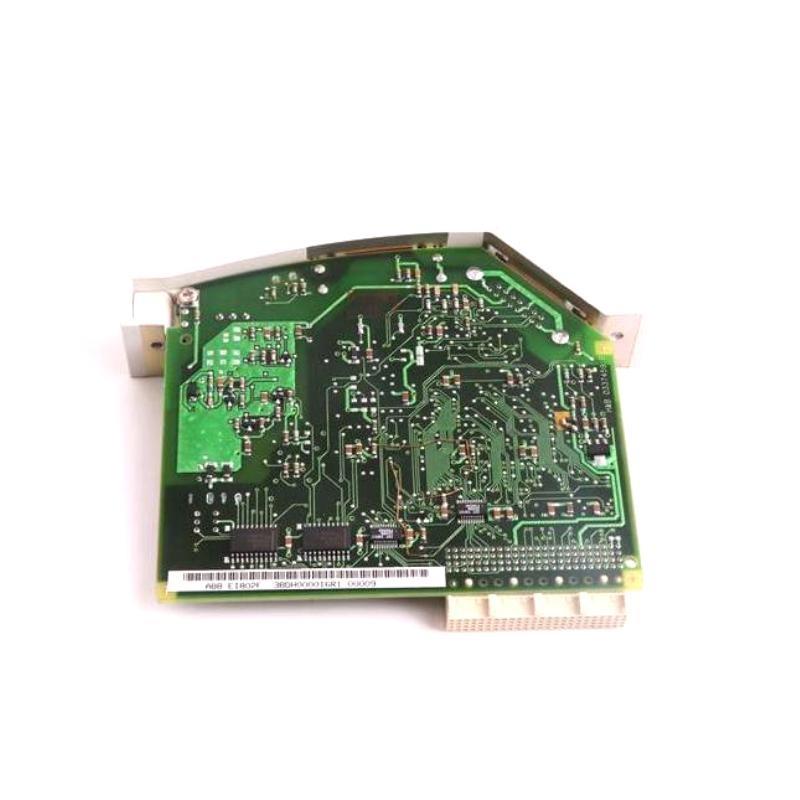

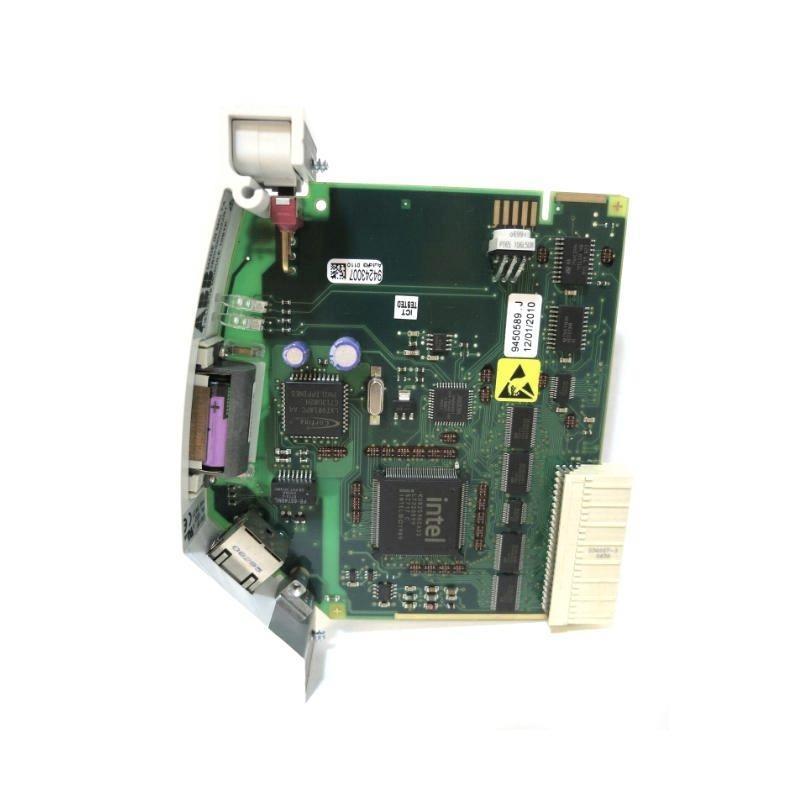

The ABB EI802F 3BDH000016R1 is an Ethernet communication module designed for the ABB AC 800F FieldController. It provides a reliable AUI interface for connecting Ethernet transceivers supporting 10Base5, 10Base2, 10BaseT, and 10BaseFL standards. This module ensures seamless integration with Industrial Ethernet networks, enhancing system flexibility and communication performance.
Technical Specifications
| Parameter | Value |
|---|---|
| 型号 | EI802F |
| 零件号 | 3BDH000016R1 |
| Interface | AUI (Attachment 单位 Interface) |
| 支持ed Standards | 10Base5, 10Base2, 10BaseT, 10BaseFL |
| Application | Ethernet connectivity for AC 800F |
| Power Supply Slot | E1 or E2 / AC 800F |
| Dimensions (W×H×D) | 125 × 155 × 28 mm |
| 重量 | 0.15 kg |
Applications
-
Industrial automation and process control.
-
Ethernet communication within ABB Freelance and Industrial IT systems.
-
Redundant or non-redundant AC 800F controller configurations.
-
Integration / field devices into plant-wide Ethernet networks.
Advantages
-
支持s multiple Ethernet media through AUI.
-
Enables flexible network configurations including star, bus, or fiber optic topologies.
-
Easy installation in standard AC 800F slots.
-
Proven reliability in harsh industrial environments.
-
支持s redundancy when used in redundant AC 800F systems.
FAQ
Q1: What is the primary function / the EI802F?
A1: It connects the AC 800F controller to Ethernet networks via an AUI interface.
Q2: Which Ethernet standards does the EI802F support?
A2: It supports 10Base5, 10Base2, 10BaseT, and 10BaseFL.
Q3: In which slots / AC 800F can the EI802F be installed?
A3: It can be installed in slots E1 or E2.
Q4: Does the EI802F support redundant configurations?
A4: Yes, it can be used in redundant AC 800F setups.
Q5: What are the dimensions / the EI802F?
A5: 125 × 155 × 28 mm.
Q6: What is the weight / the EI802F?
A6: Approximately 0.15 kg.
Q7: Is the EI802F suitable for fiber optic connections?
A7: Yes, when used with appropriate AUI transceivers.
Q8: Can I mix the EI802F with other Ethernet modules in one controller?
A8: Yes, it is possible depending on system design.
Q9: What is the difference between EI801F, EI802F, and EI803F?
A9: EI801F uses 10Base2 (BNC), EI802F uses AUI, and EI803F uses Twisted Pair (RJ45).
Q10: Does the EI802F require external power?
A10: No, it is powered by the AC 800F backplane.
Recommended Related 型号s
| 型号 | 零件号 | 描述 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| EI801F | 3BDH000015R1 | Ethernet 10Base2 Module | 125×155×28 | 0.15 |
| EI803F | 3BDH000017R1 | Ethernet Twisted Pair Module | 125×155×28 | 0.15 |
| FI810F | 3BDH000020R1 | CAN Fieldbus Module | 125×155×28 | 0.15 |
| FI820F | 3BDH000021R1 | Serial Interface Module | 125×155×28 | 0.15 |
| FI830F | 3BDH000022R1 | Pr/ibus DP Module | 125×155×28 | 0.15 |
| AM801F | 3BDH000018R1 | Battery Backup Module | 125×155×28 | 0.15 |
