Product Introduction

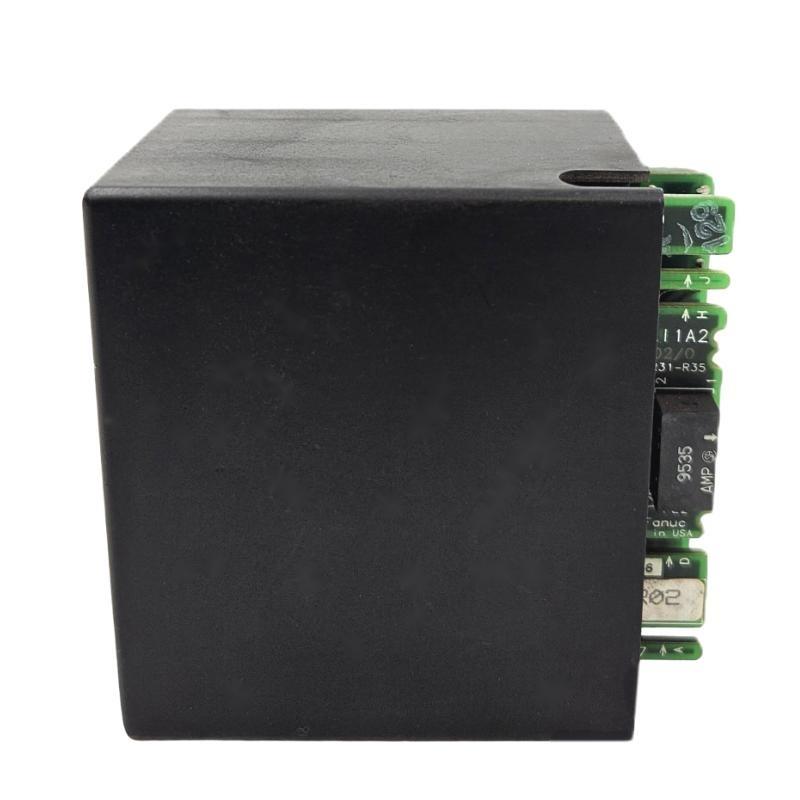

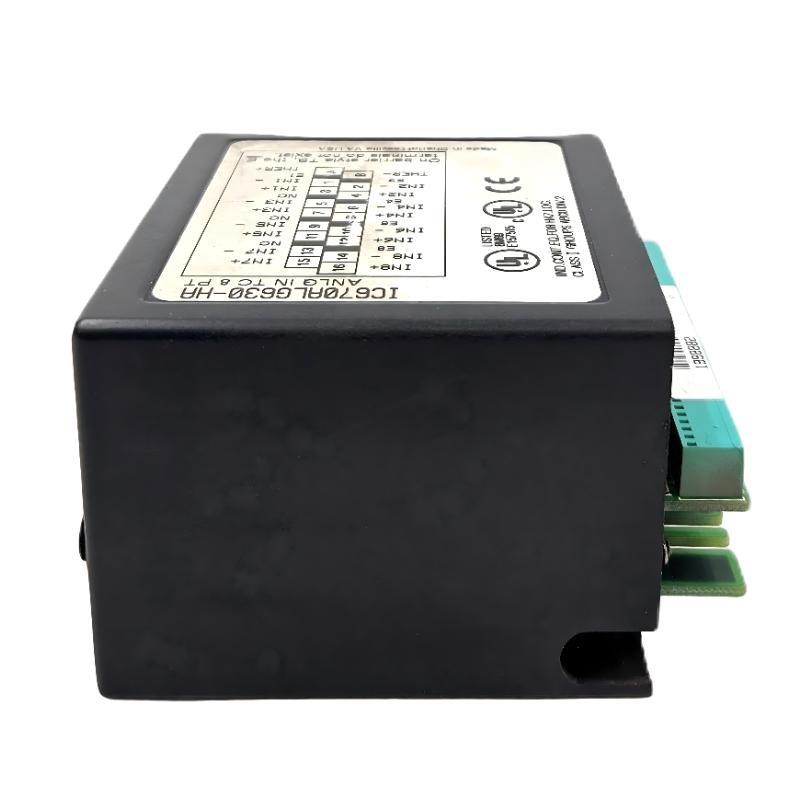

The GE IC670ALG630 Thermocouple Isolated Input Module is a high-precision 8-point analog input module designed for IC670 and Series 90-70 PLC systems. It provides isolated input channels capable of accepting thermocouple signals or multi-voltage analog signals, enabling accurate temperature and process variable monitoring across multiple points simultaneously.
Each of the 8 input channels is fully isolated, ensuring signal integrity and minimizing interference between channels, which is critical in industrial environments with electrical noise or mixed signal sources. The module supports both 50 Hz and 60 Hz systems, making it versatile for global industrial applications.
Engineered for robust industrial performance, the IC670ALG630 is suitable for continuous operation, delivering reliable, high-accuracy measurements for temperature and voltage signals. It integrates seamlessly into IC670 and Series 90-70 PLC racks, providing real-time analog data to controllers for process monitoring, control, and automation.
This module is ideal for process industries, including chemical, oil and gas, food and beverage, and power generation, where precise temperature measurement and analog signal acquisition are critical. Its combination of high channel count, isolation, and multi-signal support makes it a reliable solution for demanding industrial applications.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Thermocouple / Multi-Voltage Input Module |
| Series / Model | IC670ALG630 |
| System Compatibility | IC670, Series 90-70 PLC Systems |
| Functionality | 8-point isolated analog input for thermocouples or multi-voltage signals |
| Input Type | Thermocouple or voltage |
| Input Channels | 8 independent input points |
| Isolation | Fully isolated channels to prevent cross-talk and interference |
| Frequency Support | 50/60 Hz |
| Mounting Method | Rack-mounted in PLC backplane |
| Operating Environment | Industrial process control applications |
| Dimensions | 72 × 90 × 114 mm |
| Weight | 0.531 kg |
Applications
• Industrial process monitoring, measuring temperature and voltage across multiple points
• Chemical, oil & gas, and food & beverage industries, integrating analog signals into PLC systems
• Power generation and energy management, acquiring precise thermocouple and voltage data
• Data acquisition and process control, feeding real-time analog data to controllers
• Retrofit or expansion projects, adding high-precision analog inputs to existing PLC racks
• Multi-channel signal integration, reducing hardware complexity by consolidating 8 points in one module
Advantages
• 8 independent input channels, enabling simultaneous multi-point analog measurement
• Fully isolated channels, ensuring accurate signals with minimal interference
• Supports thermocouples and multi-voltage signals, offering flexible input options
• Reliable industrial performance, suitable for continuous operation in harsh environments
• Easy integration with IC670 and Series 90-70 PLC systems, simplifying installation
• Compact modular design, providing high channel density in a small footprint
