Product Introduction

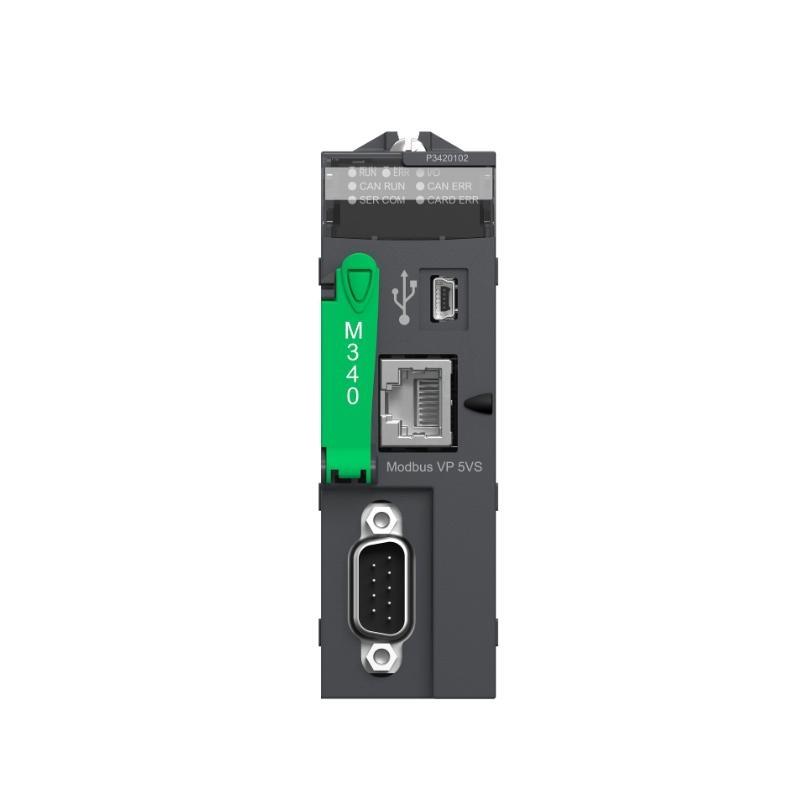

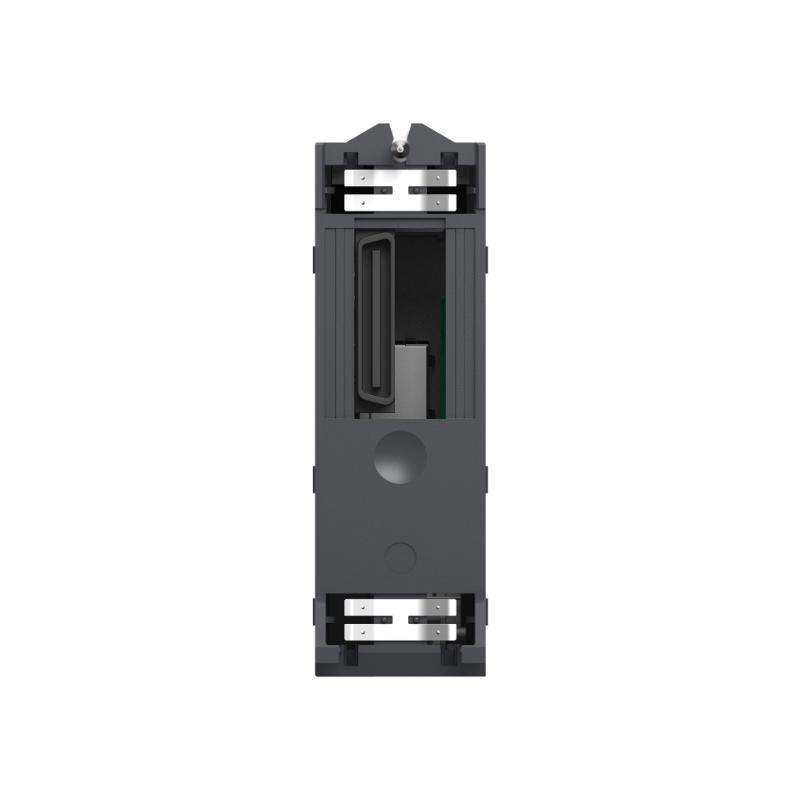

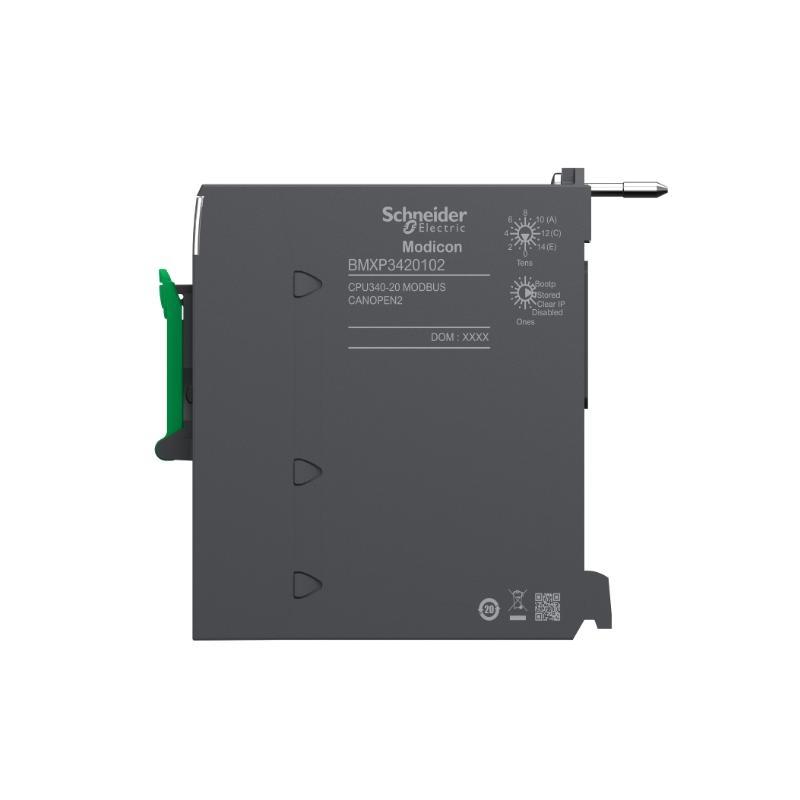

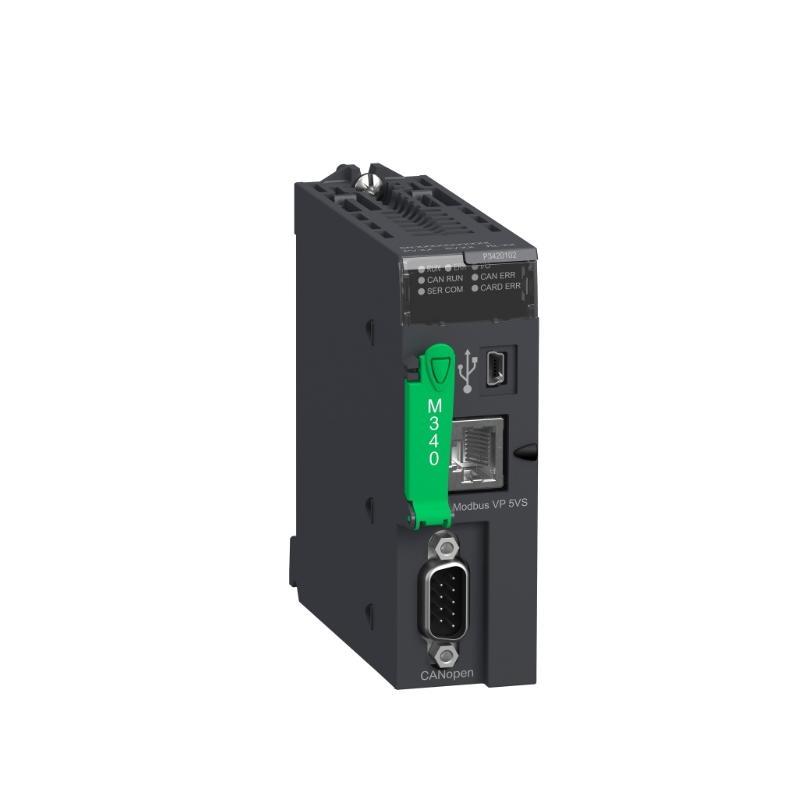

The Schneider Electric BMXP3420102 is a powerful and reliable processor module designed for use with the Modicon M340 series programmable automation controllers (PACs). Tailored for medium to complex industrial control systems, this processor module supports a wide range of automation applications, offering high-speed data processing, seamless communication integration, and scalability.
Built with robust features to meet the growing demands of modern industry, the BMXP3420102 is equipped with 1 MB of internal RAM, multiple communication ports, and advanced diagnostics capabilities. Its compact design, high reliability, and seamless integration into existing systems make it a favorite among professionals in the automation field.
Whether it’s factory automation, material handling, energy management, or process control, the BMXP3420102 stands out as a dependable control module in the Schneider Modicon lineup.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | BMXP3420102 |
| Brand | Schneider Electric |
| Series | Modicon M340 |
| Processor Type | 32-bit RISC |
| Clock Frequency | 66 MHz |
| User Application Memory | 1024 KB (1 MB) |
| RAM (Internal) | 716 KB |
| Flash Memory | 384 KB |
| Execution Time / Boolean Instr | 0.11 µs |
| Number of Tasks | 64 |
| Number of Instructions/Cycle | 70000+ |
| Communication Ports | 1x USB, 1x Serial (RS232/RS485), 1x Modbus |
| Supported Protocols | Modbus RTU, Modbus ASCII, Modbus TCP/IP |
| Diagnostics | Yes (via Unity Pro / EcoStruxure Control Expert) |
| Power Supply Voltage | 24V DC |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | DIN Rail |
| Dimensions (H x W x D) | 160 x 100 x 35 mm |
| Weight | 0.21 kg |
| Certifications | CE, UL, CSA, RoHS |
| Software Support | Unity Pro / EcoStruxure Control Expert |
Applications
The BMXP3420102 processor module is suitable for a wide variety of industrial and commercial applications, including:
-
Factory Automation: Ensuring precise control over machinery, conveyors, and robotic systems.
-
Water and Wastewater Treatment: Monitoring and automation of treatment plant processes.
-
Energy Management: Integrating power monitoring and automation systems for energy efficiency.
-
Material Handling: Supporting systems such as automated storage and retrieval, sorting, and conveying.
-
OEM Machine Builders: Providing compact and flexible control solutions.
-
Food and Beverage Industry: Automating mixing, bottling, and packaging lines.
-
Building Management Systems (BMS): Automating HVAC, lighting, and access control systems.
-
Renewable Energy Systems: Managing solar and wind power generation processes.
Product Advantages
High Performance: With a fast 66 MHz processor and large memory, it handles complex logic and data-intensive tasks.
Compact Size: Designed to fit into limited panel spaces without compromising functionality.
Modular Design: Easily scalable with additional I/O and communication modules.
Advanced Diagnostics: Real-time error tracking and logging for quicker troubleshooting.
Flexible Communication: Supports multiple protocols including Modbus RTU, ASCII, and TCP/IP.
Integrated Programming Environment: Compatible with Unity Pro / EcoStruxure Control Expert for seamless configuration and monitoring.
Rugged Construction: Designed to perform reliably in harsh industrial environments.
Broad Application Range: Versatile enough for use in both discrete and process automation.
Latest Product News Titles
-
“Schneider Expands Modicon M340 Series with Enhanced Processor Modules”
-
“BMXP3420102 Earns Recognition in Energy-Efficient Industrial Automation”
-
“Unity Pro Updates Improve Diagnostics for M340 PLCs”
-
“Modicon M340 Powers Water Treatment Facilities in Europe”
-
“Compact Performance: A Deep Dive into BMXP3420102 Features”
-
“BMXP3420102 Certified for Use in Global Industrial Markets”
-
“Schneider Electric Advances IIoT Integration with Modicon Series”
-
“Reliable Automation with M340: Success Stories from Asia-Pacific”
Frequently Asked Questions (FAQ)
-
Q: What programming software is compatible with the BMXP3420102?
A: It works seamlessly with Unity Pro and EcoStruxure Control Expert software platforms. -
Q: Can this module communicate with other devices over Modbus TCP?
A: Yes, it supports Modbus TCP/IP, Modbus RTU, and Modbus ASCII. -
Q: Is the BMXP3420102 suitable for high-speed applications?
A: Absolutely. With a 66 MHz processor and fast Boolean execution time (0.11 µs), it’s ideal for high-speed operations. -
Q: Can I use the BMXP3420102 in outdoor environments?
A: It’s designed for indoor industrial use. Enclosures and environmental protection would be required for outdoor deployment. -
Q: What kind of diagnostics does the module support?
A: It includes real-time error detection, system status monitoring, and fault logging accessible via software. -
Q: How many communication ports does it offer?
A: It includes one USB, one serial (RS232/RS485), and one Modbus port. -
Q: Is the processor firmware upgradable?
A: Yes, Schneider Electric allows firmware updates through their software suite. -
Q: Can this module be integrated into an existing SCADA system?
A: Yes, it supports integration with SCADA systems using Modbus protocols. -
Q: Is there a way to monitor real-time data from the processor?
A: Yes, using EcoStruxure Control Expert, you can view and log real-time values. -
Q: What are the backup options for application data?
A: Flash memory stores user applications securely. External backup options via SD card or software are also available.
Recommended Related Models (Same Series / Functionality)
| Model | Description | User Memory | Ports |
|---|---|---|---|
| BMXP342020 | M340 CPU with extended memory and Ethernet | 2 MB | USB, Serial, Modbus |
| BMXP341000 | Basic M340 CPU for small applications | 256 KB | USB, Serial |
| BMXP342030 | Advanced M340 CPU with extended memory | 3 MB | USB, Serial, Modbus |
| BMXP341020 | Entry-level M340 CPU with Ethernet support | 512 KB | USB, Ethernet |
| BMXP341030 | Mid-range M340 CPU with faster processing | 768 KB | USB, Modbus |
| BMXP342050 | High-performance CPU with large memory | 4 MB | USB, Serial |
| BMXP340000 | Basic model without integrated ports | 128 KB | None |
| BMXP3420102H | Harsh environment variant of BMXP3420102 | 1 MB | USB, Serial |
Popular Models from Schneider Electric
| Model | Description | Category | Key Feature |
|---|---|---|---|
| TM241CE24T | Modicon M221 Logic Controller | Compact PLC | Ethernet + Serial Ports |
| M258L40DT | Modicon M258 PLC | High-Speed PLC | Motion control support |
| LMC058LF42 | Modicon LMC058 Motion Controller | Motion Controller | CANopen + Pulse Train outputs |
| BMXCPS2000 | Power Supply Module for M340 | Power Module | 24V DC input |
| BMXNOE0100 | Ethernet Communication Module | Network Module | Modbus TCP + Web Server |
| TM3DI16K | 16DI Input Module for TM3 | Digital Input Module | 24V DC sink/source inputs |
| BMXFTB2010 | 10-way terminal block for M340 | Terminal Block | Easy connection interface |
| TM5SAI2H | Analog Input Module for TM5 series | Analog Module | High accuracy analog measurement |
