Product Introduction

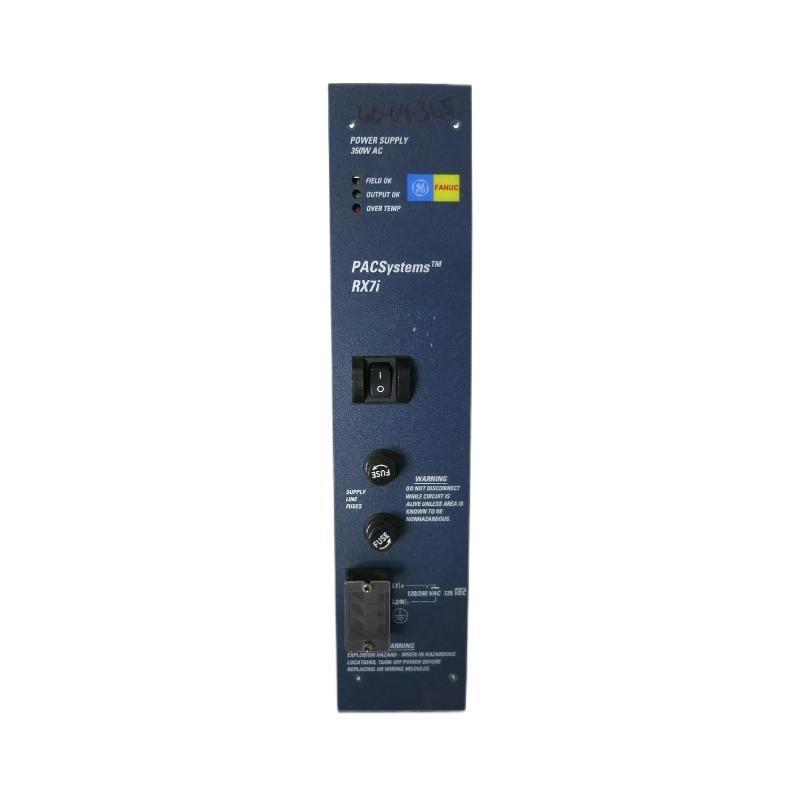

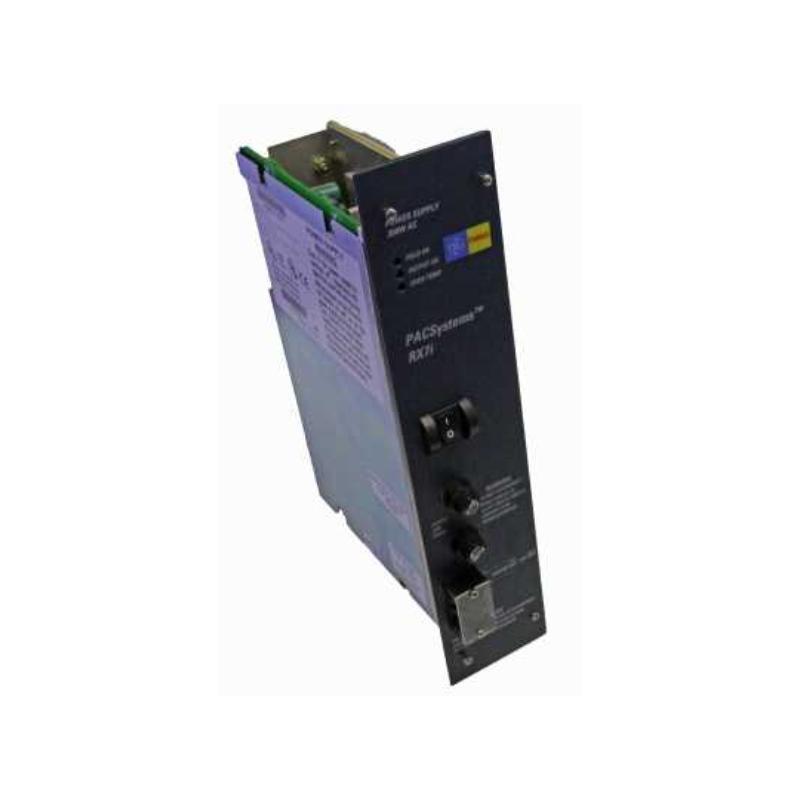

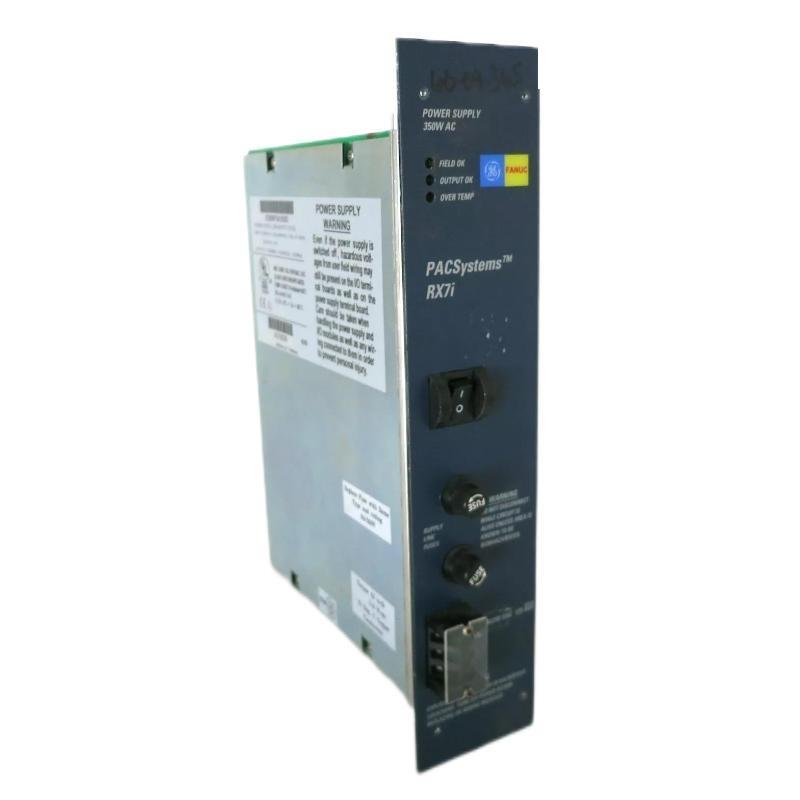

The GE IC698PSA350 is a high-performance Power Supply Module designed for use in industrial automation systems. It is part of GE’s PACSystems RX3i series, providing reliable power delivery to various programmable logic controllers (PLCs) and automation components. Engineered to maintain consistent voltage and current, this power supply module ensures stable operation even in harsh industrial environments. With advanced protection features, it safeguards connected devices against power surges and fluctuations, enhancing the overall system durability.
The IC698PSA350 offers superior efficiency and compact design, allowing seamless integration into control panels and automation racks. Its robust construction supports long-term operation with minimal maintenance, making it a preferred choice in demanding manufacturing, processing, and automation sectors.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | IC698PSA350 |
| Type | Power Supply Module |
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Output Voltage | 5 VDC and 24 VDC |
| Output Current | 5 VDC @ 10 A, 24 VDC @ 2 A |
| Efficiency | Typically 85% |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 134.62 ×104.14 × 203.2 mm |
| Weight | 2.02kg |
| Protection Features | Overvoltage, Overcurrent, Short Circuit Protection |
| Certifications | UL, CE, RoHS Compliant |
| Mounting Type | DIN Rail Mountable |
Product Applications
The GE IC698PSA350 power supply module is widely used across various industrial sectors where reliable and stable power delivery is critical. Typical applications include:
-
Industrial automation and process control systems
-
Factory assembly lines and robotic control
-
Building automation and energy management
-
Power supply for programmable logic controllers (PLCs) and distributed control systems (DCS)
-
Infrastructure and transportation control systems
-
OEM equipment requiring robust and compact power modules
Product Advantages
-
High Reliability: Designed with industrial-grade components ensuring continuous operation under harsh conditions.
-
Dual Output: Provides both 5 VDC and 24 VDC outputs to power diverse automation components simultaneously.
-
Compact Design: Small footprint allows easy integration in dense control panels and reduces cabinet space.
-
Wide Input Voltage Range: Supports a broad range of AC inputs, facilitating use in different geographical locations without modification.
-
Built-in Protection: Equipped with protections against overcurrent, short circuit, and overvoltage, safeguarding connected equipment.
-
Easy Installation: DIN rail mounting enables quick and secure installation in existing systems.
-
Compliance and Certification: Meets international safety and environmental standards, ensuring product quality and acceptance.
-
Energy Efficient: High efficiency reduces heat generation and energy costs in continuous operation scenarios.
Frequently Asked Questions (FAQ)
1. What input voltage range does the IC698PSA350 support?
The power supply supports an input voltage range of 100 to 240 VAC at 50/60 Hz.
2. Can the IC698PSA350 provide multiple output voltages?
Yes, it delivers 5 VDC at 10 A and 24 VDC at 2 A outputs simultaneously.
3. What protections are built into this power supply?
It includes overvoltage, overcurrent, and short circuit protection features.
4. What is the typical operating temperature range?
The module operates safely between 0°C and 60°C.
5. Is this product suitable for mounting on a DIN rail?
Yes, it is designed for DIN rail mounting for easy installation.
6. How heavy is the IC698PSA350?
The approximate weight is 2.02kg.
7. What certifications does this power supply have?
It holds UL, CE, and RoHS certifications.
8. Can it be used worldwide?
Yes, due to its wide input voltage range and certifications, it is suitable for use globally.
9. What kind of maintenance is required?
The unit is designed for long-term use with minimal maintenance. Regular visual inspection for dust and damage is recommended.
10. Is the IC698PSA350 compatible with all GE RX3i PLC systems?
Yes, it is specifically designed for use with GE RX3i series systems but can support other GE automation products requiring 5V and 24V power.
Recommended Related Models (Same Series or Related)
| Model Number | Description | Output Voltage | Output Current | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| IC698PSA310 | RX3i Power Supply Module | 5 VDC / 24 VDC | 5 A / 2 A | 130 x 50 x 160 | 0.70 |
| IC698PSA330 | RX3i Power Supply Module | 5 VDC / 24 VDC | 10 A / 2 A | 130 x 50 x 160 | 0.75 |
| IC698PSA351 | RX3i Power Supply with enhanced features | 5 VDC / 24 VDC | 10 A / 3 A | 130 x 50 x 160 | 0.80 |
| IC698PSA360 | High Capacity Power Supply Module | 5 VDC / 24 VDC | 15 A / 5 A | 140 x 55 x 165 | 0.85 |
| IC698PSA370 | Industrial Power Supply Module | 5 VDC / 24 VDC | 12 A / 3 A | 130 x 50 x 160 | 0.78 |
| IC698PSA380 | Extended Power Supply Module | 5 VDC / 24 VDC | 20 A / 5 A | 150 x 60 x 170 | 0.90 |
Recommended Popular Models (Same Brand – GE Automation)
| Model Number | Description | Output Voltage | Output Current | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| IC695PSD040 | PACSystems RX3i Power Supply | 5 VDC / 24 VDC | 10 A / 3 A | 130 x 50 x 160 | 0.75 |
| IC695ALG600 | Analog Input Module | N/A | N/A | 130 x 25 x 160 | 0.50 |
| IC695CHS014 | High-Speed Counter Module | N/A | N/A | 130 x 25 x 160 | 0.55 |
| IC695CPU312 | RX3i CPU Module | N/A | N/A | 130 x 50 x 160 | 0.70 |
| IC695ETM001 | Ethernet Communication Module | N/A | N/A | 130 x 25 x 160 | 0.45 |
| IC695MDL940 | Digital Output Module | N/A | N/A | 130 x 25 x 160 | 0.50 |
