製品紹介

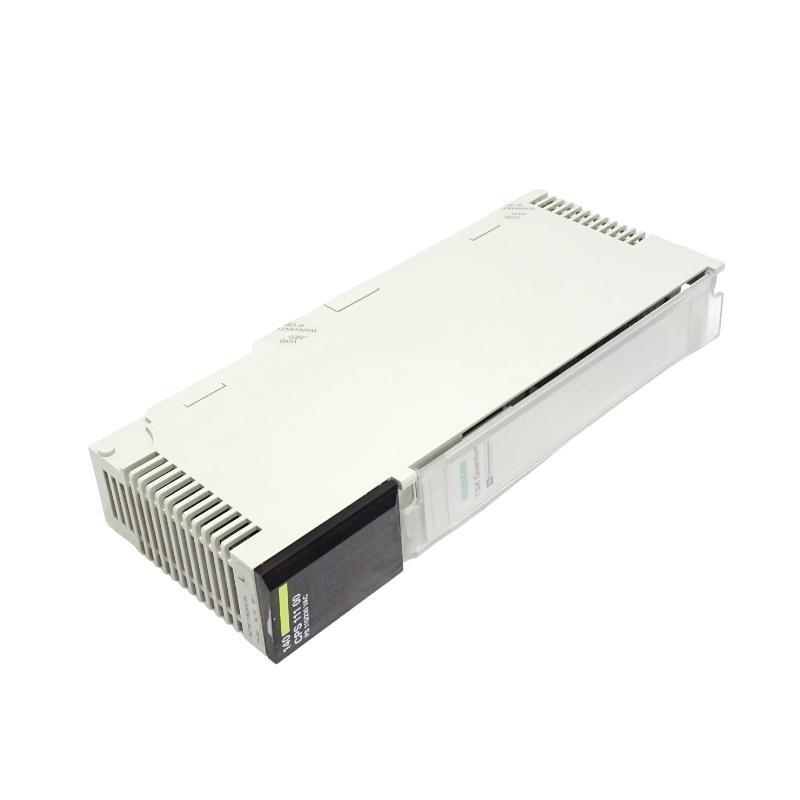

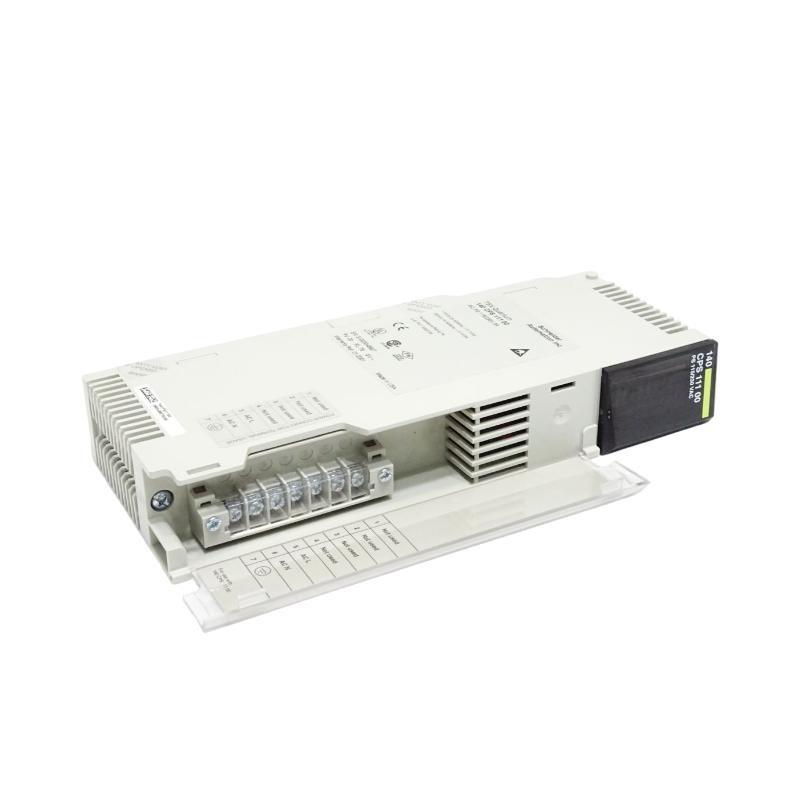

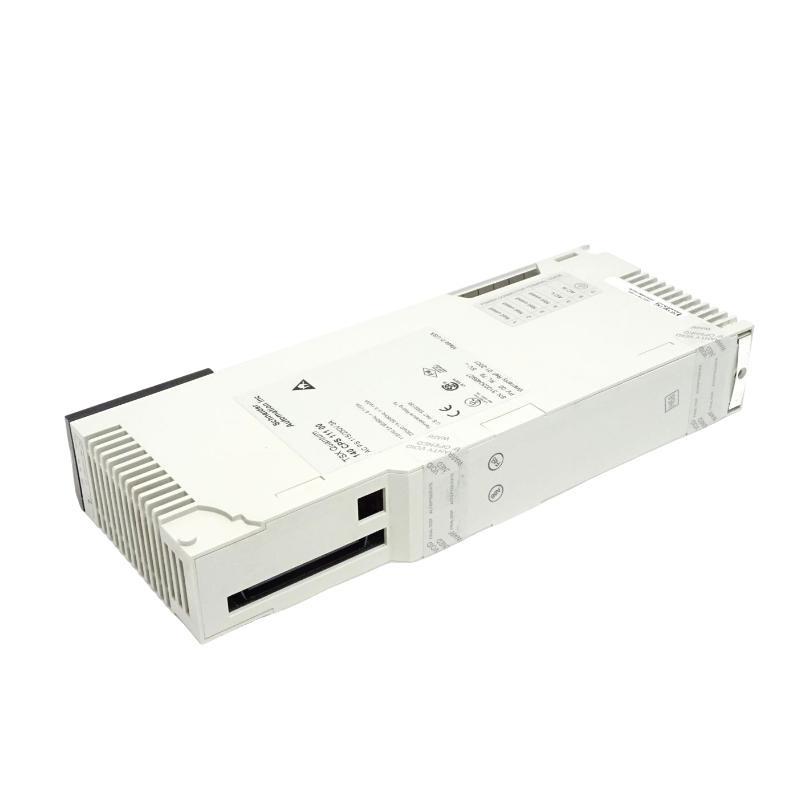

The Schneider 140CPS11100C Power Supply Module is a reliable and robust power supply designed specifically for the Modicon Quantum series / programmable logic controllers (PLCs). It provides a stable 24 V DC output to power the entire Quantum rack and its associated modules, ensuring consistent operation in demanding industrial environments.
This module is engineered for high efficiency, durability, and long service life. The 140CPS11100C supports redundancy and includes built-in protection features such as overload, short circuit, and thermal protection, making it an excellent choice for critical automation applications where uptime is paramount.
Its compact design fits seamlessly into the Quantum rack, simplifying installation and maintenance without compromising on performance. This power supply module supports a wide range / industrial automation sectors, enabling smooth and uninterrupted control system operation.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | 140CPS11100C |
| Product Type | Power Supply Module |
| Input Voltage | 120–240 V AC, 50/60 Hz |
| Output Voltage | 24 V DC |
| Output Current | 5 A |
| Output Power | 120 W |
| Efficiency | >85% |
| Protection | Overload, Short circuit, Thermal |
| Operating Temperature Range | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to +85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 50 x 165 x 315 mm |
| 重量 | 0.65 kg |
| Mounting | Rack-mounted in Modicon Quantum chassis |
| Certifications | CE, UL, CSA |
Applications
The 140CPS11100C Power Supply Module finds its place in a variety / industrial automation setups where consistent power delivery is essential:
-
Industrial Process Control: Powering PLC racks in chemical, pharmaceutical, and petrochemical plants.
-
Manufacturing Automation: Ensuring stable power for machinery control systems.
-
Energy and Utilities: Powering control systems in power plants and water treatment facilities.
-
Oil & Gas: Supplying reliable power for automation equipment in upstream and downstream applications.
-
Building Automation: Powering control modules in large commercial buildings and infrastructure.
-
Material Handling: Used in conveyor and sorting systems for continuous operation.
-
Food & Beverage Industry: サポートing automated packaging and processing lines.
-
Mining and Metals: Providing power in harsh and demanding environments.
Advantages
-
Reliable Power Delivery: Stable 24 V DC output ensures smooth operation / connected PLC modules.
-
Built-In Protection: Protects against overload, short circuits, and thermal issues, enhancing system safety.
-
High Efficiency: Minimizes energy loss and heat generation, reducing operational costs.
-
Compact Design: Fits easily into the Quantum chassis without consuming excessive space.
-
Wide Input Range: Compatible with global power standards, making it suitable for various industrial regions.
-
Extended Operating Temperature: Functions reliably in environments from 0°C to +60°C.
-
Long Service Life: Designed for continuous industrial use with minimal maintenance.
-
Easy Installation: Rack-mounted for quick and straightforward setup.
-
Compliance: Certified to international safety and performance standards (CE, UL, CSA).
-
Compatibility: Fully integrates with Modicon Quantum PLC systems and accessories.
よくある質問 (FAQ)
-
What is the output voltage / the 140CPS11100C?
The output voltage is a stable 24 V DC. -
What is the maximum output current / this power supply?
It can supply up to 5 amperes / current. -
Can this module handle input voltages from different regions?
Yes, it supports 120–240 V AC at 50/60 Hz, compatible worldwide. -
Does it provide protection against electrical faults?
Yes, it includes overload, short circuit, and thermal protection. -
What is the operating temperature range?
It operates reliably between 0°C and +60°C. -
Is this power supply compatible with all Modicon Quantum racks?
Yes, it is designed specifically for Modicon Quantum series PLC racks. -
How big is the module?
The dimensions are 50 x 165 x 315 mm. -
What certifications does it hold?
It is CE, UL, and CSA certified. -
Can this module be installed easily?
Yes, it is designed for simple rack-mounted installation. -
What is the expected lifespan / the module?
It is designed for industrial-grade durability and long service life under normal operating conditions.
Related モデルs (Same Series or Related)
| モデル Number | Product Type | Output Voltage | Output Current |
|---|---|---|---|
| 140CPS11100 | Power Supply Module | 24 V DC | 5 A |
| 140CPS11120 | Power Supply Module | 24 V DC | 10 A |
| 140CPS11300 | Power Supply Module | 24 V DC | 3 A |
| 140CPS22100 | Redundant Power Supply | 24 V DC | 5 A |
| 140CPS11150 | Power Supply Module | 24 V DC | 7.5 A |
| 140ACB94000 | Battery Backup Module | N/A | N/A |
Popular Schneider モデルs (Same ブランド)
| モデル Number | Product Type | Key Features |
|---|---|---|
| 140CPU65160 | Quantum PLC CPU | High-performance CPU with Ethernet |
| 140DAI74000 | Digital Input Module | 32-channel digital inputs |
| 140DAO84210 | Analog Output Module | 8 voltage outputs |
| 140ACI04000 | Analog Input Module | 4-channel current input |
| 140CRA31200 | Remote I/O Adapter | Ethernet and Modbus communication |
| 140CHS32000 | High-Speed Counter Module | 4-channel high-speed counting |
