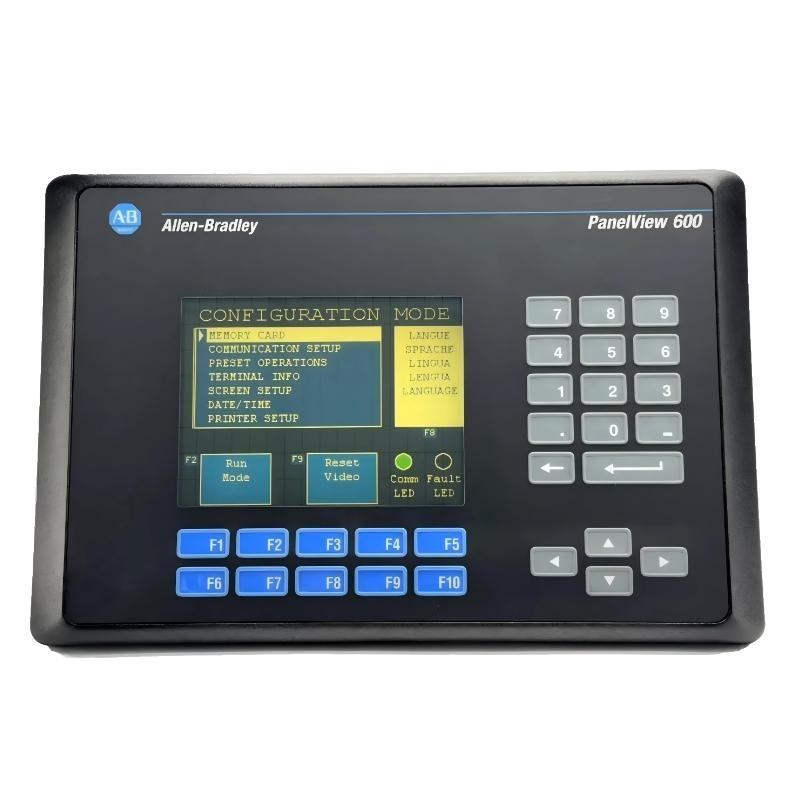

The Allen-Bradley 2711-B6C16 PanelView 600 Operator Interface is a reliable and field-proven HMI solution designed for industrial environments requiring stable communication and clear operator interaction. As part / the PanelView Standard 600 series, this model integrates both keypad and touchscreen functionality, ensuring flexible operation under varying plant conditions.
Equipped with a 5.7-inch color display and a resolution / 320 × 234 pixels, the terminal provides improved visibility for process data, alarms, and system status. The inclusion / RS-232 (DF1) communication enables direct connectivity with Allen-Bradley controllers, while the dedicated printer port allows for hardcopy output / alarms, logs, or operational data—an important feature for traceability and documentation in industrial systems.
Powered by a wide 100–240 VAC input range, the 台 is suitable for global installations. Its robust design and straightforward configuration make it a dependable choice for legacy systems and applications where stability and simplicity are critical.
製品仕様
| Parameter | 説明 |
|---|---|
| Product モデル | 2711-B6C16 |
| Series | PanelView Standard 600 |
| Display Size | 5.7 inch |
| Display Type | Color LCD |
| Resolution | 320 × 234 pixels |
| Input Type | Keypad & Touchscreen |
| Communication Interface | RS-232 (DF1) |
| Additional Port | Printer Port |
| Input Voltage | 100–240 VAC |
| Frequency | 50/60 Hz |
| Mounting Type | Panel Mount |
| Protection Level | Industrial-grade front panel protection |
| Dimensions | 290 × 116 × 192 mm |
| 重量 | 2 kg |
Applications
● Widely used in PLC-based automation systems requiring stable serial communication via DF1 protocol
● Suitable for manufacturing and production lines, enabling operators to monitor and control machine operations
● Applied in process control environments, including water treatment, energy systems, and industrial utilities
● Ideal for systems requiring data logging and print output, such as alarm history or batch reporting
● Used in legacy automation systems where Ethernet is not required and serial communication remains standard
● Common in OEM control panels, providing reliable and easy-to-maintain operator interfaces
Advantages
● Combines keypad and touchscreen operation, allowing flexible use in different industrial conditions
● Integrated RS-232 (DF1) communication ensures direct and stable connection with Allen-Bradley PLCs
● Built-in printer port enables real-time printing / alarms and process data for traceability
● Color display enhances visual clarity and operational awareness, improving response efficiency
● Wide input voltage range supports global deployment without additional power adaptation
● Proven PanelView Standard platform /fers high reliability and long service life in industrial environments
● Simplified configuration reduces engineering workload and maintenance complexity
