製品紹介

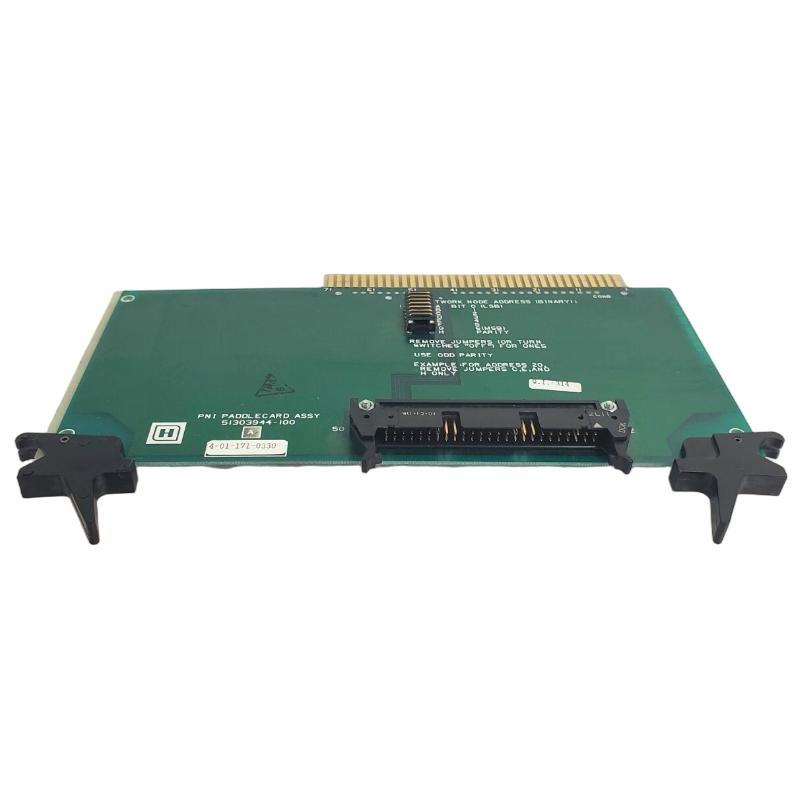

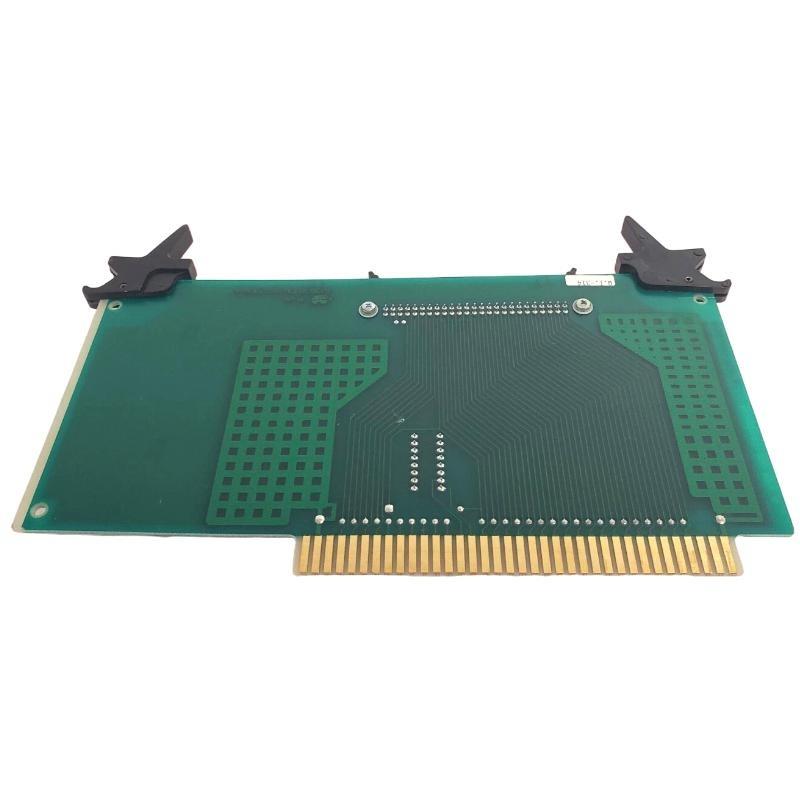

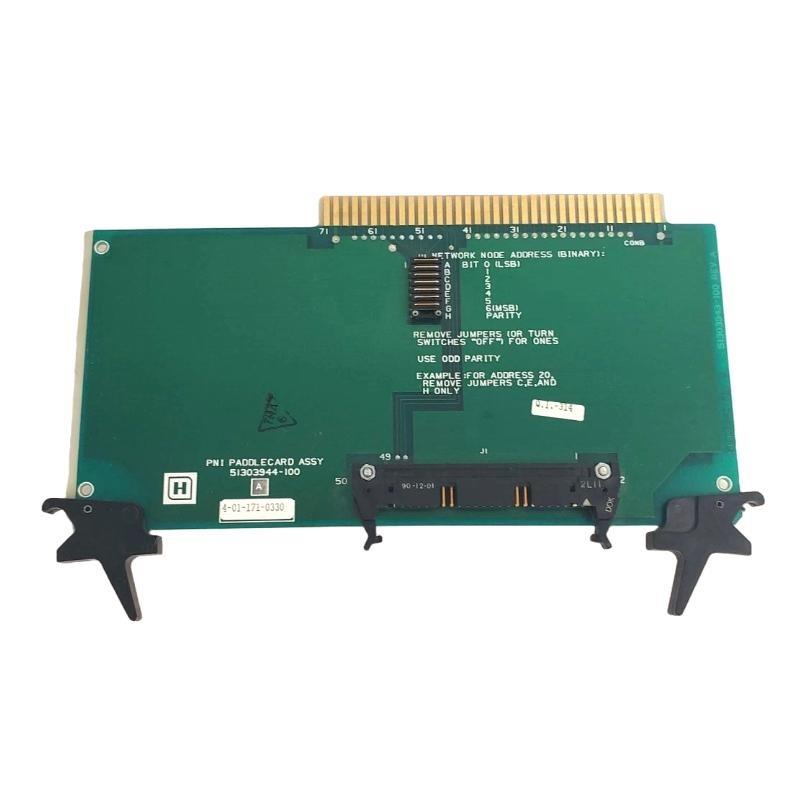

The Honeywell 51303944-100 PNI Paddle Card Assembly is a precision-engineered electronic component designed for use in Honeywell’s control and instrumentation systems. This paddle card assembly is integral to signal processing and interface applications within pneumatic and electronic control 台s. It acts as a key interface for managing sensor inputs and control signals, ensuring high fidelity and stable operation in demanding industrial environments.
This assembly is crafted to meet stringent industrial standards, focusing on durability, reliability, and consistent performance. It is suitable for deployment in a variety / control system architectures where precise measurement and reliable signal transfer are essential for process accuracy and system safety.
製品仕様
| Parameter | 説明 |
|---|---|
| モデル Number | 51303944-100 |
| Type | PNI Paddle Card Assembly |
| Function | Signal interface and processing module |
| Input Signal Type | Analog and digital compatible |
| Power Supply | 24 V DC nominal |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (HxWxD) | 130 x 110 x 25 mm |
| 重量 | 0.3 kg |
| Mounting | Panel or DIN Rail compatible |
| Certifications | CE, UL Recognized |
Product Applications
-
Pneumatic Control Systems: Used in pneumatic instrumentation to monitor and process control signals.
-
Process Control: Integral to chemical, oil & gas, and manufacturing plants for precise signal conditioning.
-
Automation Equipment: Acts as a signal interface in machinery control panels and robotics systems.
-
HVAC Systems: Utilized in heating, ventilation, and air conditioning systems for efficient control.
-
Safety and Alarm Systems: Provides accurate signal relay critical for safety interlocks and alarm management.
-
Energy and Utility Systems: Helps in controlling and monitoring energy generation and distribution equipment.
Product Advantages
-
High Signal Integrity: Ensures accurate and noise-free signal processing critical for industrial control systems.
-
Robust Design: Engineered for operation under harsh environmental conditions, including temperature extremes and humidity.
-
Versatile Compatibility: サポートs both analog and digital signals, allowing integration with a broad range / devices.
-
Compact Form Factor: Designed to fit within limited space constraints while maintaining functionality.
-
Reliable Mounting Options: Compatible with panel and DIN rail mounting for flexible installation.
-
Certified Quality Assurance: Conforms to CE and UL safety standards ensuring dependable operation.
-
Low Power Consumption: Optimized for energy efficiency during continuous operation.
-
Easy Maintenance: Modular design facilitates quick inspection and replacement with minimal system downtime.
よくある質問 (FAQ)
-
What types / signals can the 51303944-100 PNI Paddle Card Assembly process?
It can handle both analog and digital signals, making it suitable for a wide range / sensor and control inputs. -
Is this paddle card compatible with other Honeywell control modules?
Yes, it is designed for seamless integration with Honeywell pneumatic and electronic control modules. -
What is the typical operating voltage range for this assembly?
The assembly operates nominally at 24 V DC, consistent with most Honeywell control systems. -
Can the assembly function reliably in high-humidity environments?
Yes, it supports operation in environments with up to 95% non-condensing humidity. -
How does the assembly handle signal noise or interference?
It features built-in filtering and shielding to minimize noise and ensure signal integrity. -
Is the paddle card assembly serviceable or replaceable in the field?
Yes, the modular design allows for straightforward field replacement and servicing. -
Does the assembly support any form / diagnostic feedback?
It provides basic operational status feedback through the connected control system for troubleshooting. -
What are the temperature limits for safe operation?
The assembly is rated for continuous operation between -20°C and +70°C. -
Are firmware updates required or possible for this paddle card?
No firmware updates are typical as it is a hardware interface module without programmable firmware. -
What mounting options are supported by this assembly?
It supports both panel mounting and DIN rail mounting to fit various installation needs.
Related モデルs from the Same Series or ブランド
| モデル Number | 説明 | Functionality | Dimensions (mm) | 重量 (g) |
|---|---|---|---|---|
| 51303944-101 | PNI Paddle Card Assembly Extended | Enhanced signal processing | 140 x 120 x 30 | 350 |
| 51303945-100 | PNI Signal 状態ing Board | Signal filtering and amplification | 130 x 110 x 25 | 320 |
| 51303946-100 | PNI Analog Input Module | High accuracy analog input | 125 x 100 x 25 | 300 |
| 51303947-100 | PNI Digital Output Module | Relay output interface | 125 x 100 x 25 | 310 |
| 51303948-100 | PNI Mixed Signal Module | サポートs both analog and digital | 130 x 110 x 30 | 340 |
| 51303949-100 | PNI Network Interface Card | Communication interface | 120 x 90 x 25 | 280 |
Popular Honeywell モデルs in Related Fields
| モデル Number | Product Type | Key Features | Dimensions (mm) | 重量 (g) |
|---|---|---|---|---|
| 51303940-100 | PNI Controller Module | Central control 台 | 150 x 130 x 50 | 480 |
| 51303941-100 | PNI Power Supply | Wide input voltage range | 120 x 90 x 40 | 350 |
| 51303942-100 | PNI Network Router | Multi-protocol communication | 130 x 110 x 40 | 370 |
| 51303943-100 | PNI Display Interface | Touch screen compatible | 140 x 120 x 45 | 430 |
| 51303950-100 | PNI Temperature Input Module | High precision sensor inputs | 125 x 100 x 40 | 340 |
| 51303951-100 | PNI Relay Expansion Module | Additional relay outputs | 130 x 110 x 45 | 400 |
