Product Overview

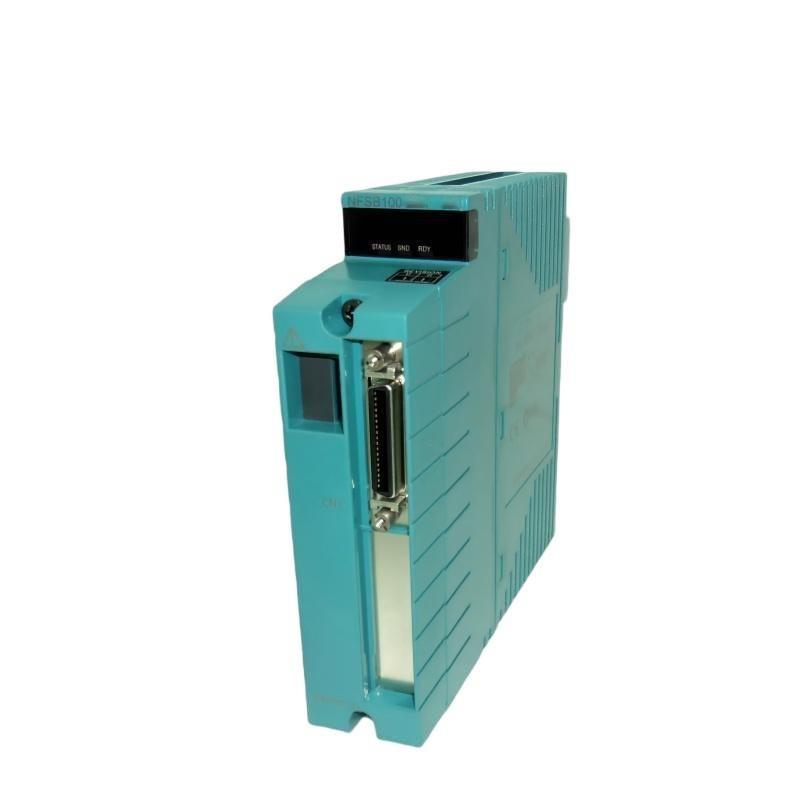

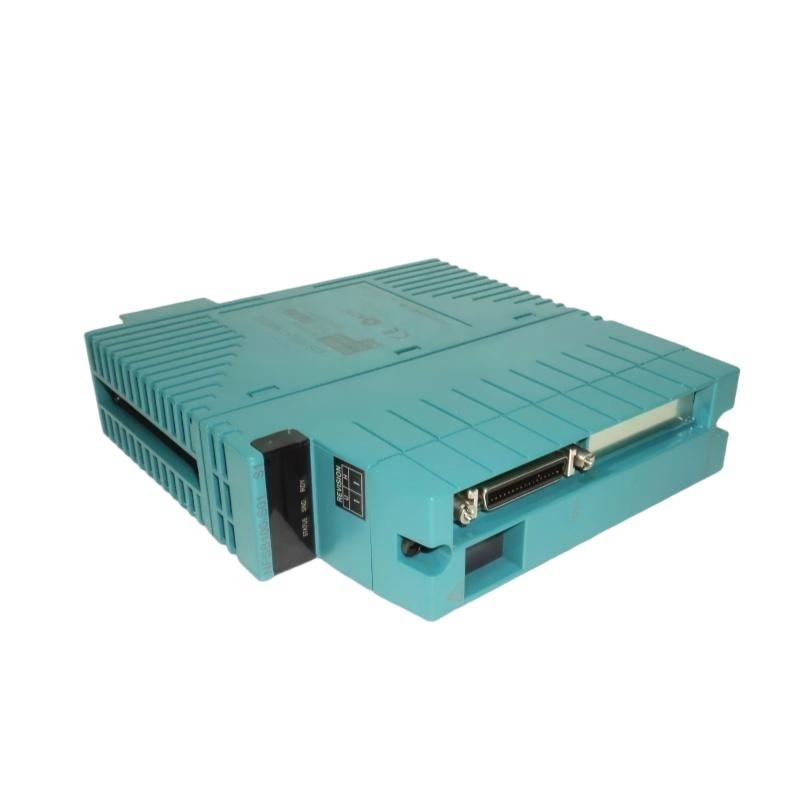

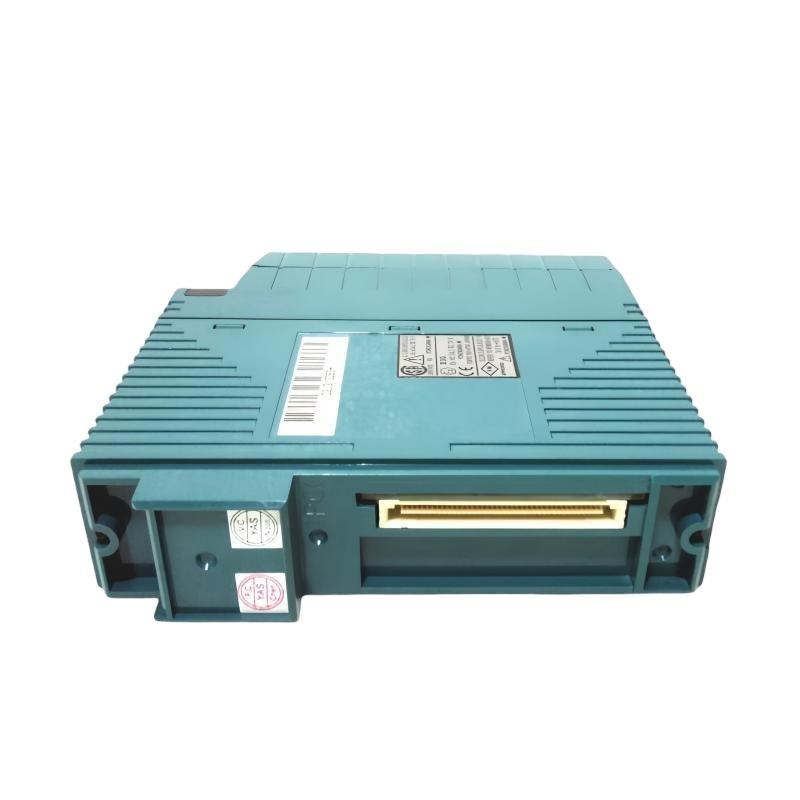

The Yokogawa NFSB100-S01 Bus Repeater Module is a high-performance communication interface module designed to extend and strengthen data transmission in control and automation networks. It enables reliable signal amplification and regeneration for long-distance communication between controllers, I/O modules, and remote devices.
Key Features
-
Extends communication distance for bus networks
-
Provides signal amplification and regeneration
-
Ensures high-speed and stable data transmission
-
Reduces signal loss and noise interference
-
Compact, robust design for industrial applications
-
Easy installation and maintenance
-
Compatible with Yokogawa control system architecture
-
Reliable operation in harsh industrial environments
Technical Specifications
| Item | Specification |
|---|---|
| メーカー | Yokogawa |
| 型番 | NFSB100-S01 |
| Product Type | Bus Repeater Module |
| Communication Type | Fiber optic / electrical bus repeater |
| Function | Signal amplification and regeneration for data communication |
| Communication Speed | Up to 1 Mbps (typical) |
| Isolation | Optical and galvanic isolation between channels |
| Power Supply | Supplied through system backplane |
| Operating Voltage | 24 V DC nominal |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –20 °C to +70 °C |
| Humidity | 10–90% RH, non-condensing |
| Mounting | DIN rail or card rack installation |
| Dimensions | 32 x 127 x 127 mm |
| 重量 | 0.2 kg |
| Applications | Bus signal amplification and long-distance communication support |
Industry Applications
-
Distributed Control Systems (DCS)
-
Process automation and monitoring networks
-
Power generation and distribution systems
-
Oil, gas, and petrochemical plants
-
Manufacturing and industrial automation systems
-
Water and wastewater treatment facilities
よくある質問 (FAQ)
Q1: What is the function / the NFSB100-S01 module?
It amplifies and regenerates communication signals to extend the bus network distance.
Q2: What type / communication does it support?
It supports fiber optic and electrical bus communication.
Q3: What is the typical communication speed?
Up to 1 Mbps, depending on system configuration.
Q4: Does it provide isolation?
Yes, it /fers optical and galvanic isolation between channels.
Q5: What is the operating voltage?
The module operates at a nominal 24 V DC.
Q6: Can it be used in harsh environments?
Yes, it is designed for industrial-grade durability and stability.
Q7: Is it compatible with Yokogawa control systems?
Yes, it integrates fully with Yokogawa DCS and network systems.
Q8: Where is it typically used?
In control and communication networks requiring extended distance and improved signal reliability.
