Introduction

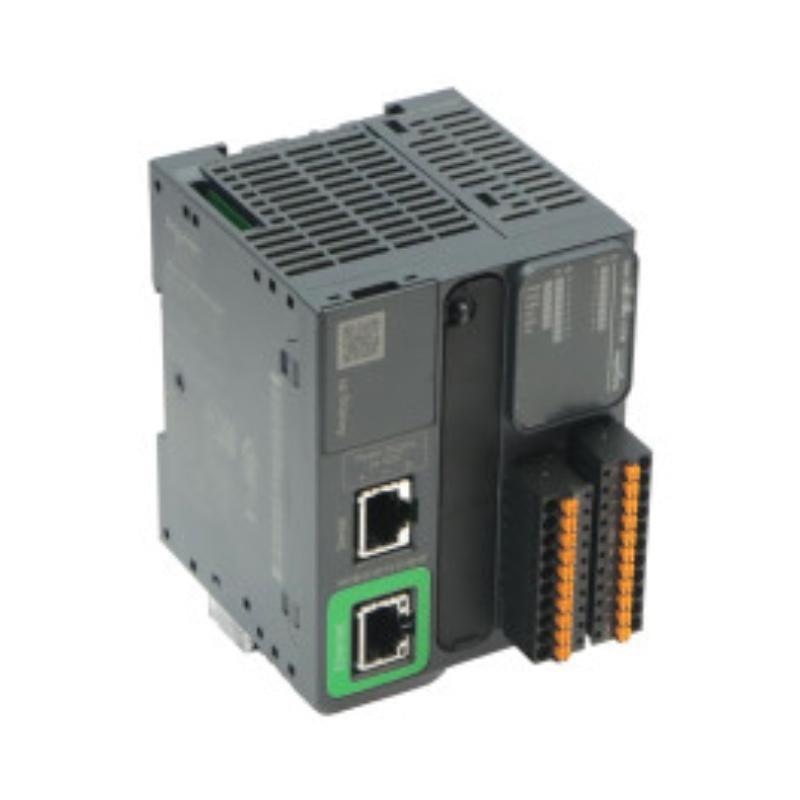

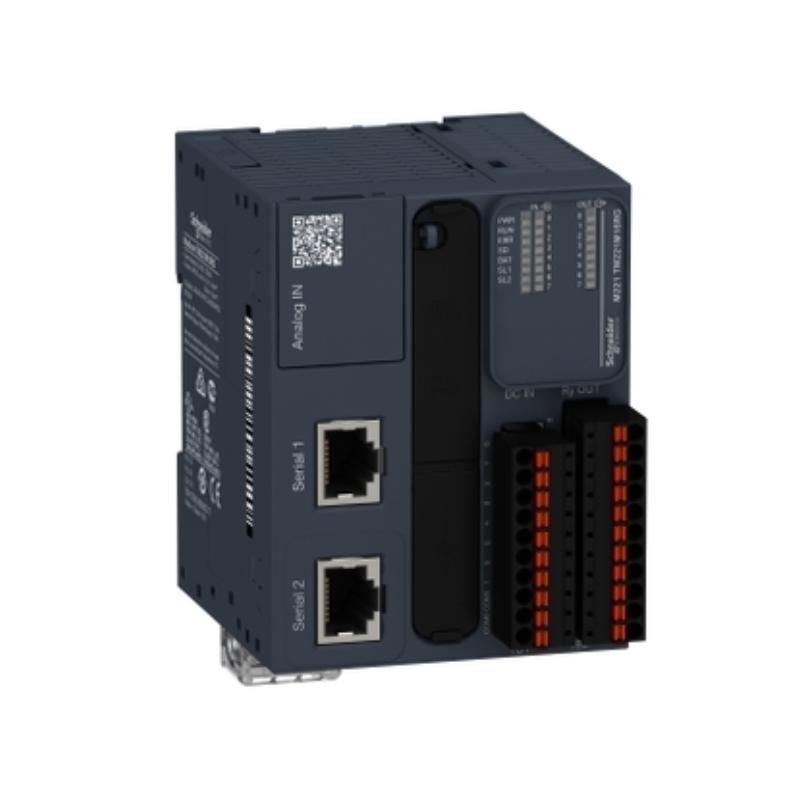

The Schneider TM221M16RG is a compact and versatile programmable logic controller (PLC) from Schneider Electric’s Modicon M221 series. Designed for small to medium automation applications, it /fers a balance / performance, flexibility, and ease / use. With built-in communication ports, high-speed I/O, and a user-friendly programming environment (EcoStruxure Machine Expert Basic), this PLC is ideal for industrial automation, machinery control, and process management.
Product Parameters
| Parameter | Specification |
|---|---|
| モデル | TM221M16RG |
| Series | Modicon M221 |
| CPU Type | 16 I/O Compact PLC |
| Digital Inputs | 10 (24V DC) |
| Digital Outputs | 6 (Relay Output) |
| Analog Inputs | Optional expansion modules |
| Communication Ports | 1x Ethernet, 1x RS485 (Modbus) |
| Programming S/tware | EcoStruxure Machine Expert Basic |
| Power Supply | 100-240V AC or 24V DC |
| Dimensions | 90x 70x 70mm |
| 重量 | 0.264 kg |
| Operating Temperature | -10°C to +55°C |
| Protection Rating | IP20 |
| Memory | 16 KB (Program), 8 KB (Data) |
Applications
The TM221M16RG is widely used in various industrial and commercial automation scenarios, including:
-
Machine Control – Packaging machines, conveyor systems, and CNC equipment.
-
Building Automation – HVAC control, lighting systems, and access control.
-
Water & Wastewater Management – Pump control and level monitoring.
-
Food & Beverage Industry – Bottling lines and mixing systems.
-
Material Handling – Automated storage and retrieval systems (AS/RS).
-
Renewable Energy – Solar tracking and wind turbine control.
Advantages
-
Compact & Space-Saving – Small dimensions make it ideal for tight control panels.
-
Flexible I/O Configuration – サポートs expansion modules for additional inputs/outputs.
-
Built-in Communication – Ethernet and Modbus ports for easy integration.
-
User-Friendly Programming – EcoStruxure Machine Expert Basic simplifies development.
-
Reliable Performance – Robust design for harsh industrial environments.
-
Cost-Effective – Affordable solution for small to mid-range automation.
よくある質問 (FAQ)
-
What s/tware is used to program the TM221M16RG?
-
EcoStruxure Machine Expert Basic (formerly SoMachine Basic).
-
-
Can I expand the I/O capacity / this PLC?
-
Yes, it supports additional I/O expansion modules.
-
-
What communication protocols are supported?
-
Modbus RTU, Modbus TCP/IP, and Ethernet/IP.
-
-
Is the TM221M16RG suitable for high-speed applications?
-
Yes, it supports fast digital I/O processing.
-
-
What is the maximum operating temperature?
-
-10°C to +55°C.
-
-
Does it support analog inputs natively?
-
No, but analog modules can be added.
-
-
Can I use this PLC for safety-critical applications?
-
No, it is not a safety PLC (for safety applications, consider Modicon M241 Safety).
-
-
What is the power supply range?
-
100-240V AC or 24V DC.
-
-
How much memory does it have for programming?
-
16 KB for program storage and 8 KB for data.
-
-
Is the TM221M16RG compatible with other Schneider PLCs?
-
Yes, it can communicate with other Modicon PLCs via Modbus.
-
Recommended モデルs
6 Related/Series モデルs
| モデル | 説明 | Key Features |
|---|---|---|
| TM221C16R | 16 I/O Compact PLC (Relay Output) | Similar to TM221M16RG, lower cost |
| TM221CE16T | 16 I/O Compact PLC (Transistor Output) | High-speed outputs |
| TM221M16T | 16 I/O Compact PLC (Transistor Output) | Enhanced communication options |
| TM221ME16R | 16 I/O PLC with Ethernet | Built-in Ethernet for networking |
| TM221CE40R | 40 I/O Compact PLC (Relay Output) | Higher I/O capacity |
| TM221ME40T | 40 I/O PLC (Transistor Output) | More I/O + Ethernet connectivity |
6 Popular Schneider PLCs (その他 Series)
| モデル | Series | Key Features |
|---|---|---|
| TM241CEC24T | Modicon M241 | Advanced motion control, Ethernet |
| TM251MESE | Modicon M251 | Mid-range, powerful CPU, multiple comms |
| TM258LF42DT | Modicon M258 | High-performance, Linux-based |
| TWIDO TWDLCAE40DRF | Twido | Compact, cost-effective PLC |
| Modicon M340 BMXP34 | Modicon M340 | Modular, scalable automation |
| Modicon M580 | Modicon M580 | Premium, cybersecurity features |
