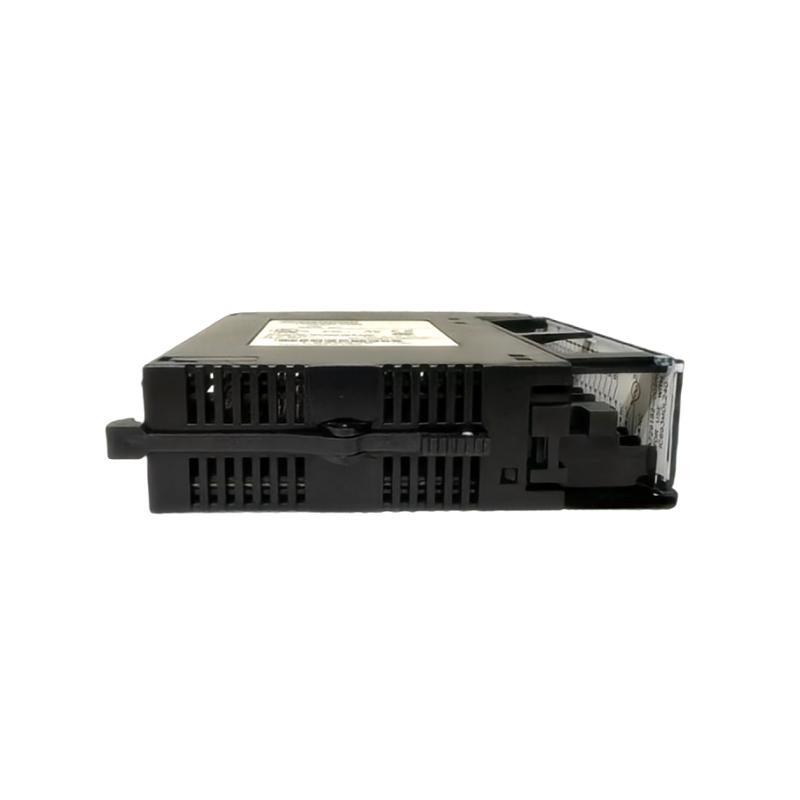

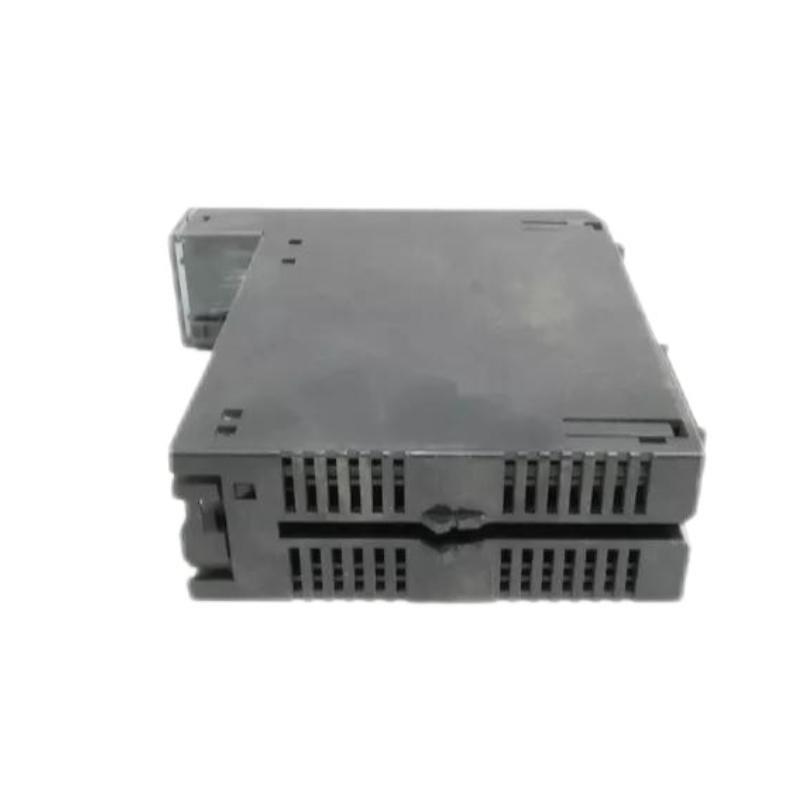

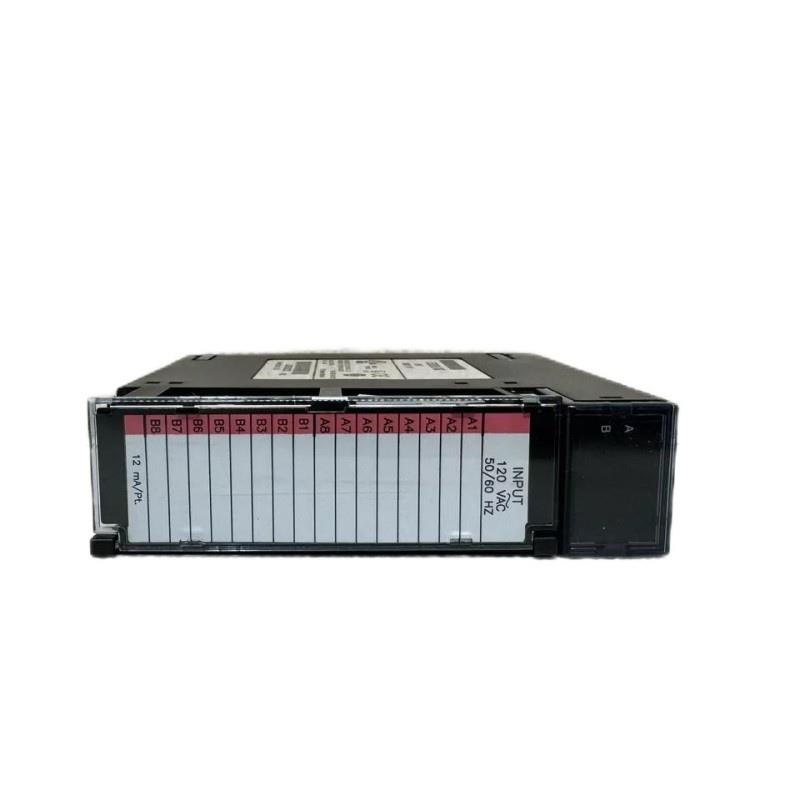

The GE IC693MDL240G is a versatile AC input module designed for use in the GE Series 90-30 Programmable Logic Controller (PLC) systems. It supports 120/240 volts AC operation and features 16 input points organized into two isolated groups, enhancing flexibility in control applications. Widely trusted across industries, the IC693MDL240G enables reliable monitoring / field devices such as limit switches, pushbuttons, and sensors, making it indispensable in modern automation.
Product Advantages
The GE IC693MDL240G /fers several notable benefits that set it apart:
-
Wide Voltage Range: サポートs both 120V AC and 240V AC, compatible with various plant environments.
-
Group Isolation: Two isolated groups help reduce the risk / electrical interference, increasing system robustness.
-
High Input Capacity: 16 input points for dense I/O configurations, saving space and simplifying wiring.
-
Reliable Performance: Engineered by GE for long service life and dependable operation even under challenging industrial conditions.
-
Modular Design: Fits seamlessly into Series 90-30 racks, supporting scalable system designs.
-
Diagnostic LEDs: Each channel features status indication for easy troubleshooting and maintenance.
Technical Specifications
| Parameter | Details |
|---|---|
| モデル Number | IC693MDL240G |
| Product Type | 16-Point AC Input Module |
| Input Voltage | 120/240 VAC (nominal), 50/60 Hz |
| Input Current | 7 mA per input |
| Number / Inputs | 16 |
| Input Type | AC, positive logic |
| Isolation | Two groups, isolated from each other and from logic circuits |
| Response Time (ON/OFF) | 45 ms typical |
| Dimensions | 142 x 30 x 134 mm |
| 重量 | 0.3 kg |
| Connector Type | Removable terminal block |
| LED Indicators | One per input point |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Vibration | 5-10 Hz, 0.2 in displacement; 10-200 Hz, 1G acceleration |
Product Applications
The IC693MDL240G is widely applied in:
-
Factory automation systems
-
Material handling equipment
-
Packaging machinery
-
Energy management and utilities
-
Building management systems
-
Industrial process control and monitoring
-
Automotive assembly lines
-
Water and wastewater treatment plants
Its flexible voltage range and robust isolation make it suitable wherever AC input monitoring is required.
Detailed Advantages
-
Space Efficiency: 16 inputs packed into a single compact module.
-
Ease / Integration: Compatible with the entire GE Series 90-30 ecosystem.
-
Status LEDs: Facilitates rapid identification / input status during setup and maintenance.
-
High Durability: Designed to withstand industrial environments with wide temperature range and vibration resistance.
-
Simplified Wiring: Clear terminal labeling and removable terminal block reduce wiring errors.
-
Long Service Life: Backed by GE’s engineering standards for reliability and durability.
FAQs (よくある質問)
Q1: What voltage levels can the IC693MDL240G handle?
A1: It handles nominal 120V AC and 240V AC input signals at 50/60 Hz.
Q2: Is this module suitable for direct connection to field devices?
A2: Yes, it’s designed to connect directly to AC field devices like limit switches, sensors, and pushbuttons.
Q3: How many input points does it have?
A3: It provides 16 input channels organized into two isolated groups.
Q4: What type / logic does the IC693MDL240G use?
A4: Positive logic – an input is considered ON when the voltage is present.
Q5: Are input points individually isolated?
A5: Inputs within a group are not isolated from each other, but the two groups are isolated from each other and from the logic side.
Q6: Does it have status indicators?
A6: Yes, each input point has its own LED to show ON/OFF status.
Q7: Can it be used in outdoor environments?
A7: It is designed for indoor use within rated temperature and humidity limits.
Q8: What is the typical ON/OFF response time?
A8: 45 milliseconds.
Q9: How is it installed into a system?
A9: It mounts into a GE Series 90-30 rack and connects via a removable terminal block.
Q10: What is the approximate weight / the module?
A10: 0.3 kg.
Recommended モデルs – Same Series or Related
-
GE IC693MDL230 – 120 VAC, 8-point input module
-
GE IC693MDL241 – 120 VAC, 32-point input module
-
GE IC693MDL250 – 240 VAC, 8-point isolated input module
-
GE IC693MDL260 – 120 VAC, 8-point isolated input module
-
GE IC693MDL645 – 120 VAC, 16-point output module
-
GE IC693MDL646 – 240 VAC, 16-point output module
Popular モデルs from the Same ブランド (with specs)
| モデル | Type | Voltage | Size (mm) | 重量 |
|---|---|---|---|---|
| IC693MDL340 | 120 VAC, 16-point output | 120V AC | 130×40×140 | 360 g |
| IC693ALG220 | Analog input, 4 channels | 0–10V DC | 130×40×140 | 350 g |
| IC693CPU331 | CPU module | N/A | 130×40×140 | 400 g |
| IC693MDL940 | 120/240 VAC, 16-point input | 120/240V AC | 130×40×140 | 350 g |
| IC693PWR321 | Power supply module | 120/240V AC | 130×40×140 | 450 g |
| IC693APU300 | High-speed counter | 5V DC | 130×40×140 | 370 g |
