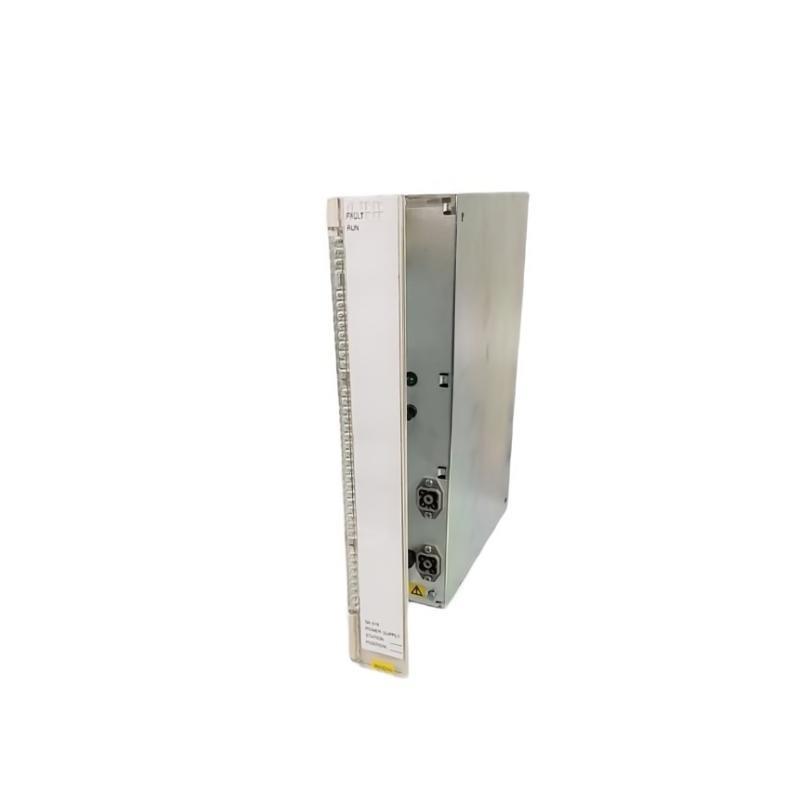

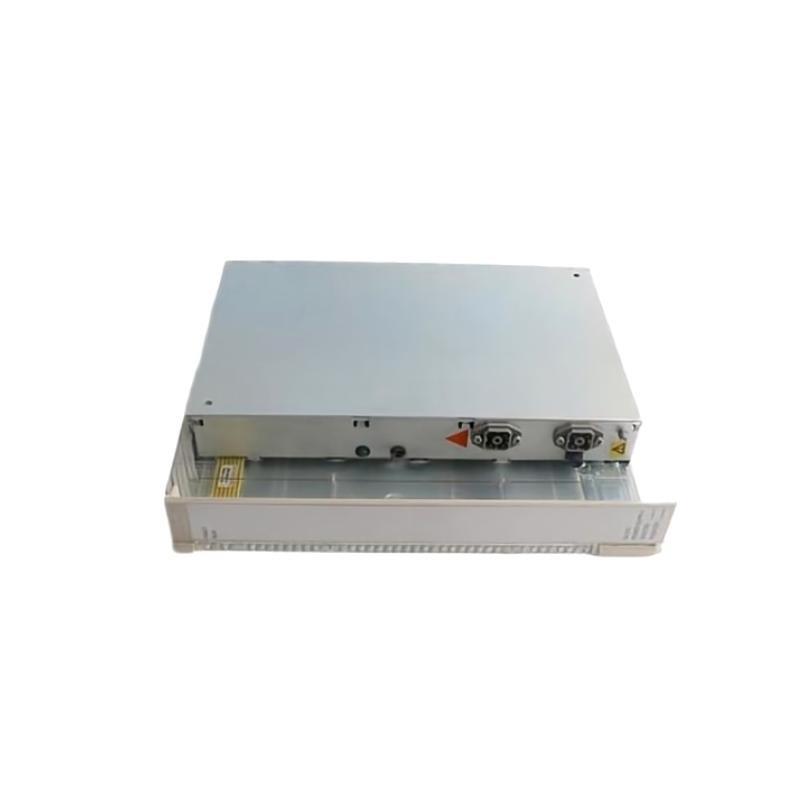

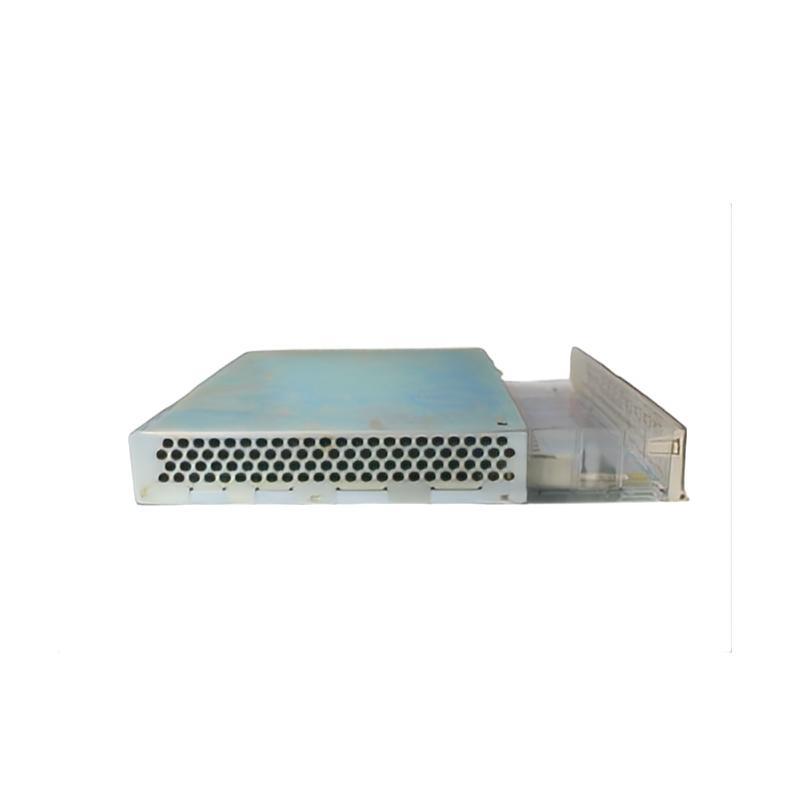

The ABB SA610 3BHT300019R1 Power Supply Module is a robust and dependable power source 台 engineered for use in industrial control systems. As part / ABB’s Advant OCS control family, the SA610 is a vital component in ensuring uninterrupted power delivery to essential automation hardware. With a high-efficiency power conversion process and wide input voltage compatibility, this module is well-suited for environments demanding continuous, stable DC power.
Designed to convert AC or DC input voltages to regulated 24 VDC output, the SA610 serves as the power backbone for programmable logic controllers (PLCs), distributed control systems (DCS), and industrial communication equipment. Built with industrial-grade durability, it meets stringent quality and safety requirements, making it a reliable choice for automation pr/essionals across the globe.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | SA610 Power Supply Module |
| 型番 | 3BHT300019R1 |
| Input Voltage Range | 110/120/220/240 VAC ±10%, 50/60 Hz; 110/220/250 VDC |
| Output Voltage | 24 VDC ±1% |
| Output Current | 10 A max |
| Output Power | 60 W |
| Efficiency | Up to 90% |
| Protection Features | Overvoltage, Overcurrent, Short Circuit, Thermal Shutdown |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Cooling Method | Natural Convection |
| Mounting Type | DIN Rail or Panel Mount |
| Dimensions (L x H x W) | 252 x 273 x 40 mm |
| 重量 | 1.7 kg |
| Standards Compliance | CE, RoHS, WEEE, IEC/EN standards |
| 保証 | 1 Year Standard, Extended 保証 Optional |
| Manufacturing Origin | Sweden |
Applications
The SA610 module is purpose-built for industrial environments that require stable, noise-free DC power. Its typical applications include:
-
Distributed Control Systems (DCS) – Powering controllers and I/O modules in continuous process industries.
-
Programmable Logic Controllers (PLCs) – Supplying consistent voltage to automation control 台s.
-
Factory Automation – サポートing sensors, actuators, and communication devices.
-
Power Plants and Substations – Reliable operation in high-demand electrical infrastructure.
-
Marine and Offshore Systems – Rugged build suited for high-humidity and vibration-prone conditions.
-
Renewable Energy Facilities – Power conditioning for solar and wind system controllers.
Advantages
-
Industrial Grade Reliability: Built with high-quality components tested for industrial applications, /fering a long service life and low failure rate.
-
Wide Input Voltage Compatibility: Accepts both AC and DC inputs over a wide range, simplifying integration across various power systems.
-
High Efficiency: Operates at up to 90% efficiency, reducing heat generation and lowering energy consumption.
-
Comprehensive Protections: Features multiple protection mechanisms such as overcurrent, overvoltage, and thermal shutdown to ensure system integrity.
-
Space-Efficient Design: Slim pr/ile supports DIN rail or panel mounting, allowing for easy integration in tight control cabinets.
-
Global Standards Compliance: Conforms to multiple industrial safety and environmental standards including CE, RoHS, and WEEE.
よくある質問 (FAQ)
-
What type / systems can the SA610 power?
The SA610 is ideal for ABB Advant Controllers, PLCs, DCS modules, and other industrial automation equipment requiring 24V DC. -
Can the SA610 handle both AC and DC input power?
Yes, it accepts a wide input voltage range, including 110–240 VAC and 110–250 VDC, making it highly adaptable. -
Is the SA610 suitable for outdoor installations?
It is designed for industrial indoor use. For outdoor applications, it should be installed in a properly rated enclosure. -
What happens during an overload or short circuit?
The SA610 is equipped with automatic protection circuits that will shut down the output or limit the current to protect connected devices. -
Does the module need external cooling?
No, it uses natural convection for cooling and does not require additional fans. -
How do I mount the SA610 in a control cabinet?
It can be DIN rail mounted or panel mounted using standard brackets, providing flexibility for various cabinet layouts. -
Is the SA610 RoHS-compliant?
Yes, it complies with RoHS regulations and is also categorized under WEEE for environmental responsibility. -
Can the SA610 be hot-swapped?
No, power must be disconnected before replacing or installing the module to ensure safety. -
What is the typical lifespan / the SA610 module?
With proper installation and use within rated conditions, it can exceed 10 years / operation. -
Is technical support available for this product?
Yes, ABB provides comprehensive technical documentation and global support services.
Related モデルs (Same Series / Functional Equivalents)
| モデル Number | 説明 |
|---|---|
| SA610K01 | Kit version with connection cables |
| SA610-4 | High-temperature variant / SA610 |
| SA611 | Enhanced output power variant (80W) |
| SD812 | Power distribution 台 compatible with SA610 |
| SPC810 | Advanced power conditioning module |
| SA620 | Dual-output version for redundant systems |
Popular ABB モデルs (Different Categories)
| モデル Number | 説明 |
|---|---|
| PM864AK01 | High-performance CPU for AC 800M controller |
| AI810 | Analog input module, 8-channel, 4-20 mA |
| DO810 | Digital output module, 16-channel |
| CI854AK01 | PROFIBUS DP interface module |
| DI810 | Digital input module, 16-channel |
| TU810V1 | Terminal 台 baseplate for connecting I/O modules |
