Product Overview

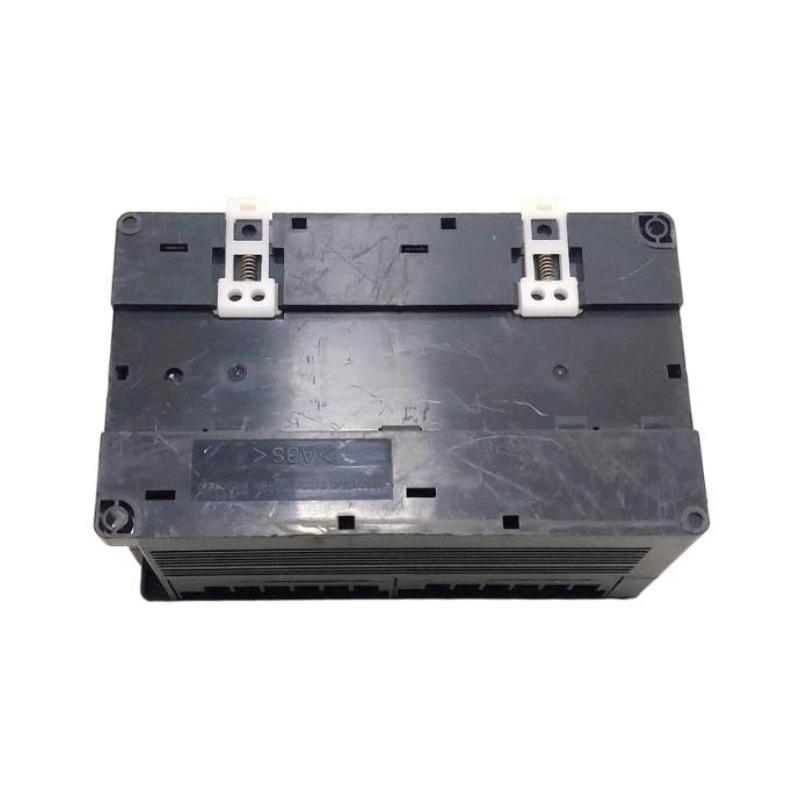

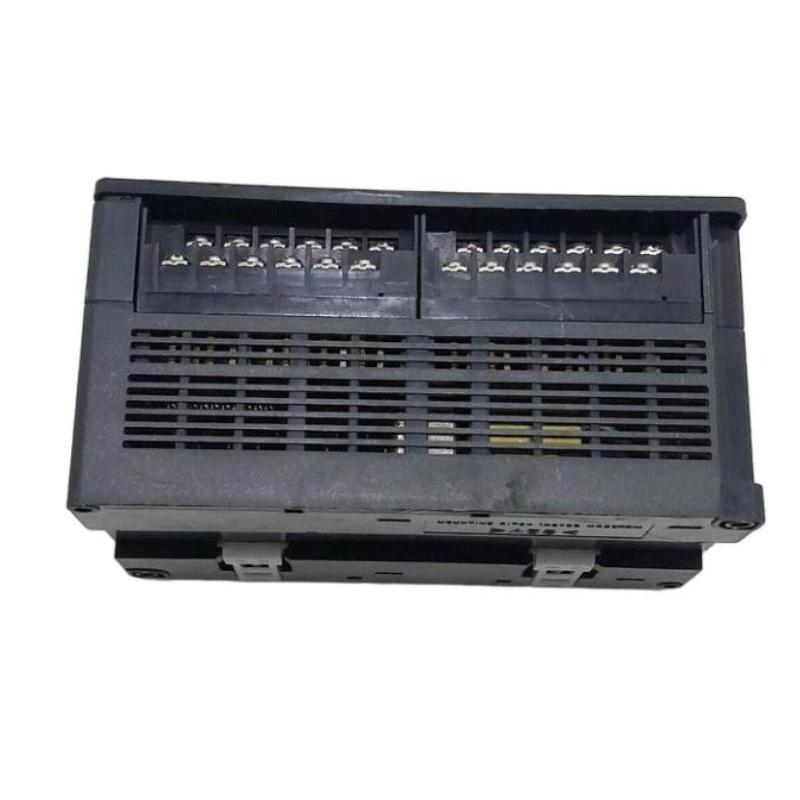

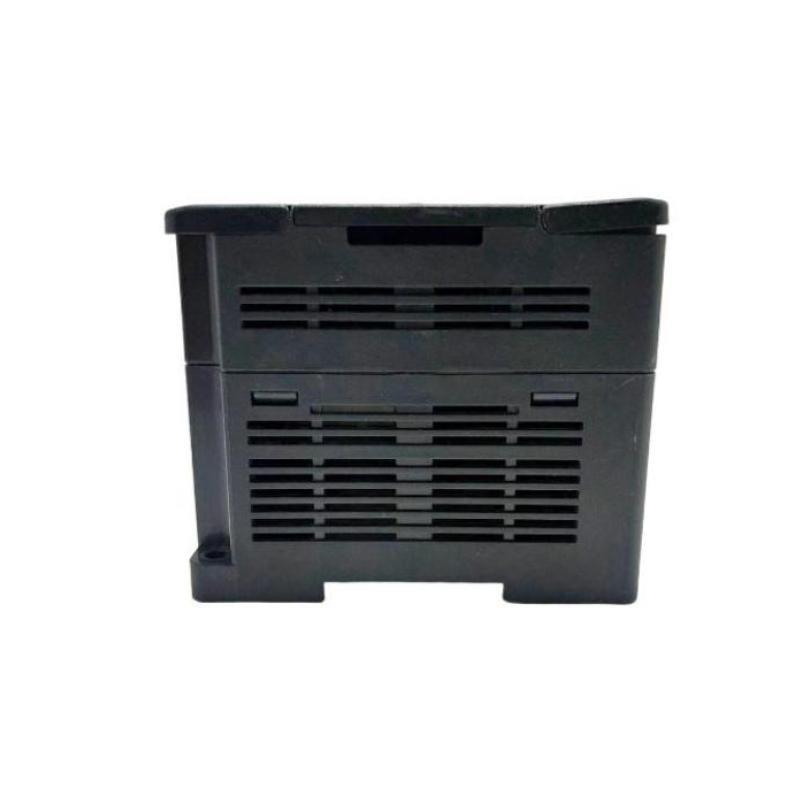

The GE Fanuc IC200UDR005 VersaMax Microcontroller Processor is a compact and high-performance programmable logic controller (PLC) CPU module designed for industrial automation applications. Part / the VersaMax Micro series, this module /fers reliable processing capability for small to medium control tasks in manufacturing, process, and machinery automation systems.
Key Features
-
Compact microcontroller processor for small-to-medium control applications
-
サポートs modular I/O expansion via VersaMax backplane
-
High-speed execution for real-time control and automation tasks
-
Non-volatile memory for program retention during power loss
-
サポートs RS-232/RS-485 communication for data exchange
-
Compatible with VersaMax Micro programming s/tware and tools
-
Reliable operation in harsh industrial environments
-
Easy integration with digital, analog, and specialty I/O modules
Technical Specifications
| Item | Specification |
|---|---|
| モデル | IC200UDR005 |
| Series | VersaMax Microcontroller Processor |
| メーカー | GE Fanuc Automation |
| Processor Type | 16-bit microcontroller |
| Program Memory | 32K words (user memory) |
| Data Memory | 16K words |
| Execution Speed | Typical scan time: 0.5 ms per 1K instructions |
| I/O サポート | Digital and analog I/O modules via VersaMax backplane |
| Communication Ports | RS-232, RS-485 (for serial communications) |
| Power Supply | 5VDC through VersaMax backplane |
| Operating Temperature | 0°C to +60°C (+32°F to +140°F) |
| Humidity | 5% to 95% non-condensing |
| Mounting | DIN rail or backplane-mounted |
| Dimensions | 95 x 90 x 76 mm |
| 重量 | 0.36 kg |
| Certifications | CE, UL |
よくある質問 (FAQ)
1. What is the main purpose / the IC200UDR005 module?
It functions as a microcontroller processor to execute logic, control, and automation programs in VersaMax systems.
2. What types / I/O modules can be connected to this processor?
It supports digital, analog, and specialty I/O modules compatible with the VersaMax Micro series backplane.
3. How is program memory handled in the IC200UDR005?
It provides 32K words / non-volatile memory for user programs, retaining data even during power loss.
4. What communication protocols are supported?
The module supports RS-232 and RS-485 serial communication for data exchange with other devices or supervisory systems.
5. What is the typical scan time for executing a program?
The typical execution speed is around 0.5 ms per 1K instructions, depending on program complexity.
6. Can the processor operate in harsh industrial environments?
Yes, it is designed to operate reliably in temperatures from 0°C to +60°C and up to 95% non-condensing humidity.
7. How is the module powered?
It receives 5VDC power through the VersaMax backplane, no separate power supply is needed.
8. Is the IC200UDR005 compatible with VersaMax Micro programming s/tware?
Yes, it works with GE Fanuc VersaMax Micro programming tools for ladder logic and structured text programming.
