Product Overview

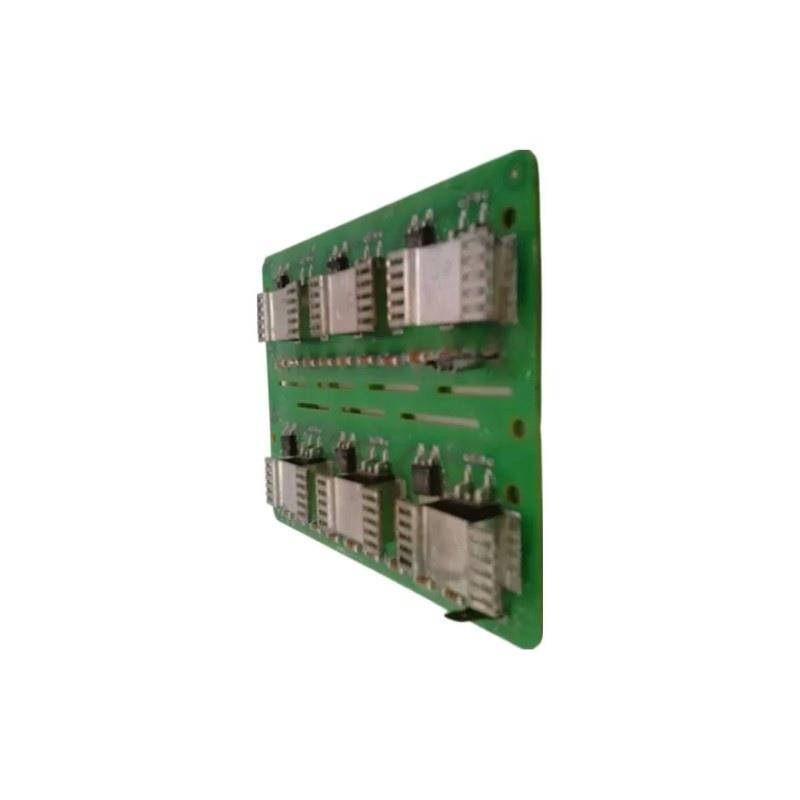

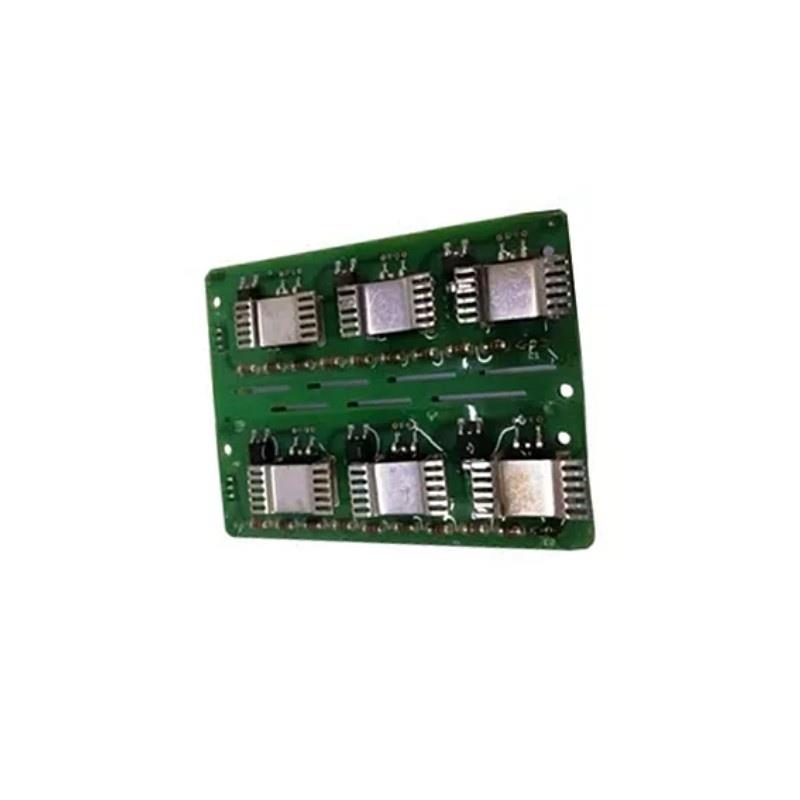

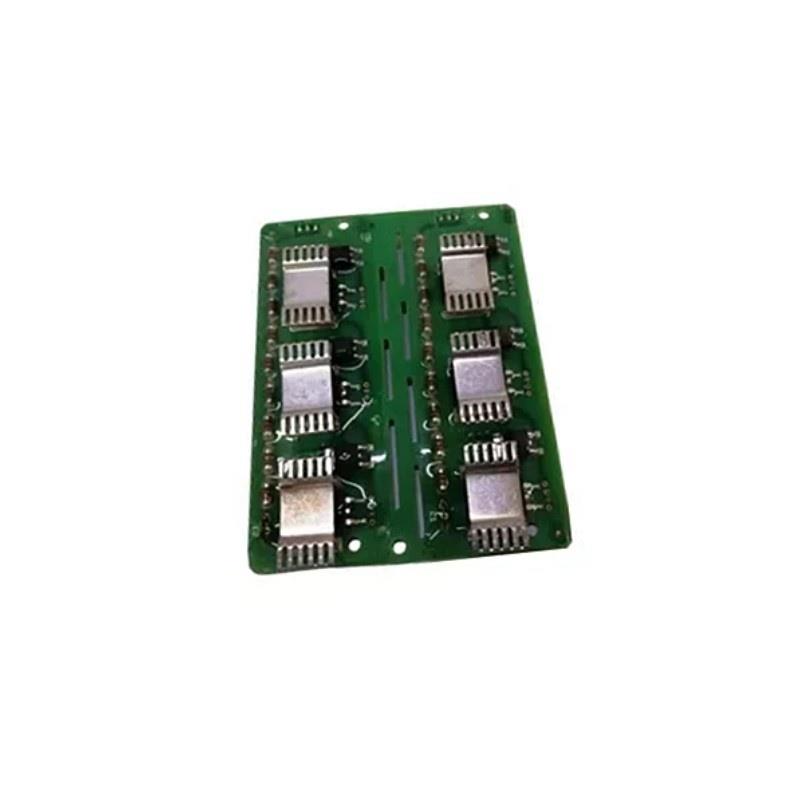

The ABB HAC807A201 3BHE028767R0201 is a specialized green circuit board engineered for use within ABB’s industrial automation, drive control, and DCS (Distributed Control System) environments. This board serves critical functions such as signal processing, I/O interfacing, and system communication support within high-performance control architectures.
As a key internal module, the HAC807A201 is designed for high-reliability applications that demand continuous operation, robust electrical characteristics, and seamless integration into ABB’s control systems. With its multilayer PCB structure, it ensures excellent thermal and signal performance, essential for use in electrically noisy and high-demand industrial environments.
Key Features
-
Robust multilayer PCB design for optimal signal integrity and durability
-
Tailored for ABB control systems, including drives and automation 台s
-
Capable / managing both digital and analog control signals
-
Equipped with high-quality components for longevity and industrial reliability
-
Compatible with rack-based ABB controller platforms
-
RoHS-compliant, lead-free construction with eco-conscious design
-
Facilitates diagnostic interfacing and seamless system integration
-
Designed to operate in extreme industrial conditions
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Green Circuit Board Module |
| モデル Number | HAC807A201 |
| 型番 | 3BHE028767R0201 |
| Function | Control signal processing and system interface |
| System Compatibility | ABB DCS, drive control systems, automation controllers |
| Input Signal Type | Digital and analog (application-dependent) |
| Output Signal Type | Logic-level I/O or signal conditioning outputs |
| Voltage Compatibility | Low-voltage logic (typically 5 VDC / 24 VDC ranges) |
| PCB Construction | Multilayer, FR4 substrate with conformal coating (if applied) |
| Component Type | Surface-mount and through-hole mixed components |
| Signal Isolation | Yes (optical or galvanic isolation based on use case) |
| Diagnostics | Integrated via system controller or external interface |
| Cooling | Passive convection |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5% to 95% RH, non-condensing |
| EMC Compliance | EN 61000-6-2, EN 61000-6-4 |
| Dimensions | 150 x 130 x 60mm |
| 重量 | 0.9 kg |
| Mounting Method | Slot-in or screw-mount (rack or panel depending on system) |
| 環境コンプライアンス | RoHS, WEEE |
Industry Applications
The ABB HAC807A201 Green Board is suitable for a wide variety / industrial applications where reliable system control and signal interfacing are critical:
-
Power Generation – For turbine control, excitation systems, and monitoring
-
Oil & Gas – Embedded in control panels for pumps, compressors, and valves
-
Metals & Mining – Used in drive systems for mills, conveyors, and crushers
-
Chemical Processing – Facilitates real-time monitoring and actuator control
-
Pulp & Paper – Integrated into machine control systems for paper production
-
Marine and Offshore – Control system PCB for drives and propulsion systems
Product Advantages
-
Engineered by ABB to deliver high reliability in demanding industrial settings
-
Enables precise signal conditioning and real-time data processing
-
Designed to support long-term operation with minimal maintenance
-
Compact and modular design for space-constrained enclosures
-
Fully compatible with ABB system architecture and communication protocols
-
Suitable for system expansions, upgrades, or replacements
-
Built to withstand harsh environmental conditions
よくある質問 (FAQ)
1. What system is the HAC807A201 compatible with?
It is compatible with ABB automation and drive control systems, particularly those using modular signal processing boards.
2. What is the function / this board?
It provides interface logic, signal routing, and system communication support.
3. Can this board be replaced in the field?
Yes, it can be field-replaced, but only by qualified personnel using ESD-safe procedures.
4. Does it support analog and digital signals?
Yes, it supports both analog and digital I/O, depending on its integration.
5. Is it hot-swappable?
No, the board must be replaced with the system powered down.
6. Does it require special s/tware?
No standalone s/tware is needed. The board operates within ABB’s system s/tware environment.
7. What protections does it /fer?
It features isolation, surge protection, and is compliant with EMC regulations.
8. What does “green board” mean in this context?
“Green board” refers to the solder mask color and RoHS compliance.
9. What industries typically use this module?
It’s used in energy, manufacturing, oil & gas, water treatment, and marine applications.
10. Where can I find manuals or wiring diagrams?
You can access technical documentation through ABB’s /ficial support site or via authorized ABB distributors.
Related ABB Green Boards
| モデル | 説明 |
|---|---|
| GV C704 AE01 | Signal processing board for ABB drives |
| GCC960C103 | High-density interface board |
| GD B021 BE | Control interface board for ABB automation systems |
| SDCS-PIN-205C | Power interface card for DC drive systems |
| HAC803B101 | Logic and control board for process automation |
| SDCS-POW-1C | Drive system power module |
Popular ABB Automation & Control Modules
| モデル | 説明 |
|---|---|
| AI810 | Analog Input Module (4–20 mA, HART) |
| DO810 | Digital Output Module (24 VDC, 16 channels) |
| CI854AK01 | PROFIBUS DP Communication Interface Module |
| PM864A | High-performance CPU module for AC800M systems |
| TU810V1 | S800 I/O Module Termination ユニット |
| DSQC609 | Robot interface board for motion control |
