Product Overview

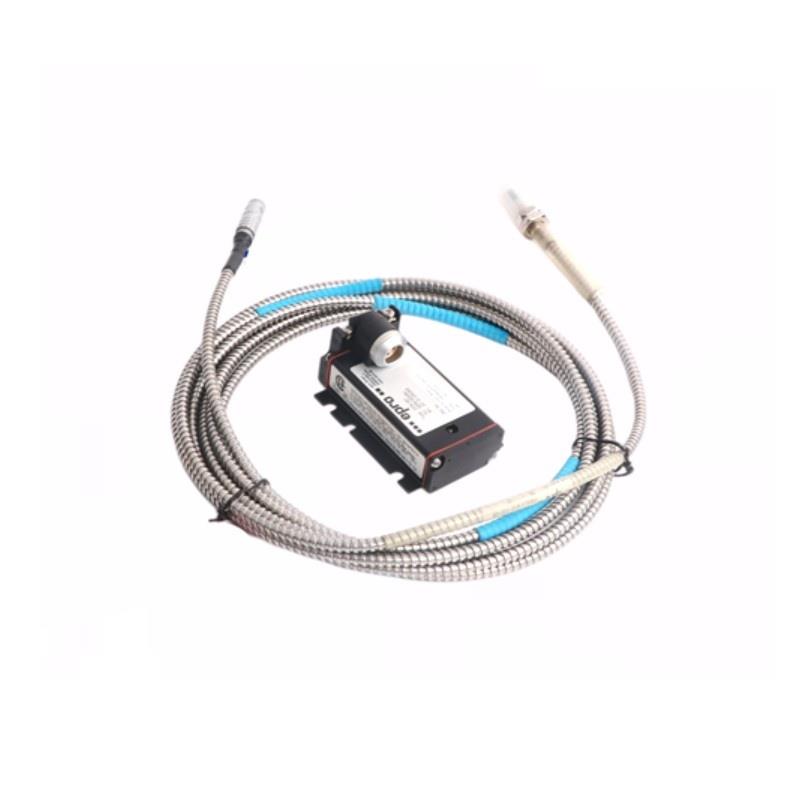

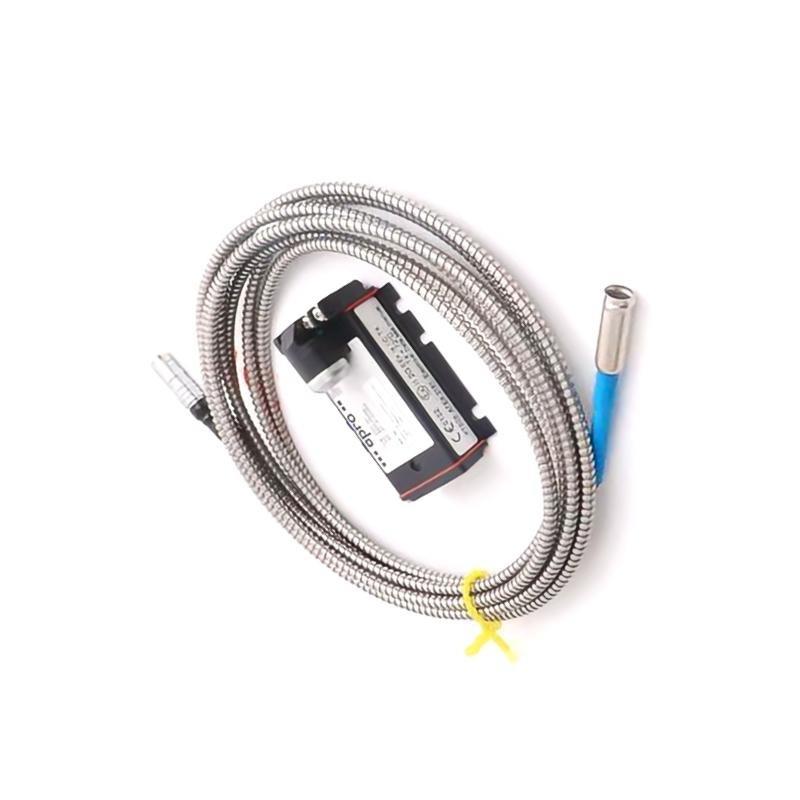

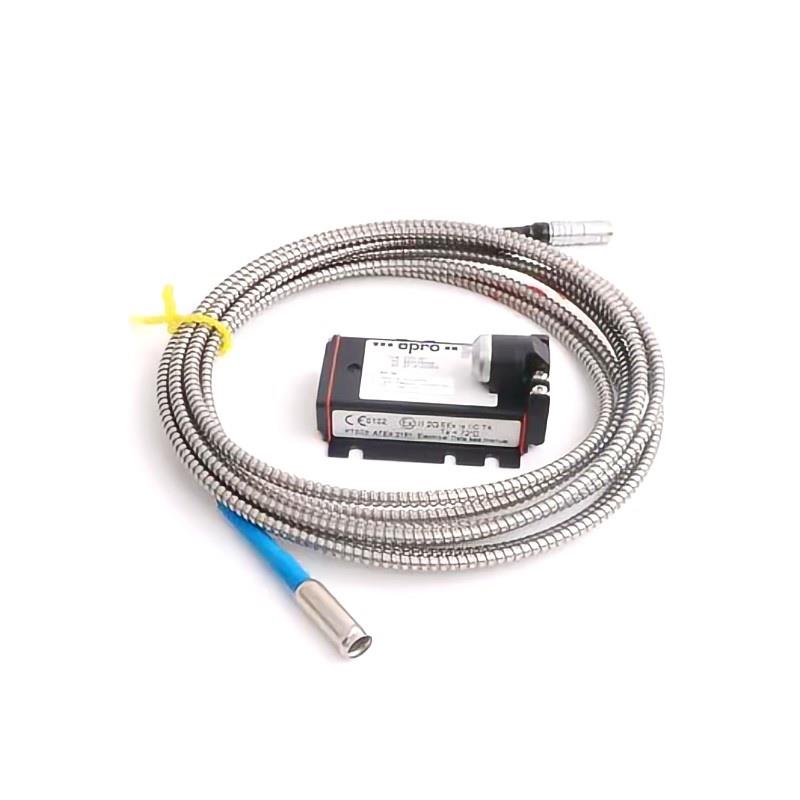

The Epro PR6423/010-010-CN+CON021 is a high-precision 8 mm Eddy-Current Sensor designed for accurate, non-contact measurement / shaft vibration and displacement in rotating machinery.It provides real-time data for machinery monitoring, predictive maintenance, and protection, ensuring safe and efficient operation in turbines, compressors, pumps, and motors. The sensor integrates seamlessly with Epro PR6423 monitoring systems, delivering reliable measurements even in harsh industrial environments.
Key Features
-
8 mm probe tip for precise and compact measurements
-
Integrated with 10 m cable (CON021) for flexible installation
-
Compatible with Epro PR6423 series monitoring systems
-
High linearity and sensitivity for accurate displacement readings
-
Rugged design suitable for industrial environments
-
Easy installation on shafts or bearing housings
-
サポートs predictive maintenance and machinery protection applications
-
Provides continuous real-time measurement data
Technical Specifications
| Item | Specification |
|---|---|
| メーカー | Epro |
| 型番 | PR6423/010-010-CN+CON021 |
| Product Type | 8 mm Eddy-Current Sensor |
| Probe Tip Diameter | 8 mm |
| Dimensions | Sensor head diameter 8 mm |
| 重量 | 0.22 kg |
| Measurement Type | Non-contact displacement |
| Linear Range | 0.25 – 2.0 mm (10 – 80 mils) |
| Sensitivity | 1 mV/µm typical |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +125 °C |
| Storage Temperature | –40 °C to +150 °C |
| Humidity | 0–95% RH, non-condensing |
| Mounting | Direct shaft or bearing housing mount |
| Applications | Shaft vibration, displacement, and position monitoring |
Industry Applications
-
Steam and gas turbines
-
Compressors and blowers
-
Industrial pumps
-
Electric motors and generators
-
Gearboxes and heavy-duty rotating machinery
-
Oil & gas, power generation, and process industries
よくある質問 (FAQ)
Q1: What is the probe tip size?
8 mm diameter.
Q2: What is the cable length / the sensor?
10 m (CON021).
Q3: Which monitoring systems is it compatible with?
Epro PR6423 series monitoring systems.
Q4: What is the linear measurement range?
0.25 – 2.0 mm (10 – 80 mils).
Q5: What type / data does it provide?
Real-time shaft displacement and vibration data.
Q6: Can it operate in harsh industrial environments?
Yes, it is rated for –35 °C to +125 °C and 0–95% RH.
Q7: How is it mounted?
It can be mounted directly on shafts or bearing housings.
Q8: Is it suitable for predictive maintenance?
Yes, it provides accurate data for predictive maintenance and machinery protection.
Related Epro Modules
| モデル | 説明 |
|---|---|
| PR6423/01C-005+CON011 | 8 mm Eddy-Current Sensor |
| PR6423/01C-010+CON021 | 8 mm Eddy-Current Sensor |
| PR6423/01C-015+CON031 | 8 mm Eddy-Current Sensor |
| PR6423/01C-020+CON041 | 8 mm Eddy-Current Sensor |
| PR6423/01C-025+CON051 | 8 mm Eddy-Current Sensor |
| PR6423/01C-030+CON061 | 8 mm Eddy-Current Sensor |
Popular Epro Modules
| モデル | 説明 |
|---|---|
| PR6423/010-010-CN+CON021 | 8 mm Eddy-Current Sensor |
| PR6423/01C-005+CON011 | 8 mm Eddy-Current Sensor |
| PR6423/01C-010+CON021 | 8 mm Eddy-Current Sensor |
| PR6423/01C-015+CON031 | 8 mm Eddy-Current Sensor |
| PR6423/01C-020+CON041 | 8 mm Eddy-Current Sensor |
| PR6423/01C-025+CON051 | 8 mm Eddy-Current Sensor |
