Product Overview

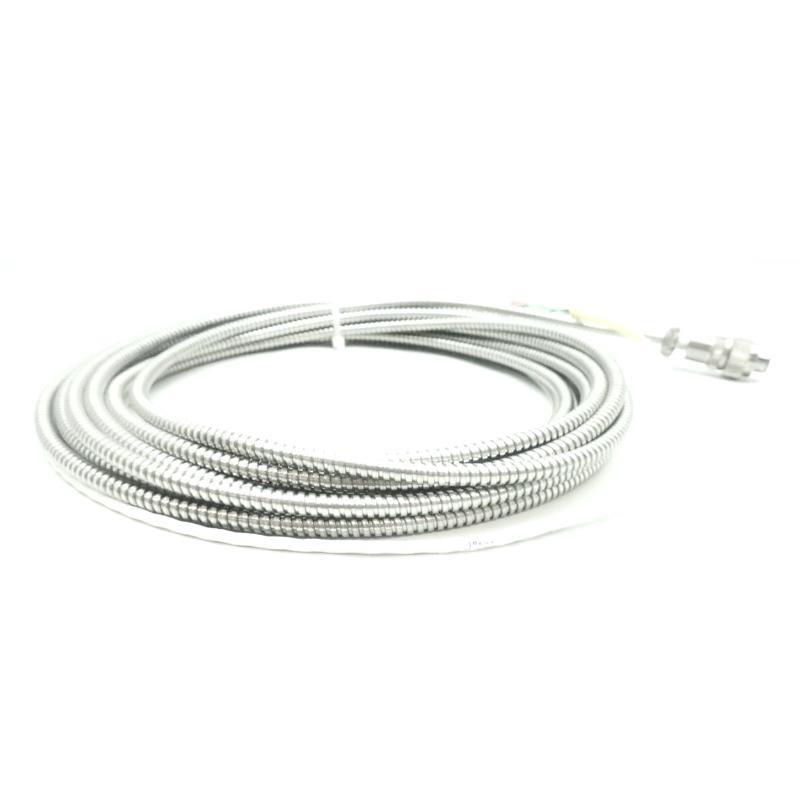

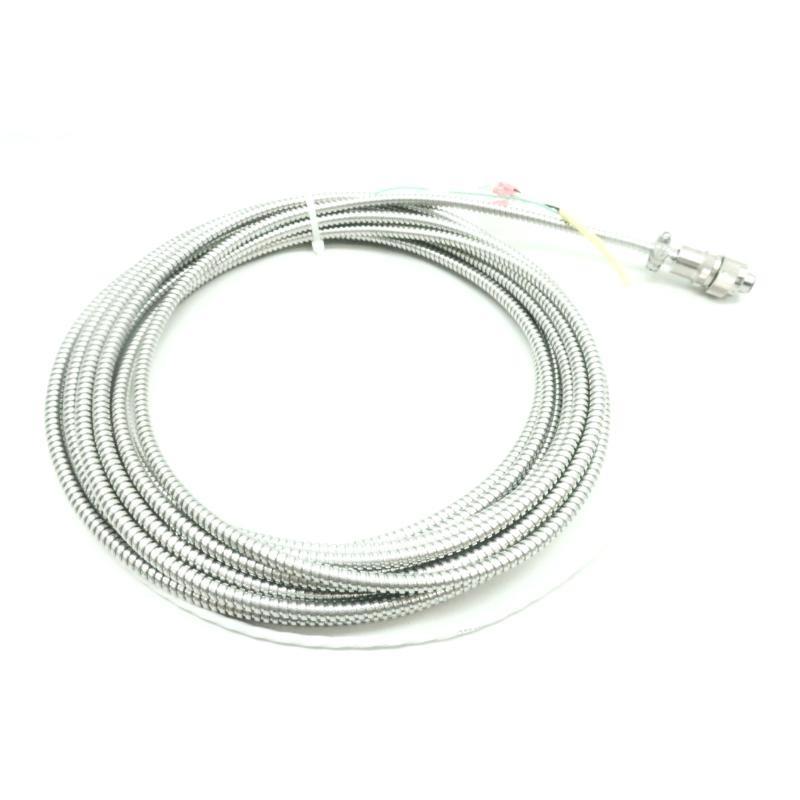

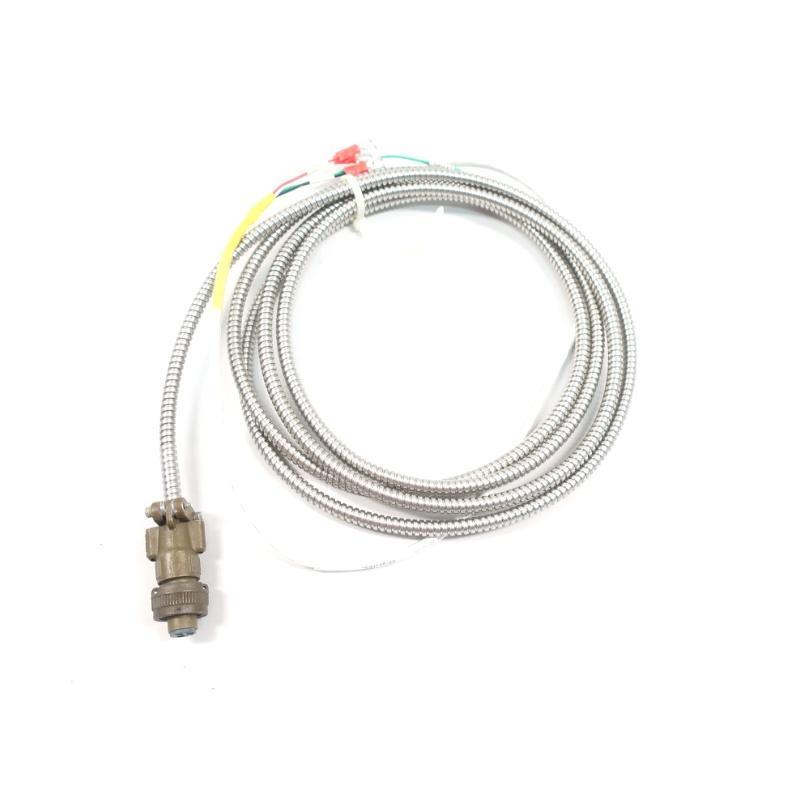

The Bently Nevada 16710-40 Interconnect Cable is specifically designed for use with the Bently Nevada 16710 Series / machinery monitoring systems. With a length / 40 feet, it serves as a robust, factory-terminated cable for high-integrity signal transmission between critical components such as transducers, monitors, and system interfaces.
Built to meet the demanding conditions / industrial environments, the 16710-40 cable /fers superior shielding against electromagnetic interference (EMI) and ensures low-loss communication. Its durable construction and precise connectorization make it ideal for reliable data transmission in vibration, position, and velocity monitoring systems.
Key Features
-
Optimized for Bently Nevada 16710 Series Systems
-
Pre-terminated at factory for plug-and-play installation
-
40-foot length ideal for mid- to long-range cabinet or panel interconnections
-
High shielding performance for EMI/RFI protection
-
Durable jacket material for long-term industrial use
-
Color-coded ends for simplified system identification
-
Reduces installation errors with matched connectors
-
Suitable for both signal and power transmission in monitoring systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Cable Type | Multi-conductor, shielded signal cable |
| Cable Length | 40 feet (12.2 meters) |
| Compatibility | Bently Nevada 16710 Series Monitoring Systems |
| Connector Type | Factory-installed keyed connectors (model-specific) |
| Conductors | Tinned copper, twisted-pair or bundled configuration |
| Shielding | Foil and/or braided shield with grounding drain wire |
| Jacket Material | PVC or Low-Smoke Zero Halogen (LSZH), depending on variant |
| Operating Temperature | -20°C to +80°C |
| Voltage Rating | Typically 300 V (signal grade insulation) |
| Diameter | Cable Length：40 ft |
| 重量 | 配送 weight 3kg |
| Flame Resistance | Complies with UL 1581 or IEC 60332 (depending on version) |
| Compliance | RoHS, CE (variant dependent) |
| Installation Type | Indoor, protected routing in industrial enclosures |
Product Advantages
-
High Signal Integrity: Maintains signal fidelity even in electrically noisy industrial environments.
-
Precise Fit: Tailored for 16710 system compatibility, reducing connector mismatch or pin-out errors.
-
Field Durability: Withstands harsh ambient conditions common in rotating machinery environments.
-
Reduced Downtime: Plug-and-play configuration speeds up maintenance and reduces human error.
-
Low Crosstalk: Shielded structure prevents interference between conductors or adjacent systems.
-
Installation Flexibility: Ample length supports both short and extended signal runs across cabinets.
Industry Applications
-
Turbine and Generator Monitoring
-
Compressor Vibration Systems
-
Industrial Rotating Machinery
-
Refineries and Petrochemical Plants
-
Power Generation Facilities
-
Mining and Pulp/Paper Plants
-
Aerospace Test Systems
This cable is primarily used to route buffered or raw signals from transducers to processing or interface modules in Bently Nevada condition monitoring racks and enclosures.
よくある質問 (FAQ)
-
Q: What does the “-40” in 16710-40 refer to?
A: It indicates the cable length / 40 feet. -
Q: Is the 16710-40 compatible with all Bently Nevada systems?
A: It is specifically engineered for the 16710 series but may be compatible with similar configurations if the connector and signal format match. -
Q: Can the cable be ordered in custom lengths?
A: Yes, standard lengths include 10, 25, 40, 50, and 100 feet, with custom options available. -
Q: Are the connectors field-attachable?
A: No, the connectors are factory-installed to ensure reliability and standardization. -
Q: Does the cable include EMI shielding?
A: Yes, it includes full shielding (foil and/or braided) to prevent EMI and RFI issues. -
Q: What equipment does this cable typically connect?
A: It interconnects probes, proximitor sensors, monitoring modules, and interface 台s. -
Q: Is this cable rated for outdoor use?
A: No, it is primarily designed for protected industrial environments unless additional weatherpro/ing is used. -
Q: What are the cable jacket options?
A: Typically PVC or LSZH, depending on the installation requirements. -
Q: Can it carry power signals as well as data?
A: Yes, for low-voltage applications within system specs, it can handle power and signal wiring. -
Q: Does this cable comply with industrial safety standards?
A: Yes, it generally complies with CE and RoHS, and certain variants may also meet UL or CSA.
Related or Compatible モデルs (Same Series or Function)
| モデル | 説明 |
|---|---|
| 16710-10 | 10 ft Interconnect Cable for 16710 Series |
| 16710-25 | 25 ft version for mid-length applications |
| 16710-50 | 50 ft version for extended cabinet spans |
| 16710-100 | 100 ft version for long-distance runs |
| 330130-085-00-05 | 3300 XL Extension Cable, compatible with proximity transducers |
| 330180-91-00 | 3300 XL Proximitor Sensor Cable |
Popular Bently Nevada モデルs (Same ブランド)
| モデル | 説明 |
|---|---|
| 3500/22M | Transient Data Interface Module |
| 330104-00-05-10-02 | 3300 XL 8 mm Proximity Probe |
| 330180-91-05 | 3300 XL 8 mm Proximitor Sensor |
| 3500/42M | Vibration Monitor for Radial and Axial Shaft Position |
| 330130-040-00-00 | Extension Cable for 3300 XL Proximity System |
| 3500/15-05-05-00 | AC Power Supply Module for 3500 Monitoring Systems |
