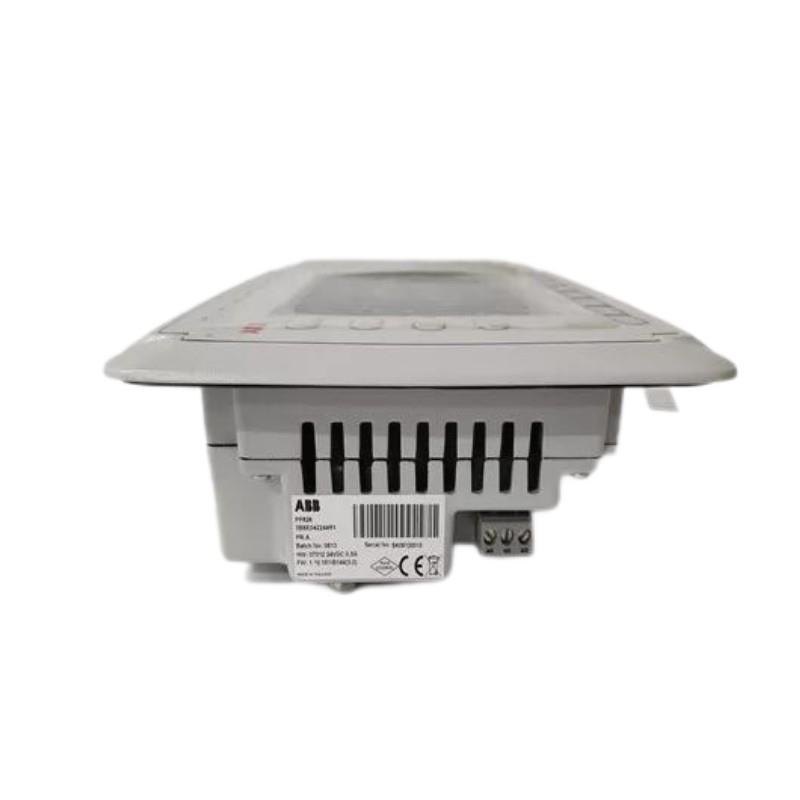

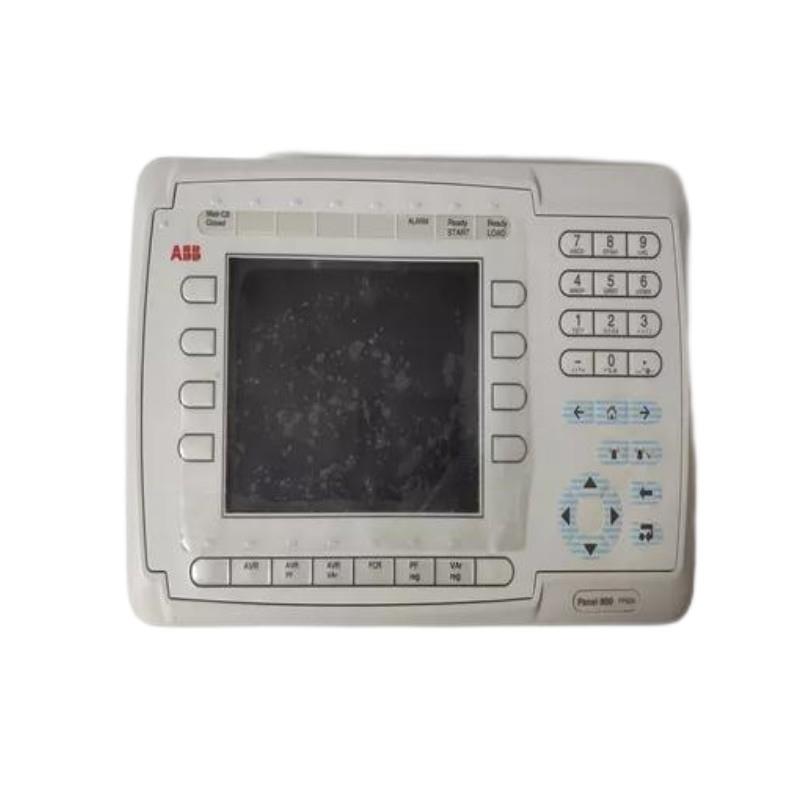

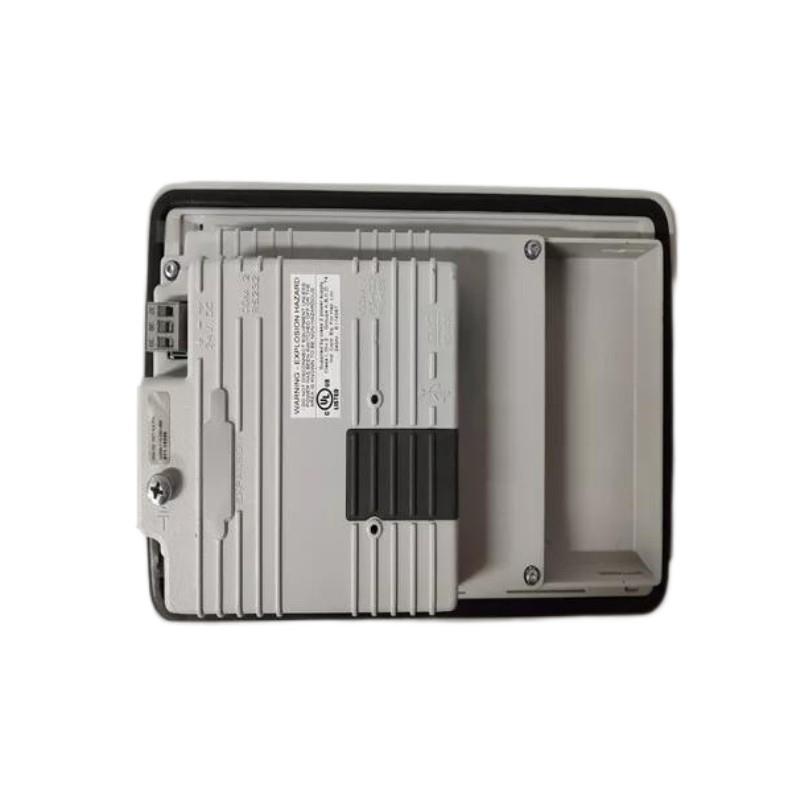

ABB PP826 3BSE042244R1 Operation Panel Screen
1. Product Overview
The ABB PP826 3BSE042244R1 operation panel is a high-performance Human-Machine Interface (HMI) designed for industrial automation environments. It features a high-resolution touch display and powerful data interaction capabilities, enabling intuitive control and real-time system monitoring. As an integral part / the ABB 800xA system, the PP826 is widely used in manufacturing, energy, petrochemical, water treatment, and other industries.
Engineered for harsh industrial environments, the PP826 /fers robust design, multi-interface communication support, and excellent compatibility. Its modular build and panel-mount design make it suitable for both new installations and system upgrades, while its touch screen simplifies complex operations with visualized data and feedback.
2. Key Features
-
High-Resolution Touchscreen: Provides a sharp and interactive GUI for improved operational control.
-
Industrial-Grade Build: Rugged housing with dust and water resistance, ideal for challenging environments.
-
Multiple Communication Interfaces: Includes Ethernet, USB, RS-232, RS-485 for flexible system integration.
-
Panel Mount Design: Space-saving and easy to install in industrial cabinets or control panels.
-
System Compatibility: Fully integrates with ABB 800xA and supports third-party automation platforms.
-
Expandability: S/tware upgrades and external storage options for data logging and remote access.
3. Technical Specifications
3.1 Dimensions and 重量
| Item | Specification |
|---|---|
| Dimensions | 275 x 168 x 6mm |
| 重量 | 1.2 kg |
3.2 General Information
| Item | Specification |
|---|---|
| モデル | PP826 3BSE042244R1 |
| メーカー | ABB |
| Power Supply | 24 V DC ±10% |
| Mounting | Panel Mount / DIN Rail |
| Protection Rating | IP65 (Front Panel) |
| Operating Temp | -10°C to +60°C |
| Storage Temp | -20°C to +70°C |
| Humidity | 5% – 95% RH (non-condensing) |
3.3 Display & Input Features
| Item | Specification |
|---|---|
| Display Type | TFT Color LCD Touchscreen |
| Screen Size | 7 inches |
| Resolution | 800 x 480 pixels |
| Backlight | LED, ≥ 50,000 hours lifespan |
| Touch Technology | Resistive touch, multi-touch support |
3.4 Communication & Interfaces
| Item | Specification |
|---|---|
| Communication Ports | Ethernet, USB, RS-232, RS-485 |
| サポートed Protocols | Modbus TCP/IP, OPC, Pr/ibus, etc. |
| Data Storage | Built-in Flash and expandable SD card |
| System Compatibility | Compatible with ABB 800xA and others |
4. Industry Applications
-
Smart Manufacturing: Used in production lines for monitoring and controlling automation processes.
-
Power & Energy: Ideal for power stations, substations, and energy distribution centers.
-
Petrochemical: Enables safe and efficient monitoring / high-risk environments.
-
Water Treatment: Monitors pumps and filtration systems, enhancing performance and compliance.
-
Building Automation: Serves as an energy management and HVAC control interface in intelligent buildings.
This operation panel provides a reliable and flexible control interface for diverse industrial environments.
