Overview

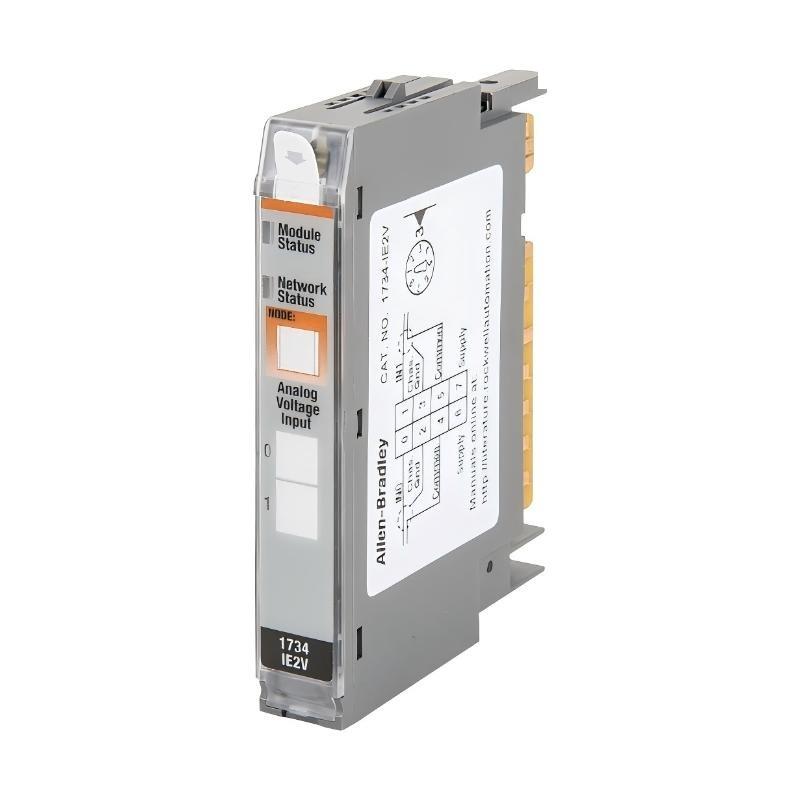

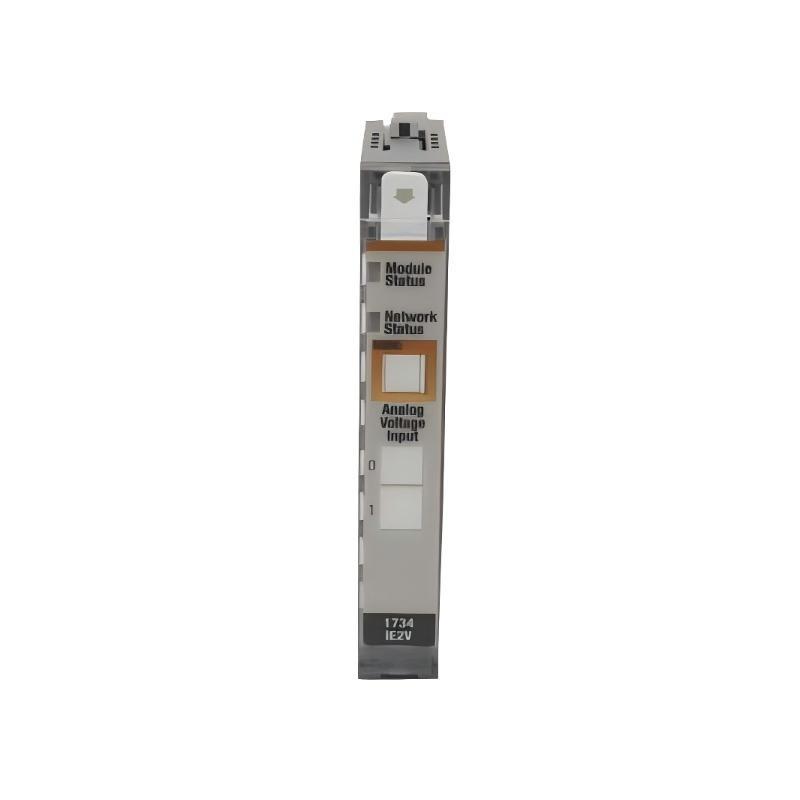

The Allen Bradley 1734-IE2V is a dual-channel analog voltage input module designed for POINT I/O distributed architectures. It provides precise measurement / low-voltage sensor signals within compact installations, /fering consistent performance in applications where cabinet space, wiring simplicity, and modularity are critical. From a system integration perspective, the module is frequently selected for remote I/O drops and mixed-signal environments requiring stable analog acquisition with minimal footprint.
Technical Specifications
| Parameter | Value |
|---|---|
| モデル | 1734-IE2V |
| Module Type | Analog Voltage Input Module |
| Input Channels | 2 voltage inputs |
| Input Ranges | 0–10 V DC or ±10 V DC |
| Resolution | 15-bit + sign |
| Signal Update Rate | Approx. 10 ms typical |
| Accuracy | ±0.1% Full Scale at 25 °C |
| Isolation | No channel-to-channel isolation; system isolation via POINT bus |
| Backplane Power | ~75 mA at 5 V DC |
| Field Power | 24 V DC (from POINT system) |
| Operating Temperature | –20 °C to +55 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 56 mm × 12 mm × 75.5 mm (H × W × D) |
| 重量 | ≈ 33 g |
| Mounting | DIN-rail via POINT I/O base |
Applications / Use Scenarios
-
Compact distributed I/O stations in packaging, material handling, and assembly machinery
-
Measurement / voltage outputs from position sensors, small transducers, and control potentiometers
-
Remote acquisition nodes in Ethernet/IP or ControlNet architectures
-
Retr/it panels requiring minimal expansion width
-
Hybrid control systems where analog voltage measurements coexist with digital I/O on the same POINT I/O platform
Advantages / Engineering Benefits
-
Minimal width footprint allows dense I/O placement in small control panels
-
Stable high-resolution voltage measurement suitable for precision analog devices
-
Flexible unipolar/bipolar configuration supports a variety / field sensors
-
Plug-and-play integration with all POINT I/O backplanes and communication adapters
-
Low power consumption ideal for distributed power-limited cabinets
-
Consistent thermal stability ensures reliable readings in industrial environments
