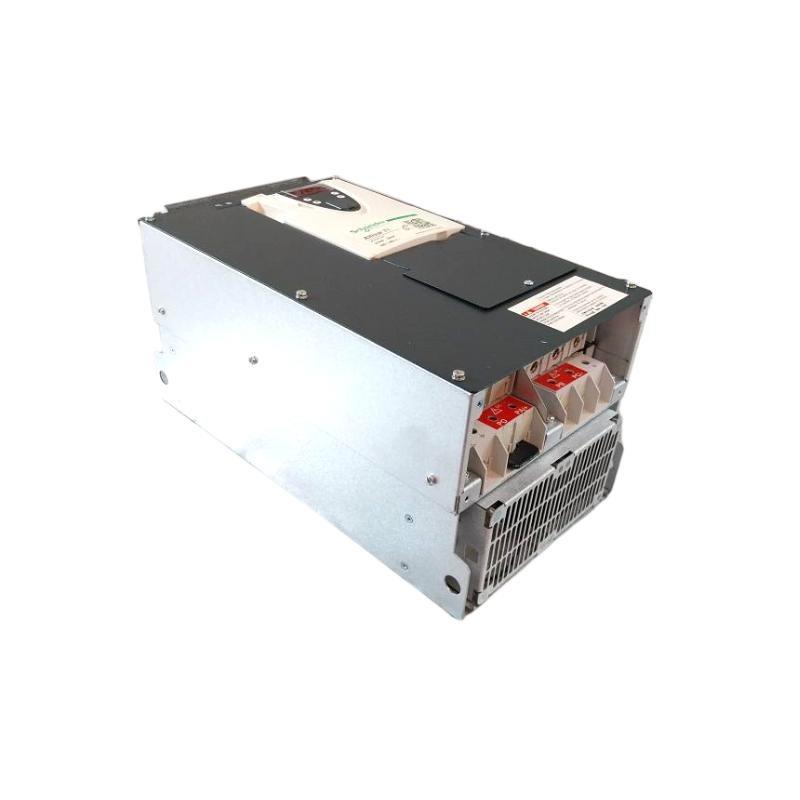

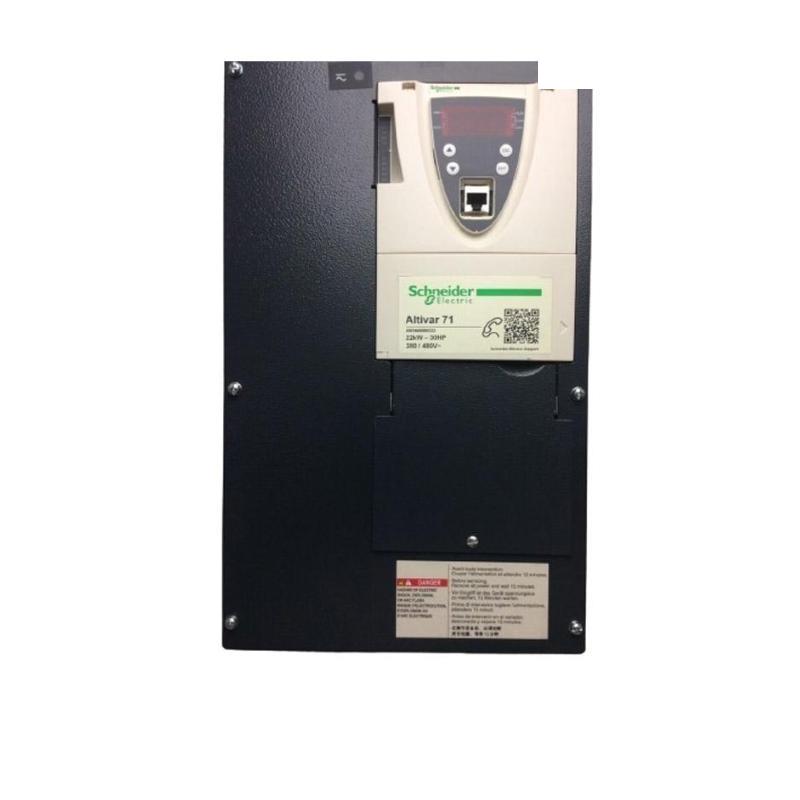

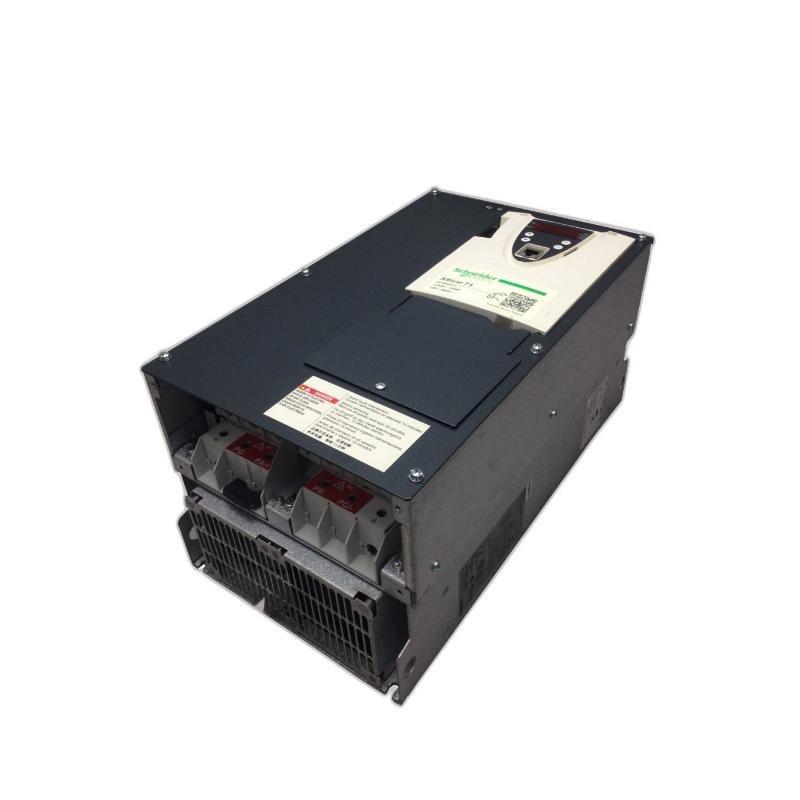

Schneider ATV71HD22N4Z Variable Speed Drive

製品紹介

The Schneider ATV71HD22N4Z Variable Speed Drive is a high-performance drive designed for controlling the speed, torque, and direction / an electric motor. Part / Schneider Electric’s Altivar 71 series, this variable frequency drive (VFD) is engineered for industrial applications that require precise control / motor-driven equipment, /fering advanced features for optimizing energy efficiency, reliability, and productivity.

With dimensions / 420 x 236 x 230 mm and weighing 21 kg, the ATV71HD22N4Z is built to withstand the challenges / demanding industrial environments. This VFD is ideal for controlling applications like conveyors, pumps, fans, and compressors, ensuring smooth operations while enhancing system efficiency and reducing energy consumption.

Product Features and Advantages

• Precise Speed Control: The ATV71HD22N4Z allows for highly accurate control / motor speed, helping to maintain consistent performance across a wide range / applications.

• Energy Efficiency: The drive provides significant energy savings by adjusting motor speed according to the specific needs / the application, rather than running at full speed all the time.

• Rugged Design: Designed for industrial use, the ATV71HD22N4Z features a robust enclosure that ensures durability and reliability even in harsh operating environments, such as factories, water treatment plants, and HVAC systems.

• Comprehensive Protection Features: The drive /fers built-in protection mechanisms such as overcurrent, overvoltage, short-circuit, and overheating protections to safeguard both the motor and the drive itself from electrical and mechanical faults.

• User-Friendly Interface: The drive comes with an easy-to-use interface, providing intuitive control and diagnostics for quick setup, operation, and troubleshooting.

• Flexible Communication: It supports multiple communication protocols such as Modbus, CANopen, and Ethernet/IP, allowing for easy integration into existing control networks and systems.

• Compact and Efficient: Despite its power and capabilities, the 420 x 236 x 230 mm footprint makes the ATV71HD22N4Z relatively compact for its range, making it suitable for installations where space is at a premium.

• Versatile Applications: Ideal for use in a wide range / industries including HVAC, water treatment, material handling, and packaging, the ATV71HD22N4Z can be adapted to meet the demands / diverse applications.

Specifications Table

Applications

The Schneider ATV71HD22N4Z Variable Speed Drive is used in a wide range / industrial applications where precise motor control is necessary. Common uses include:

• HVAC Systems: The drive is used to control motors in heating, ventilation, and air conditioning systems, improving energy efficiency and reducing operational costs.

• Water and Wastewater Treatment: In pumps and fans used in water and wastewater treatment plants, the ATV71HD22N4Z ensures that motors operate within optimal parameters, reducing energy consumption and extending equipment life.

• Material Handling: Conveyor systems and other material handling equipment benefit from the precise motor control provided by the ATV71HD22N4Z, which ensures smooth and efficient operation.

• Pumps and Fans: Used in a wide variety / pumping and ventilation systems, the drive optimizes the operation / pumps and fans to maintain ideal flow rates and pressures while minimizing energy use.

• Packaging and Manufacturing: In automated manufacturing lines, the drive controls motors in packaging machines, conveyors, and other critical equipment, ensuring that production processes are stable and efficient.

• Compressors: The ATV71HD22N4Z provides variable speed control for compressors, allowing them to operate more efficiently and reducing power consumption.

Advantages

• Energy Savings: By controlling the speed / motors based on the actual needs / the application, the ATV71HD22N4Z drive helps achieve significant energy savings, reducing operational costs and improving the overall efficiency / the system.

• Improved Performance: With precise speed and torque control, the drive ensures that motors run smoothly and efficiently, minimizing wear and tear and extending the life / both the motor and the equipment.

• Easy Integration: The ATV71HD22N4Z is compatible with various industrial automation systems and supports multiple communication protocols, making it easy to integrate into existing control systems.

• Built-In Protection: The drive features multiple protection mechanisms to safeguard both the drive and the motor, including overvoltage, short-circuit, and thermal protection.

• Compact and Space-Saving: Its compact size makes it ideal for installations where space is limited while still providing all the necessary features for effective motor control.

• Enhanced User Experience: The drive includes a user-friendly interface that makes setup and monitoring easy, with built-in diagnostic tools to quickly identify and resolve issues.

よくある質問 (FAQ)

1. Q: What is the main purpose / the Schneider ATV71HD22N4Z variable speed drive?

   • A: The ATV71HD22N4Z is used to control the speed, torque, and direction / motors, improving the efficiency / motor-driven systems and optimizing energy usage.

2. Q: What type / motors does the ATV71HD22N4Z control?

   • A: The drive is suitable for controlling three-phase induction motors and permanent magnet motors used in various industrial applications.

3. Q: What protection features are included in the ATV71HD22N4Z drive?

   • A: The drive includes overload protection, short-circuit protection, overvoltage protection, and thermal protection to safeguard both the drive and the connected motor.

4. Q: What is the maximum output power / the ATV71HD22N4Z drive?

   • A: The drive is rated for a maximum output power / 22 kW, making it suitable for medium to large motor applications.

5. Q: What are the communication options available with the ATV71HD22N4Z drive?

   • A: The drive supports Modbus, CANopen, and Ethernet/IP communication protocols, providing flexibility for integration into various control networks.

6. Q: Can the ATV71HD22N4Z be used in HVAC systems?

   • A: Yes, the drive is widely used in HVAC systems to control fans and pumps, optimizing energy usage and system performance.

7. Q: What is the ambient temperature range for the ATV71HD22N4Z?

   • A: The drive can operate in temperatures ranging from -10°C to +50°C, making it suitable for a wide range / industrial environments.

8. Q: How does the ATV71HD22N4Z improve energy efficiency?

   • A: By adjusting motor speed according to the requirements / the application, the drive minimizes unnecessary energy consumption, reducing operational costs.

9. Q: Is the ATV71HD22N4Z suitable for use in water treatment plants?

   • A: Yes, it is ideal for controlling pumps and fans in water and wastewater treatment plants, ensuring optimal operation and energy savings.

10. Q: How easy is it to install the ATV71HD22N4Z?

    • A: The drive is designed for easy installation and can be mounted on DIN rails, making it simple to integrate into existing control systems.
