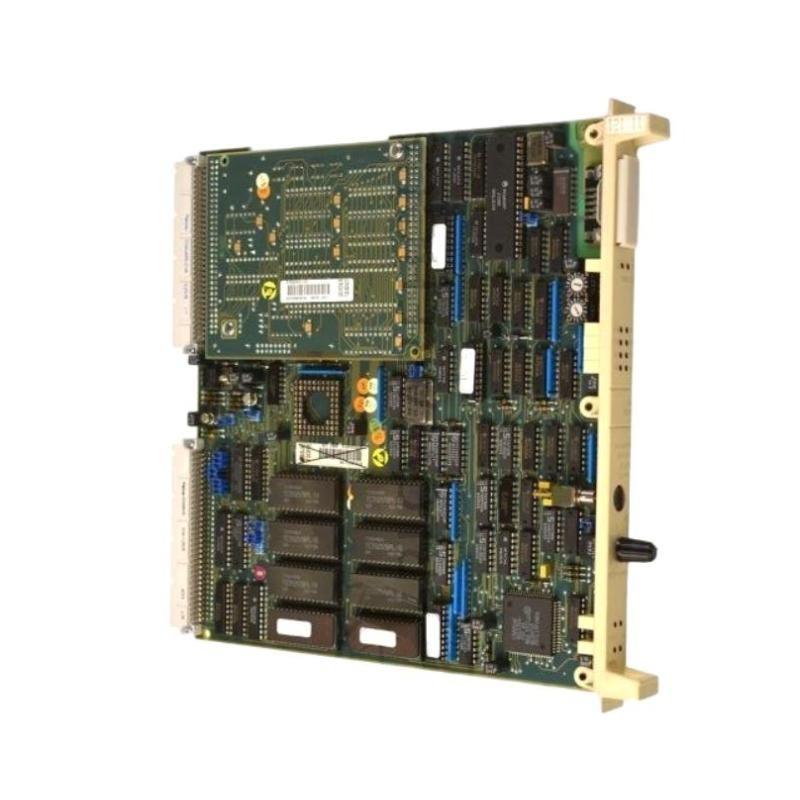

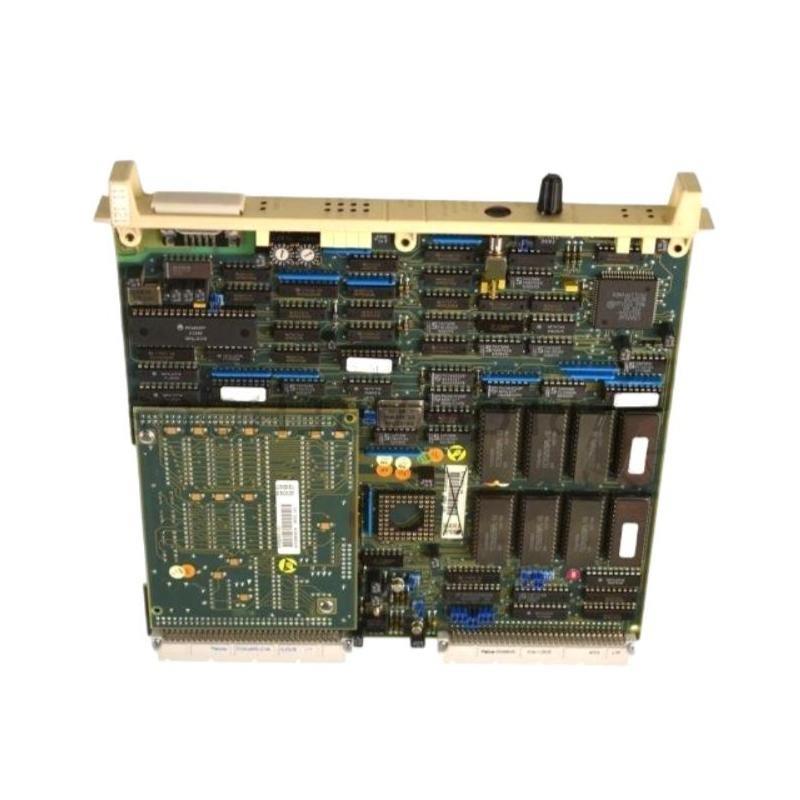

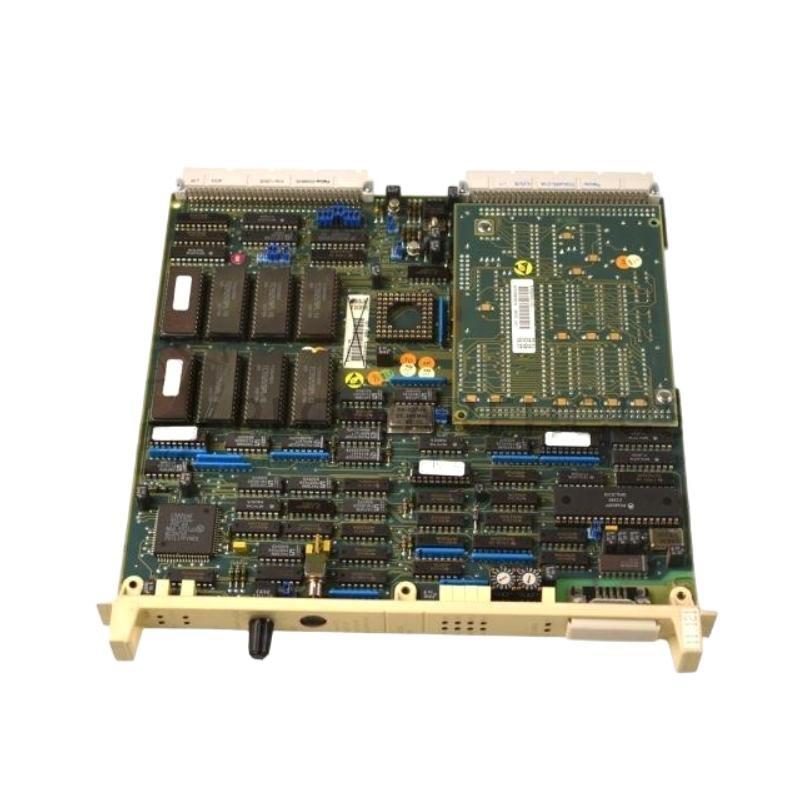

The ABB DSCS 145 57520001-KX Communication Processor is an advanced communication interface module designed for ABB control systems, specifically within the AC 800M and Symphony Plus automation platforms. It functions as a key component that ensures seamless and reliable data transmission between control 台s, field devices, and supervisory systems. The DSCS 145 is engineered for industrial-grade performance, /fering robust connectivity, fast data handling, and superior integration capabilities.
This communication processor is widely recognized for its stability in complex automation environments. It supports multiple industrial communication protocols, enabling it to act as a bridge between distributed control systems (DCS), programmable logic controllers (PLCs), and remote I/O modules. The 台’s rugged design ensures stable operation even under challenging electrical and thermal conditions, making it a dependable solution for process industries such as power generation, oil and gas, and manufacturing automation.
Technical Specifications
| Parameter | 説明 |
|---|---|
| Product Name | ABB DSCS 145 57520001-KX Communication Processor |
| Function | Industrial communication and data processing interface |
| Processor Type | High-performance embedded communication CPU |
| サポートed Protocols | MODBUS, PROFIBUS-DP, Ethernet, ABB proprietary protocols |
| Interface Ports | Serial (RS-232/RS-485), Ethernet (RJ45), optical optional |
| Communication Speed | Up to 12 Mbps for fieldbus communication |
| Memory Capacity | 64 MB RAM, 128 MB Flash for configuration storage |
| Power Supply Voltage | 24 V DC nominal (tolerance ±20%) |
| Power Consumption | Typically 8 W |
| Operating Temperature Range | 0°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Mounting Type | DIN-rail or panel mount |
| Material | Industrial-grade aluminum and composite housing |
| Dimensions | 337.5 x 22.5 x 234 mm |
| 重量 | 0.62 kg |
Product Applications
The ABB DSCS 145 57520001-KX Communication Processor is widely deployed in complex automation environments where high-speed, reliable communication is essential for system efficiency and operational integrity.
Typical applications include:
-
Distributed Control Systems (DCS): Facilitates communication between controllers, operator stations, and process devices.
-
Industrial Networks: Acts as a communication gateway in integrated control architectures.
-
Power Generation Plants: Coordinates data between control modules and monitoring systems.
-
Oil & Gas Processing: Ensures accurate and safe data communication in hazardous process zones.
-
Manufacturing Automation: Connects sensors, actuators, and control logic for synchronized operations.
-
Refineries and Chemical Plants: Enables precise control and monitoring / distributed subsystems.
Product Advantages
The DSCS 145 57520001-KX delivers several critical advantages that enhance both performance and reliability in industrial communication infrastructures.
Key advantages include:
-
High Communication Reliability: Maintains stable and error-free data transfer under high network load.
-
Protocol Versatility: サポートs multiple industrial standards for flexible system integration.
-
Fast Data Handling: High-speed processing ensures real-time data transmission between subsystems.
-
Enhanced Diagnostic Capabilities: Built-in self-monitoring for communication status and fault detection.
-
Compact Design: Space-efficient form factor enables easy installation in control cabinets.
-
Electromagnetic Compatibility: Shielded design ensures reliable operation in noisy electrical environments.
-
Robust Construction: Designed to resist vibration, temperature fluctuations, and humidity.
-
Energy Efficiency: Optimized power usage ensures low operating costs and minimal heat generation.
-
Easy Maintenance: Modular structure allows quick replacement or system expansion.
-
Full Integration with ABB Systems: Seamless compatibility with ABB Symphony Plus and AC 800M control systems.
FAQ
-
What is the main purpose / the DSCS 145 communication processor?
It serves as an interface module that manages and coordinates communication between ABB controllers, field devices, and supervisory systems. -
Which communication protocols does the DSCS 145 support?
It supports MODBUS, PROFIBUS-DP, Ethernet, and ABB proprietary communication protocols. -
How does the processor improve data reliability?
The module incorporates error detection, redundancy features, and advanced buffering to ensure consistent and loss-free data transfer. -
Can the DSCS 145 be used in non-ABB systems?
Yes, it can integrate with third-party devices through open communication standards such as MODBUS and Ethernet. -
What is the typical data transmission rate supported?
The module can handle communication speeds up to 12 Mbps, depending on the protocol used. -
Is it compatible with ABB Symphony Plus control architecture?
Yes, the DSCS 145 is fully compatible with Symphony Plus and other ABB control systems like AC 800M. -
What diagnostic functions are available on the processor?
It provides real-time communication monitoring, error logs, and status LEDs for quick troubleshooting. -
How is configuration data stored on the module?
Configuration data is stored in non-volatile Flash memory, ensuring data retention even during power loss. -
What power supply is required for operation?
The DSCS 145 operates on a 24 V DC power supply with a tolerance / ±20%. -
How does it maintain stability in harsh environments?
It uses industrial-grade materials and complies with IEC vibration and EMC standards for robust field performance.
Recommended Related モデルs (Same Series or Compatible)
| モデル | 説明 |
|---|---|
| DSCA 110A | Analog communication module for ABB control networks |
| DSCA 120A | Enhanced communication 台 with high-speed bus interface |
| DSCS 141 | Standard communication processor with basic protocol support |
| DSCS 143 | High-speed data communication module for ABB DCS systems |
| DSCS 150 | Advanced processor for redundant communication networks |
| DSCS 160 | Extended communication 台 with Ethernet redundancy capability |
Popular モデルs from ABB
| モデル | 説明 |
|---|---|
| CI854A | PROFIBUS-DP communication interface for AC 800M |
| CI855 | MODBUS communication interface module |
| CI856 | Ethernet communication processor for industrial automation |
| PM861K01 | AC 800M controller CPU for advanced process control |
| TU810V1 | Base 台 for I/O modules in ABB automation systems |
| AI810 | Analog input module used for high-accuracy signal acquisition |
