製品紹介

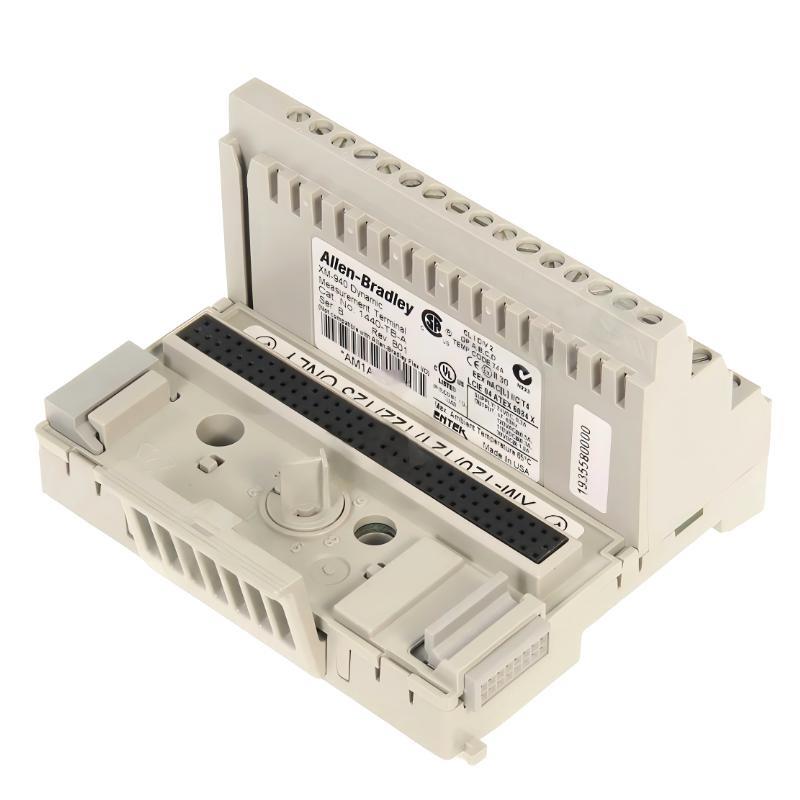

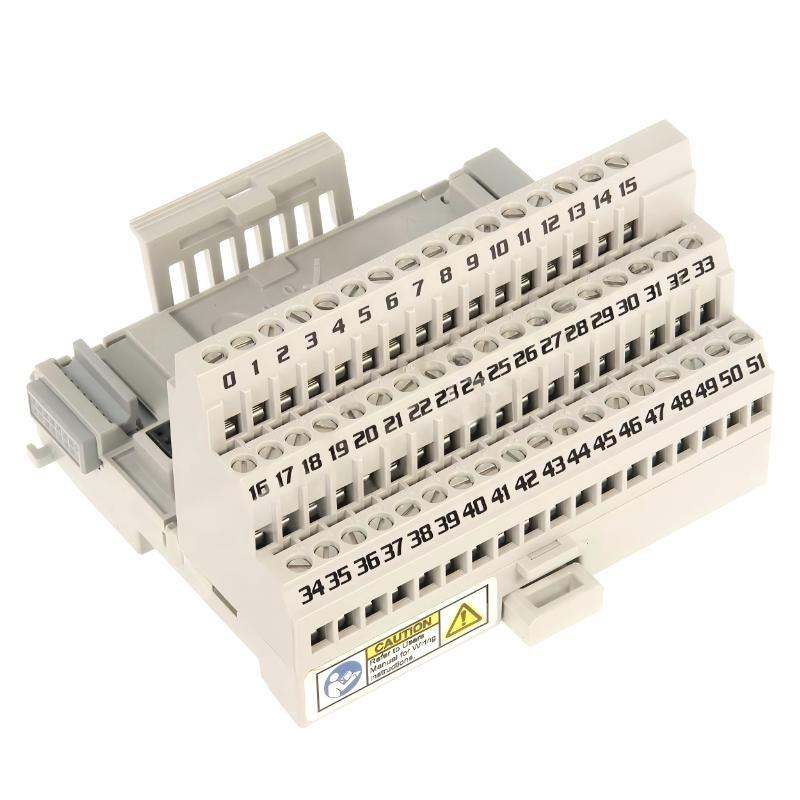

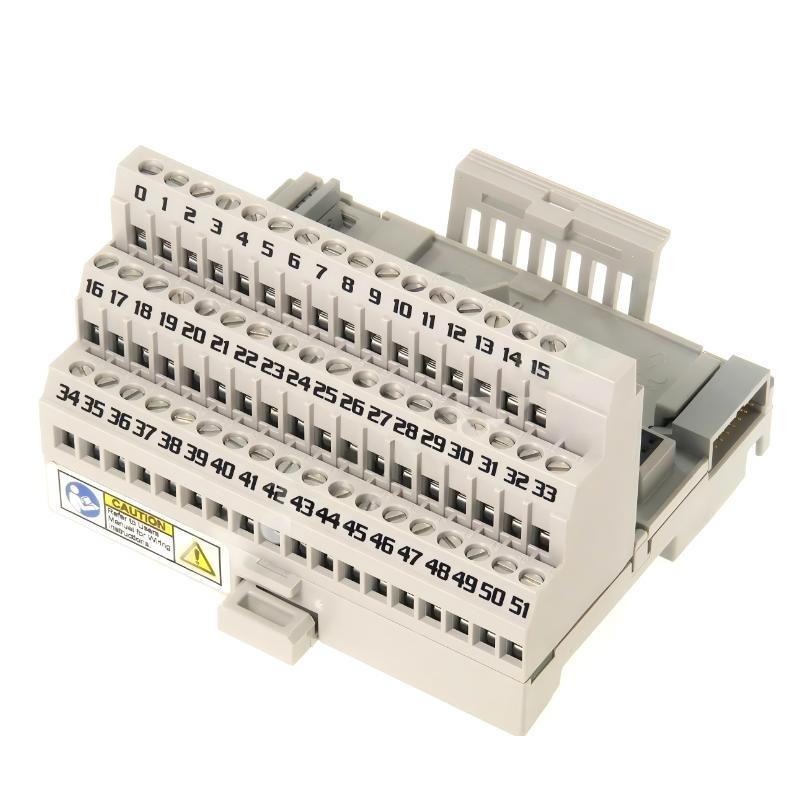

The Allen Bradley 1440-TB-B Terminal Base is specifically designed for Rockwell Automation 1440 series measurement modules, providing a reliable screw clamp interface and side connector for seamless module interconnection.
It facilitates organized and secure wiring connections, transmitting primary power, DeviceNet protocol power, and expansion signaling to adjacent modules. This design ensures stable operation in industrial environments while maintaining compact and efficient installation layouts.
The terminal base supports XM-220 and XM-320 modules, with a single slot layout that is ideal for tight panel spaces. Terminal screws are rated for 0.8 N·m torque, ensuring secure clamping / wiring while minimizing the risk / loose connections.
Designed for rail mounting, it accepts 24 V DC input from a Class 2 supply and is built to withstand industrial environmental conditions, operating down to –20 °C and tolerating high relative humidity in noncondensing environments.
This terminal base is widely used in process monitoring, measurement systems, distributed I/O applications, and control cabinets requiring reliable module power and signaling.
製品仕様
| Parameter | Specification |
|---|---|
| Product Type | Terminal Base |
| Connection Type | Screw Clamp with Side Connector |
| Compatibility | 1440 Series Measurement Modules (XM-220 / XM-320) |
| Input Voltage | 24 V DC (Class 2 Supply) |
| Mounting Method | Rail Mounting |
| Terminal Torque Rating | 0.8 N·m |
| Material | Industrial-grade insulating material |
| Operating Temperature | -20 °C to +70 °C |
| Environmental Humidity | High relative humidity (noncondensing) |
| Dimensions | 97 × 94 × 94 mm |
| 重量 | 0.172 kg |
Product Applications
• Termination and interconnection / 1440 series measurement modules.
• Secure distribution / power and DeviceNet signals to adjacent modules.
• サポートing XM-220 and XM-320 module installations in tight control panel spaces.
• Organizing wiring and reducing clutter in industrial control cabinets.
• Ensuring reliable operation in environmental conditions with high humidity and variable temperatures.
• Integration into distributed I/O systems for process monitoring and control.
Product Advantages
• Screw clamp and side connector provide secure and stable electrical connections.
• Compact single-slot layout allows flexible installation in limited spaces.
• サポートs DeviceNet and expansion signaling for modular communication.
• Terminal screws rated to 0.8 N·m ensure reliable wire retention.
• Industrial-grade materials /fer durability and resistance to temperature and humidity.
• Facilitates organized wiring, reducing maintenance and troubleshooting time.
