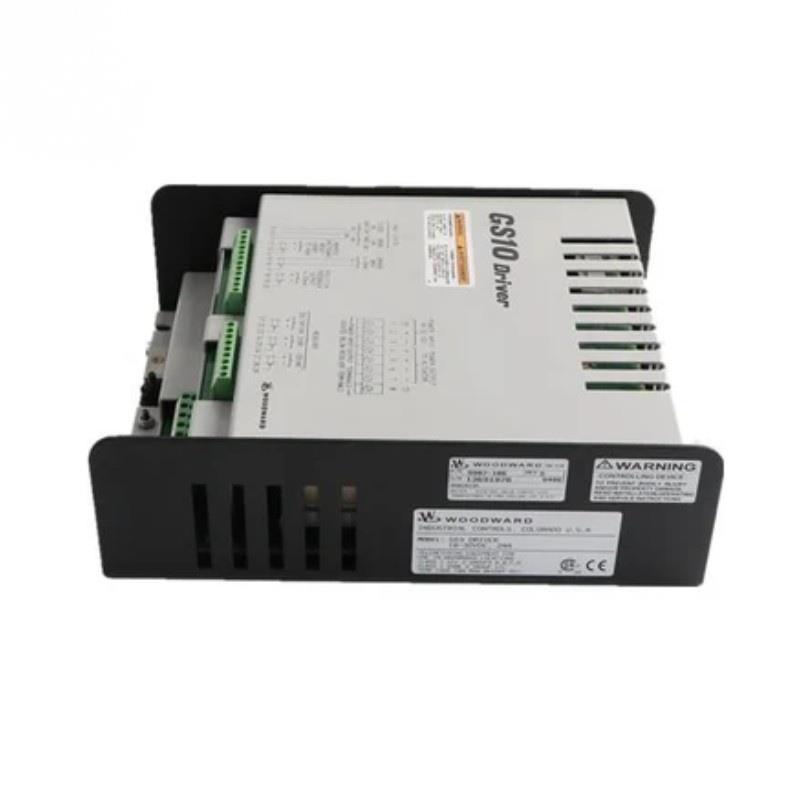

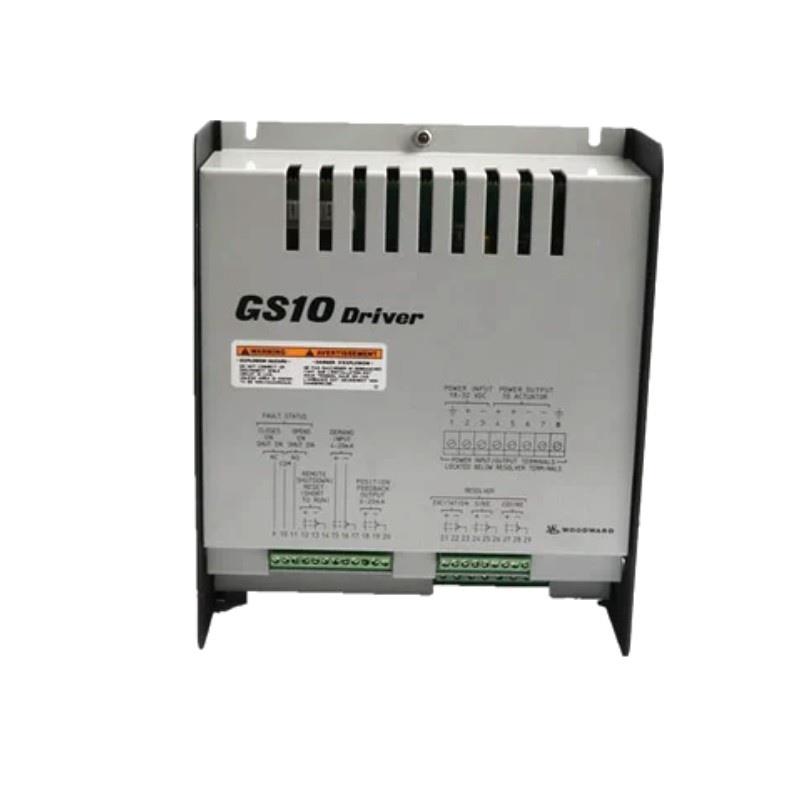

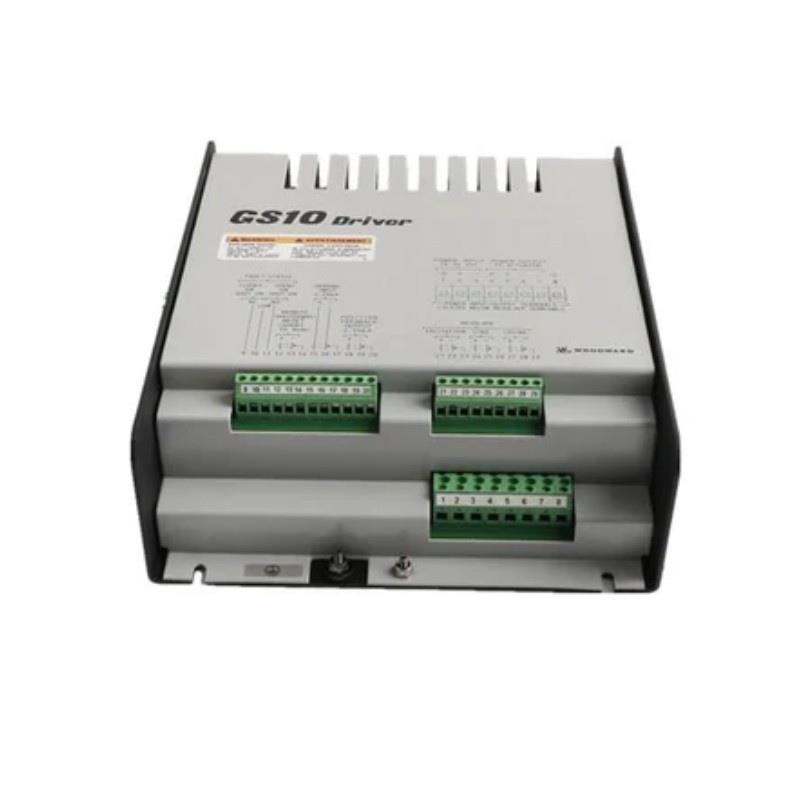

The Woodward 9907-135 Driver Module is a high-performance electronic driver designed for industrial control applications. It serves as an interface between control systems and actuators, enabling precise control / turbine, generator, and engine components. Engineered for reliability and durability, the 9907-135 ensures optimal performance in demanding environments, supporting critical processes where precise actuation is essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | 9907-135 |
| Function | Driver Module |
| Input Voltage | 24 VDC nominal |
| Output Current | Up to 5 A |
| Control Signal | 4–20 mA / 0–10 V analog input |
| Response Time | < 2 ms |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -55°C to 100°C |
| Isolation | 1500 V AC between input and output |
| Mounting | DIN Rail / Panel |
| Dimensions (mm) | 120 × 100 × 50 mm |
| 重量 (kg) | 0.8 kg |
| Communication Interface | Optional CAN / Modbus |
| Safety Features | Overcurrent, short circuit, thermal protection |
Applications
-
Turbine control systems
-
Generator excitation systems
-
Industrial engine actuation
-
Hydraulic and pneumatic actuator control
-
Process control systems in power plants
-
Automation / critical industrial equipment
Advantages
-
High Precision Control: Provides fast, accurate response to control signals for critical actuation.
-
Robust Design: Built to withstand harsh industrial environments with temperature extremes and electrical noise.
-
Flexible Integration: Compatible with a variety / control signals, including analog and digital communication protocols.
-
Safety Features: Includes overcurrent, short circuit, and thermal protection for safe operation.
-
Compact Size: Small footprint allows for easy installation in control panels and cabinets.
-
Reliable Performance: Ensures continuous operation in demanding applications, reducing downtime.
FAQ
Q1: What types / actuators can the 9907-135 Driver Module control?
A1: It can drive hydraulic, pneumatic, and electric actuators that require current or voltage-based control signals.
Q2: Can the module operate with both 4–20 mA and 0–10 V input signals?
A2: Yes, it supports both signal types, providing flexibility for integration with different control systems.
Q3: Is there an internal protection against overcurrent?
A3: Yes, the module includes overcurrent protection to prevent damage to the driver and connected actuators.
Q4: Can it be used in environments with high electrical noise?
A4: Yes, the module is designed with high noise imm台y and isolation between input and output circuits.
Q5: What is the response time / the 9907-135?
A5: The module has a response time / less than 2 milliseconds.
Q6: Does it support communication protocols like CAN or Modbus?
A6: Optional interfaces are available for CAN and Modbus communication.
Q7: How is the module mounted?
A7: It can be mounted on DIN rails or directly on control panels.
Q8: What temperature range can the module operate in?
A8: It operates reliably between -40°C and 85°C.
Q9: Is short-circuit protection included?
A9: Yes, the module features short-circuit protection on its outputs.
Q10: Can it be integrated into turbine control loops?
A10: Yes, it is specifically designed for turbine, generator, and engine control systems.
