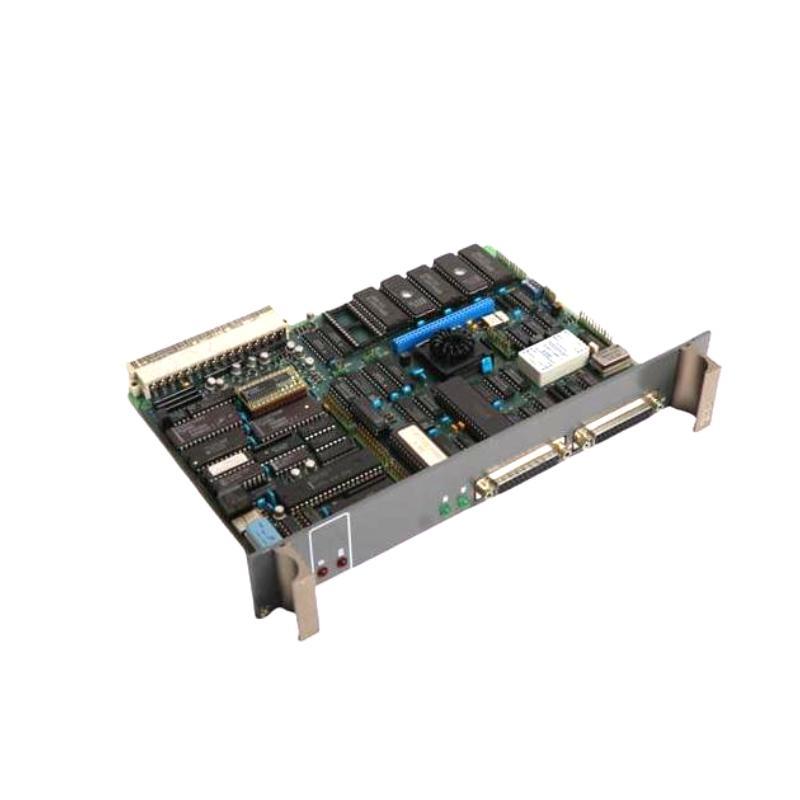

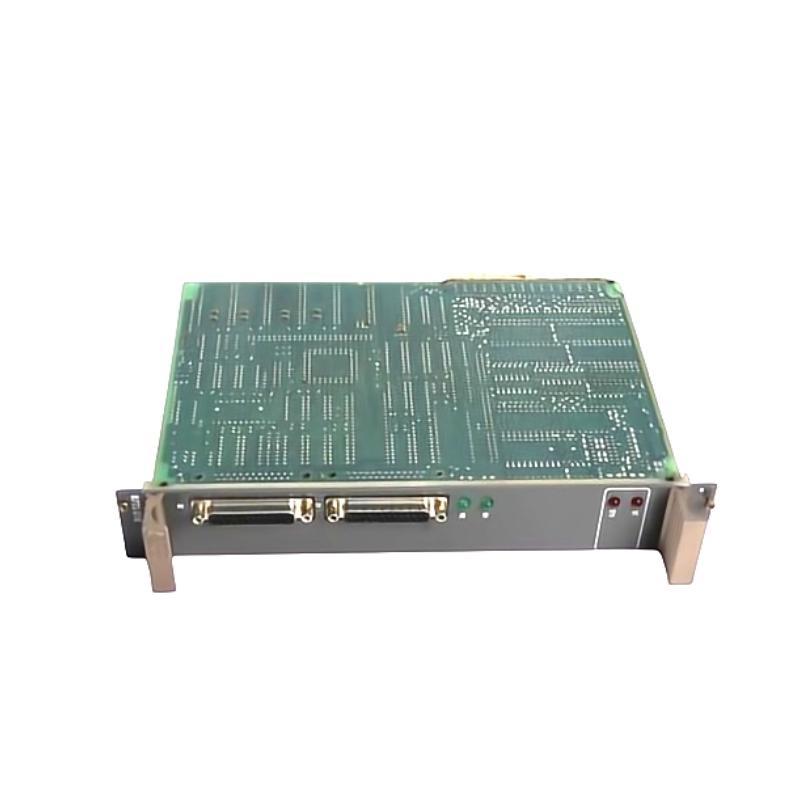

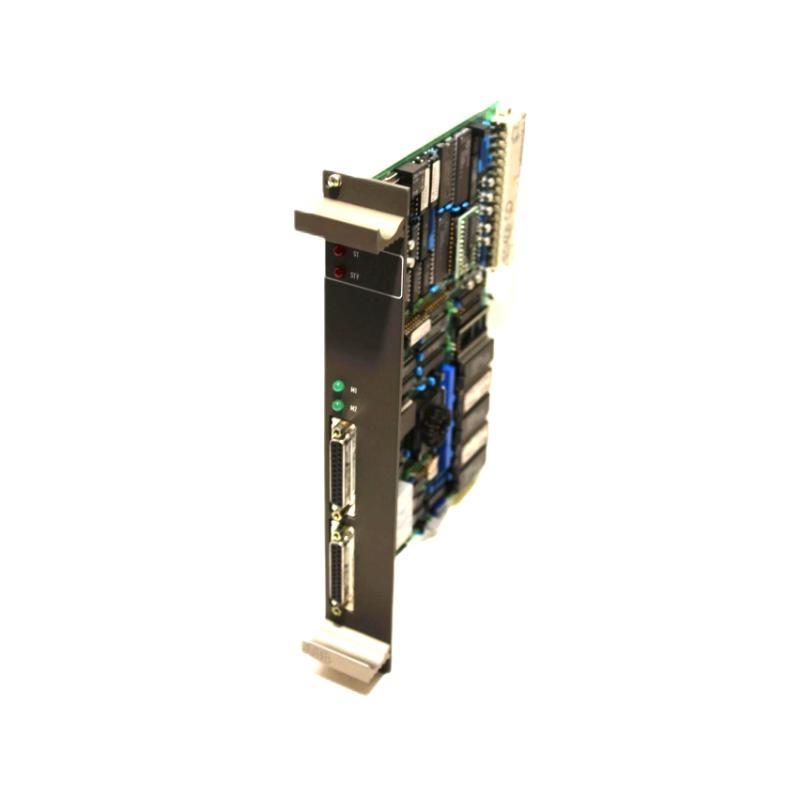

The ABB 87TS01K-E GJR2368900R2342 is a high-reliability coupling module used within ABB’s Advant Controller Series. This device plays a crucial role in the interfacing / control system components, acting as a robust signal exchange hub between the core controller and field-level I/O or other subsystems. With its rugged industrial design and stable performance, it is intended for mission-critical automation tasks where signal integrity and system interoperability are essential.
Designed to meet the exacting demands / power generation, industrial processing, and high-availability automation systems, the 87TS01K-E ensures that communication between components is accurate, galvanically isolated, and immune to external electrical disturbances. It is ideal for both legacy system support and modern infrastructure requiring compatibility with ABB’s proven automation solutions.
Technical Specifications
| Parameter | 説明 |
|---|---|
| Product Name | Coupling Module |
| モデル Number | 87TS01K-E |
| Ordering Code | GJR2368900R2342 |
| Function | Signal Coupling / Interface |
| System Compatibility | Advant Controller 31 / Symphony Series |
| Mounting Method | DIN Rail Mountable |
| Power Supply | 24 V DC Nominal |
| Insulation Type | Galvanic Isolation |
| Typical Use Case | Subsystem and Controller Communication |
| Status Indicators | LED indicators for power and signal activity |
| Communication サポート | Parallel/Serial Interface Signals |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5% to 95% (non-condensing) |
| Protection Rating | IP20 (for cabinet installation) |
| Material | Flame-retardant industrial-grade polycarbonate |
| Certifications | CE, UL, RoHS Compliant |
| Dimensions (H x W x D) | 198 x 261 x 40 mm |
| 重量 | 0.55 kg |
Applications
The 87TS01K-E GJR2368900R2342 module is engineered for seamless integration into industrial automation networks. Below are the key application areas where this coupling module is effectively deployed:
-
Power Generation Plants
Used to link turbine controllers with safety relays, auxiliary monitoring, or SCADA gateways. -
Process Automation Systems
Deployed in oil & gas, petrochemical, and chemical production for subsystem data coupling. -
Industrial Manufacturing Lines
Functions as an interface between PLCs and distributed I/O systems for streamlined automation. -
Substation Automation
Interfaces between grid controllers and protection devices, ensuring safe, real-time communication. -
Pulp & Paper Processing
Enables multi-level communication in DCS environments handling production and environmental controls. -
Transportation and Rail Infrastructure
サポートs redundancy and fail-safe communication in control room and signal station automation.
Product Advantages
-
Precision Coupling Design
Engineered to deliver stable and loss-free signal transmission across control boundaries. -
Galvanic Isolation
Protects critical systems from voltage spikes, transients, and ground loops. -
High Electromagnetic Compatibility (EMC)
Operates reliably in harsh industrial environments with high EMI noise. -
Fail-Safe Indicators
Onboard diagnostic LEDs help technicians detect faults quickly and reduce downtime. -
Long Operational Life
Made with industrial-grade materials to endure long-term deployment with minimal service. -
Compact Format
DIN rail mounting with a small footprint enables space-saving cabinet layouts. -
Legacy and Modern Compatibility
サポートs integration in both older Advant systems and hybrid modernized setups. -
Global サポート Infrastructure
Fully supported by ABB’s extensive technical service and spares network worldwide.
よくある質問 (FAQ)
-
What makes the 87TS01K-E suitable for critical applications?
Its galvanic isolation, diagnostic LEDs, and ABB-certified reliability make it ideal for mission-critical industrial applications where downtime is not an option. -
Is this coupling module protocol-specific?
No, it handles low-level signal interfacing and is not bound to a specific protocol like MODBUS or PROFIBUS. It enables generic subsystem communication. -
Can it be used in redundant configurations?
Yes, it can be incorporated into redundant system architectures, provided the control design supports dual-channel or backup communication paths. -
Is this module field-configurable?
The module itself is typically not field-configurable. Configuration occurs at the system level through ABB controllers. -
How are failures in this module detected?
Through system diagnostics and LED indicators, operators can identify communication failures or power issues promptly. -
What is the isolation voltage rating?
While not publicly specified, ABB coupling modules generally /fer isolation in the range / 500V to 1500V between channels and ground, subject to certification. -
How /ten should this module be serviced or inspected?
Under normal conditions, no regular service is needed. Visual inspection during annual system maintenance is recommended. -
Does this module support hot-swap during operation?
番号 Power down the system or isolate the module’s power supply before replacement to avoid damage or communication loss. -
Can it be used outside / ABB systems?
While technically possible, it is optimized for ABB’s Advant/Symphony series, and integration outside these systems is not guaranteed. -
Is it compatible with third-party diagnostic tools?
It does not support standalone diagnostics. Status is monitored through ABB system s/tware or controllers.
Related モデルs (Same Series or Functional カテゴリー)
| モデル | 説明 | Function/Application |
|---|---|---|
| 87TS01K-E GJR2368900R1231 | Earlier version / the same module | General-purpose coupling |
| 87BT62E-E | Bus terminator module | System bus line termination |
| 87TS03K-E | Dual-channel coupling module | Redundant communication setups |
| 88EI01 | Event input module | Captures system events via discrete inputs |
| 87AI01 | Analog input module | Interfaces analog field signals |
| 87DO01 | Digital output module | Control / external field actuators |
Popular ABB Modules (Same ブランド, High Demand)
| モデル | 説明 | Primary Use |
|---|---|---|
| PM864AK01 | CPU module for AC800M controller | Central control 台 |
| CI854AK01 | PROFIBUS-DP communication interface | Fieldbus connectivity |
| TU810V1 | Terminal 台 with extended channels | I/O expansion |
| DI820 | 16-channel digital input module | Sensor input processing |
| AO810 | 8-channel analog output module | Process control |
| AI810 | 8-channel analog input module | Process measurement |
