Product Introduction

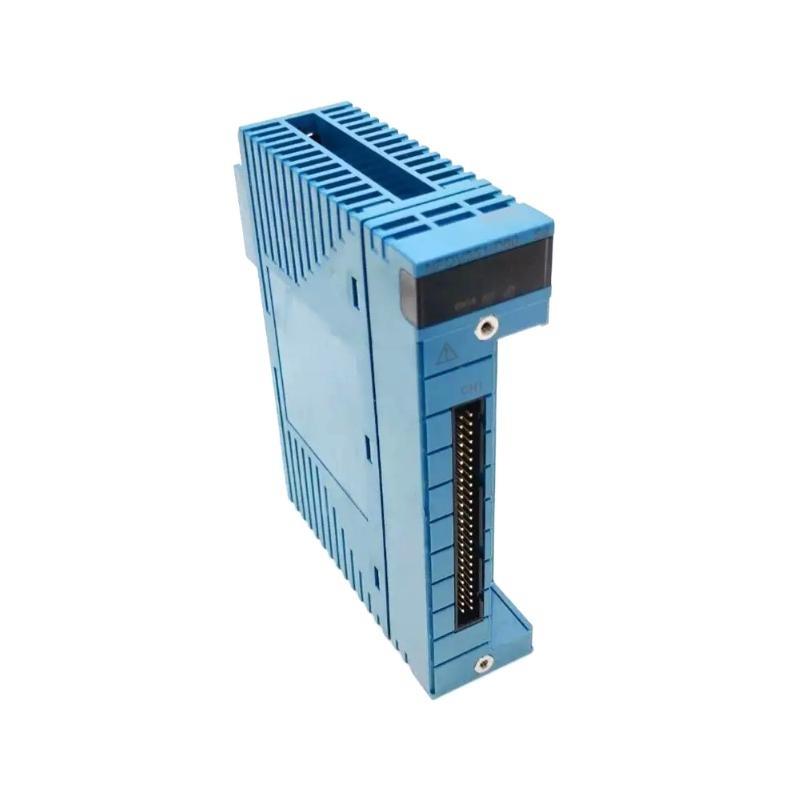

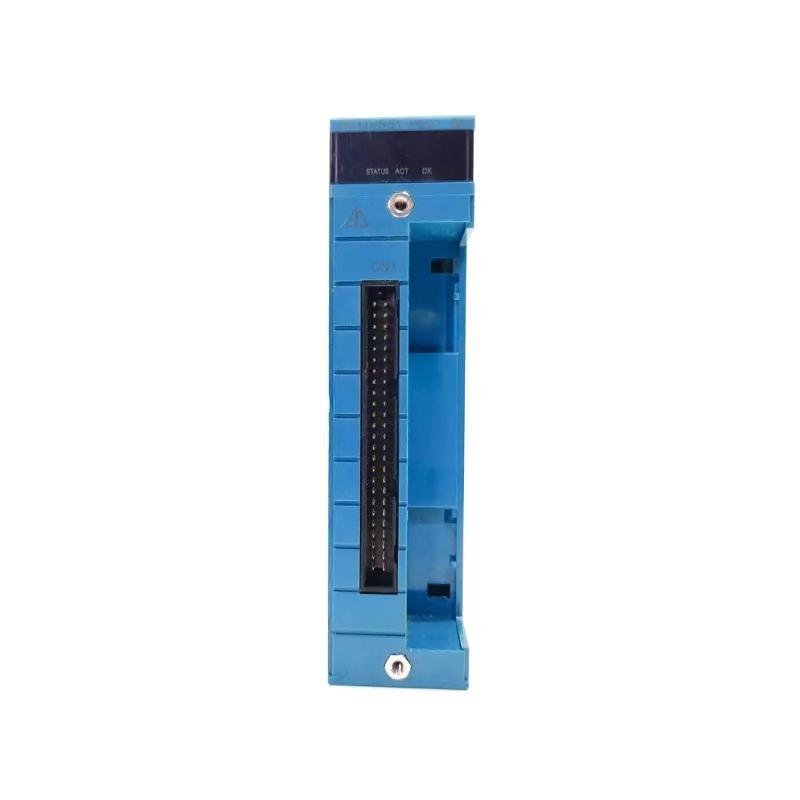

The Yokogawa NFDV551-P60 is a rugged and high-performance digital output module developed for industrial automation systems that require reliable actuation and control. Designed specifically for Yokogawa’s STARDOM and CENTUM VP platforms, this module provides 16 discrete digital output channels, capable / switching 24 VDC logic signals to external field devices such as solenoids, relays, indicator lights, and interlock mechanisms.
This module plays a crucial role in enabling automated processes, ensuring accurate signal output to external devices, and maintaining system stability across a wide variety / industries. It supports positive logic output, features channel isolation, and includes diagnostic features that help with fault detection and maintenance.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | NFDV551-P60 |
| メーカー | 横河電機 Corporation |
| Module Type | Digital Output Module |
| Output Channels | 16 channels (positive logic output) |
| Output Signal Type | 24 VDC |
| Output Voltage Range | 20.4 to 28.8 VDC |
| Output Current Capacity | 0.5 A per channel (max), 4 A per module (total) |
| Output Type | Sourcing (PNP), Open-drain MOSFET |
| Switching Frequency | Max 10 Hz |
| Protection Features | Overcurrent protection, Short-circuit protection |
| Channel Isolation | Optical isolation between channels and system |
| Response Time | ≤ 10 ms |
| Power Supply | Supplied through base 台 |
| Power Consumption | Approx. 3.2 W |
| LED Indicators | Channel status, module health |
| Mounting Method | DIN rail or base-mounted |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Vibration Resistance | IEC 60068-2-6 compliant (1.0 mm, 10–57 Hz) |
| Shock Resistance | IEC 60068-2-27 compliant |
| Dimensions (W × H × D) | 32.8 × 107.5 × 130 mm |
| 重量 | 0.2 kg |
| Certifications | CE, UL, CSA, RoHS |
Product Applications
Manufacturing Automation:
Ideal for controlling actuators, solenoids, and indicators in automated production lines, assembly robots, and packaging equipment.
Process Control Systems:
Frequently used in chemical, oil & gas, and pharmaceutical plants for operating valves, alarm signals, and interlocks.
Energy Sector:
Integrated into power plant automation systems for remote operation / circuit breakers, safety mechanisms, and fault annunciation.
Utilities and Water Treatment:
Utilized to drive pump control, level indicators, and signal lamps in water and wastewater treatment facilities.
Transportation & Infrastructure:
Deployed in intelligent traffic systems, railway signaling, and tunnel automation for controlling field devices remotely.
Product Advantages
-
High-Density Output: 16 output channels in a compact footprint reduce cabinet space requirements.
-
Advanced Diagnostics: LED indicators and internal fault reporting provide real-time feedback.
-
Short-Circuit Protection: Prevents damage and enhances safety during load failure.
-
High Reliability: Designed to operate in challenging environments with temperature and vibration tolerance.
-
Easy Integration: Seamlessly connects to Yokogawa’s DCS and PLC systems without additional interfacing.
-
Field-Proven Performance: Widely used across mission-critical installations worldwide.
-
Cost Efficiency: Modular structure reduces hardware cost and simplifies maintenance logistics.
-
Energy Efficient: Low power consumption supports sustainable operation.
よくある質問 (FAQ)
-
What is the output type / the NFDV551-P60 module?
It uses 24 VDC positive logic outputs (sourcing type), suitable for interfacing with most field devices. -
Can this module drive inductive loads like relays or solenoids?
Yes, each channel supports up to 0.5 A current and includes protection for inductive loads. -
Is the NFDV551-P60 hot-swappable?
No, power should be disconnected before replacing or inserting the module. -
Does it have internal diagnostics?
Yes, the module has onboard diagnostics and LED indicators for output and fault status. -
How is each output channel protected?
The channels are protected against overcurrent and short circuits. -
Is optical isolation used?
Yes, each channel is optically isolated from the control circuit to improve signal integrity. -
What field devices are commonly connected to this module?
It can connect to signal lights, small motors, solenoid valves, relays, and audible alarms. -
Can this module be used in hazardous zones?
The module itself is not intrinsically safe. Use isolation barriers for hazardous environments. -
What is the typical installation method?
DIN rail or baseplate mounting inside a control cabinet, typically alongside other I/O modules. -
Can multiple NFDV551-P60 modules be used in a single system?
Yes, multiple modules can be installed as part / an I/O expansion for large systems.
Recommended モデルs (Same Series / Related Yokogawa Modules)
| モデル | Type | Channels | Signal Type | 説明 |
|---|---|---|---|---|
| NFDV551-P50 | Digital Output Module | 16 | 24 VDC | Standard version / NFDV551 with P50 spec |
| NFAV161-P60 | Digital Output Module | 16 | 24 VDC | Alternative digital output with enhanced response |
| NFDV161-P60 | Digital Input Module | 16 | 24 VDC | Companion digital input module |
| NFAI841-P50 | Analog Input Module | 8 | 4–20 mA | Analog signal acquisition for process input |
| NFRT161-P50 | Relay Output Module | 16 | Relay お問い合わせs | Mechanical output module for heavy loads |
| NFCV512-P50 | Pulse Input Module | 4 | Pulse | Pulse input acquisition module |
Popular Yokogawa Modules (その他 Hot モデルs)
| モデル | Type | Application | 説明 |
|---|---|---|---|
| CP471-10 | CPU Module | Core process control | Advanced CPU module for CENTUM VP |
| AMM12C | Analog Input Module | Industrial signal monitoring | High-density module with signal isolation |
| AAI543-H50 | HART Analog Input Module | Smart instrument interface | サポートs HART for advanced field communication |
| ADV151-P60 | Digital Output Module | Field actuation | Digital outputs for lights, valves, alarms |
| PW482-10 | Power Supply Module | System power management | Provides redundant and stable power supply |
| F3SP59-7S | STARDOM PLC CPU Module | Compact control systems | High-speed PLC CPU for modular automation |
