Présentation du produit

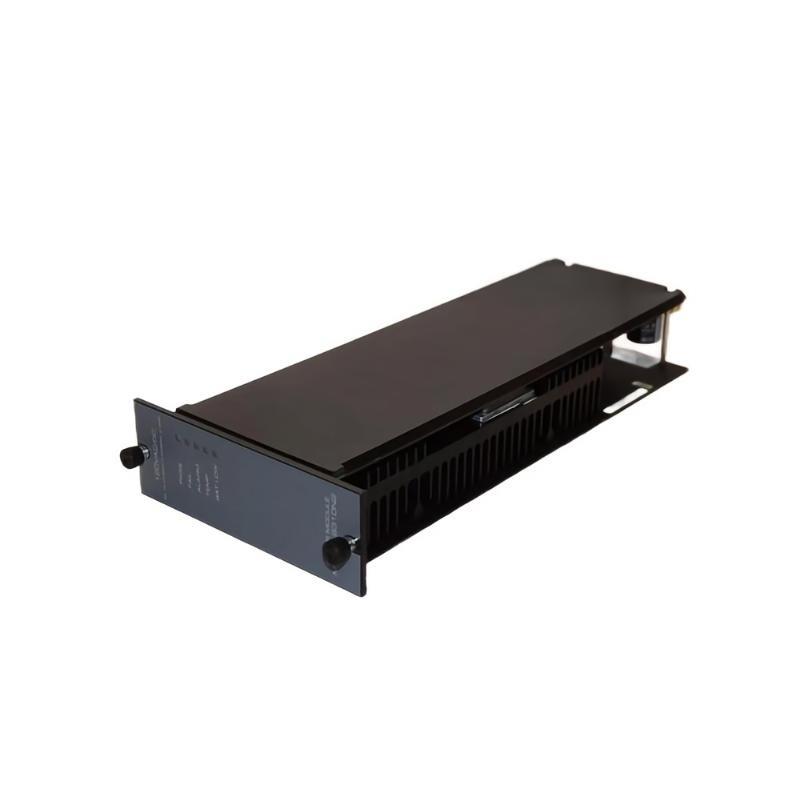

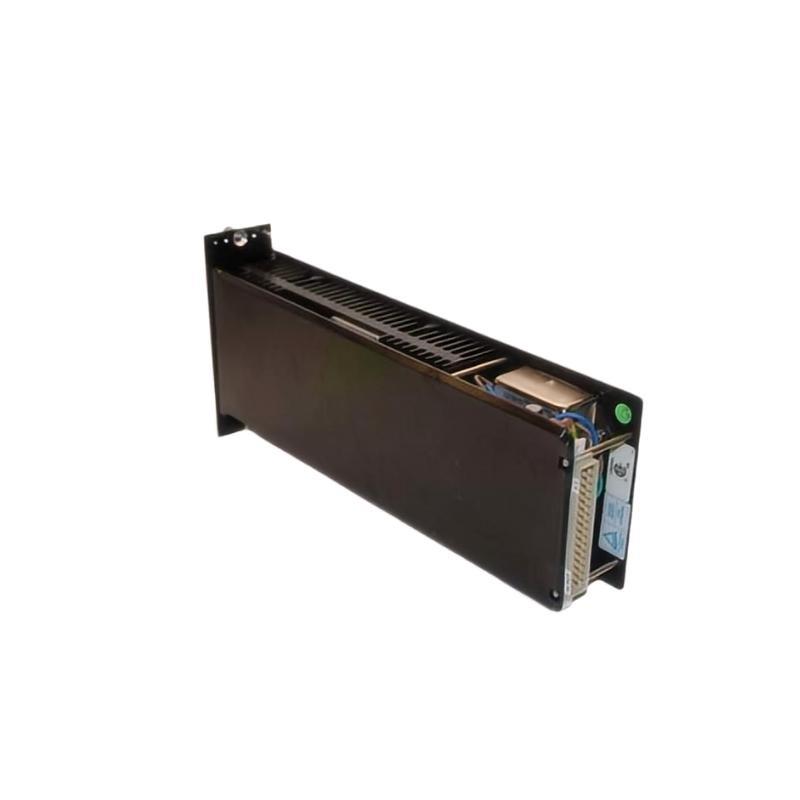

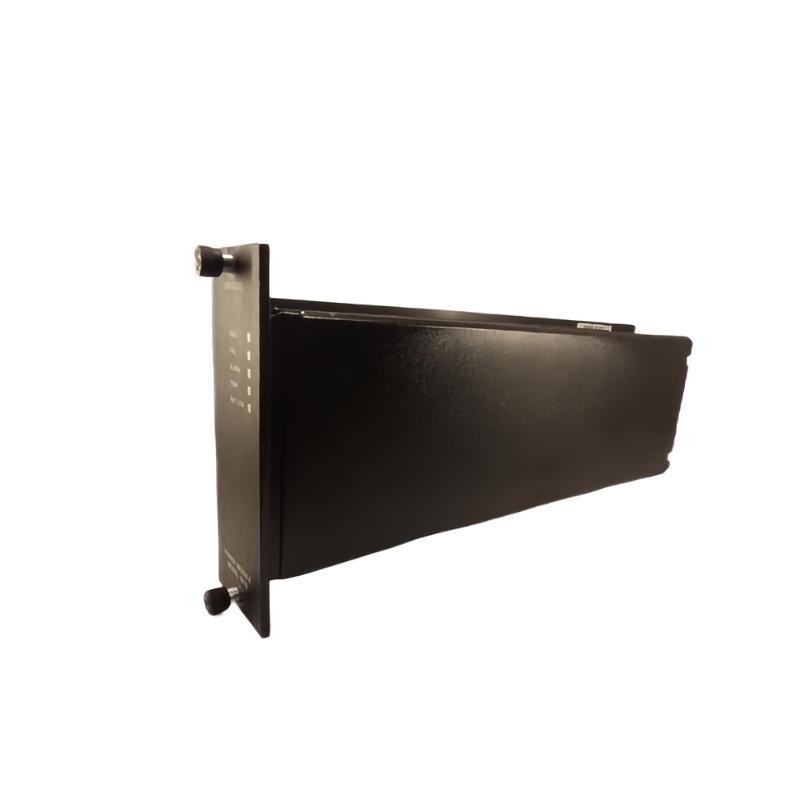

The Triconex 8310 Power Supply Module is a high-performance, fault-tolerant power supply unité specifically designed for the Triconex Tricon™ fault-tolerant control systems, used primarily in mission-critical industrial environments. This module provides regulated power to the controller chassis and is integral to maintaining uninterrupted control operations even in harsh and high-risk applications.
The 8310 module supports redundant configurations to ensure continuous power delivery. It is hot-swappable and integrates seamlessly with the Tricon main chassis. Built for environments where safety, reliability, and uptime are non-negotiable, the 8310 meets stringent industry standards, including those for safety instrumented systems (SIS).
Its robust architecture ensures compliance with IEC 61508 and ISA/IEC 61511 standards for Safety Integrity Level (SIL) 3 applications. This makes it suitable for deployment in oil and gas, chemical, power generation, and other industries where process safety is paramount.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle | Triconex 8310 |
| Function | Redundant Power Supply Module |
| Input Voltage Range | 90 – 264 VAC, 47 – 63 Hz |
| Input Current | Typically 2.5 A @ 115 VAC, 1.2 A @ 230 VAC |
| Output Voltage | +5 VDC, +24 VDC |
| Maximum Output Power | 150 W (regulated output) |
| Redundancy Support | Yes (N+1 configuration) |
| Hot-Swappable | Yes |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% – 95% non-condensing |
| Cooling Method | Convection cooled |
| MTBF (Mean Time Between Failures) | > 250,000 hours |
| Certifications | SIL 3, CE, UL, CSA, FM, ATEX |
| Dimensions (W x H x D) | 369 x 156 x 88 mm |
| Poids | 3.67 kg |
Applications
The Triconex 8310 is widely used in various industrial automation and safety-critical applications, including:
-
Oil & Gas (Upstream/Downstream)
For wellhead control, pipeline monitoring, and refining processes. -
Chemical and Petrochemical Plants
Ensures safe operation in high-risk chemical production environments. -
Power Generation Facilities
Used for turbine control, boiler management, and emergency shutdown systems. -
Pharmaceutical Manufacturing
Supports process control in cleanroom and regulated production facilities. -
Water and Wastewater Treatment
Helps maintain process stability and environmental compliance. -
Mining and Metals
Ensures safety in hazardous extraction and smelting processes.
Product Advantages
-
Redundant Operation: Offers N+1 redundancy to ensure uninterrupted power delivery to critical control systems.
-
SIL 3 Certified: Fully compliant with international safety standards for high-integrity applications.
-
Hot Swappable: Can be replaced without shutting down the system, minimizing operational downtime.
-
Compact Design: Space-saving footprint ideal for modular control cabinets.
-
Durable and Reliable: High MTBF rating ensures long operational life in extreme industrial environments.
-
Real-Time Monitoring: Integrated diagnostics and status indicators simplify maintenance and improve visibility.
-
Wide Input Range: Accepts a broad AC input voltage range, enhancing global compatibility.
-
Low Heat Generation: Efficient design minimizes heat output, reducing cooling requirements.
Questions fréquentes (FAQ)
-
Q: What type sur power input does the Triconex 8310 support?
A: The module supports AC power input ranging from 90 to 264 VAC at 47–63 Hz. -
Q: Is the 8310 power supply module hot-swappable?
A: Yes, it can be swapped without interrupting system operation. -
Q: What certifications does the Triconex 8310 have?
A: It is certified for SIL 3, CE, UL, CSA, FM, and ATEX compliance. -
Q: Can the 8310 module work in a redundant configuration?
A: Absolutely. It supports N+1 redundancy for maximum reliability. -
Q: What is the output voltage sur the 8310 module?
A: It provides both +5 VDC and +24 VDC regulated outputs. -
Q: What type sur systems is this power supply designed for?
A: It is designed specifically for Triconex Tricon fault-tolerant control systems. -
Q: What are the physical dimensions sur the 8310?
A: The unité measures 369 x 156 x 88 mm. -
Q: What is the weight sur the Triconex 8310?
A: 3.67 kg. -
Q: What is the cooling method used?
A: It is convection-cooled and does not require fans. -
Q: How long is the expected lifetime (MTBF) sur the 8310?
A: It has an MTBF greater than 250,000 hours under normal operating conditions.
Related Triconex Modèles
| Modèle | Description | Input Voltage | Output Voltage | Certification | SIL Rating |
|---|---|---|---|---|---|
| Triconex 8300 | Base power module for Tricon system | 120–240 VAC | +5VDC, +24VDC | CE, UL, SIL 3 | SIL 3 |
| Triconex 8311 | Power supply module with diagnostics | 90–264 VAC | +5VDC | CE, ATEX | SIL 3 |
| Triconex 8355 | I/O power supply module | 120–240 VAC | +24VDC | UL, CSA | SIL 2 |
| Triconex 8305 | Redundant power interface | 100–250 VAC | +5VDC, +15VDC | FM, CE | SIL 3 |
| Triconex 9753-110 | Universal power supply for engineering unité | 100–240 VAC | Multiple | CE | – |
| Triconex 3501E | Enhanced main processor module | – | – | SIL 3 | SIL 3 |
Popular Triconex Modèles
| Modèle | Description | Function | Certification | SIL Rating |
|---|---|---|---|---|
| Triconex 3008 | Main Processor Module | Safety Controller | SIL 3, TUV | SIL 3 |
| Triconex 3625 | Digital Output Module | I/O Module | CE, UL | SIL 3 |
| Triconex 3504E | Main Processor – Enhanced | Controller | CE, SIL 3 | SIL 3 |
| Triconex 3700A | Analog Input Module | Analog Data Acquisition | FM, CE | SIL 2 |
| Triconex 4211 | Communication Module | Ethernet/Serial Gateway | CE, CSA | – |
| Triconex 9853-610 | Workstation Interface Kit | Engineering/Programming Tool | – | – |
