Product Description

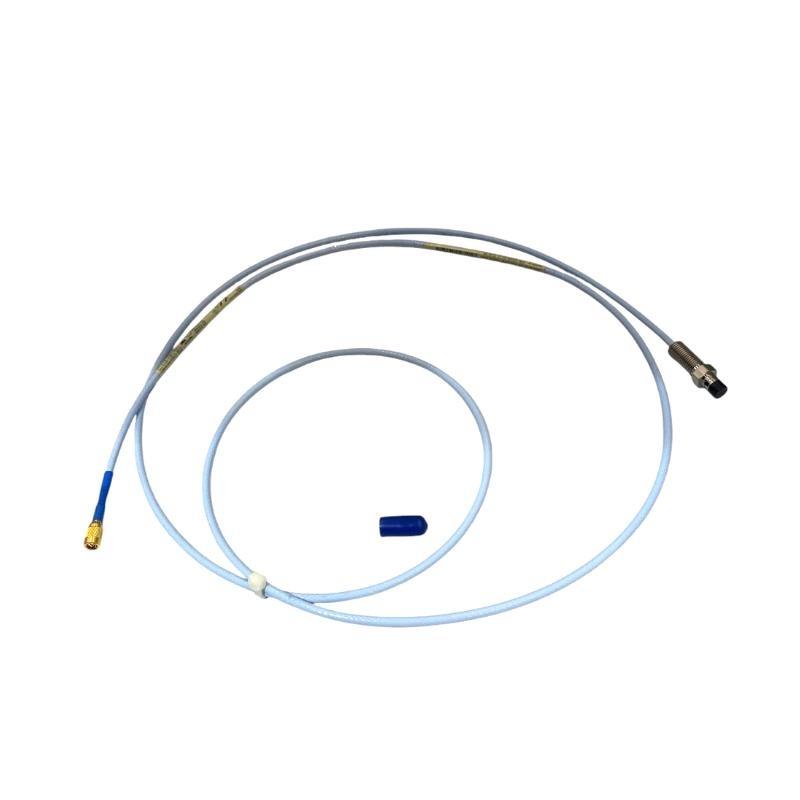

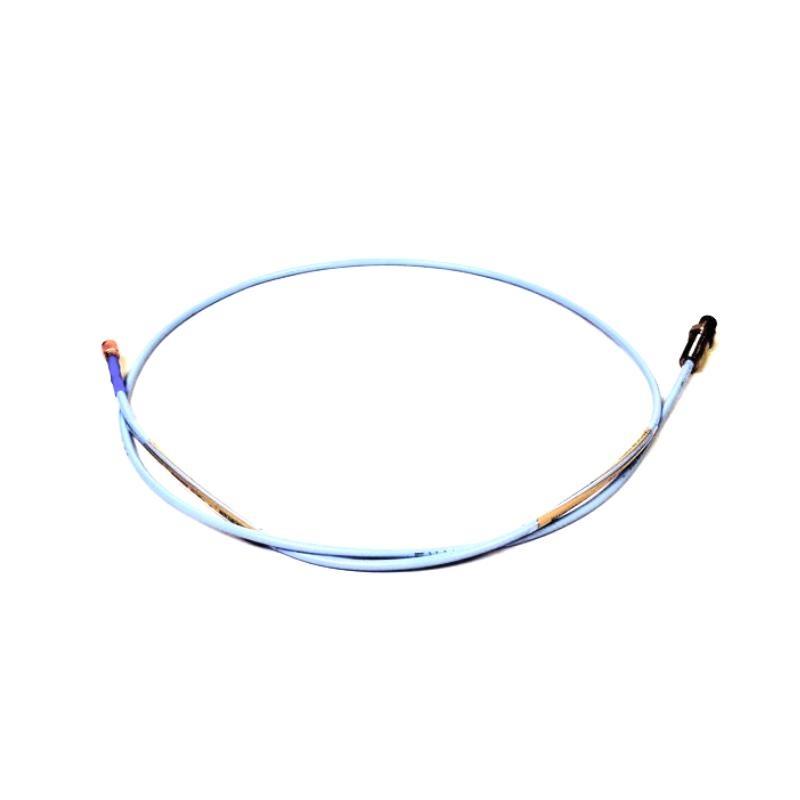

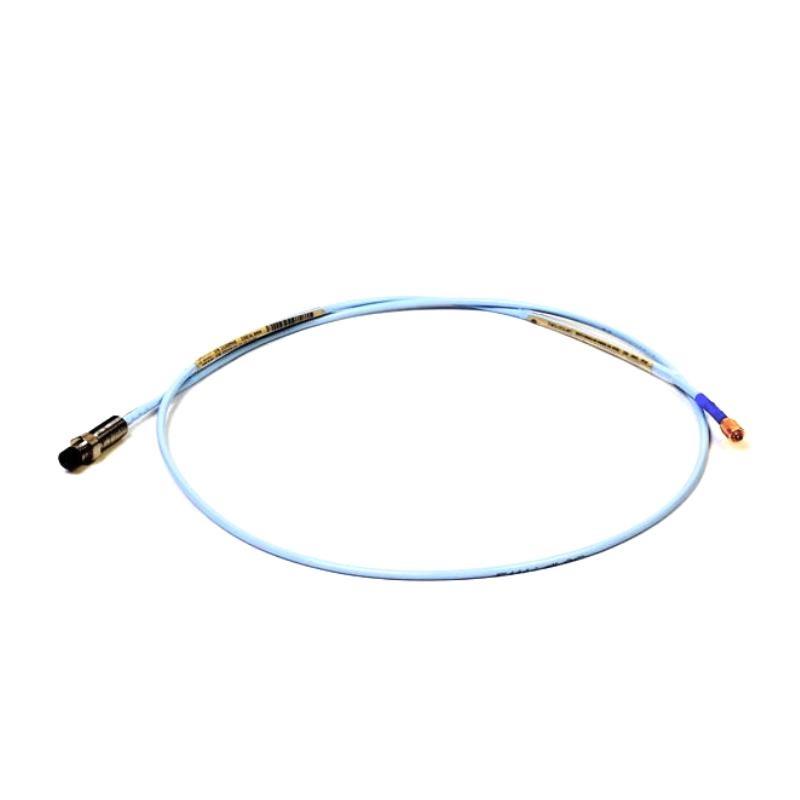

The Bently Nevada 330105-02-12-90-02-00 is part sur the 3300 XL 8 mm Reverse Mount Proximity Probe series. This probe is designed to detect the distance between the probe tip and a conductive target surface, delivering accurate dynamic (vibration) and static (position) measurements. It is reverse-mounted for applications requiring installation from the opposite side sur the target surface.
Applications
-
Vibration monitoring on rotating machinery
-
Shaft position detection
-
Speed measurement via Keyphasor
-
Overspeed protection (with specific configurations)
-
Suitable for high-temperature and harsh industrial environments
Advantages
-
Fully API 670 compliant
-
Interchangeable components (probe, cable, Proximitor sensor)
-
Gold-plated ClickLoc connectors — tool-free, vibration-resistant
-
TipLoc and CableLoc designs improve durability and mechanical integrity
-
Disponible with FluidLoc cable to prevent oil migration
-
Designed for extended temperature environments
-
Enhanced RFI/EMI immunitéy without need for metallic shielding
Technical Specifications
| Parameter | Value |
|---|---|
| Modèle Number | 330105-02-12-90-02-00 |
| Probe Type | 8 mm Reverse Mount |
| Thread | 3/8-24 UNF |
| Cable Type | Standard coaxial, ClickLoc |
| Cable Length (Total) | 1.5 meters |
| Total Poids | 0.485 kg |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | Stainless Steel (AISI 303 or 304) |
| Operating Temperature Range | -52°C to +177°C |
| Pressure Seal | Viton® O-ring |
| Recommended Gap | 1.27 mm (50 mils), -9 VDC |
| Linear Range | 2 mm (80 mils) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0–10 kHz, ±3 dB |
| Minimum Target Size | 15.2 mm (0.6 in) diameter (flat) |
| Shaft Diameter (Min.) | 50.8 mm (2 in) |
| Min. Cable Bend Radius | 25.4 mm (1.0 in) |
Questions fréquentes (FAQ)
Q1: What is the primary function sur the 330105-02-12-90-02-00 probe?
A1: It measures shaft vibration and position in rotating machinery using eddy current technology.
Q2: Can this probe be used with any 3300 XL extension cable?
A2: Yes, as long as the combined probe and cable length matches the required Proximitor system length.
Q3: Is the probe compliant with API 670?
A3: Yes, it fully complies with API 670 standards for mechanical configuration, accuracy, and stability.
Q4: What type sur connector is used?
A4: It uses a gold-plated ClickLoc miniature coaxial connector that locks with finger torque.
Q5: Does this probe support reverse mounting only?
A5: Yes, it is specifically designed for reverse mounting applications.
Q6: Is it suitable for use in hazardous areas?
A6: Yes, it meets ATEX, IECEx, and CSA standards for hazardous zones with proper installation.
Q7: Can it operate at high temperatures?
A7: Yes, up to 177°C standard, or up to 218°C with ETR versions.
Q8: What happens if probe and extension cable lengths mismatch the Proximitor?
A8: System accuracy and linearity will be compromised; exact length matching is required.
Q9: Does the FluidLoc cable option come with this part number?
A9: No, this model uses the standard cable. FluidLoc is optional and specified differently.
Q10: Is this probe interchangeable with non-XL components?
A10: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm systems.
Related Modèles from the Same Series
| Modèle Number | Type | Mounting Type | Cable Length | Poids (approx.) |
|---|---|---|---|---|
| 330105-02-12-10-02-00 | 8 mm Reverse Mount | Reverse | 1.0 m | 0.45 kg |
| 330105-02-12-05-02-00 | 8 mm Reverse Mount | Reverse | 0.5 m | 0.42 kg |
| 330105-02-12-20-02-00 | 8 mm Reverse Mount | Reverse | 2.0 m | 0.50 kg |
| 330106-05-30-10-02-00 | 8 mm Reverse Mount (Metric) | Reverse | 1.0 m | 0.46 kg |
| 330106-05-30-20-02-00 | 8 mm Reverse Mount (Metric) | Reverse | 2.0 m | 0.51 kg |
| 330195-02-12-15-02-05 | ETR Reverse Mount | Reverse | 1.5 m | 0.49 kg |
Popular Modèles from Bently Nevada
| Modèle Number | Description | Cable Length | Poids |
|---|---|---|---|
| 330104-00-06-10-02-00 | 8 mm Probe with armor, M10 thread | 1.0 m | 0.47 kg |
| 330101-00-12-10-02-00 | 8 mm Probe, standard mount | 1.0 m | 0.45 kg |
| 330130-040-00-00 | Extension Cable for XL Series, 4.0 m | 4.0 m | 0.14 kg |
| 330180-50-00 | 5 m Proximitor Sensor, Panel Mount | 5.0 m | 0.25 kg |
| 330103-00-05-10-02-00 | 8 mm Probe, M10 thread, without armor | 1.0 m | 0.45 kg |
| 330192-00-20-05-05 | 8 mm ETR Probe with armor, 2.0 m | 2.0 m | 0.52 kg |
