Présentation du produit

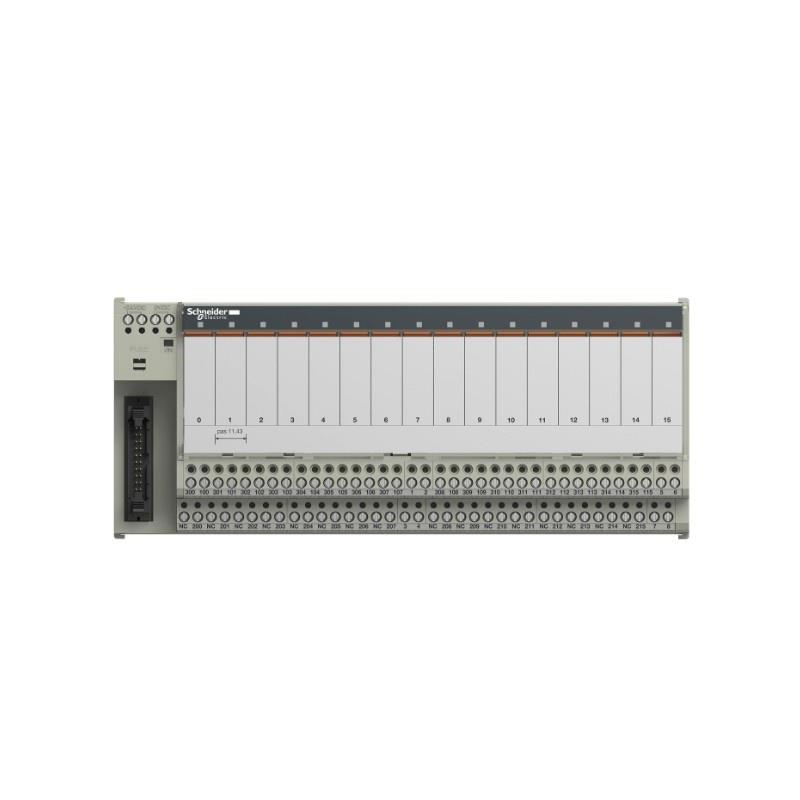

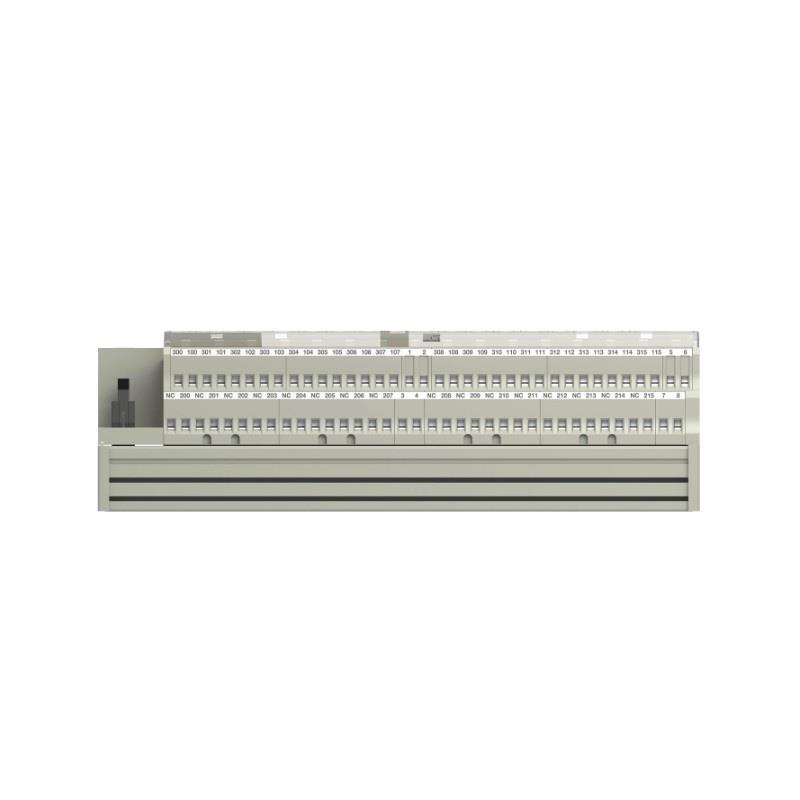

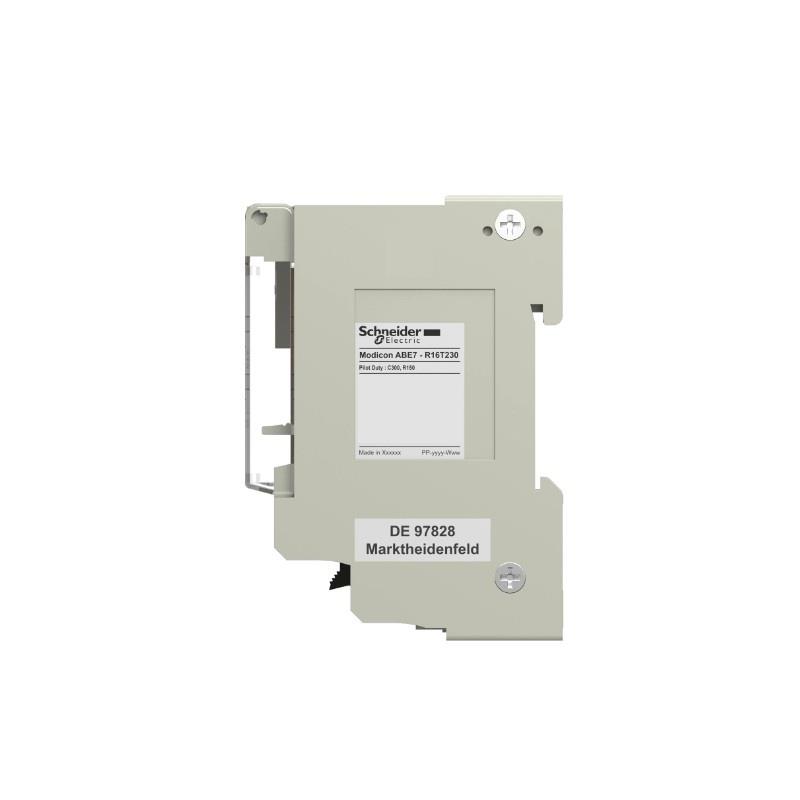

The Schneider Electric ABE7R16T230 is a modular, DIN rail-mountable sub-base system designed for industrial automation applications. This model comes equipped with 16 relay outputs, operating at 230 V AC supply voltage. The ABE7 range is part sur Schneider Electric’s Advantys series, known for simplifying wiring and maintenance in control systems. The ABE7R16T230 is especially valued in large-scale automation systems where high density and fast signal transmission are critical.
Its compact design allows for optimized use sur panel space, while the plug-in electromechanical relays ensure ease sur maintenance and replacement. It interfaces seamlessly with various PLC modules and provides a clear, organized wiring layout. The unité is also compliant with international industrial standards, making it suitable for global installations.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle | ABE7R16T230 |
| Fabricant | Schneider Electric |
| Series | ABE7 Modular Sub-Base |
| Relay Type | Plug-In Electromechanical Relay |
| Number sur Outputs | 16 |
| Output Type | Relay Output |
| Supply Voltage | 230 V AC |
| Mounting Type | DIN Rail |
| Relay Contact Configuration | SPST (Single Pole Single Throw) |
| Current Rating (per channel) | 6 A |
| Operating Frequency | 50/60 Hz |
| Connection Type | Screw terminal |
| Insulation Voltage | 250 V AC |
| Ambient Temperature Range | -5°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Protection Rating | IP20 |
| Material | Thermoplastic, flame retardant |
| Compliance | CE, UL, CSA, RoHS |
| Dimensions (W x H x D) | 221 x 73 x 88 mm |
| Poids | 0.775 kg |
Applications
The ABE7R16T230 is utilized across a wide range sur industrial environments due to its modular flexibility and robustness:
-
Factory Automation: Ideal for interfacing with PLCs for controlling actuators, motors, and solenoids.
-
Material Handling Systems: Used in conveyor systems for switching and sequencing operations.
-
Building Management Systems (BMS): Facilitates control over lighting, HVAC, and access systems.
-
Water Treatment Plants: Used for managing pumps, valves, and monitoring devices.
-
Machine Control Panels: Suitable for applications requiring reliable relay output switching.
-
Process Industries: Enables safe switching in chemical, pharmaceutical, and food processing sectors.
Advantages
-
High-Density Output: Provides 16 relay channels in a compact footprint, maximizing space efficiency.
-
Ease sur Maintenance: Plug-in relays enable quick replacement without rewiring.
-
Simplified Wiring: Standardized terminal layout and clear labeling reduce installation errors.
-
Reliable Switching: Electromechanical relays support high inrush currents and inductive loads.
-
Compatibility: Fully compatible with Automate Schneiders and other field automation systems.
-
International Certifications: Compliance with CE, UL, and RoHS ensures global usability.
-
Cost-Effective: Reduces installation time and labor costs through modularity and easy assembly.
-
Temperature Resilience: Operates in a broad range sur environmental conditions.
-
Long Lifespan: Built for durability with robust housing and quality relay components.
-
Clear Diagnostics: Some variants include LED indicators for real-time relay status monitoring.
Questions fréquentes (FAQ)
-
What is the input voltage for the ABE7R16T230?
The unité operates with a 230 V AC power supply. -
Is this sub-base compatible with Schneider’s Modicon PLCs?
Yes, it is specifically designed to integrate with Schneider Electric Modicon PLCs. -
Can I replace the relays individually?
Yes, the relays are plug-in types, allowing for quick and easy replacement. -
Is it suitable for inductive load switching?
Absolutely. The electromechanical relays are designed to handle inductive loads efficiently. -
Does it have any built-in protection against overloads?
No, overload protection should be provided externally, such as with circuit breakers or fuses. -
What’s the maximum current each relay channel can handle?
Each channel can handle up to 6 A. -
What is the ambient operating temperature range?
The ABE7R16T230 can operate between -5°C and +60°C. -
Can it be used in safety-related systems?
While robust, for safety-related systems, always refer to specific safety-certified modules. -
What kind sur maintenance is required?
Periodic inspection and replacement sur worn relays are recommended. Cleaning terminals to prevent corrosion also helps. -
Does this unité have LED status indicators?
Some variants do include LED indicators. Check the datasheet for specific sub-models.
