Présentation du produit

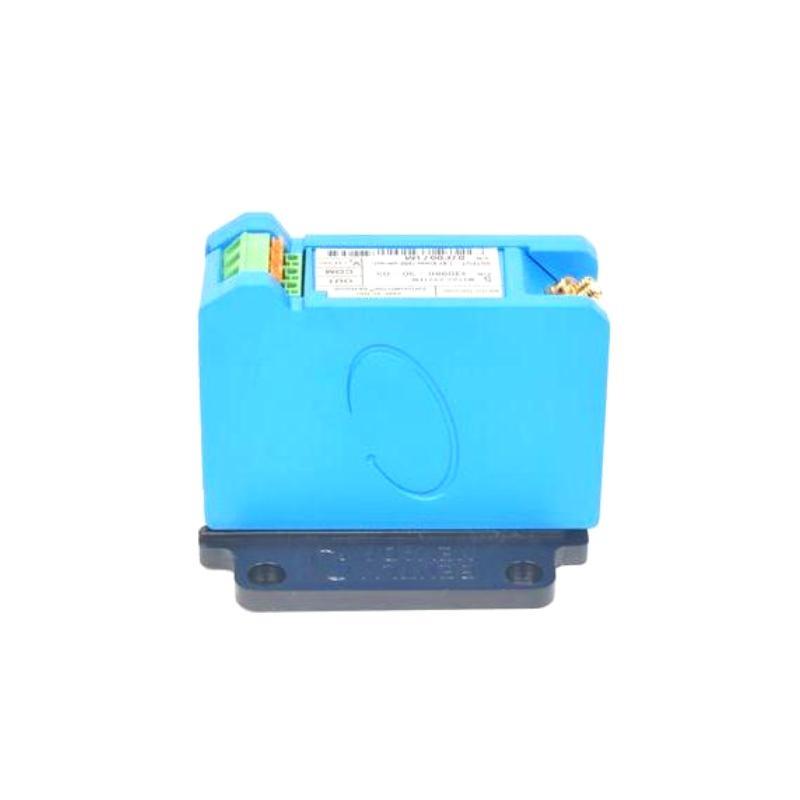

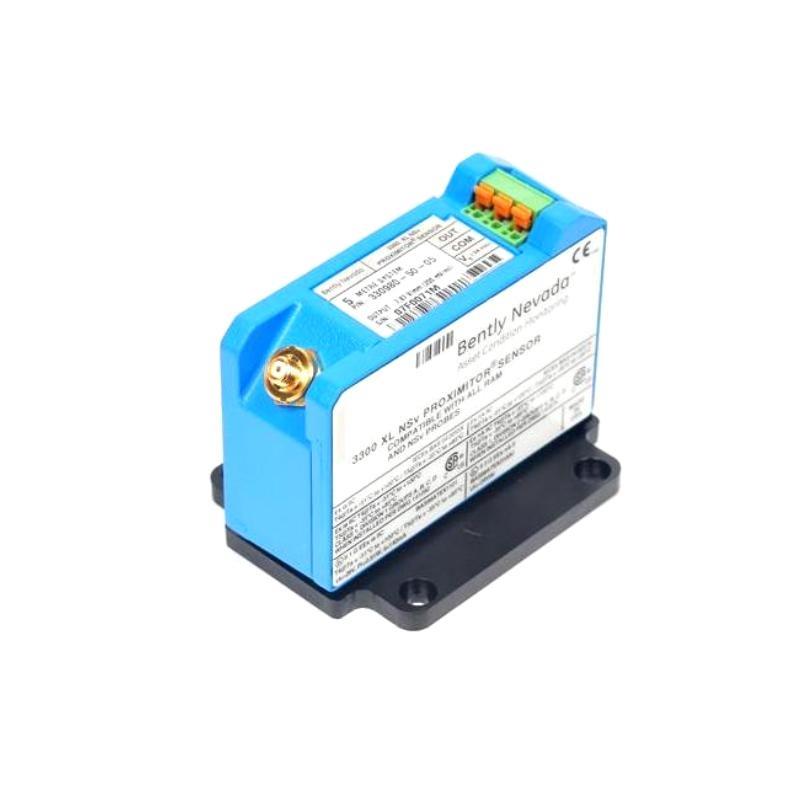

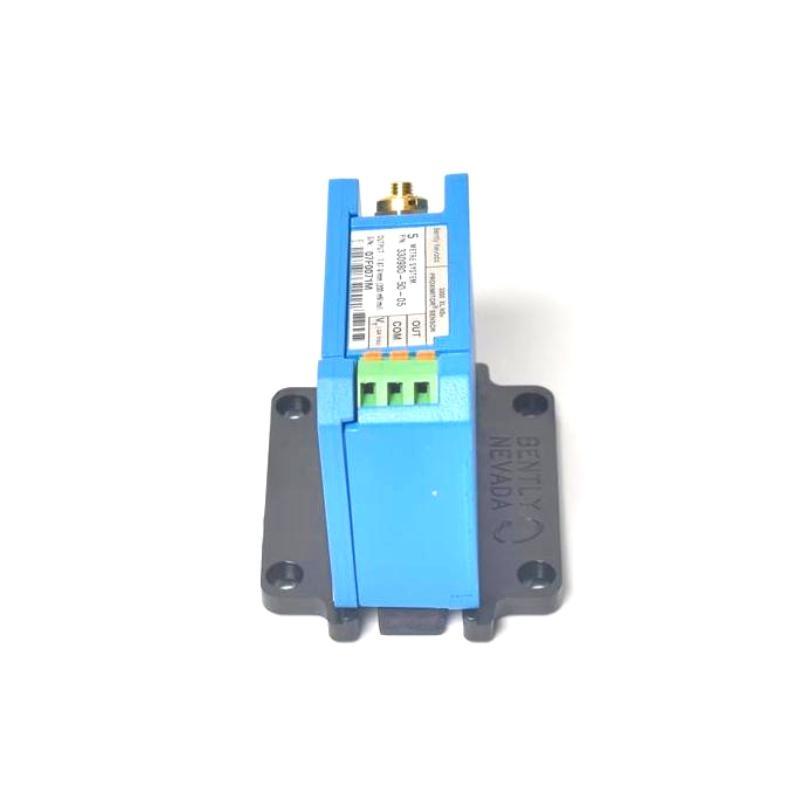

The Bently Nevada 330980-50 3300 XL NSv Proximitor Sensor is part sur the trusted 3300 XL series designed by GE Bently Nevada, a globally recognized leader in machinery condition monitoring and protection. This sensor is specifically engineered for applications requiring small target proximity measurements, particularly in areas where space is limited or where the target materials are non-standard. It forms part sur a complete proximity measurement system when used with matching probe and extension cable.
This model surfers a linear output over a specific range for precise position and vibration measurements and is optimized for narrow target surfaces, making it ideal for use on smaller machinery such as motors, pumps, and gearboxes where standard sensors cannot be applied effectively.
Spécifications du produit
| Parameter | Description |
| Modèle Number | 330980-50 |
| Series | 3300 XL NSv |
| Measurement Range | 0.25 to 1.57 mm (10 to 62 mils) |
| Linear Range | 1.27 mm (50 mils) |
| Output Voltage | -200 mV/mil (-7.87 mV/μm) |
| Power Supply | -24 Vdc to -28 Vdc |
| Typical System Accuracy | ±0.076 mm (±3 mils) or ±6% sur full-scale range (whichever is greater) |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature Range | -35°C to +100°C |
| Storage Temperature Range | -51°C to +177°C |
| Humidity | 95% non-condensing |
| Sensor Body Material | Stainless Steel |
| Mounting Thread | 1/4-28 UNF |
| Cable Length | 5.0 meters |
| Poids | 0.255 kg |
Applications
-
Monitoring radial vibration and axial position in small and mid-sized rotating machinery
-
Suitable for machines with limited installation space such as:
-
Small turbines
-
Gearboxes
-
Compressors
-
Electric motors
-
Pumps
-
-
Ideal for detecting shaft displacement in tight or compact enclosures
-
Commonly used in industries such as power generation, oil & gas, chemical, and marine
Advantages
-
Compact Design: Engineered specifically for limited-space installations
-
Reliable Output: Provides highly linear, accurate vibration data
-
Proven Durability: Withstands harsh industrial environments with ease
-
Compatibility: Fully works with Bently Nevada 3300 XL probes and extension cables
-
Low Power Consumption: Energy-efficient circuitry for extended uptime
-
Field-Proven Technology: Backed by Bently Nevada’s long-standing performance history
-
Easy Maintenance: Standardized connectors and mounting simplify service and integration
Latest News Headlines (Industry Related)
-
“GE Bently Nevada Unveils New Innovations in Machinery Health Monitoring”
-
“Compact Proximity Solutions Gain Popularity in Marine Applications”
-
“Bently Nevada’s 3300 XL Series Proven in Offshore Drilling Operations”
-
“Upgraded NSv Sensors See Increased Demand in Power Generation Plants”
-
“Bently Nevada Sensors Support Predictive Maintenance Revolution”
Questions fréquentes (FAQ)
-
Q: What does NSv stand for in this product?
A: NSv stands for Narrow Side-view, indicating the sensor is optimized for small or limited target areas. -
Q: Can this sensor be used in high-temperature environments?
A: Yes, it operates effectively up to +100°C and can be stored in temperatures up to +177°C. -
Q: Is it compatible with other Bently Nevada systems?
A: Absolutely. It integrates seamlessly with 3300 XL probes and extension cables. -
Q: What is the standard length sur the extension cable?
A: This model includes a 5.0-meter cable. -
Q: How is the sensor mounted?
A: It uses a 1/4-28 UNF mounting thread for secure installation. -
Q: Does it require calibration during installation?
A: Minimal calibration is needed if all system components are correctly matched. -
Q: What type sur output signal does it generate?
A: It provides a voltage output sur -200 mV/mil, or -7.87 mV/μm. -
Q: What materials can this proximity sensor detect?
A: Primarily metallic targets, especially those with a conductive surface. -
Q: Is it suitable for use in hazardous environments?
A: Yes, when used with the appropriate certified enclosures and approvals. -
Q: What industries commonly use this sensor?
A: Oil & gas, petrochemical, power generation, marine, and heavy industrial sectors.
Related Modèles (Same Series or Application)
| Modèle Number | Description | Key Feature |
| 330980-70 | 3300 XL NSv Proximitor Sensor, 7.0 m cable | Longer cable option for extended reach |
| 330980-00 | 3300 XL NSv Proximitor Sensor, no cable | Custom cable configuration |
| 330900-00-05-10-02-00 | 3300 XL Proximity Transducer System | Full system with probe, cable, and sensor |
| 330101-00-12-10-02-00 | 3300 XL 8 mm Proximity Probe | Standard size for general-purpose use |
| 330103-00-05-10-02-00 | 3300 XL 11 mm Probe | Extended range, larger tip diameter |
| 330104-00-09-10-02-00 | 3300 XL Reverse Mount Probe | Reverse-mount configuration for special apps |
Popular Modèles from the Same Marque (Bently Nevada)
| Modèle Number | Description | Application |
| 3500/22M | Transient Data Interface Module | Vibration & condition monitoring systems |
| 3500/42M | Proximitor/Seismic Monitor | Shaft position and seismic monitoring |
| 3500/33 | 16-Channel Relay Module | Machinery protection systems |
| 3500/05 | System Rack | Rack-mount framework for Bently Nevada 3500 |
| 330104-00-05-10-02-00 | Reverse Mount Probe | Compact reverse-mount proximity applications |
| 330106-05-30-10-02-00 | 3300 XL Dual Vibration Probe | High-reliability dual probe system |
