Présentation du produit

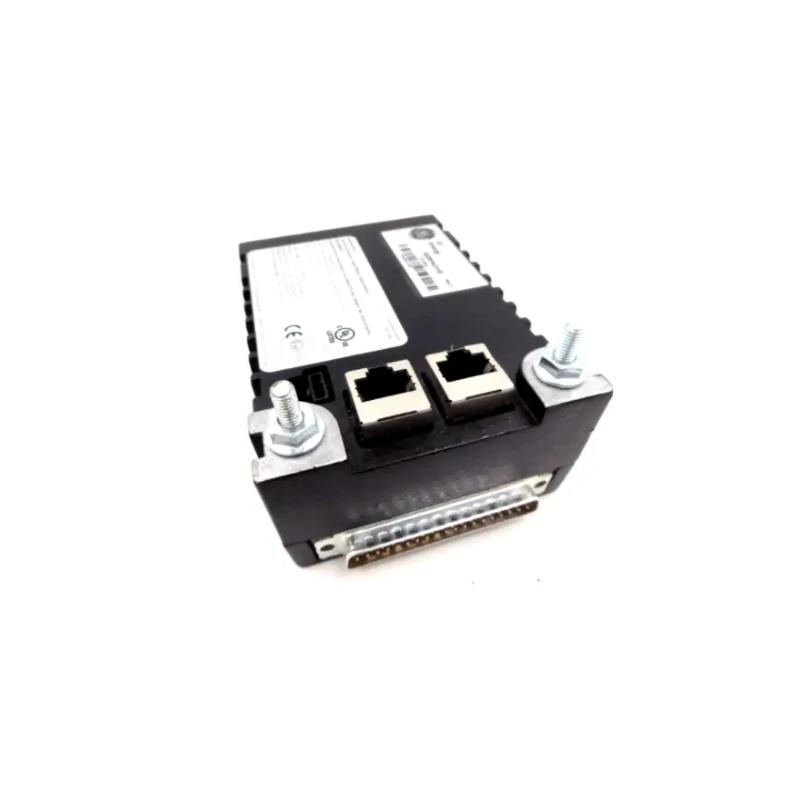

The GE IS220PSCHH1A is a high-performance power supply module designed for industrial automation and control systems. It is part sur GE’s Mark VIe series, which is widely used in gas turbine, steam turbine, and other critical power generation applications. This module ensures reliable and stable power distribution to control systems, enhancing operational efficiency and system uptime.
Built with rugged components, the IS220PSCHH1A is engineered to withstand harsh industrial environments, including extreme temperatures, vibrations, and electrical noise. Its compact design and high power density make it suitable for space-constrained installations.
Spécifications du produit
| Parameter | Value |
|---|---|
| Input Voltage | 120/240V AC (Auto-ranging) |
| Output Voltage | 24V DC |
| Output Current | 10A |
| Power Rating | 240W |
| Efficiency | ≥ 90% |
| Operating Temp. | -20°C to +70°C (-4°F to +158°F) |
| Storage Temp. | -40°C to +85°C (-40°F to +185°F) |
| Humidity Range | 5% to 95% (Non-condensing) |
| Dimensions | 110 x 90 x 30mm |
| Poids | 0.5kg |
| Protection | Overvoltage, Overcurrent, Short Circuit |
| Certifications | UL, CE, RoHS Compliant |
Product Applications
The GE IS220PSCHH1A is primarily used in:
-
Power Generation Systems (Gas & Steam Turbines)
-
Industrial Automation & Control Panels
-
Distributed Control Systems (DCS)
-
Process Control & Monitoring Systems
-
Oil & Gas Refineries
-
Marine & Offshore Power Systems
Its robust design ensures continuous operation in mission-critical environments where power stability is essential.
Product Advantages
-
High Reliability – Designed for 24/7 operation in demanding industrial conditions.
-
Wide Input Voltage Range – Supports both 120V and 240V AC inputs without manual switching.
-
Compact & Lightweight – Enregistrers panel space while delivering high power output.
-
Advanced Protection – Built-in safeguards against overvoltage, overcurrent, and short circuits.
-
Energy Efficient – ≥90% efficiency reduces heat dissipation and energy costs.
-
Easy Integration – Compatible with GE’s Mark VIe control systems and third-party setups.
-
Durable Construction – Resistant to shock, vibration, and extreme temperatures.
Questions fréquentes (FAQ)
Q1: What is the operating voltage range sur the IS220PSCHH1A?
A: It supports 120V to 240V AC input with auto-ranging capability.
Q2: Can this power supply be used in outdoor environments?
A: It is designed for industrial indoor use but can be installed in enclosures with proper environmental protection.
Q3: Does it require external cooling?
A: No, it has passive cooling but should be installed in a well-ventilated area.
Q4: What is the expected lifespan sur this module?
A: Under normal conditions, it has a lifespan sur 5+ years.
Q5: Is the IS220PSCHH1A hot-swappable?
A: No, it must be powered down before installation or replacement.
Q6: Can it be used with non-GE control systems?
A: Yes, as long as the voltage and current requirements match.
Q7: What certifications does it have?
A: It is UL, CE, and RoHS compliant.
Q8: What is the warranty period?
A: Typically 12-24 months, depending on the supplier.
Q9: Does it include surge protection?
A: Yes, it has basic surge suppression but may require additional protection in high-noise environments.
Q10: Where can I find the installation manual?
A: GE’s surficial website or authorized distributors provide technical documentation.
Recommended Related Modèles
6 Similar Modèles in the Same Series
| Modèle Number | Description | Key Differences |
|---|---|---|
| IS220PSVOH1A | 24V DC Output, Higher Current (15A) | Increased power capacity |
| IS220PSLAH1A | Low-Voltage Variant (12V DC) | For 12V control systems |
| IS220PSVGH1A | Global Voltage Input (90-264V AC) | Wider input range |
| IS220PSDGH1A | Dual Output (24V & 5V DC) | For mixed-voltage systems |
| IS220PSVFH1A | Fan-Cooled Version | Better heat dissipation |
| IS220PSVTH1A | High-Temperature Variant | For extreme heat environments |
6 Popular GE Modèles in the Same Marque
| Modèle Number | Description | Application |
|---|---|---|
| DS200DCFBG1B | Drive Control Board | Gas Turbine Control |
| IC693ALG392 | Analog Input Module | PLC Systems |
| IS420ESWBH3A | Ethernet Switch Module | Network Communication |
| DS200ADGIH1AAA | Analog Input/Output Module | Signal Processing |
| IC698CPE040 | High-Speed Processor Module | Automation Control |
| IS215ACLEH1A | Control Logic Module | Turbine Management |
