Product Overview

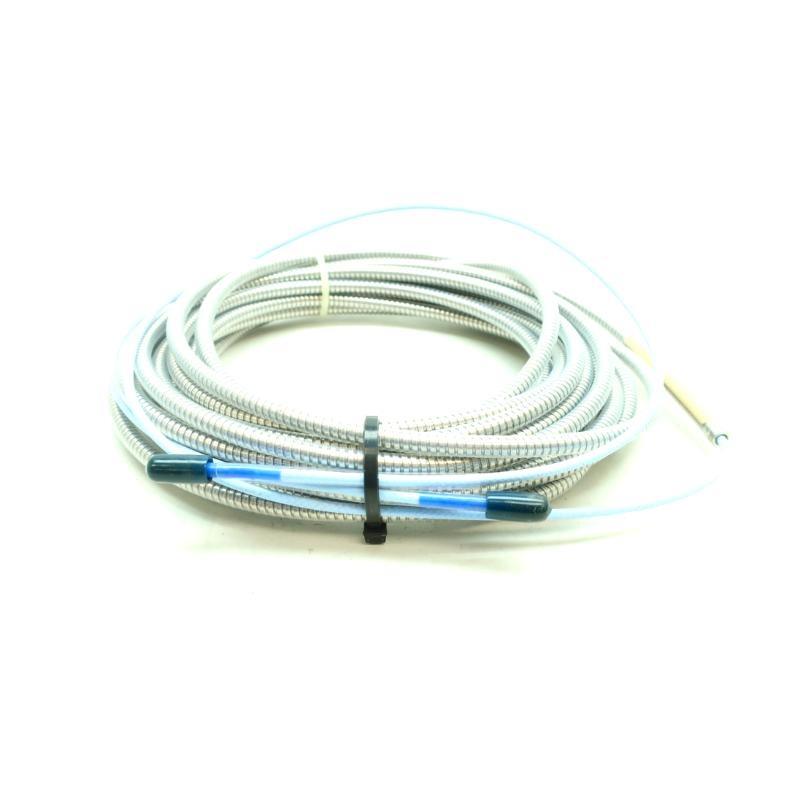

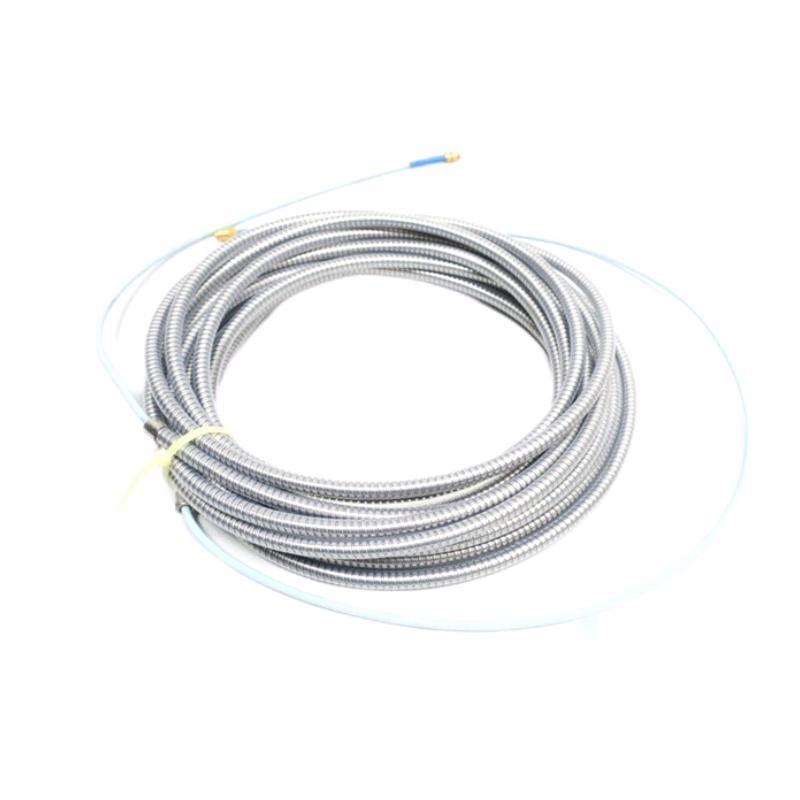

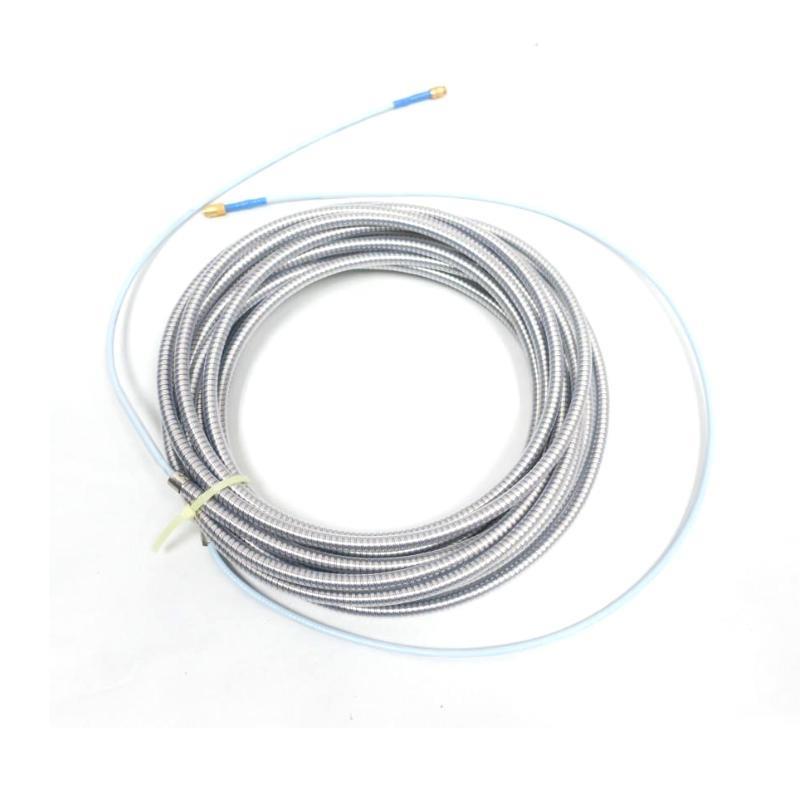

The Bently Nevada 330130-080-03-05 is an 8.0-meter extension cable designed as part sur the 3300 XL 8 mm Proximity Transducer System. It connects proximity probes to Proximitor sensors, transmitting both static and dynamic signals with high fidelity. This model ensures compatibility with API 670 standards and supports flexible installation in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle Number | 330130-080-03-05 |
| Product Type | Standard Extension Cable |
| Cable Length | 8.0 meters |
| Cable Type | Armored with connector protector |
| Jacket Material | Fluoroethylene Propylene (FEP) |
| Connector Type | ClickLoc miniature coaxial |
| Capacitance | 69.9 pF/m typical |
| Core DC Resistance | 1.76 ± 0.26 Ω |
| Jacket DC Resistance | 0.53 ± 0.11 Ω |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Poids | 0.824 kg (typical for 8.0 m armored cable) |
| Operating Temperature Range | -52°C to +177°C (Standard) |
| Extended Temp Range (optional) | Up to +260°C with ETR cable |
| Compliance | RoHS, CE, FCC, ATEX, IECEx, SIL 2/3 certified |
Applications
-
Vibration monitoring on rotating equipment
-
Axial and radial position sensing
-
Turbo machinery protection
-
Keyphasor signal transmission
-
API 670-compliant condition monitoring systems
Product Advantages
-
Rugged Design: With armored FEP jacket and strong pull-strength (270 N).
-
Ease sur Installation: ClickLoc connectors require no tools and ensure secure fit.
-
Environmental Resistance: Withstands harsh industrial conditions.
-
Interchangeability: Fully compatible with 3300 XL and legacy 3300 series components.
-
Signal Integrity: Maintains high-fidelity transmission even over 8.0 m length.
-
Enhanced Protection: Connector protector included for environmental sealing.
Questions fréquentes (FAQ)
Q1: What systems is the 330130-080-03-05 compatible with?
A1: It is designed for use with Bently Nevada’s 3300 XL 8 mm Proximity Transducer Systems.
Q2: Can this extension cable be used in high-temperature areas?
A2: The standard version handles up to 177°C; the ETR version supports up to 260°C.
Q3: Is the cable shielded?
A3: Yes, it uses a 75Ω triaxial shielded design for excellent EMI immunitéy.
Q4: What connector type does it use?
A4: Gold-plated ClickLoc miniature coaxial connectors with protector.
Q5: What is the purpose sur the armor?
A5: It adds mechanical protection and durability in rugged environments.
Q6: Can I install this cable in hazardous areas?
A6: Yes, it meets ATEX, IECEx, and CSA approvals for use in hazardous locations.
Q7: Is the cable backward compatible?
A7: Yes, it works with non-XL 3300 5 mm and 8 mm probes and Proximitor sensors.
Q8: Does this model include the connector protector?
A8: Yes, the “-03” option indicates it includes an armored cable with connector protector.
Q9: Is field wiring required?
A9: No field wiring is needed between probe and sensor—this cable handles the connection.
Q10: Can I mix standard and ETR components?
A10: Yes, but system accuracy will be limited to the ETR component’s specifications.
Related Modèles (Same Series or Compatible)
| Modèle Number | Description | Length | Cable Type | Poids |
|---|---|---|---|---|
| 330130-060-02-00 | Standard Cable with connector protector | 6.0 m | FEP, Non-armored | 0.618 kg |
| 330130-075-03-05 | Armored Cable with protector | 7.5 m | FEP, Armored | 0.773 kg |
| 330130-085-03-05 | Armored Cable with protector | 8.5 m | FEP, Armored | 0.875 kg |
| 330130-045-00-00 | Standard Cable, no protector | 4.5 m | FEP, Non-armored | 0.464 kg |
| 330190-080-01-05 | ETR Extension Cable, armored | 8.0 m | PFA, Armored (ETR) | 0.878 kg |
| 330130-040-00-00 | Standard Cable, no protector | 4.0 m | FEP, Non-armored | 0.412 kg |
Popular Bently Nevada Modèles
| Modèle Number | Product Type | Application | Poids |
|---|---|---|---|
| 330104-00-06-10-02-00 | 3300 XL 8mm Probe, armored | Radial/axial vibration monitoring | ~0.42 kg |
| 330180-91-00 | 3300 XL Proximitor Sensor, DIN mount | État monitoring, API 670 | ~0.25 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration monitoring | ~0.8 kg |
| 3500/22M-01-01 | Transient Data Interface Module | System diagnostics | ~0.6 kg |
| 3500/15E-01-01 | Power Supply Module | System power input | ~1.2 kg |
| 330105-02-12-05-02-05 | Reverse-Mount 8mm Probe | Limited clearance installations | ~0.45 kg |
