Présentation du produit

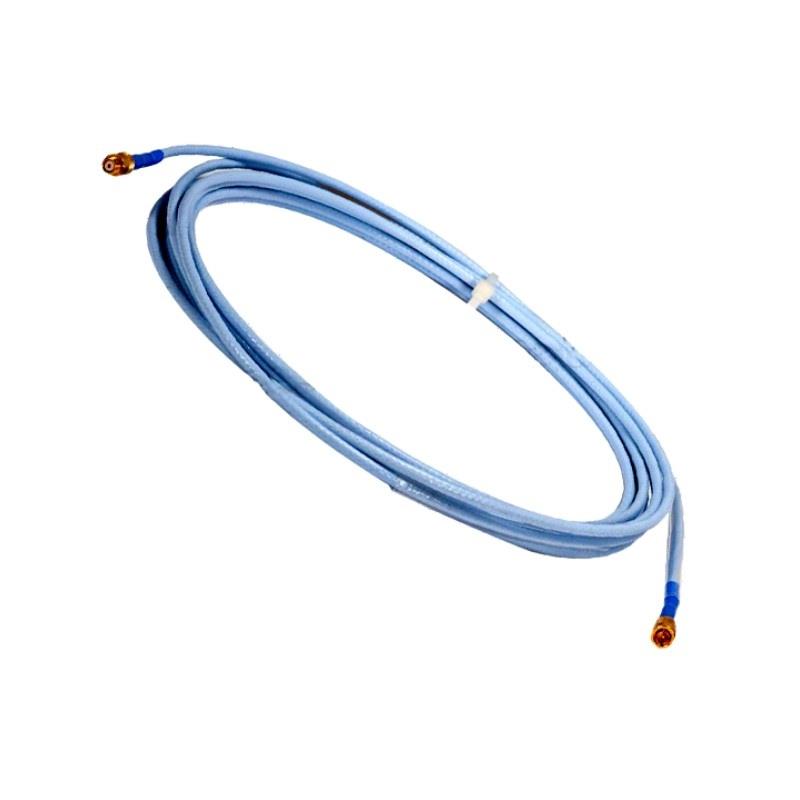

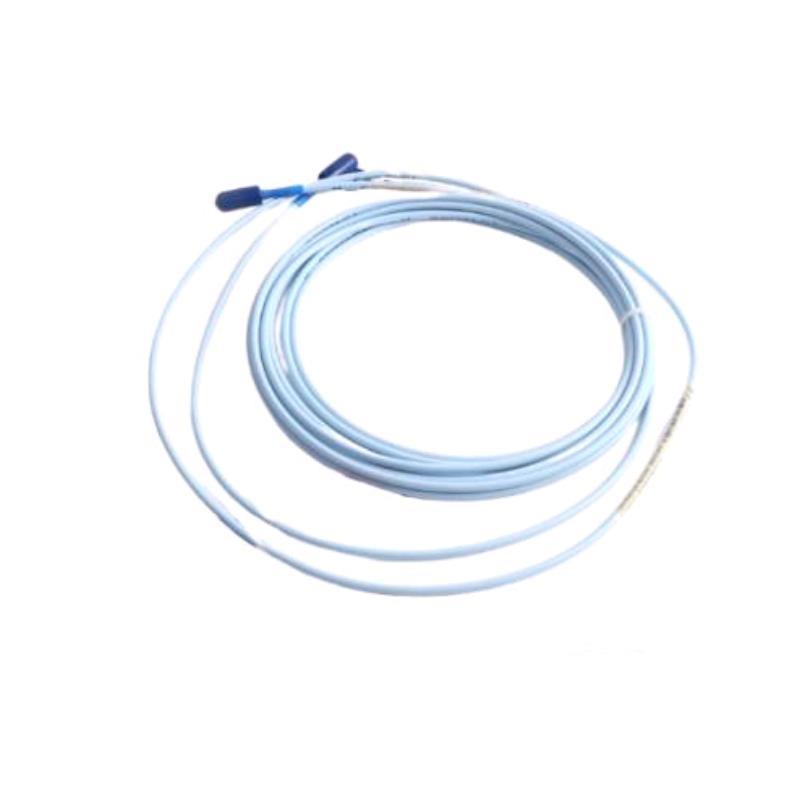

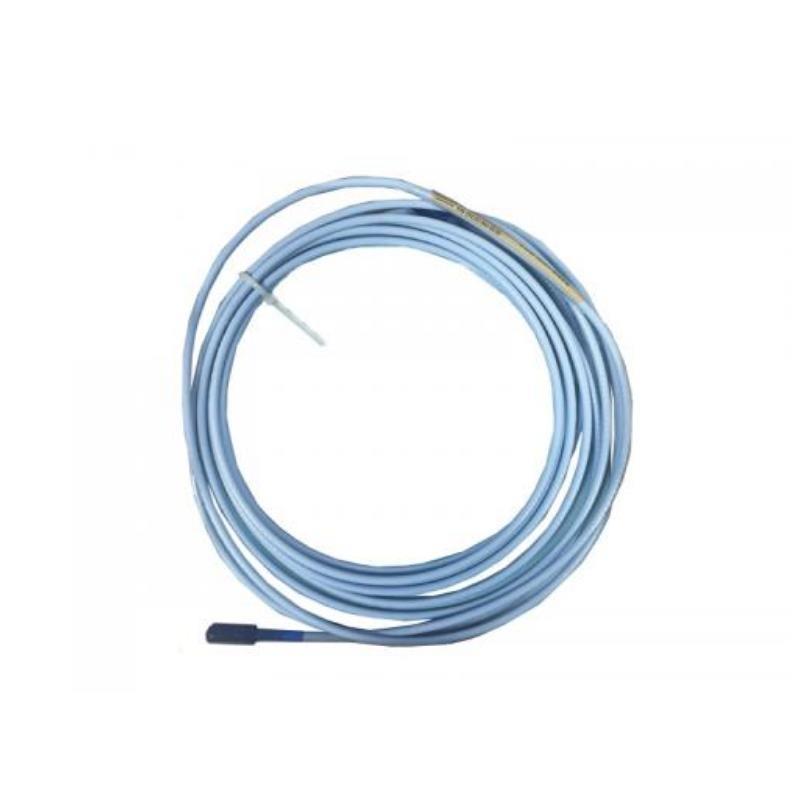

The Bently Nevada 330130-080-02-AE 3300 XL Standard Extension Cord is a high-quality accessory designed for use with the 3300 XL vibration monitoring system. It enables secure and reliable connections between sensors, monitors, and data acquisition unités over a distance sur up to 8 meters. Engineered to meet rigorous industrial standards, this extension cord ensures signal integrity and provides flexibility in installation, particularly in challenging environments such as turbines, compressors, and other rotating machinery applications.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | 330130-080-02-AE |
| Total Length | 8 m |
| Poids | 0.272 kg |
| Connector Type | M12 4-pin, shielded |
| Cable Type | High-flex, industrial-grade |
| Operating Temperature | -40°C to 85°C |
| Insulation Material | PVC / TPE |
| Shielding | 100% braided copper |
| Compatible System | Bently Nevada 3300 XL |
| Maximum Voltage Rating | 30 V DC |
| Maximum Current Rating | 0.5 A |
| Signal Type | AC/DC analog sensor signals |
| Certifications | CE, UL recognized |
Applications
-
Extending sensor connections in rotating machinery monitoring systems.
-
Connecting 3300 XL vibration and proximity probes to monitors.
-
Industrial environments including steam turbines, gas turbines, pumps, and compressors.
-
Facilities requiring long-distance cable runs while maintaining signal fidelity.
-
Applications with high electromagnetic interference, leveraging shielded design.
Advantages
-
Reliable Signal Transmission: High-quality shielding minimizes interference, preserving sensor signal integrity over extended distances.
-
Flexibility in Installation: 8-meter length allows equipment to be positioned with minimal restrictions.
-
Industrial-Grade Durability: Resistant to temperature extremes, vibration, and mechanical stress.
-
Easy Integration: Compatible with all standard Bently Nevada 3300 XL probes and monitoring modules.
-
Lightweight Design: At 0.272 kg, easy to handle and route in tight spaces.
-
Certified Quality: CE and UL compliance ensure adherence to international safety and performance standards.
FAQ
Q1: Can this extension cord support multiple sensor types simultaneously?
A1: No, each cord is designed for a single sensor connection to maintain signal accuracy.
Q2: Is the cord suitable for use in high-vibration environments?
A2: Yes, the cable is industrial-grade with high-flex construction designed for vibration-prone machinery.
Q3: Can the 330130-080-02-AE be used outdoors?
A3: It is rated for -40°C to 85°C; however, additional protective conduit is recommended for direct outdoor exposure.
Q4: Does the shielding provide protection against electromagnetic interference?
A4: Yes, the 100% braided copper shield significantly reduces EMI/RFI interference.
Q5: Can the cable carry both analog and digital signals?
A5: The cable is optimized for AC/DC analog signals; digital communication is not recommended without verification.
Q6: Is it compatible with older 3300 systems?
A6: It is primarily designed for 3300 XL modules; compatibility with legacy 3300 systems should be confirmed with the product datasheet.
Q7: What is the maximum current the cord can safely handle?
A7: The maximum current rating is 0.5 A.
Q8: Can this cord be shortened or spliced in the field?
A8: Field modifications are not recommended, as they may compromise signal integrity and warranty.
Q9: Are there locking mechanisms on the connectors?
A9: Yes, the M12 4-pin connectors have a threaded locking mechanism to prevent accidental disconnection.
Q10: Can multiple extension cords be daisy-chained to extend beyond 8 meters?
A10: Daisy-chaining is possible but not recommended, as it may reduce signal quality and reliability.
Recommended Related Modèles
| Modèle Number | Description |
|---|---|
| 330130-010-01-AE | 1 m Standard Extension Cord |
| 330130-030-02-AE | 3 m Standard Extension Cord |
| 330130-050-02-AE | 5 m Standard Extension Cord |
| 330130-100-02-AE | 10 m Standard Extension Cord |
| 330130-150-02-AE | 15 m Standard Extension Cord |
| 330130-200-02-AE | 20 m Standard Extension Cord |
Popular Modèles from Bently Nevada
| Modèle Number | Description |
|---|---|
| 3300 XL Proximity Probe | Standard proximity sensor |
| 3300 XL Vibration Probe | Accelerometer for vibration measurement |
| 3300 XL Monitor Module | 4-channel vibration monitor |
| 3300 XL Sensor Cable | Sensor-to-monitor cable |
| 3500/22M | Machined mount sensor module |
| 3300 XL Cable Connector | M12 connector kit |
