Product Overview

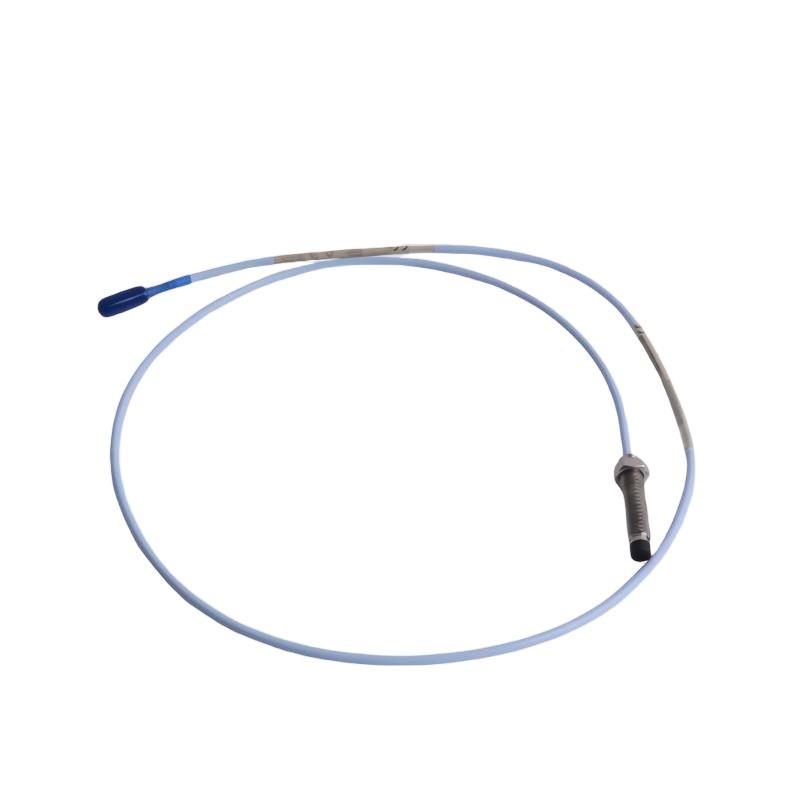

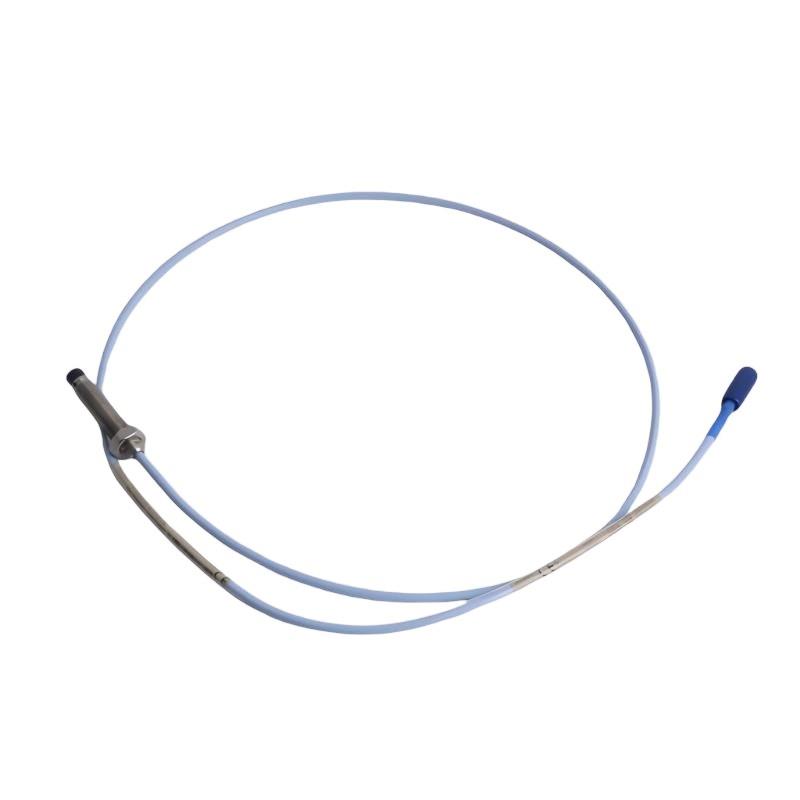

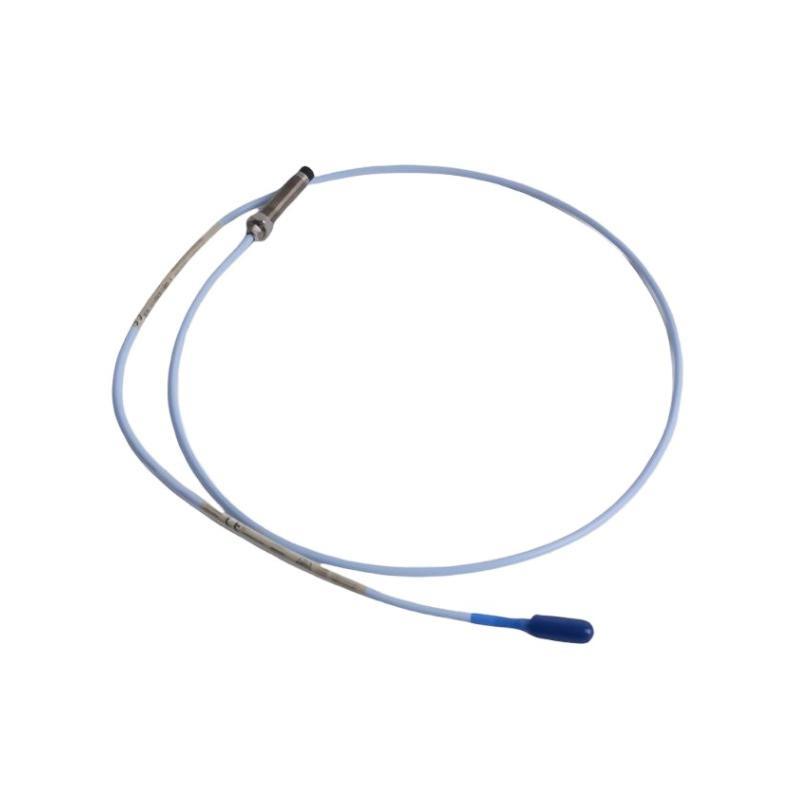

The Bently Nevada 330904-09-17-05-01-05 3300 NSv Proximity Probe is designed for precise vibration and displacement measurements in small to medium-sized machinery. As part sur the 3300 NSv (Narrow Signal voltage) system, it provides accurate shaft position and vibration data even in confined spaces. Engineered for harsh industrial environments, this probe ensures long-term stability and reliable performance in condition monitoring systems.
Key Features
-
Compact 5 mm probe ideal for limited-space installations
-
High linearity for accurate vibration and displacement measurements
-
Robust construction ensures durability in extreme industrial conditions
-
Compatible with Bently Nevada 3300 NSv extension cables and proximitor modules
Technical Specifications
| Item | Specification |
|---|---|
| Fabricant | Bently Nevada |
| Référence | 330904-09-17-05-01-05 |
| Product Type | 3300 NSv Proximity Probe |
| Dimensions | Total Length: 0.5 meter |
| Poids | 0.15 kg |
| Measurement Range | 0–1.0 mm (0–40 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Mounting | Threaded sleeve installation |
| Applications | Shaft vibration, position monitoring, and machinery protection |
Industry Applications
-
Steam and gas turbines
-
Compressors and pumps
-
Electric motors and generators
-
Gearboxes and rotating machinery
-
Oil, gas, and power generation industries
-
État-based monitoring systems
Questions fréquentes (FAQ)
Q1: What is the primary function sur the 330904-09-17-05-01-05 probe?
It measures shaft vibration and position for compact machinery.
Q2: Which system is it compatible with?
It works with the Bently Nevada 3300 NSv proximity transducer system.
Q3: What is the probe size?
5 mm diameter with 17 mm probe length.
Q4: What is the operating temperature range?
–35 °C to +177 °C.
Q5: Can it operate in harsh industrial environments?
Yes, it is resistant to oil, dust, and industrial contaminants.
Q6: What is the linear measurement range?
0–1.0 mm (0–40 mils).
Q7: What type sur output signal does it provide?
Analog voltage proportional to shaft vibration and position.
Q8: Where is it typically installed?
In turbines, compressors, motors, and gearboxes with limited installation space.
