Présentation du produit

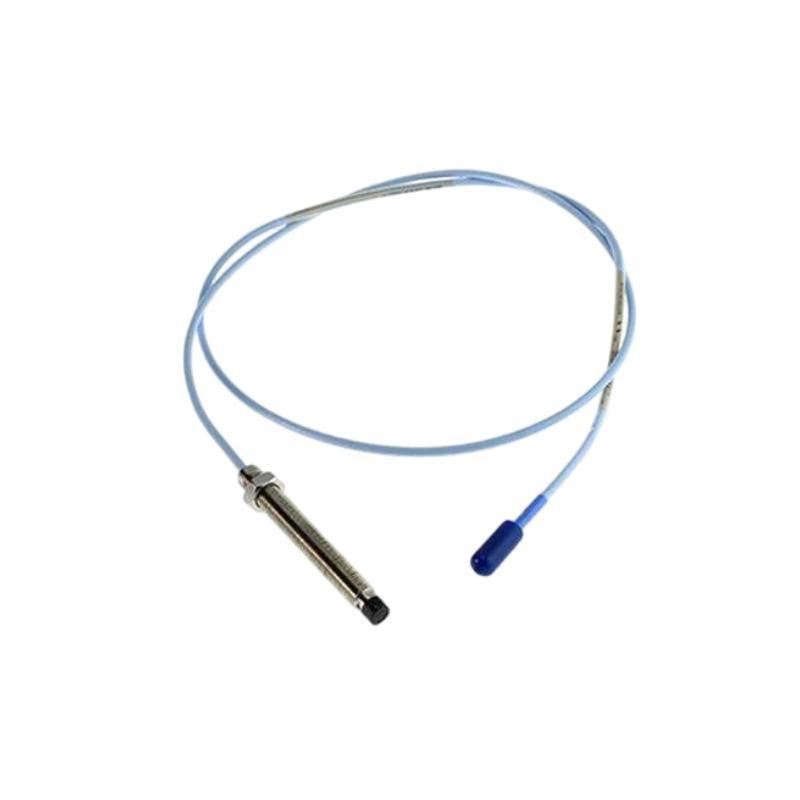

The Bently Nevada 330104-10-13-05-02-05 3300 XL 8mm Proximity Probe is a precision-engineered sensor designed for reliable monitoring sur shaft vibration and displacement in rotating machinery. Part sur the renowned 3300 XL series, this probe provides stable and accurate measurements essential for predictive maintenance and machinery health monitoring in various industrial settings.
Featuring an 8mm probe tip length, this sensor surfers an optimal sensing distance that enables detection sur minute shaft movements and vibrations. Built with rugged stainless steel construction and utilizing eddy current technology, it withstands harsh operating conditions including wide temperature fluctuations and mechanical shocks. The probe integrates seamlessly with Bently Nevada’s 3300 XL monitoring system, ensuring consistent performance and easy installation.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle Number | 330104-10-13-05-02-05 |
| Series | 3300 XL |
| Probe Type | Proximity Probe |
| Probe Tip Length | 8 mm |
| Probe Diameter | 12.7 mm (0.5 inches) |
| Total Length | 0.5 meter |
| Operating Temperature | -40°C to 120°C (-40°F to 248°F) |
| Output Signal Type | AC Voltage Signal |
| Sensing Technology | Eddy Current |
| Housing Material | Stainless Steel |
| Connector Type | 2-pin military-style connector |
| Poids | 0.161 kg |
| Shock Resistance | 100 g (11 ms half sine) |
| Vibration Resistance | 10 g (20 Hz to 2 kHz) |
Applications
The 330104-10-13-05-02-05 proximity probe is widely applied in industries where precise and continuous monitoring sur rotating machinery is critical, including:
-
Power Generation: Monitoring turbines, generators, and motors to ensure operational reliability.
-
Oil & Gas: Protecting pumps, compressors, and drilling equipment through early fault detection.
-
Aerospace: Monitoring engine shafts and rotating components to maintain safety standards.
-
Manufacturing: Ensuring the health sur high-speed spindles, gearboxes, and conveyors.
-
Mining and Metals: Monitoring crushers, mills, and conveyors in challenging environments.
-
Chemical Processing: Reliable monitoring sur pumps and agitators in continuous process plants.
Advantages
-
High Accuracy: Eddy current sensing provides precise displacement and vibration measurements.
-
Durable Construction: Stainless steel housing surfers excellent corrosion and impact resistance.
-
Wide Temperature Range: Suitable for environments from -40°C to 120°C.
-
System Compatibility: Fully compatible with Bently Nevada 3300 XL monitoring systems.
-
Compact and Easy Installation: Standard connectors and compact design simplify installation.
-
Stable Signal Output: Generates consistent AC voltage signals for reliable monitoring.
-
Shock and Vibration Resistant: Built to endure harsh mechanical stresses.
-
Flexible Cable Options: Custom cable lengths are available for specific installation needs.
Questions fréquentes (FAQ)
-
What is the primary function sur the 330104-10-13-05-02-05 probe?
It measures shaft vibration and displacement to detect mechanical faults early. -
Is this probe compatible with Bently Nevada’s 3300 XL system?
Yes, it integrates seamlessly with the 3300 XL series monitoring equipment. -
What type sur output signal does this probe provide?
The probe outputs an AC voltage signal proportional to shaft movement. -
Can the cable length be customized?
Yes, standard total length is 0.5 meter, with custom lengths available. -
What temperature range does the probe support?
It operates reliably from -40°C to 120°C. -
Does the probe require external power?
No, it operates without external power, utilizing eddy current sensing. -
How surten should the probe be inspected or calibrated?
Routine inspections and annual calibrations are recommended. -
Is this probe suitable for high-speed rotating machinery?
Yes, it is designed for high-speed shafts. -
What should I do if the probe cable is damaged?
Replace the cable promptly to ensure signal accuracy. -
Can this probe detect shaft misalignment?
Yes, it can identify misalignment through displacement and vibration data.
Related and Recommended Modèles
| Related Modèles (3300 XL Series) | Description |
|---|---|
| 330104-10-13-05-02-05 | 8mm Proximity Probe (Current Modèle) |
| 330103-17-22-10-02-05 | 8mm Proximity Probe Alternate Specification |
| 330103-15-23-05-02-CN | 8mm Proximity Probe Alternate Modèle |
| 330101-00-44-10-02-05 | 8mm Proximity Probe |
| 330102-13-23-05-02-00 | 12mm Proximity Probe |
| 330130-00-00-00-10-02 | Probe Extension Cable |
| Popular Modèles from Bently Nevada Marque | Description |
|---|---|
| 330104-10-13-05-02-05 | 8mm Proximity Probe (Current Modèle) |
| 3500/05/01-01 | 3500 Series Monitor Module |
| 73011-00-00-10-00-00 | 3300 XL Monitor Amplifier |
| 330104-00-00-10-05-02 | 18mm Proximity Probe |
| 330101-00-44-10-02-05 | 8mm Proximity Probe |
| 330121-00-00-05-00-02 | Vibration Sensor |
