Product Overview

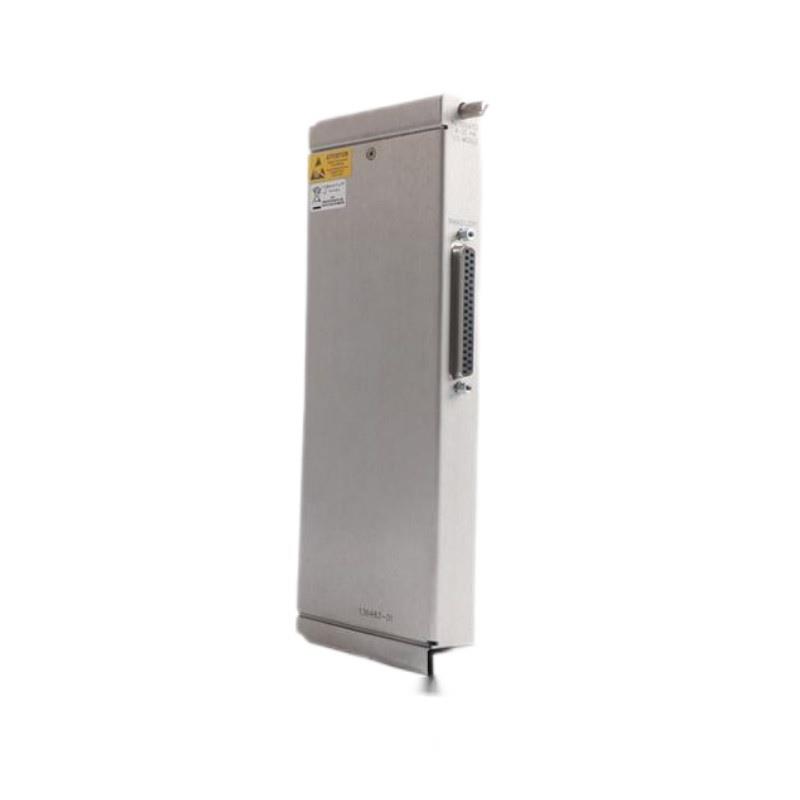

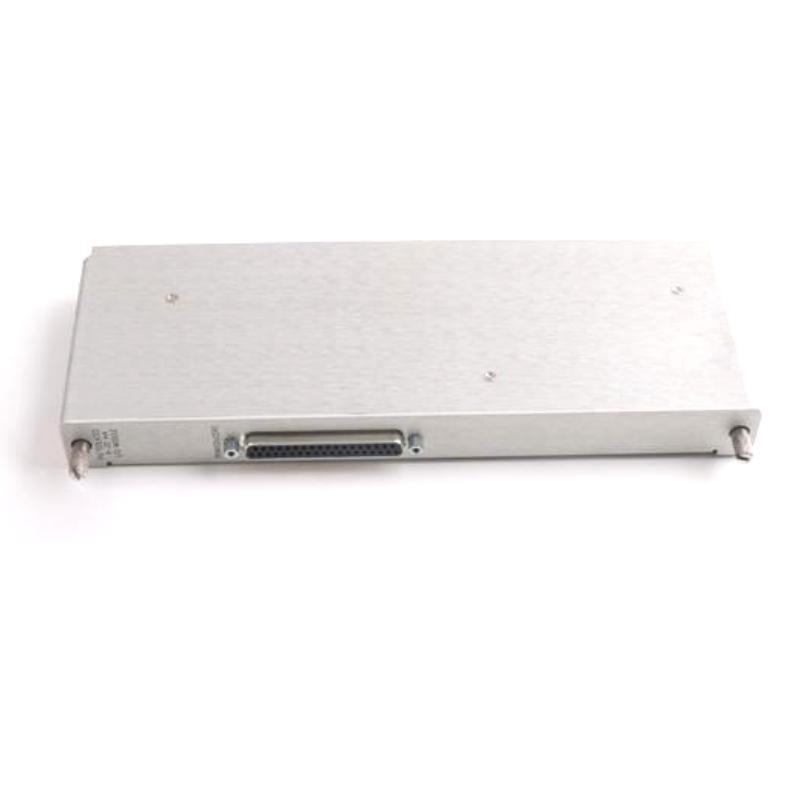

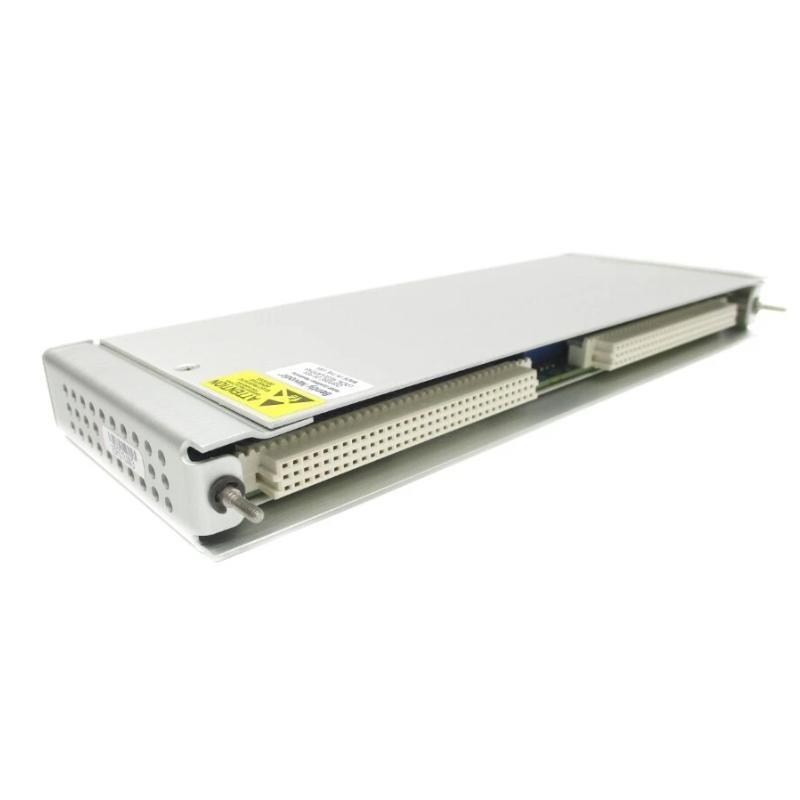

The Bently Nevada 3500/62-01-00 136499-01 is a dedicated temperature monitoring module within the renowned Bently Nevada 3500 Series Machinery Protection System. Designed for continuous temperature measurement and monitoring sur critical rotating machinery components, this module helps prevent failures caused by overheating or thermal anomalies. It provides precise and reliable temperature data to protect assets and maintain optimal operation conditions.
The 3500/62-01-00 module supports a wide range sur temperature sensors and surfers advanced diagnostics for enhanced safety and maintenance planning. Its compact design ensures easy integration into the 3500 rack system while maintaining compliance with stringent industrial standards. With proven performance in challenging environments, this temperature monitor is essential for industries where thermal conditions directly impact machinery reliability and safety.
Technical Specifications
| Parameter | Value |
|---|---|
| Modèle | 3500/62-01-00 136499-01 |
| Function | Temperature Monitoring Module |
| Supported Sensors | RTD (Pt100), Thermocouples |
| Input Channels | Multiple channels (specific number depends on configuration) |
| Measurement Range | -200°C to +850°C (depending on sensor type) |
| Accuracy | ±0.1°C (typical) |
| Response Time | Fast response for real-time monitoring |
| Dimensions (L x W x H) | 241.3 x 24.4 x 99.1 mm |
| Poids | 0.2 kg |
| Mounting | 3500 Series rack mount |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Humidity | 0% to 95% non-condensing |
| Communication | Backplane interface within 3500 rack |
| Diagnostics | Sensor failure detection, open/short circuit alerts |
| Certifications | CE, UL, CSA |
Applications
The 3500/62-01-00 temperature monitor is widely used in industries requiring precise thermal monitoring sur rotating machinery to ensure safe operation and avoid equipment damage. Typical applications include:
-
Power Generation – Monitoring bearing, winding, and lubrication system temperatures in turbines and generators.
-
Oil & Gas – Temperature measurement in pumps, compressors, and critical rotating equipment.
-
Chemical & Petrochemical – Thermal condition monitoring in reactors, agitators, and heat exchangers.
-
Pulp & Paper – Monitoring motor winding and bearing temperatures to prevent overheating.
-
Mining & Metals – Thermal monitoring sur heavy-duty equipment such as crushers and mills.
-
Marine – Temperature supervision sur engines and auxiliary machinery onboard vessels.
Key Advantages
-
Accurate and Reliable Measurement: Supports multiple sensor types with high precision for dependable temperature readings.
-
Versatile Sensor Compatibility: Works with both RTDs and thermocouples, accommodating diverse plant requirements.
-
Real-Time Monitoring: Fast response times allow for immediate detection sur abnormal temperature changes.
-
Compact and Easy Integration: Fits seamlessly into the Bently Nevada 3500 rack system, minimizing panel space usage.
-
Advanced Diagnostics: Includes sensor health monitoring to detect faults such as open or short circuits.
-
Industrial-Grade Design: Built to withstand harsh environments, including vibration, shock, and EMI.
-
Wide Operating Range: Reliable operation across extreme temperatures and humidity levels.
-
Compliance and Safety Certified: Meets global standards for industrial machinery protection.
Questions fréquentes (FAQ)
-
What types sur temperature sensors does this module support?
It supports RTD sensors (Pt100) and various types sur thermocouples. -
What is the measurement range sur the 3500/62-01-00 module?
Depending on the sensor, it measures from -200°C to +850°C. -
How many sensor channels does this module support?
The number sur channels depends on system configuration, typically multiple inputs are supported. -
Is the module compatible with other 3500 series modules?
Yes, it is designed to integrate fully within the 3500 system rack. -
What kind sur diagnostics does the module provide?
It detects sensor failures including open or short circuits and provides fault alerts. -
What are the operating temperature limits for this module?
It operates reliably between -40°C and +70°C. -
What are the physical dimensions sur the module?
The module measures 241.3 mm in length, 24.4 mm in width, and 99.1 mm in height. -
How much does the temperature monitor weigh?
Approximately 0.2 kg. -
Does the module require active cooling?
No, it is designed to operate without active cooling. -
Is the module certified for industrial use?
Yes, it holds CE, UL, and CSA certifications.
