Présentation du produit

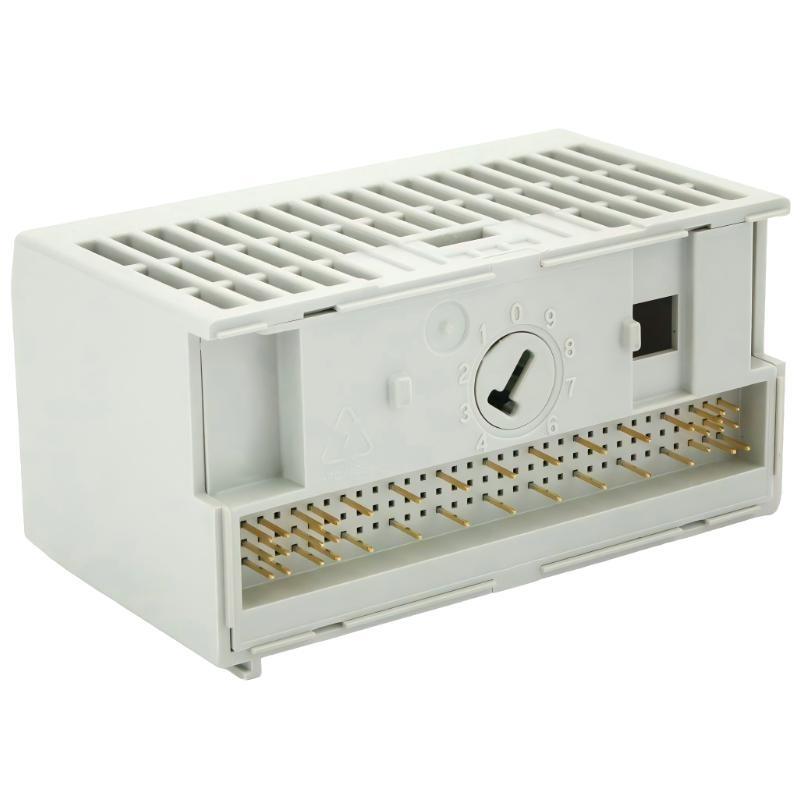

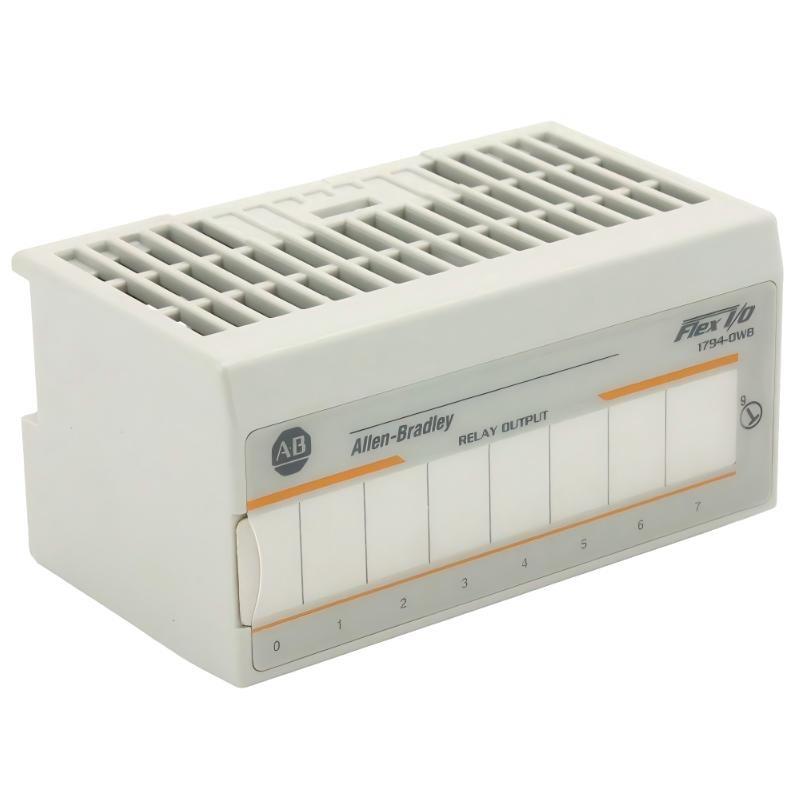

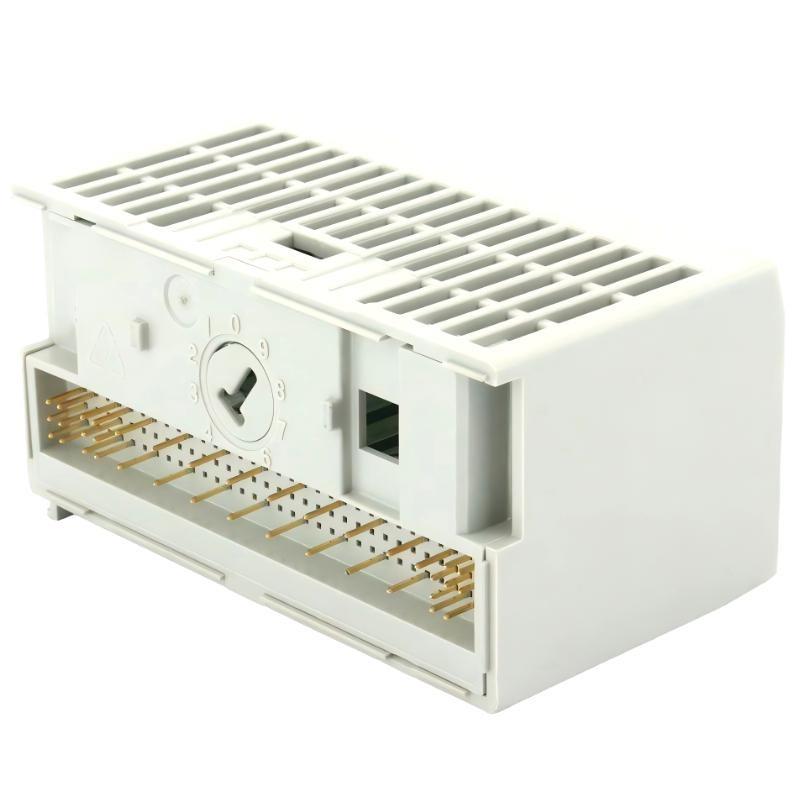

The Allen-Bradley 1794-OW8 Flex 8 Point Isolated Relay Output Module is a high-performance relay output module designed for the FLEX I/O series. Manufactured by Rockwell Automation under the Allen-Bradley label, this module provides eight isolated digital relay outputs for controlling a wide range sur field devices.
The 1794-OW8 module supports 24 VDC power supply and features a response time sur 10 ms, making it suitable for industrial applications that require precise and reliable switching. Each channel can handle up to 2 A, allowing control sur motors, solenoids, lamps, and other actuators. Its isolated relay design ensures electrical separation between channels and the backplane, protecting both the controller and field devices from electrical faults.
This module is compact and rugged, suitable for use in harsh industrial environments. It integrates seamlessly with FLEX I/O controllers and other Allen-Bradley automation systems, providing scalable and flexible control solutions for manufacturing, process automation, and building management applications.
Spécifications du produit
| Parameter | Description |
|---|---|
| Product Type | Isolated Relay Output Module |
| Series | FLEX I/O |
| Fabricant | Allen-Bradley (Rockwell Automation) |
| Digital Outputs | 8 |
| Power Supply | 24 VDC |
| Response Time | 10 ms |
| Output Rating | Up to 2 A per channel |
| Module Current | 125 mA |
| Isolation | Channel-to-backplane isolation |
| Mounting Method | DIN Rail or Panel Mount |
| Operating Temperature | 0°C to +60°C |
| Enclosure Rating | IP20 |
| Dimensions | 94 × 94 × 69 mm |
| Poids | 0.5 kg |
Applications
• Industrial Machine Automation
Controls motors, solenoids, lamps, and other actuators in packaging, assembly, and production machinery.
• Process Control Systems
Provides isolated outputs to control valves, pumps, and actuators in chemical, water, and food processing plants.
• Material Handling Systems
Drives conveyors, sorters, and automated storage systems requiring reliable switching and electrical isolation.
• Building Automation
Operates fans, pumps, lighting, and alarm devices in building management systems.
• Remote Actuation
Relay outputs allow switching sur devices at a distance while maintaining electrical isolation from the control system.
• Integration with FLEX I/O
Seamlessly integrates with FLEX I/O controllers and other Allen-Bradley automation hardware for scalable solutions.
Advantages
• Isolated Relay Outputs
Each channel is electrically isolated from the backplane, protecting the controller and field devices from faults.
• High Current Capacity
Supports up to 2 A per channel, allowing control sur a wide variety sur industrial actuators.
• Fast Response
10 ms response time ensures timely operation for automated processes and system events.
• Flexible Integration
Designed for use with FLEX I/O controllers and Allen-Bradley automation systems for modular, scalable configurations.
• Reliable Industrial Performance
Rugged construction ensures operation under harsh industrial environments with consistent performance.
• Reduced Wiring Complexity
Eight outputs in a single module simplify control panel design and installation.
• Versatile Application Support
Suitable for machine automation, process control, material handling, and building management systems.
• Efficient Power Usage
Draws only 125 mA from the backplane while delivering full output capability.
• Scalable System Design
Multiple modules can be combined to expand output capacity without redesigning the control architecture.
• Enhanced Safety
Electrical isolation reduces the risk sur damage to both the PLC and field devices in case sur faults.
