Description

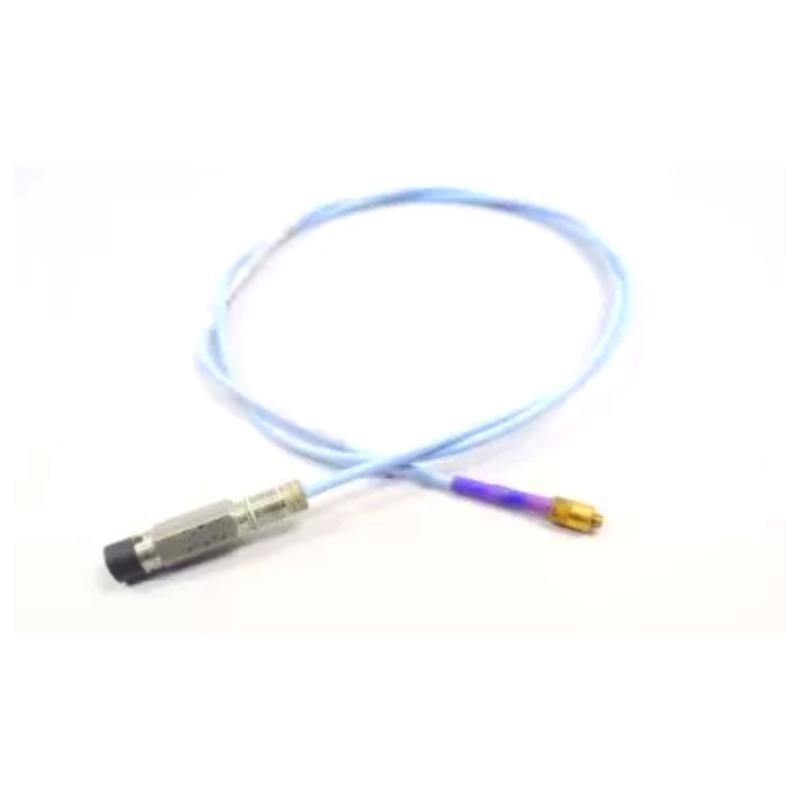

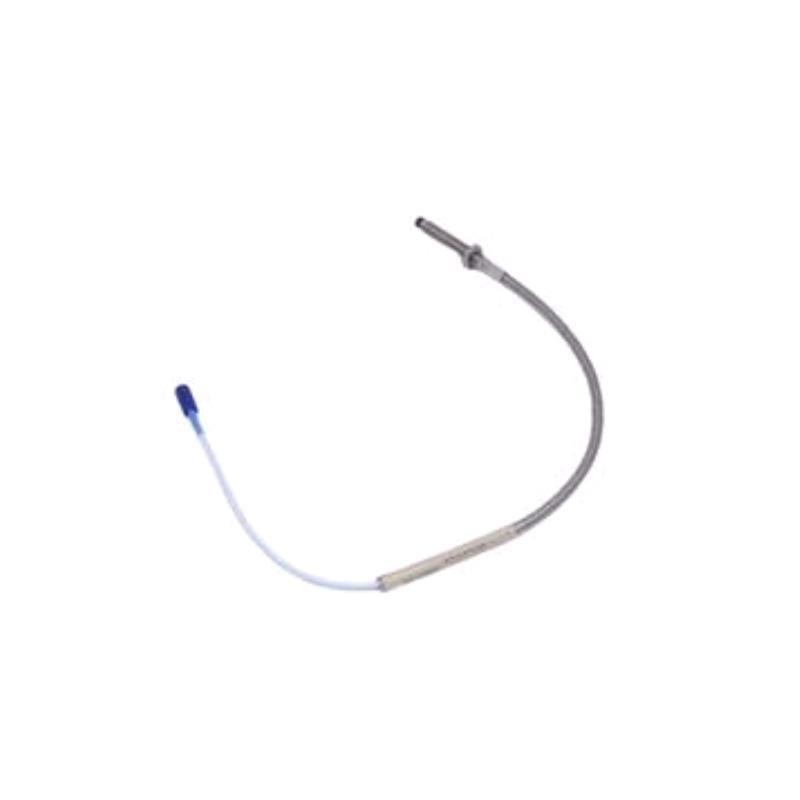

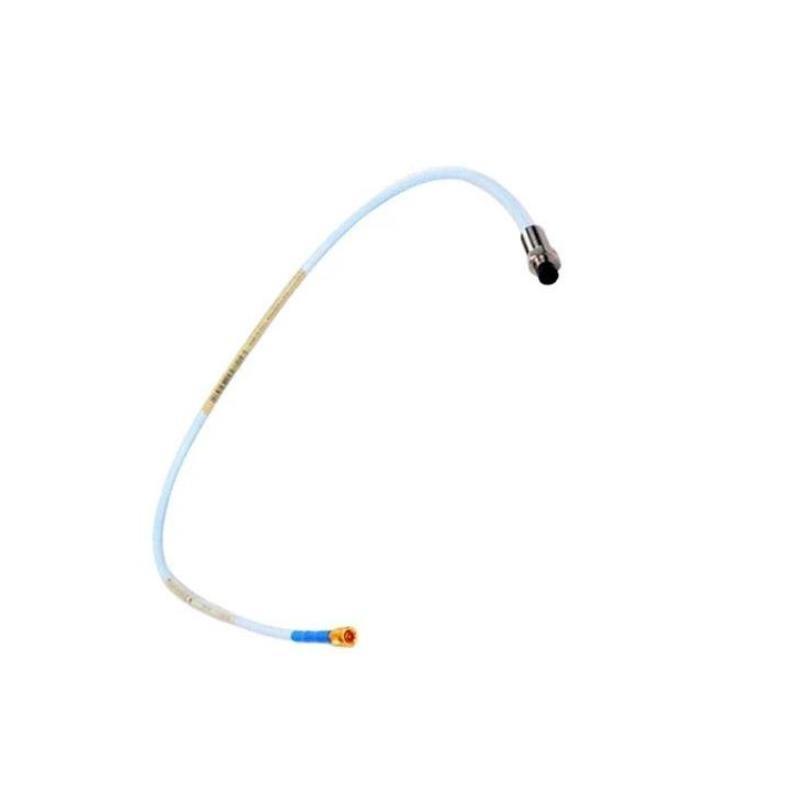

The Bently Nevada 330104-00-08-10-01-05 is part sur the 3300 XL 8 mm Proximity Transducer System. It includes a probe, extension cable, and Proximitor Sensor. This system accurately measures shaft vibration and position in rotating machinery.
Features
-
Complies with API 670 standard
-
Measures vibration and shaft position
-
Fully interchangeable components
-
Enhanced electromagnetic immunitéy
-
ClickLoc connectors for tool-free installation
-
Armored for protection in tough environments
-
FluidLoc option to block oil migration
Applications
-
Turbines (gas/steam)
-
Compressors
-
Motors and generators
-
Gearboxes
-
Pumps
-
Speed and Keyphasor measurements
Advantages
-
High linear accuracy (2 mm range)
-
Reliable under high temperature and harsh conditions
-
No recalibration when swapping components
-
Robust cable and tip bonding (CableLoc, TipLoc)
-
Quick install, no special tools needed
-
Wide certification coverage (ATEX, IECEx, CSA)
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle Number | 330104-00-08-10-01-05 |
| Probe Type | 8 mm, M10 x 1 thread, armored |
| Total Length | 1.0 meter |
| Poids | 0.323 kg |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | Stainless Steel 303/304 |
| Cable Type | Armored, 75Ω triaxial FEP |
| Connector | ClickLoc Miniature Coaxial |
| Recommended Gap | 1.27 mm (50 mils) |
| Operating Temp (Probe) | -52°C to +177°C |
| Operating Temp (Cable) | -52°C to +177°C |
| Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 – 10 kHz |
| Linear Range | 0.25 mm to 2.3 mm |
| Hazardous Area Approvals | ATEX, CSA, IECEx |
FAQ
Q1: What does the 330104-00-08-10-01-05 measure?
A1: It measures vibration and position sur rotating shafts.
Q2: Is this probe suitable for hazardous environments?
A2: Yes, it meets CSA, ATEX, and IECEx certifications.
Q3: Can I replace just one component without recalibration?
A3: Yes, components are interchangeable without bench calibration.
Q4: What is the cable construction?
A4: It’s a 75Ω triaxial FEP-insulated armored cable.
Q5: What is the maximum operating temperature?
A5: The probe can operate up to +177°C.
Q6: Does it support extended temperature cables?
A6: Yes, ETR cables are available up to +260°C.
Q7: What is the scale factor?
A7: 7.87 V/mm (200 mV/mil) ±5% (standard system).
Q8: What type sur connector is used?
A8: Gold-plated ClickLoc coaxial connector.
Q9: Is installation complicated?
A9: No, it uses finger-tight ClickLoc connectors.
Q10: What’s the recommended shaft gap setting?
A10: Approx. 1.27 mm (50 mils) from the shaft.
Related Modèles (Same Series or Compatible)
| Modèle Number | Description | Length | Poids |
|---|---|---|---|
| 330101-00-08-10-02-00 | 8 mm UNF, standard cable | 1.0 m | 0.323 kg |
| 330102-00-08-10-02-05 | 8 mm UNF, armored, certified | 1.0 m | 0.400 kg |
| 330103-00-08-10-02-05 | 8 mm M10x1, armored, certified | 1.0 m | 0.400 kg |
| 330105-02-12-10-02-00 | Reverse mount, UNF thread | 1.0 m | 0.350 kg |
| 330191-00-08-10-02-00 | ETR, UNF thread, standard cable | 1.0 m | 0.323 kg |
| 330193-00-08-10-02-00 | ETR, M10 thread, standard cable | 1.0 m | 0.323 kg |
Popular Bently Nevada Modèles
| Modèle Number | Description | Application | Poids |
|---|---|---|---|
| 3300/16-12-01-01 | Proximitor Sensor, DIN mount | General monitoring | 0.246 kg |
| 330180-50-05 | Proximitor, panel mount, certified | Position/vibration sensing | 0.246 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | État monitoring | 0.400 kg |
| 3500/44M-02-00 | Aeroderivitive GT Vibration Monitor | Gas turbines | 0.500 kg |
| 3500/22M-01-01 | Transient Data Interface Module | High-speed data capture | 0.600 kg |
| 330130-040-00-00 | Extension Cable 4.0m | Probe to Proximitor connection | 0.136 kg |
