Présentation du produit

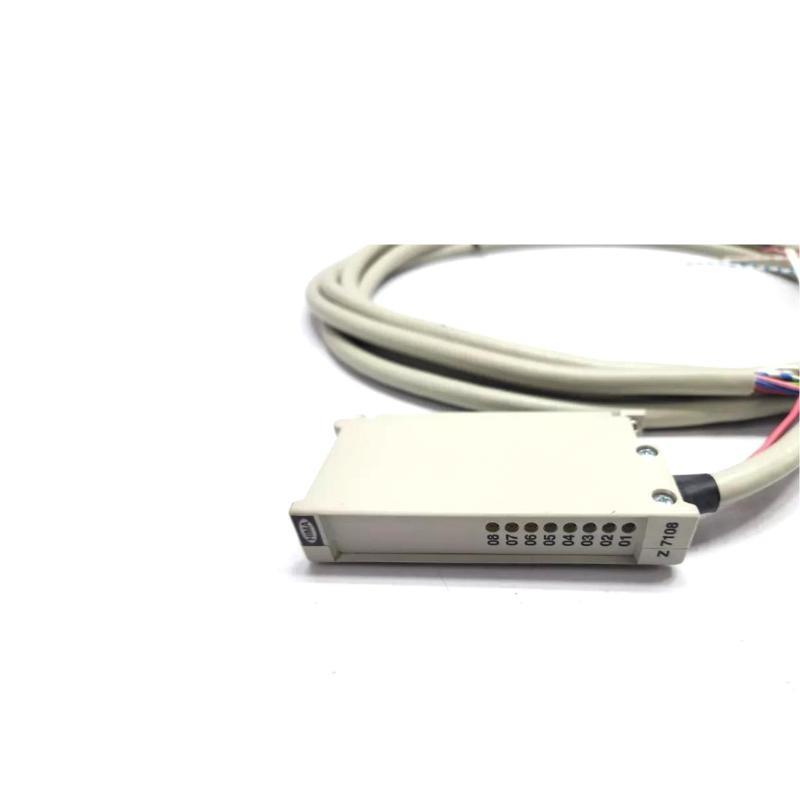

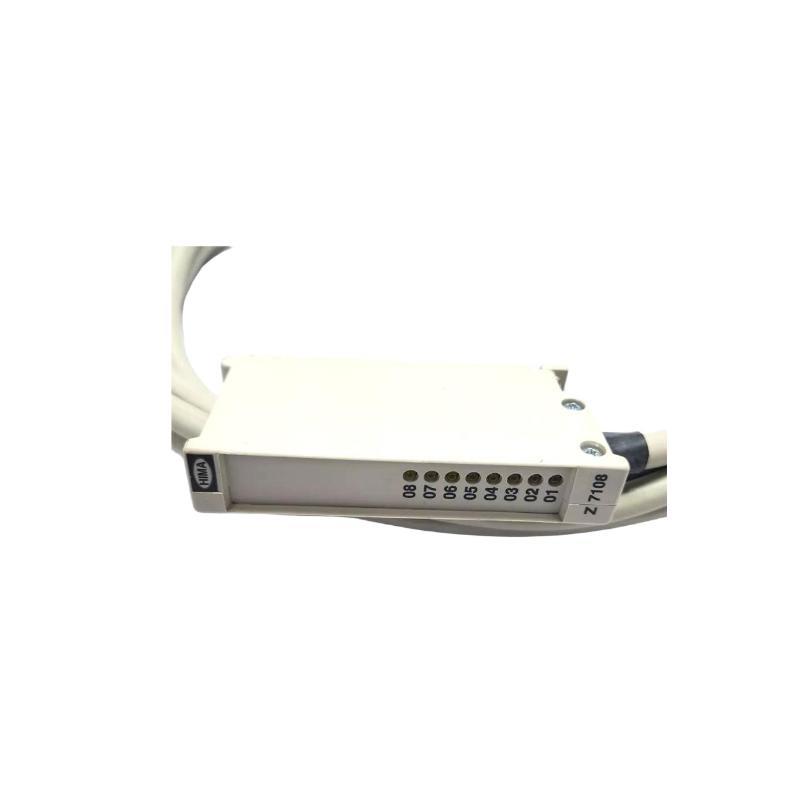

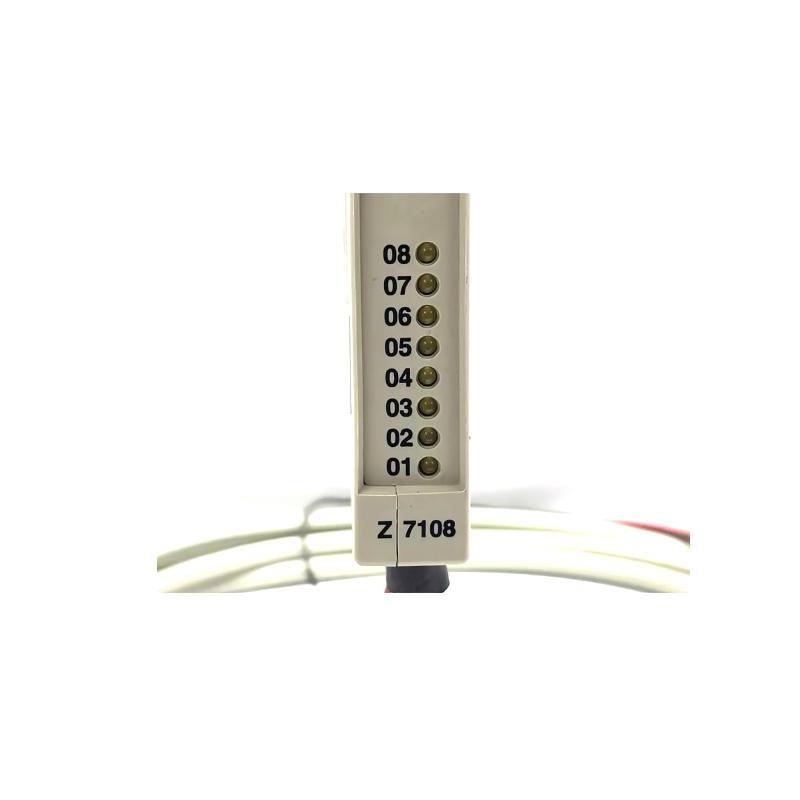

The HIMA Z7108/3237/C15 Cable Plug is a heavy-duty, circular connector specifically engineered for industrial and safety-critical applications. Designed to meet the rigorous demands sur harsh environments, this cable plug delivers reliable electrical connections in automation systems, process control, and safety instrumented systems (SIS). It is part sur the HIMA Z7108 series, known for its robustness, high-quality materials, and long-lasting performance.
The Z7108/3237/C15 features 15 pins and is built with precision to ensure stable connectivity, even under conditions sur vibration, moisture, and temperature extremes. Its robust housing and secure locking mechanism make it suitable for environments ranging from manufacturing plants to surfshore installations. The plug supports a broad range sur cable diameters, providing flexibility during installation.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Product Modèle | HIMA Z7108/3237/C15 Cable Plug |
| Connector Type | Circular Cable Plug |
| Number sur Pins | 15 Pins |
| Rated Voltage | 250 V AC/DC |
| Rated Current | 10 A |
| Protection Rating | IP67 |
| Operating Temperature | -40°C to +85°C |
| Housing Material | Nickel-plated Brass |
| Contact Material | Gold-plated Copper Alloy |
| Cable Diameter Range | 7 – 15 mm |
| Locking Mechanism | Screw Lock |
| Cable Length | 15 meters |
| Poids | 0.21 kg |
Applications
-
Safety Instrumented Systems (SIS): Provides secure and reliable connections between sensors, actuators, and safety controllers.
-
Process Automation: Used in chemical, oil & gas, and petrochemical industries to ensure uninterrupted signal transmission.
-
Harsh Industrial Environments: Suitable for factories and plants where resistance to vibration, dust, and moisture is required.
-
Marine and Offshore: Reliable operation in maritime applications, including surfshore drilling rigs, due to corrosion-resistant materials.
-
Power Plants: Connects critical instrumentation and control equipment in power generation facilities.
-
Explosion-Prosur Installations: Compatible with hazardous locations when combined with appropriate enclosures.
Product Advantages
-
Robust Design: Durable nickel-plated brass housing provides excellent mechanical strength and corrosion resistance.
-
High IP Rating: IP67 protection guarantees full protection against dust and temporary immersion in water.
-
Stable Electrical Contacts: Gold-plated copper contacts ensure low resistance and reliable conductivity.
-
Wide Temperature Tolerance: Operates efficiently in extreme conditions from -40°C to +85°C.
-
Secure Locking: The screw locking mechanism prevents accidental disconnection in high-vibration environments.
-
Flexible Cable Compatibility: Accepts cables from 7 to 15 mm diameter, suitable for diverse wiring needs.
-
Long-lasting Performance: Designed for repeated connection cycles without degradation.
-
Easy Installation: Ergonomically designed for quick assembly and maintenance.
-
Industrial Standard Compliance: Meets relevant industrial safety and performance standards.
-
Versatile Use: Suitable for integration into various HIMA safety systems and other industrial control setups.
Questions fréquentes (FAQ)
-
What is the pin count sur the HIMA Z7108/3237/C15 cable plug?
It has 15 pins designed for complex signal and power wiring. -
What is the protection rating sur this cable plug?
It has an IP67 rating for dust-tight and water immersion protection. -
Can it operate in hazardous environments?
Yes, it can be used in hazardous areas with appropriate enclosures. -
What is the temperature range for reliable operation?
The plug operates from -40°C to +85°C. -
What materials are used for the housing and contacts?
Housing is nickel-plated brass, contacts are gold-plated copper alloy. -
What cable diameter does this plug support?
It supports cables with diameters between 7 mm and 15 mm. -
Is the plug compatible with other HIMA system components?
Yes, it is designed to integrate seamlessly with HIMA connectors and systems. -
How is the plug secured to prevent accidental disconnection?
It uses a screw locking mechanism to ensure a tight and secure connection. -
What is the rated voltage and current?
Rated voltage is up to 250 V AC/DC, current up to 10 A. -
How durable is this connector in industrial conditions?
It is built to resist mechanical stress, vibrations, moisture, and corrosion, surfering long-term reliability.
Related Modèles from the Same Series or Similar Use
| Modèle Number | Description | Pins | Protection Rating | Cable Diameter | Operating Temp. |
|---|---|---|---|---|---|
| Z7108/3234/C8 | 8-pin cable plug | 8 | IP67 | 7 – 12 mm | -40°C to +85°C |
| Z7108/3236/C6 | 6-pin cable plug | 6 | IP67 | 6 – 11 mm | -40°C to +85°C |
| Z7108/3237/C10 | 10-pin cable plug | 10 | IP67 | 7 – 13 mm | -40°C to +85°C |
| Z7108/3237/Ex/C10 | Explosion-prosur 10-pin cable plug | 10 | ATEX Certified | 7 – 13 mm | -40°C to +85°C |
| Z7108/3240/C12 | 12-pin cable plug | 12 | IP67 | 8 – 14 mm | -40°C to +85°C |
| Z7108/3250/C15 | 15-pin heavy-duty cable plug | 15 | IP68 | 7 – 15 mm | -40°C to +85°C |
Popular Modèles from HIMA Marque
| Modèle Number | Description | Type | Typical Application |
|---|---|---|---|
| Z7008/3238/Ex/C8 | Explosion-prosur 8-pin cable plug | Cable Plug | Hazardous area connections |
| Z7200/0012 | Safety relay module | Safety Relay | Emergency shutdown circuits |
| Y7000/3220 | Safety controller interface module | Interface Module | Process safety management |
| Z7010/1201 | Explosion-prosur terminal box | Terminal Box | Wiring junction in hazardous zones |
| Z7008/3240/Ex | 8-pin cable socket | Cable Socket | Automation system connections |
| Z7108/3237/C10 | 10-pin cable plug | Cable Plug | General industrial applications |
